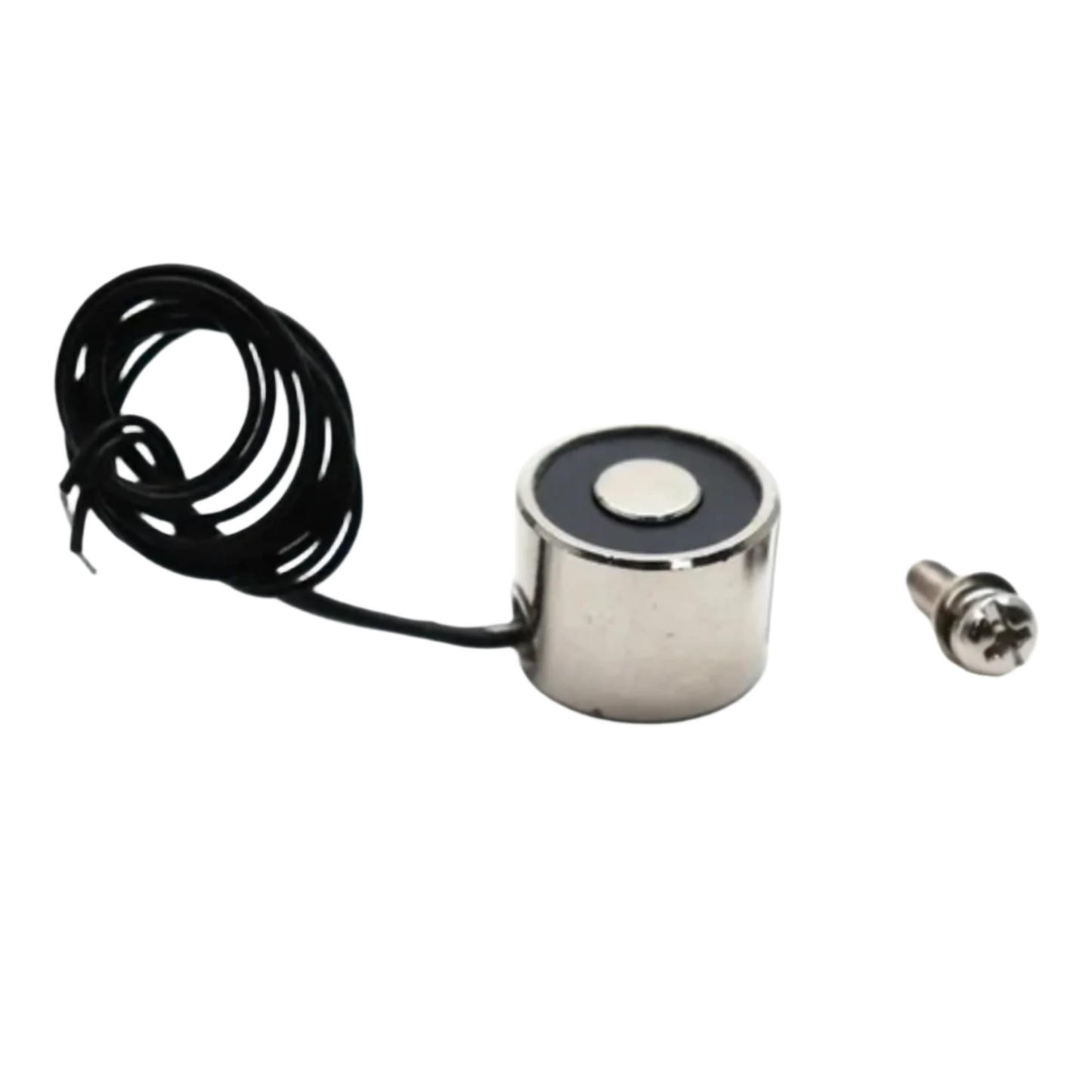

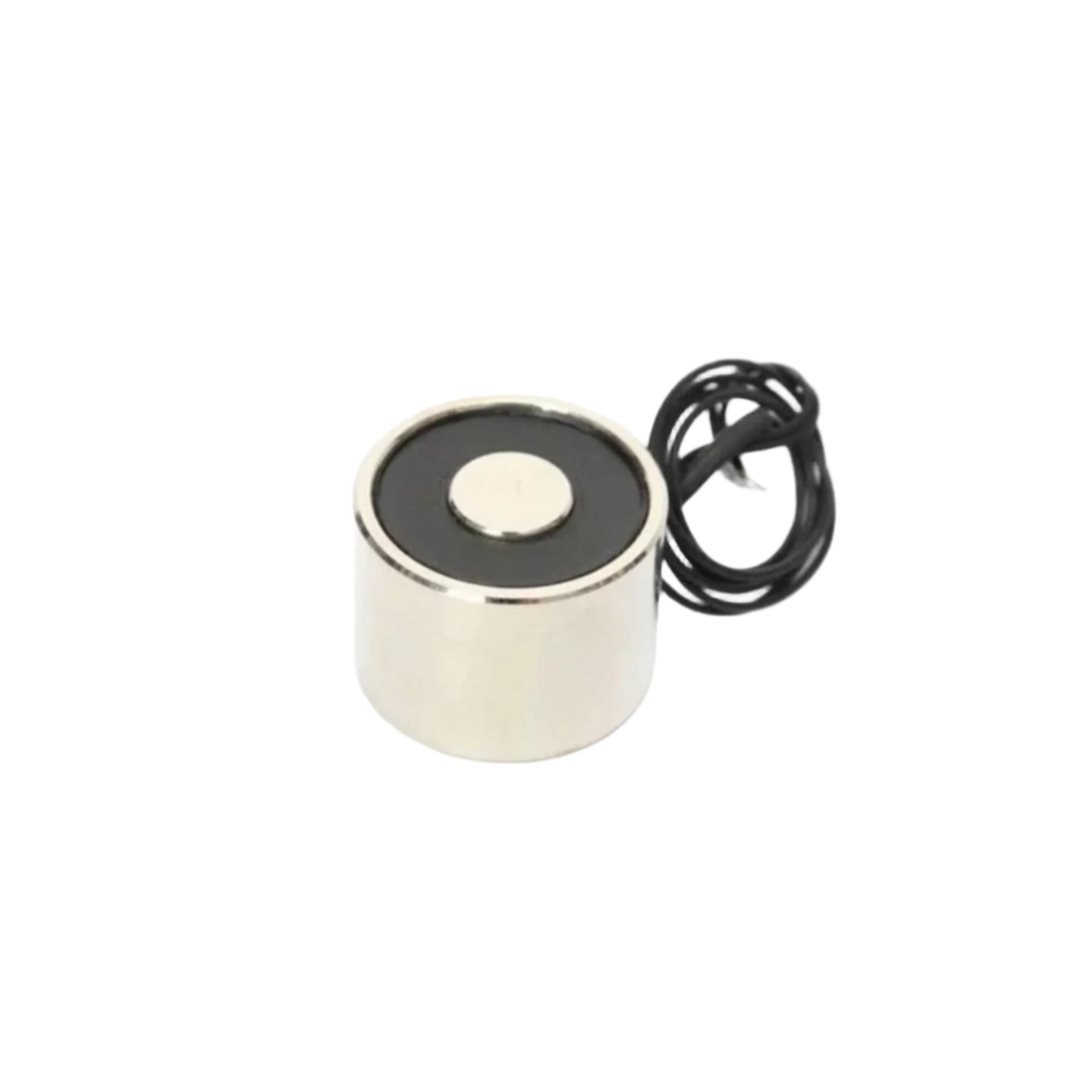

DC24V P30/25 Electric Sucker Solenoid Electromagnet Electric Magnetic Sucker 15KG For Automation - RS3753

DC24V P30/25 Electric Sucker Solenoid Electromagnet Electric Magnetic Sucker 15KG For Automation - RS3753

SKU:RS3753

15 in stock

Regular price Rs. 495.00
Regular price Sale price Rs. 495.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

 DC 24V P30/25 Electric Sucker Electromagnet, engineered with an iron core and coil for powerful magnetic attraction (15KG holding force) activated by electric current. This compact device delivers high performance and exceptional reliability, featuring a unique design to effectively release residual magnetism upon de-energization. Ideal for precise automation and holding applications.

The high power and reliability of the DC 24V P30/25 Electric Sucker Electromagnet. Utilizing electromagnetic induction, this 15 kg holding force device activates only when current is applied. Its intelligent design incorporates a mechanism to minimize residual magnetism, ensuring clean and efficient release. Perfect for integration into sophisticated automated systems.

Specifications:

  • Item Type: Suction Electromagnet
  • Electromagnet Force: 15 kg
  • Voltage Rating: 24VDC
  • Current Rating: 0.17A
  • Model Name: 24V P30/25
  • Holding/ Suction Force: 15KG
  • Operating Voltage: 24VDC
  • Max. Operating Current: 0.17A
  • Operating Temperature: -20 to 120°C

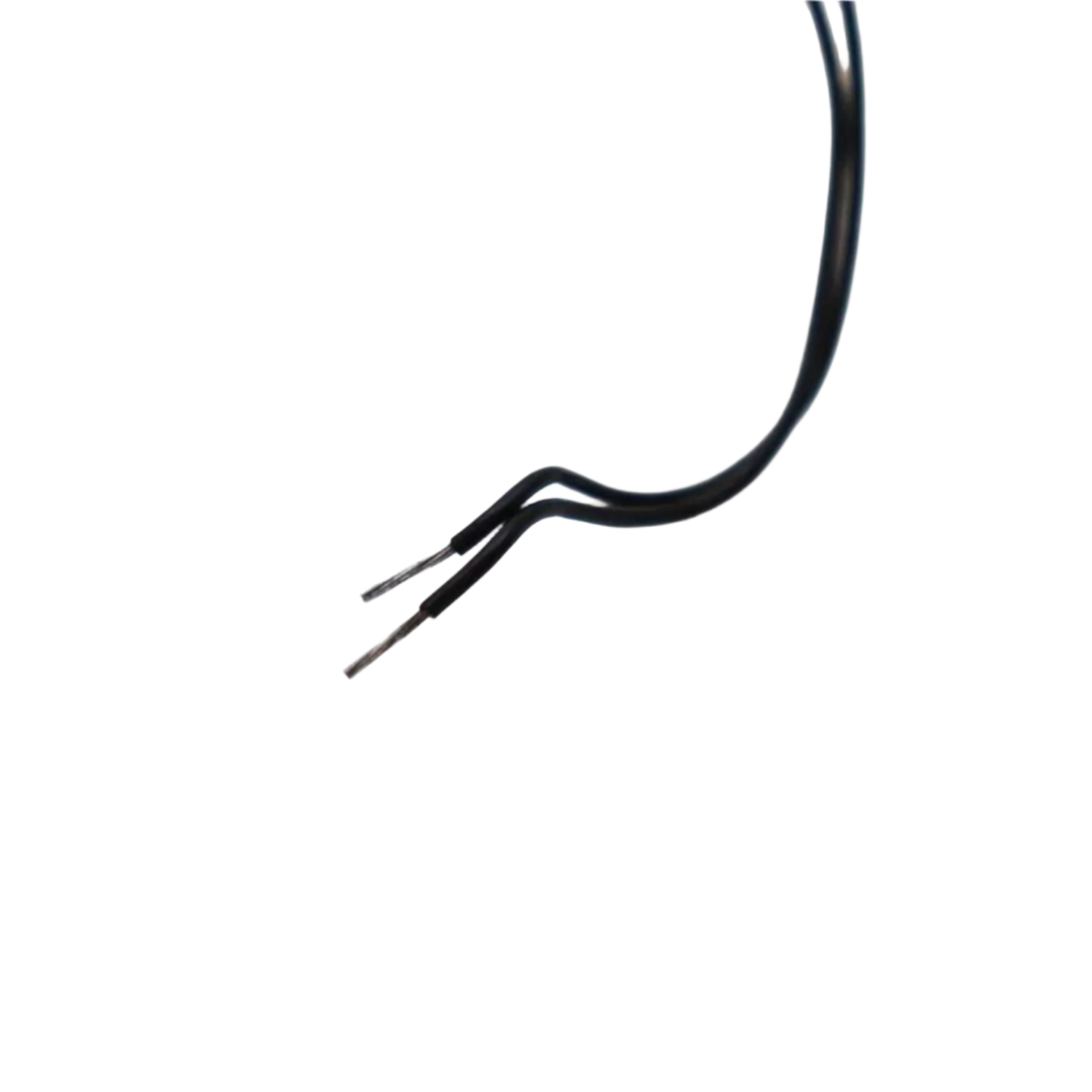

  • Cable Length: 30cm
  • Bolt Size: M4
  • Body Material: Mild Steel

Features:

  • High Power, High Efficiency
  • Adjustable Force
  • Minimized Residual Magnetism
  • Lightweight Compact
  • Long Lifespan
  • Wide Automation Use

Package Included:

  • 1 x DC24V P30/25 Electric Sucker Solenoid Electromagnet
  • 1 x M4 Bolt With Washer
