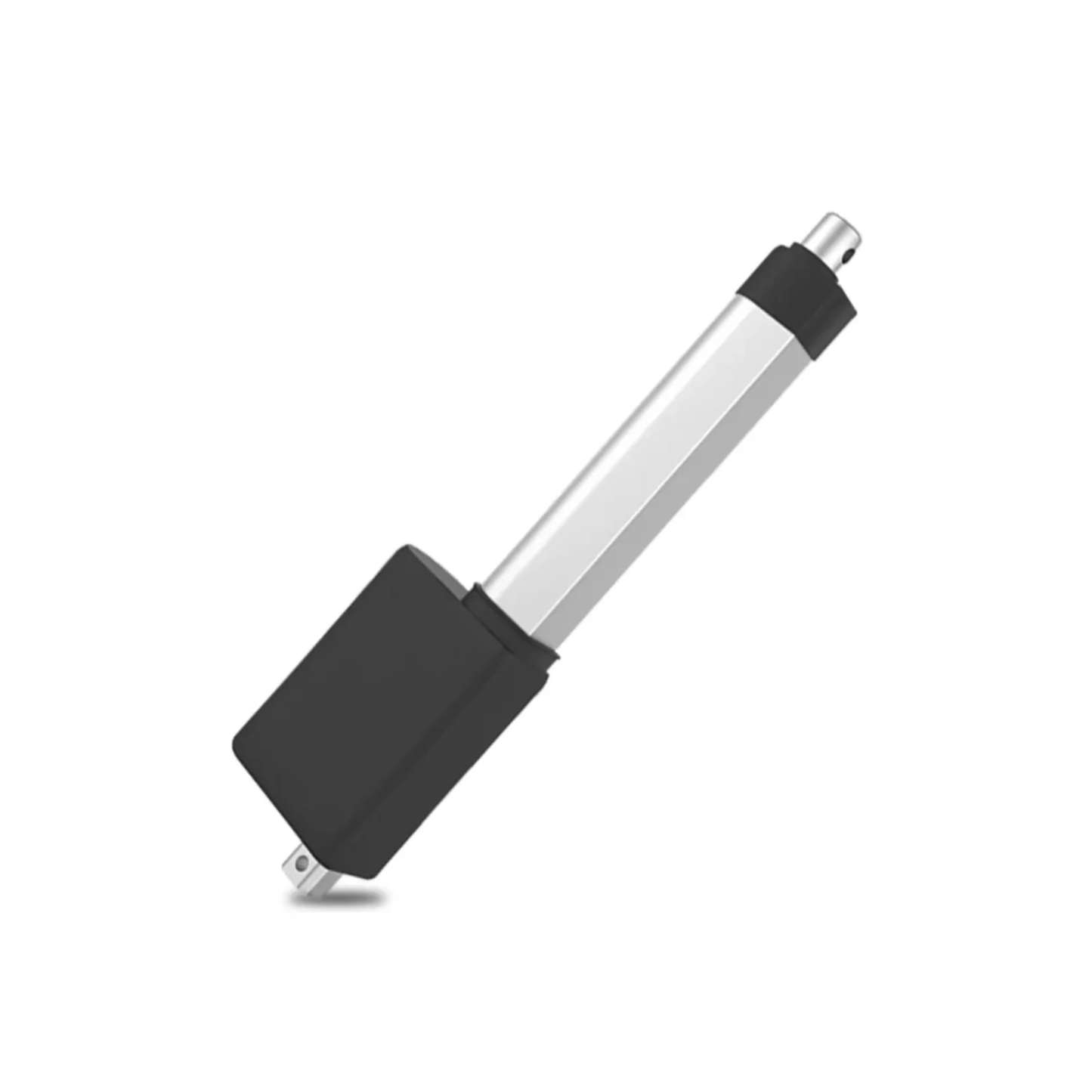

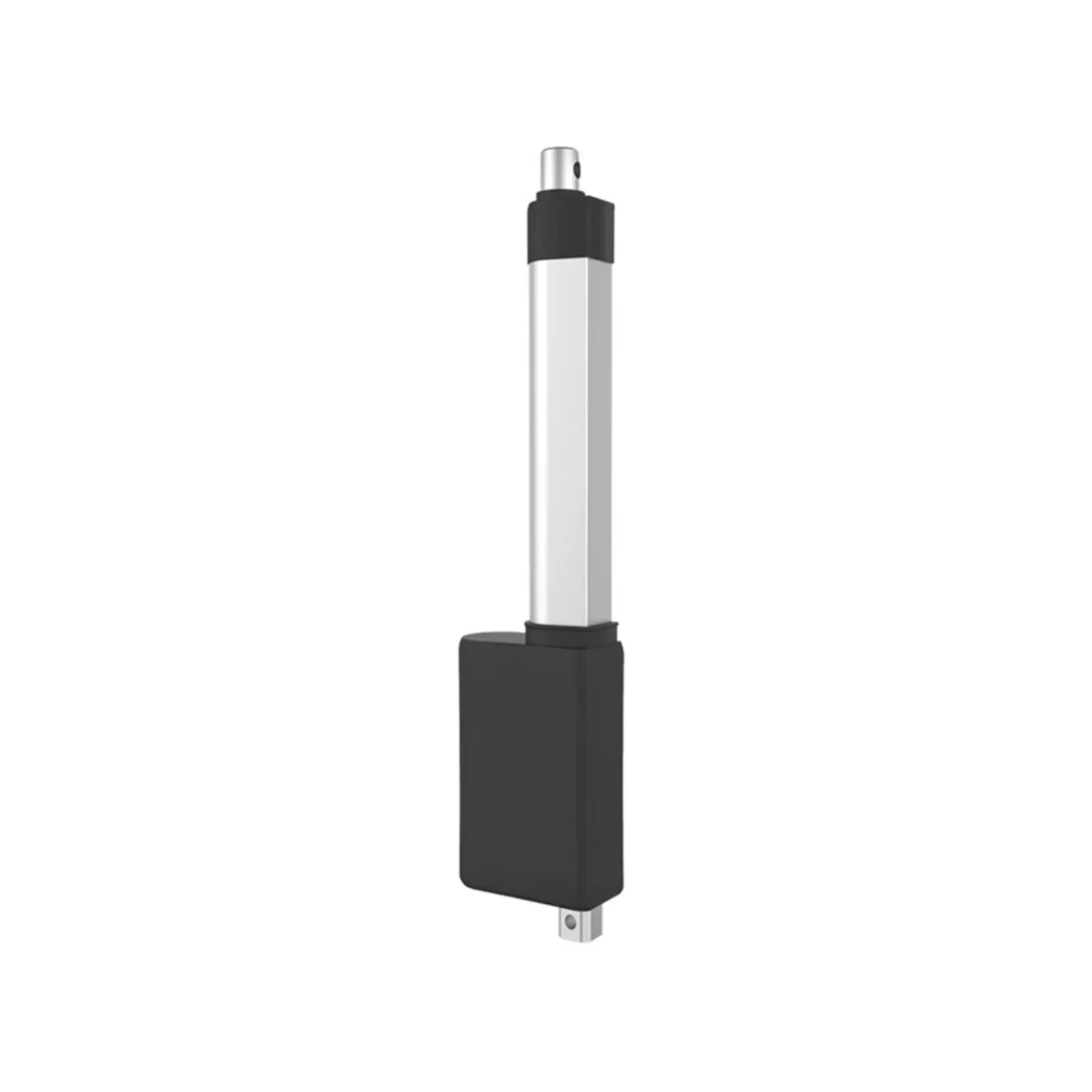

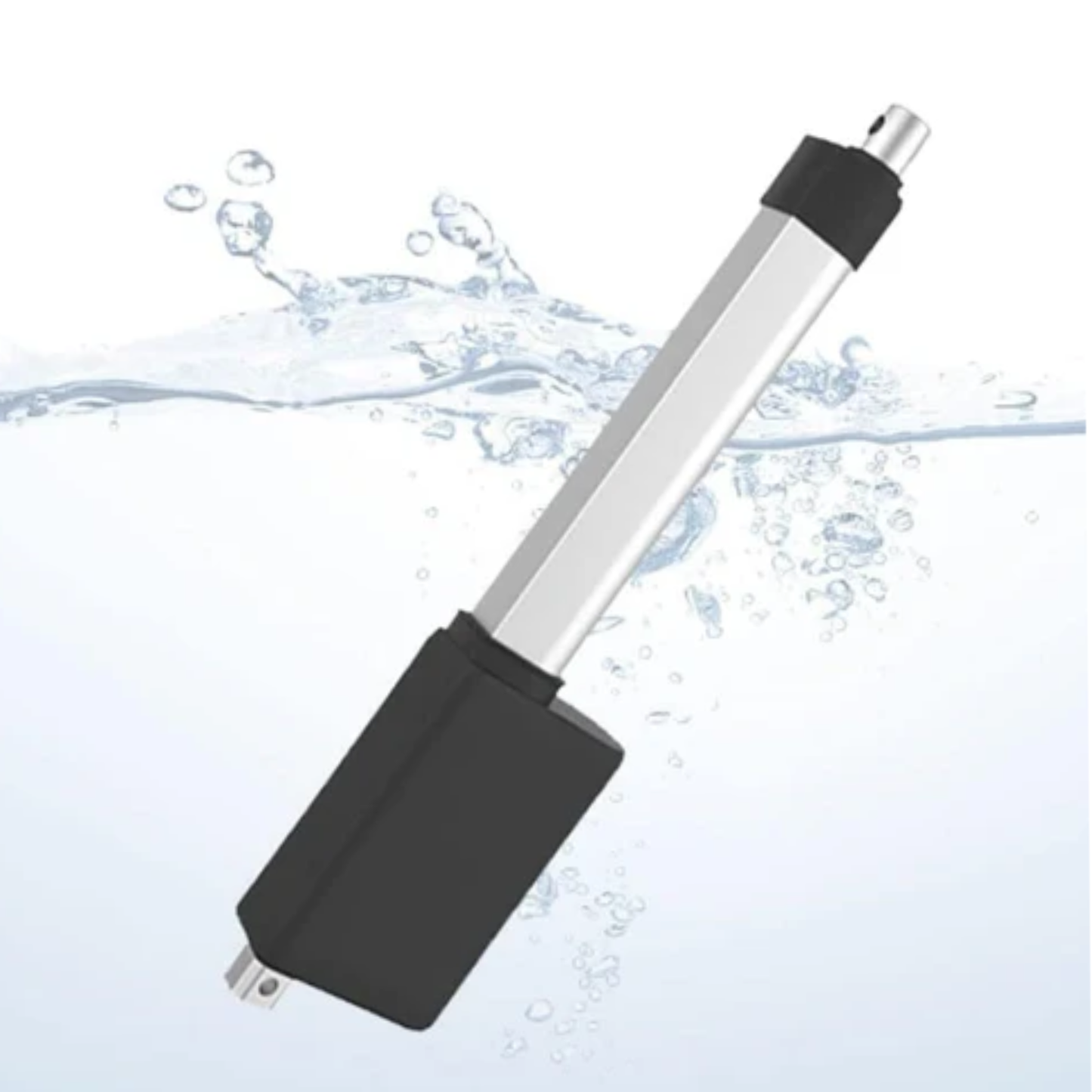

DC12V Linear Actuator Waterproof 12MM/S 200mm Stroke 1100N Putter Electric Linear Actuator For Industrial Electric Lifting System/Medical Device/Gate Opener- RS6929

Description:

This Miniature Linear Actuator is a versatile electric push rod, delivering 200mm of stroke, a swift 12mm/s speed, and a powerful 1100N force at 12V. Engineered for reliable, stable operation with sensitive action, it's an ideal solution for a broad spectrum of applications. From industrial automation and agricultural machinery to automotive, medical devices, construction, and specialized vehicles, this actuator offers precise linear motion for remote, centralized, or automatic control systems. Its high-quality metal construction and built-in stroke switch ensure excellent performance and adaptability to various environments.

Specifications:

• Operating Voltage: 12(VDC)
• Stroke Length: 200(mm)
• Force: 1100(N)
• Speed: 12(mm/s)
• Body Material: Aluminium Alloy
• Operating Temperature: -20 to 85(°C)
• Noise Level: <40(dB)

• Self Locking Force: 1100(N)
• No Load Current: 750(mA)
• Speed at Full Load: 12(mm/Sec)
• Speed at No Load: 12(mm/Sec)
•  Protection level: IP52

Features:

• Low Noise
• Compact Design
• Built-in Limit Switch
• Moisture-proof Surface
• Permanent magnet DC motor drive
• Aluminum frame and extension tube

• The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.


Applications:

• Agricultural machinery
• Industrial electric lifting system

Package Included:

1 x DC12V Linear Actuator
