Description:
This RF touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all kinds of constant voltage led products, such as LED sources, flexible strips, wall washers, glass curtain wall lights, and so on. User can choose different changing modes, adjust the speed and brightness, and turn on/off the remote control according to their preference. This controller has with power memory function, the next time to use it, will start with the model it saves. It has built-in 7 kinds of static color, jump, fade, strobe, flow, automatic cycle, and other effects.
Agile wiring, easy connection, and simplicity of use are the representative advantages of this controller. Besides, This controller has with short circuit protection function, when meets a short circuit, its green indicating light will twinkle at a fixed frequency to indicate the user. what's more, with an automatic restore function after short circuit protection, this personalized design can make the user experience another different sense.
Specifications:
RGB Controller:
- Working Temperature: -30~+60
- Supply Voltage: DC5V/DC 12V-24V,
- Output: 3 Channels N-MOS Drain open output
- Connection Mode: Common anode
- Static Power Consumption: <0.5W
- Output Current: 6A*3Ch=18A 6A(Each channel)

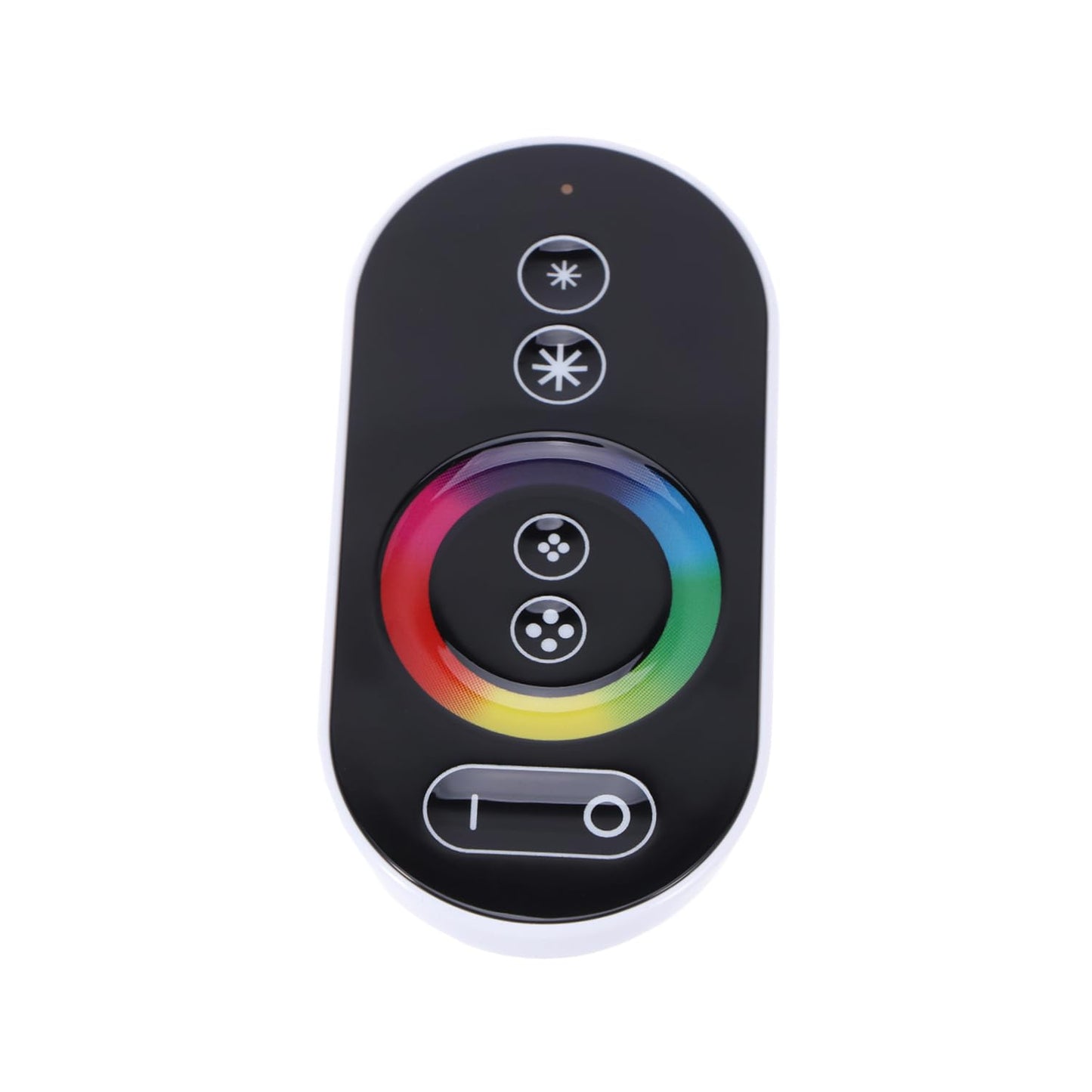

Remote Control:
- Working Temperature:-30~+60
- Supply Voltage: 3V
- Static Power Consumption: <0.09mW
- Static Current: 10uA
- Operating Current: 15mA
- Remote-Controlled Distance: >20M
Features:
- Touch remote performance is good, easy to wire, and easy to use.
- Colored ring and key functions, and increase the touch sensitivity, reducing the false trigger.
- With the memory storage function, through the remote control mode selection, adjust the brightness, speed, static colours, dynamic changes, and so on.
- Can control a variety of lights for the light source, such as LED modules, LED lights with, LED point light source, LED wall washers, and glass curtain wall lights.
- Use the remote control to switch the RGB light bar mode; you can also change the RGB light bar brightness and speed.
- LED touch controller, high sensitivity, stable performance, and ultra-low power consumption.
- Using advanced touch design technology, with your fingertips gently slide through the color ring to achieve the perfect touch control effect.
Pin Description:
Package Included:
1 x RGB LED Controller
1 x Full Touch RF Remote Control
