- Working Voltage: DC10V-60V(Broad Voltage)
- Controlling Power: 12V*10A=120W,24V*10A=240W,... Rated
- Current: 10A
- MAX Current: 20A
- Speed Rate Range: 5%-100%
Description:
DC Motor Speed Controller, the full name of pulse width modulation is Pulse Width Modulator. DC motor governor is a device for adjusting the speed of a DC motor. DC motor has the characteristics of low speed and large torque which can not be replaced by the AC motor. Therefore, the equipment that regulates the speed of the DC motor - DC governor can be widely used. It is often used in DC load circuits due to its special properties. Lamp dimming or DC motor speed regulation, HW-1020 governor are made by pulse width modulation (PWM) principle. Such as Motor governor and PWM governor. Industrial DC motor speed regulation, industrial conveyor belt speed regulation, lighting and lighting mediation, computer power supply cooling, DC fan, etc have been widely used.
Specification:
- Working Voltage: DC10V-60V(Broad Voltage)
- Controlling Power: 12V*10A=120W,24V*10A=240W,... Rated
- Current: 10A
- Max Current: 20A
- Speed Rate Range: 5%-100%
- PWM Frequency: 25kHz
- Potentiometer: B100K
Features
- Universal DC Motor Speed Controller.
- Control the speed of a DC motor with this controller.
- The motor speed controller can easily provide a continuous current to your DC motor or other DC load.
- High efficiency, high torque, high power, high heat dissipation.
- A good speed controller for DC motors.
Attention!
- Do not connect the positive and negative poles reversely.
- It may break the controller.
- You could switch the motor pole to make it right rotating direction.
- Adjust the potentiometer to change the motor's speed.
- The power you apply should not be more than the rated current.
Package Included :

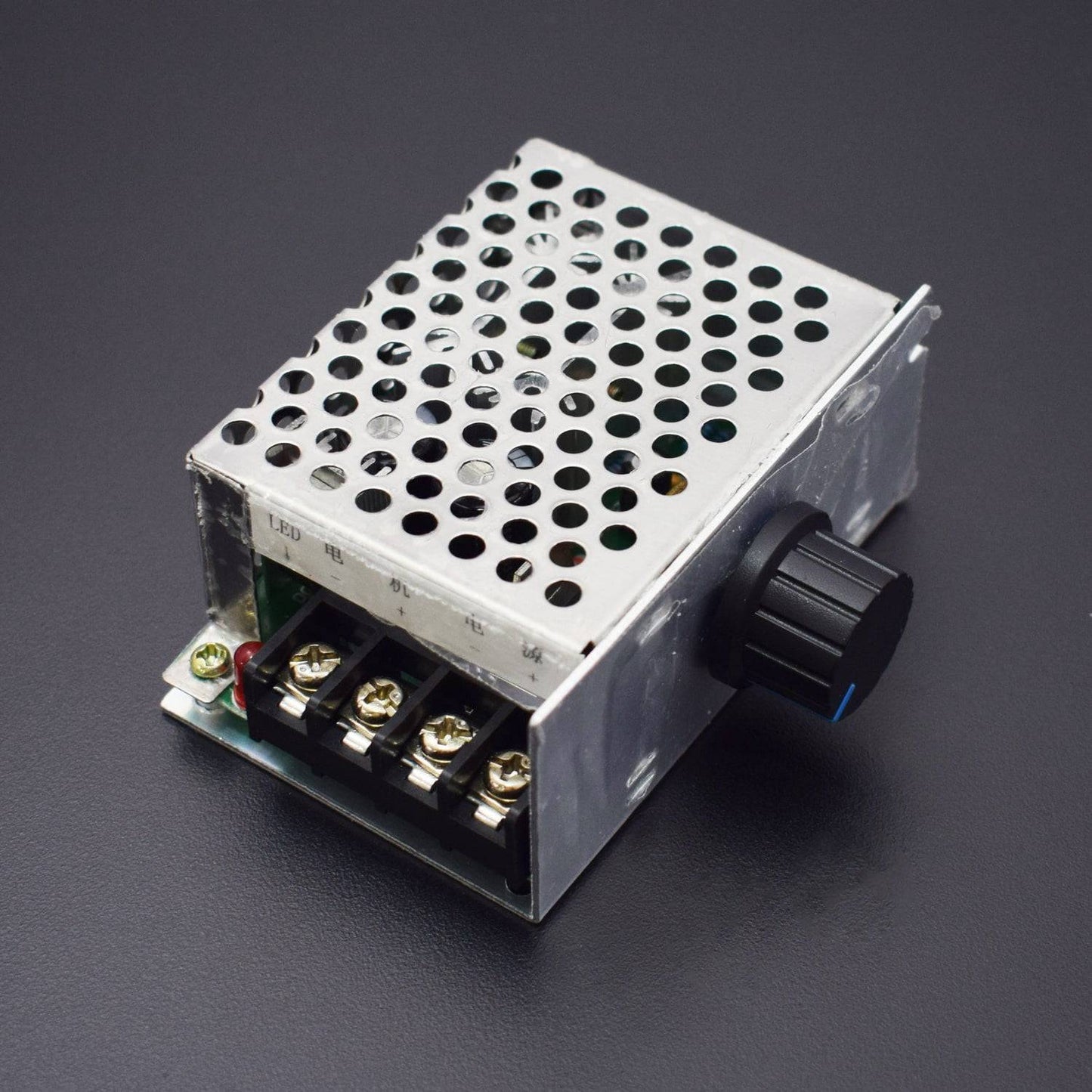

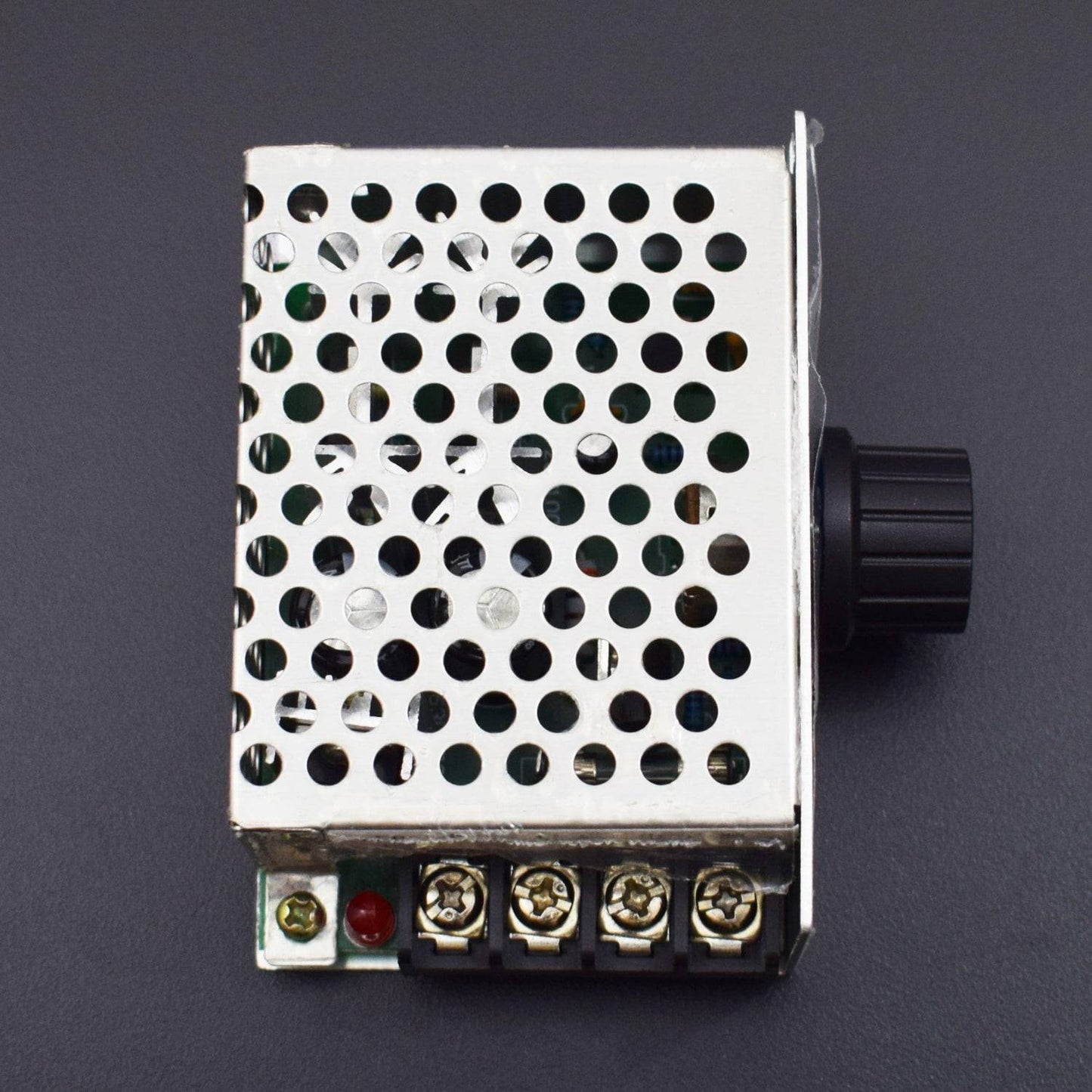

1 x DC10-60V 12V 24V 36V 48V 10A Motor Speed Controller
