- Module property: Non-isolated buck module (BUCK)
- Input voltage: 6-36V
- Output voltage:1.25-32V continuously adjustable (default 5V)
- MPPT voltage setting range: 6-36V
- Output current range: 0.05-5A (default 3A)
- Turn lights output range: 0.01-5A (default 0.3A)
- Operating temperature: -40 to + 85 degrees
- Operating frequency: 180KHz
Description:
5A constant current and voltage non-isolated buck module, compact design, small size and high conversion efficiency, up to 95%.With short circuit and over temperature protection; Can be used to drive large power LED, charge battery, as a vehicle power supply to charge mobile phone or a variety of digital products, etc.
- 5A constant current and voltage non-isolated buck module, compact design, small size and high conversion efficiency, up to 95%.
- Light control and charge indicator: red light on when charging, green light on when full charging, convenient to observe the state of charge.
- With LED voltmeter, press the button for 3 seconds to switch among input/output voltage and output current and output power; press for 5 seconds to turn on/off the voltmeter.
Specification:
- Module property: Non-isolated buck module (BUCK)
- Input voltage: 6-36V
- Output voltage:1.25-32V continuously adjustable (default 5V)
- MPPT voltage setting range: 6-36V
- Output current range: 0.05-5A (default 3A)
- Turn lights output range: 0.01-5A (default 0.3A)
- Operating temperature: -40 to + 85 degrees
- Operating frequency: 180KHz
- Conversion efficiency: up to 95% (efficiency is related with input voltage,output voltage,current and voltage difference)
- Short circuit protection: Yes
- Over temperature protection:Yes (automatically shut off the output after over temperature)
- Input reverse polarity protection: None, (if necessary, please add a diode)
- Output anti-irrigation protection: None, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
- Charge indicator: light red when charging, full of green light. Turn light detection mode for current. In the use of solar panels powered, the sun is very small charge current, lower than the current, the same will be a green light, but this time is not full, please pay attention to distinguish. For live header will more directly see the charging current.
- Installation: 3mm screws(4)
Note:
- The current detection module is the low-end testing, please do not directly connect the input negative with the output negative.
Package Included:

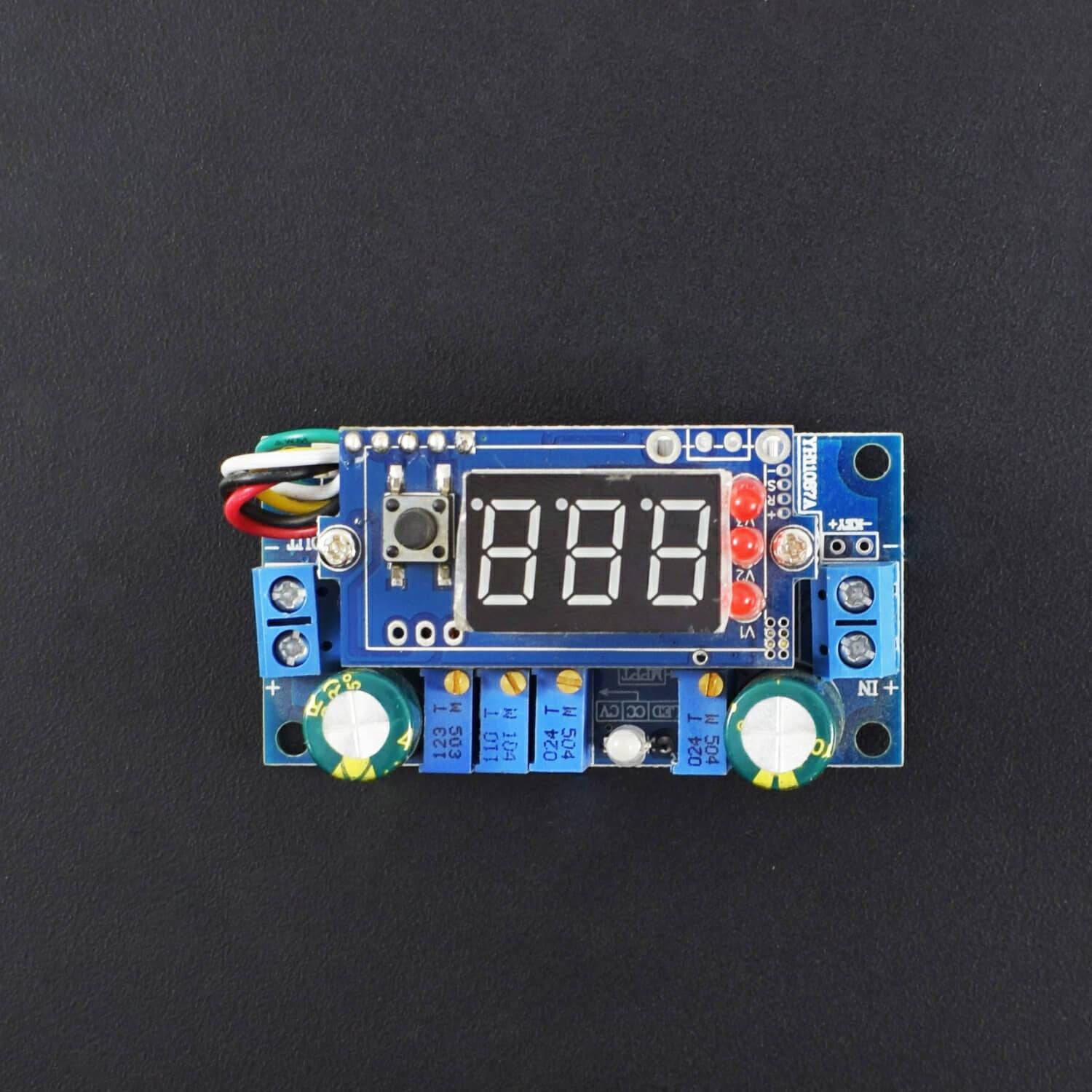

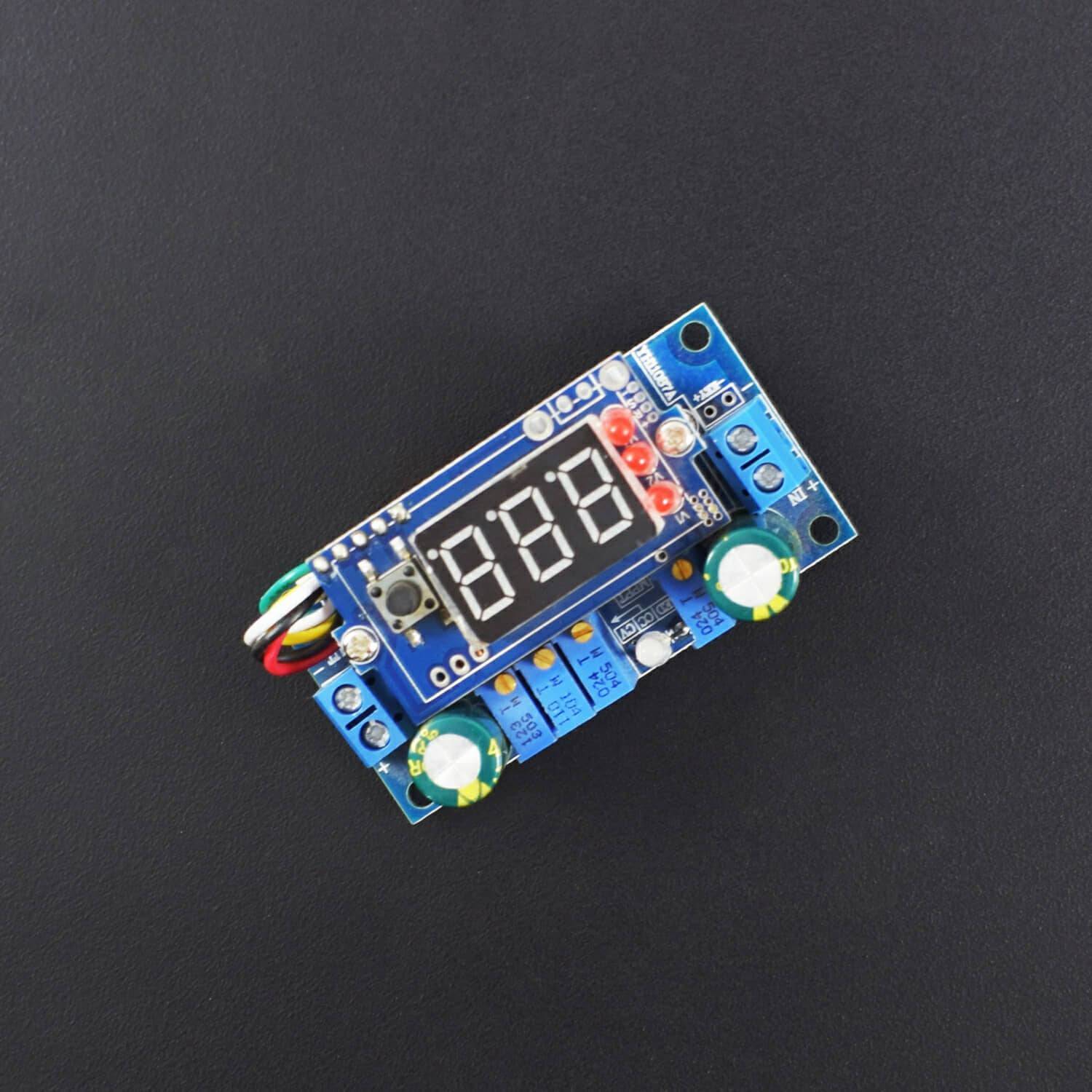

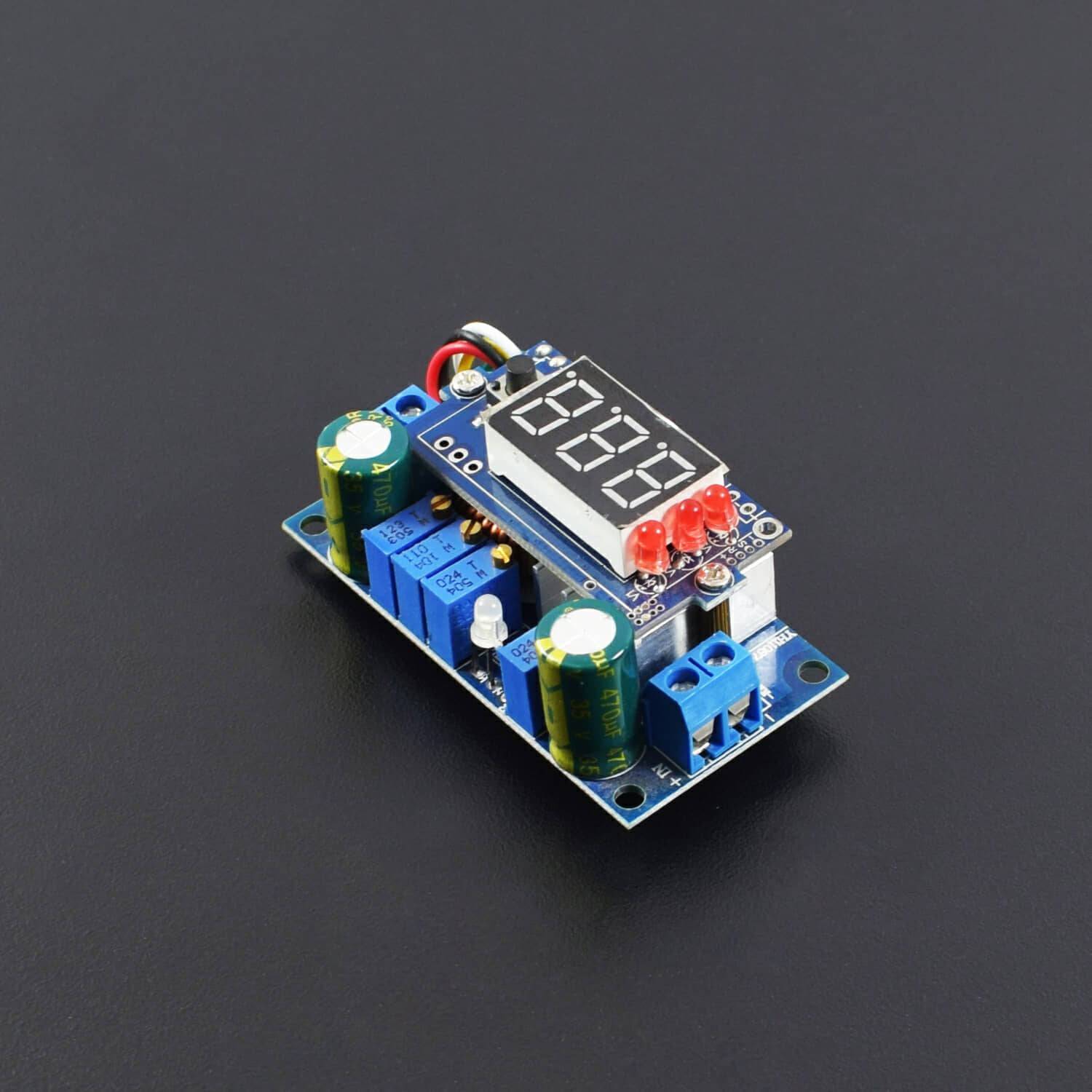

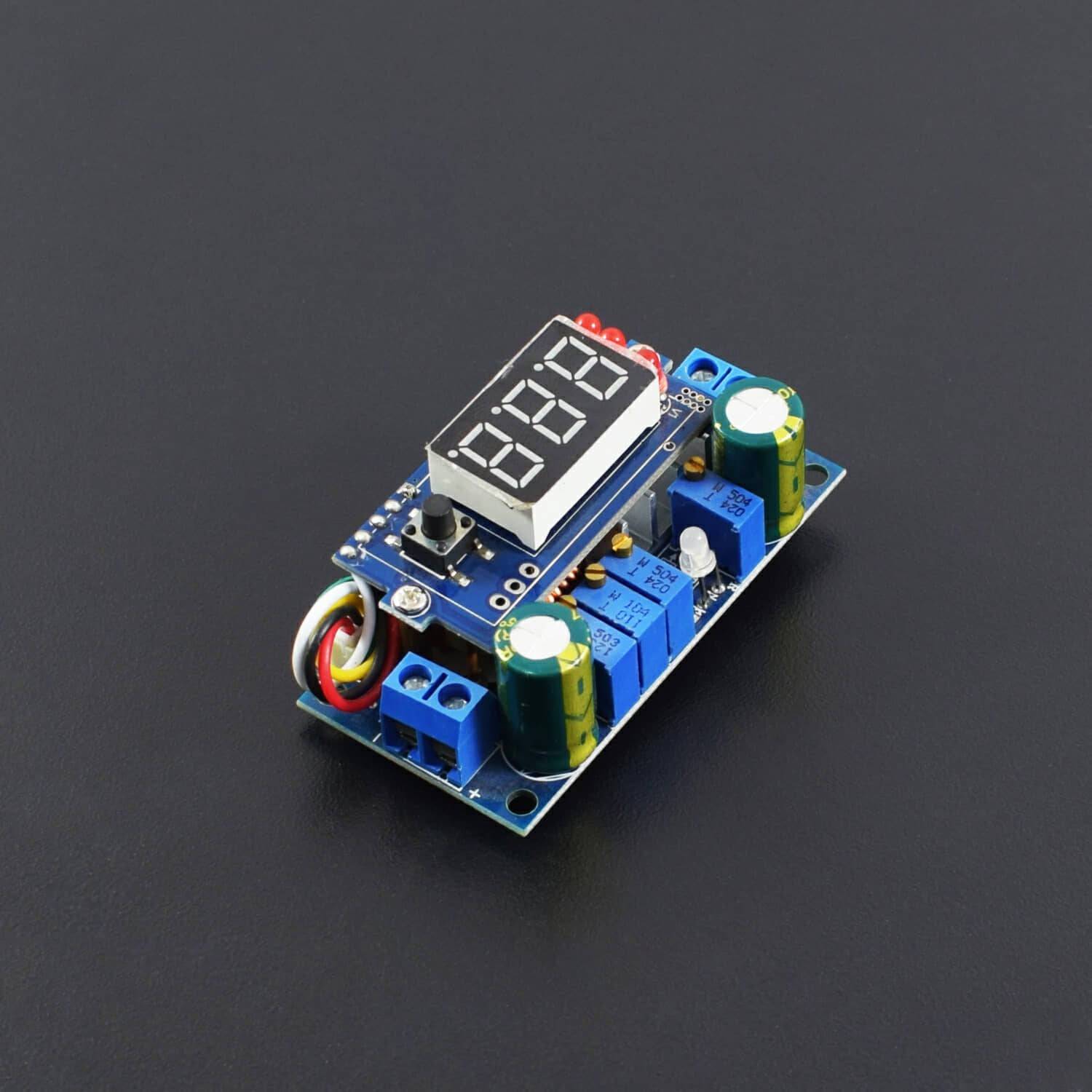

1 x MPPT 5A DC buck converter
