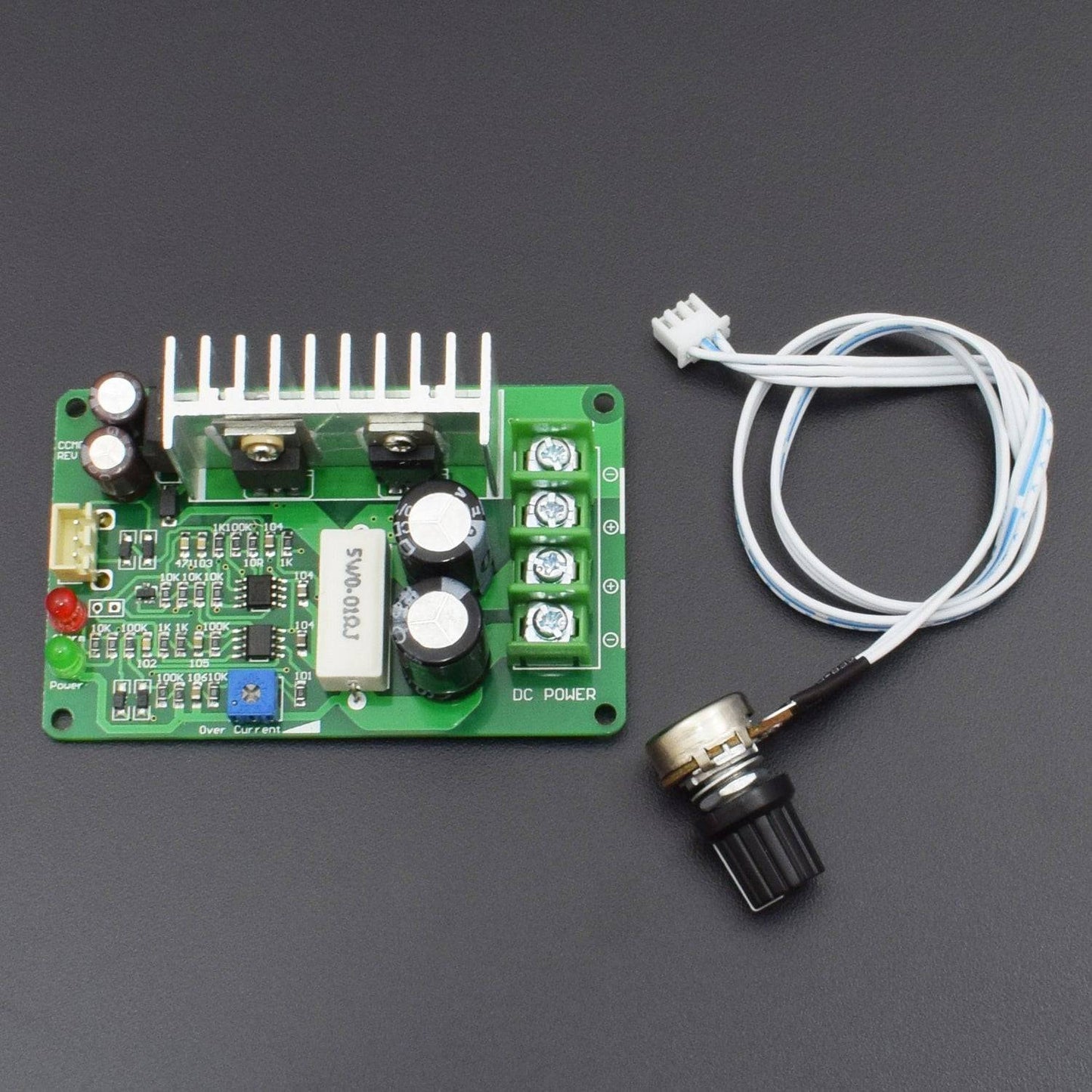

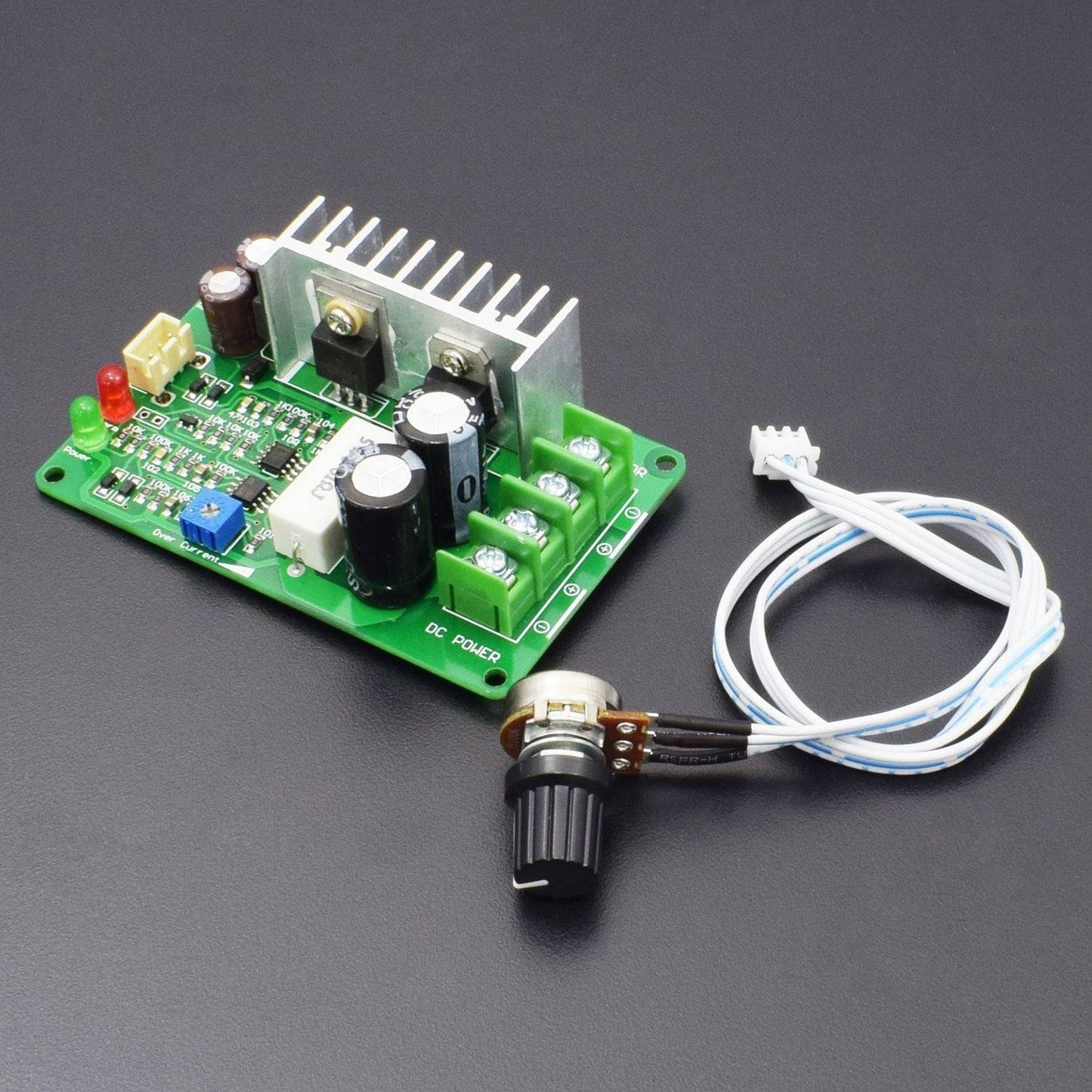

DC PWM Motor Speed Controller 12V 24V 36V 15A Over-current Protector Over-load Locked-rotor Protector CCMCP- RS953
DC PWM Motor Speed Controller 12V 24V 36V 15A Over-current Protector Over-load Locked-rotor Protector CCMCP- RS953
SKU:RS953
17 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Input: 10VDC-40VDC (better in 12V - 36V)
- Rated Current: 10A
- Maximum Current: 15A
- PWN Frequency: 21KHz
Description:
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The current can be adjusted from 1A to 10A which is quite convenient to set. This is DC motor speed controller which can be applied to a wide range of 12VDC(less than 120W)-24VDC(less than 200W) motors. So it is suit for people DIY, hobby, scientific test etc many fields.
Specification:
- Input: 10VDC-40VDC (better in 12V - 36V)
- Rated Current: 10A
- Maximum Current: 15A
- PWN Frequency: 21KHz
- Control Power: 12V*10A=120W,24V*10A=240W,36V*10A=360W........
- Speed Range: 0%-100%
- Potentiometer Resistance Value: 100K
- Function: control the speed
- Material: Plastic / PCB
Features:
- The positive and negative pole of motor can be connected one way or another. Exchange the pole when the rotation direction is not as expected, exchange the pole.
- Rotate the knob to change output so to change the revolving speed of motor.
- This controller can not be connected to alternating current, or it will be burnt.
Caution:
- DC motor speed controller input is DC Power, It can not be directly connected to AC power.(eg:220V AC power)
- DC Power positive and negative level can not Reversed, Otherwise the speed regulator will damage.
Package Included:
1 x DC PWM Motor Speed Controller 12V 24V 36V 15A Over-current Protector Over-load Locked-rotor Protector CCMCP
