- Connector Name: DC Jack
- Connector Type: Male
- Color: Black
- Internal diameter: 2.1mm
Description:
The male barrel connector, or plug, is usually only found in a wire termination variety, although there are multiple methods of attaching the plug to the end of the wire. It's also possible to get plugs that come pre-attached to a cable. Barrel connectors provide only two connections, frequently referred to as "pin" or "tip" and "sleeve". When ordering, there are three differentiating characteristics of a barrel connection- inner diameter (the diameter of the pin inside the jack), outer diameter (the diameter of the sleeve on the outside of the plug), and polarity (whether the sleeve voltage is higher or lower than the tip voltage).
Specification:
- Connector Name: DC Jack
- Connector Type: Male
- Color: Black
- Internal diameter: 2.1mm
- External Diameter: 5.5mm
Package Included:

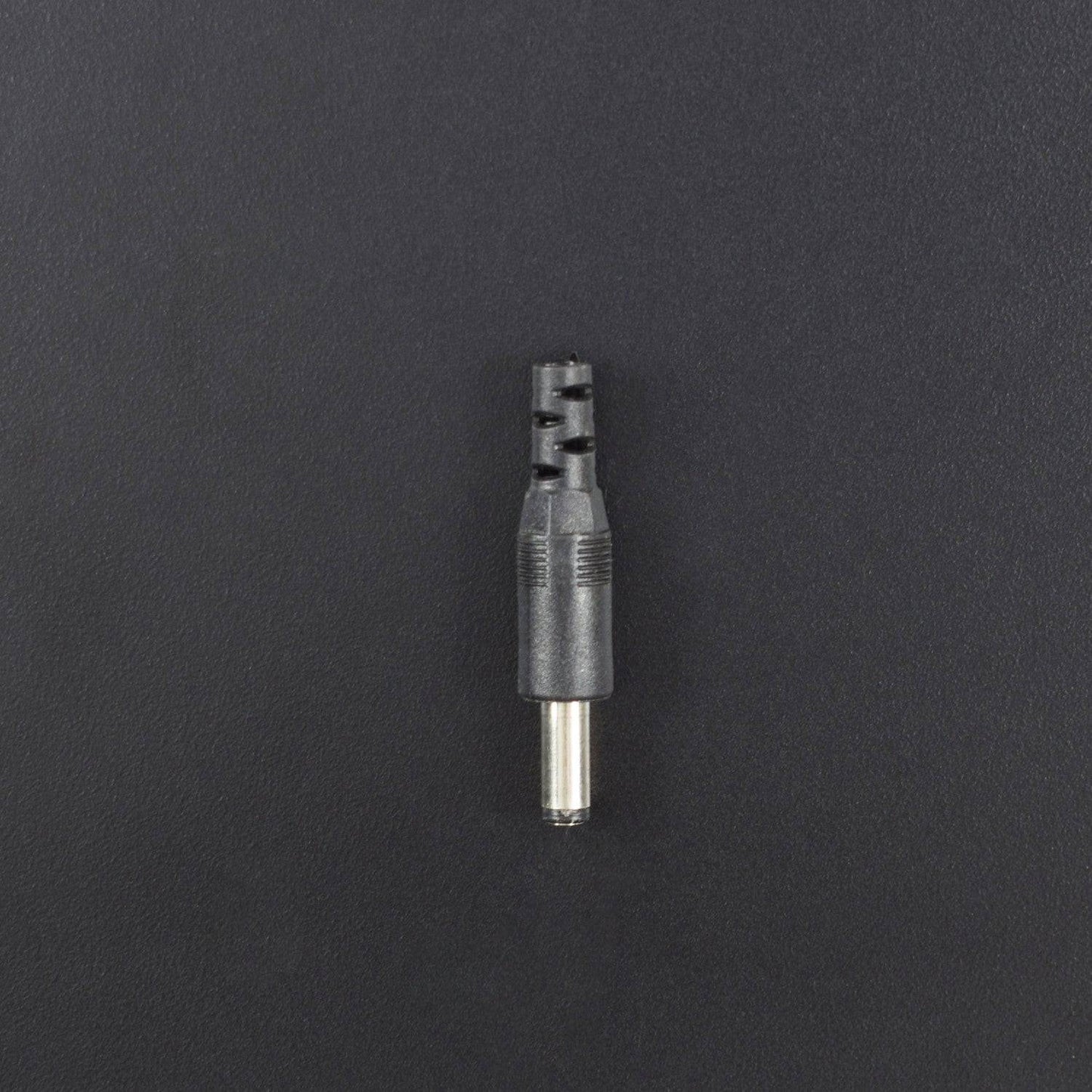

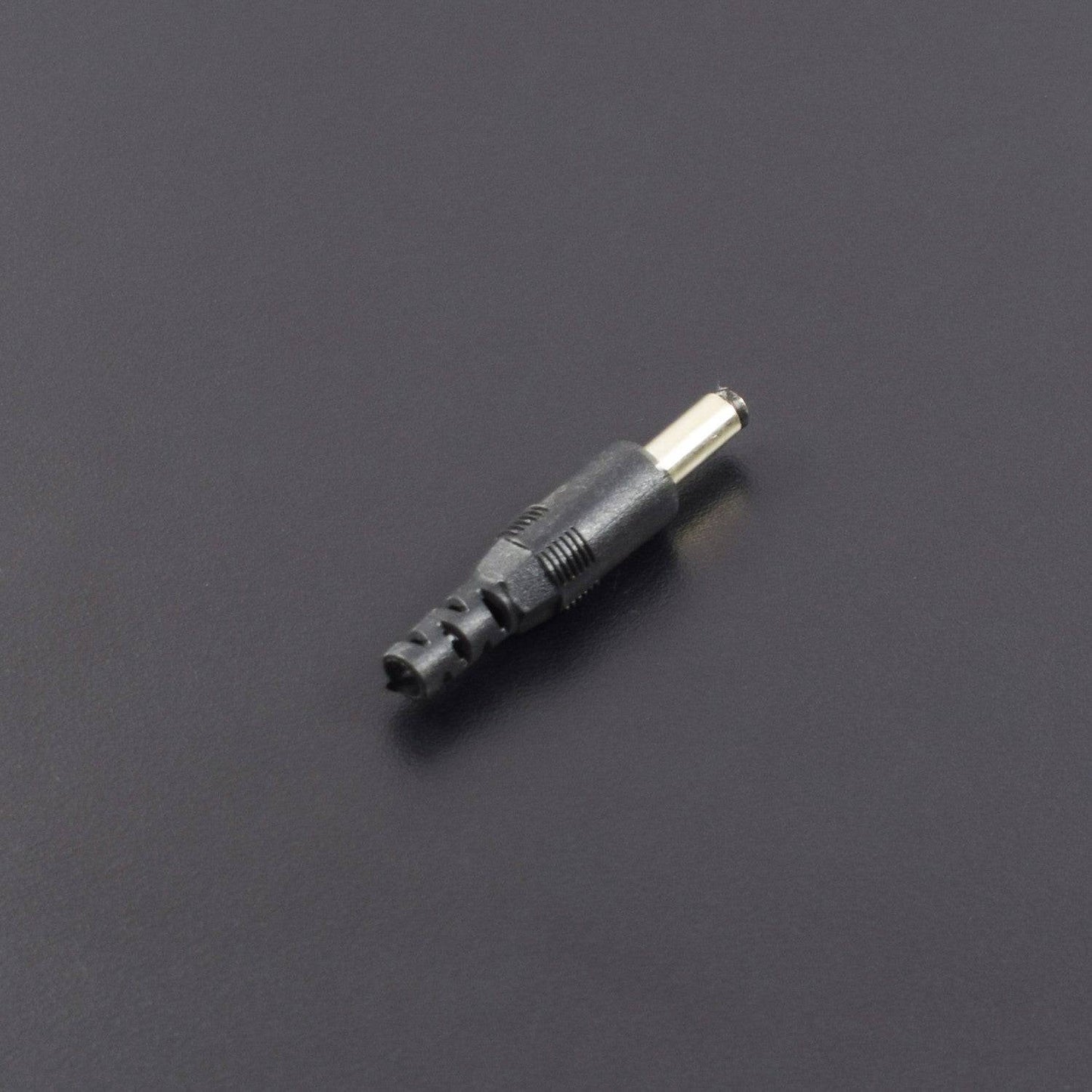

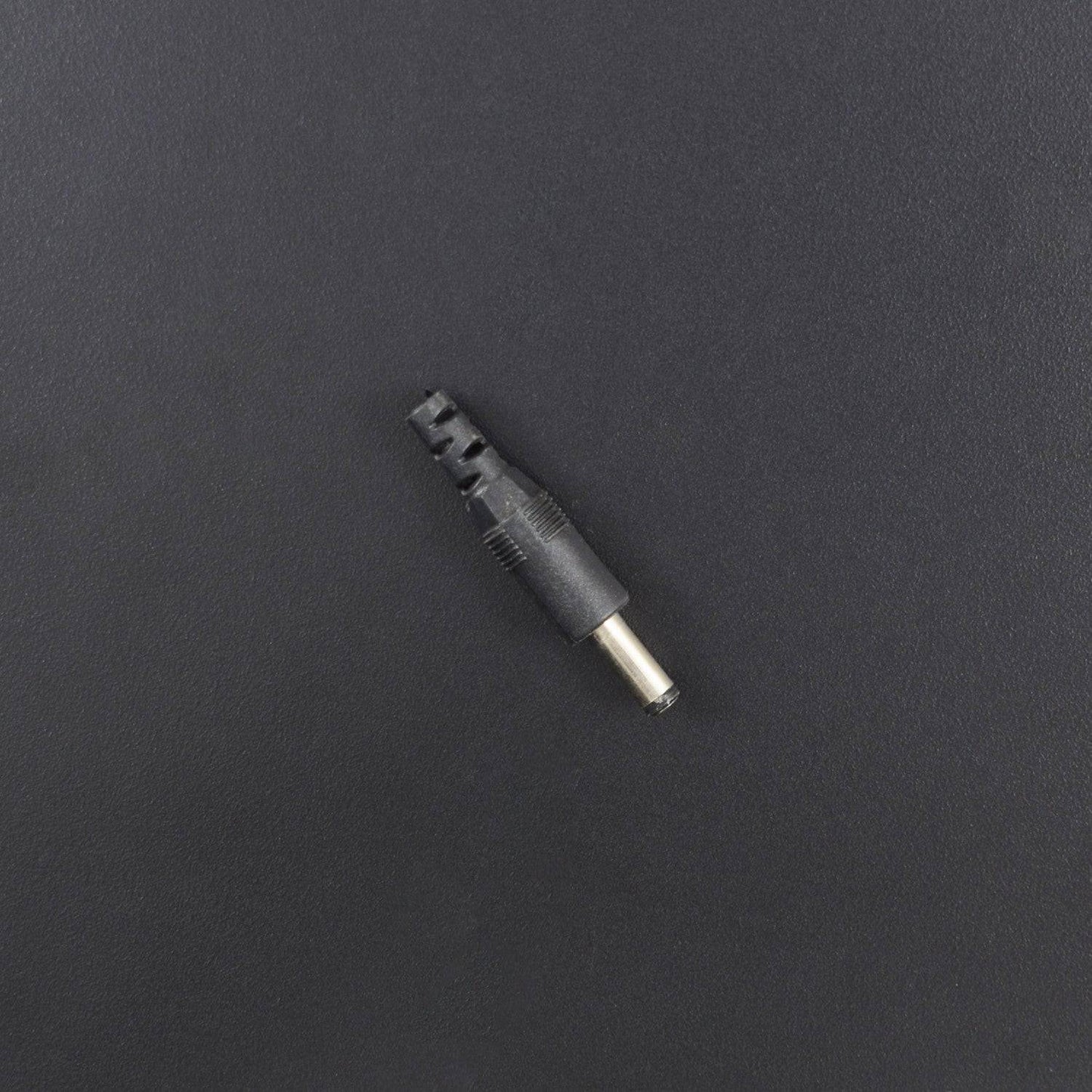

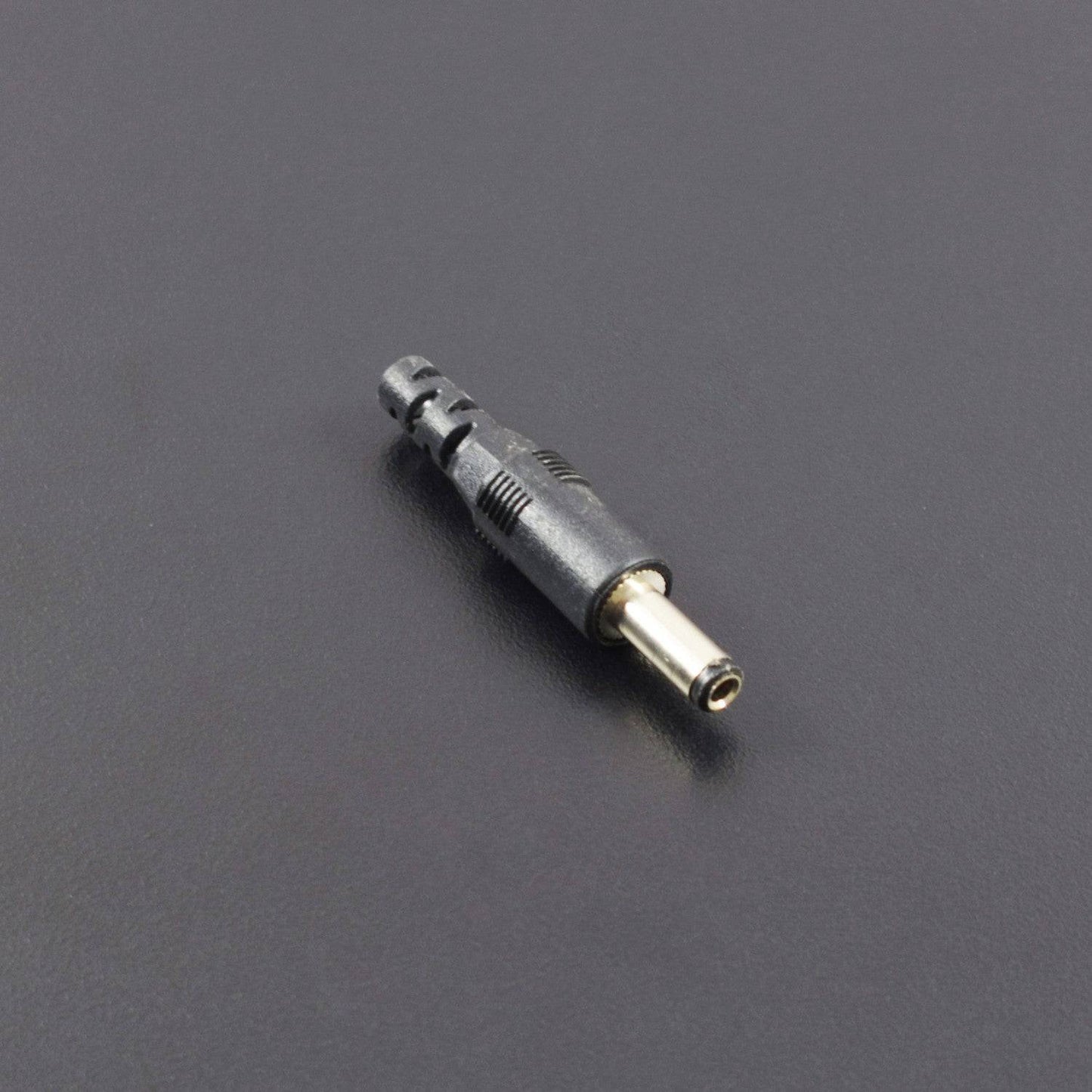

1 x 2.1x5.5mm DC Power Male Plug-in Jack Adapter Connector for CCTV Camera
