- Operating Voltage : 3 5.3 VDC
- Motor Diameter : 10mm
- Rated Speed : 9000 RPM (min)
- Rated Voltage : 5 VDC
- Rated Current : up to 60 mA
- Starting Current : up to 90 mA
- Starting Voltage : 3.7 VDC
- Insulation Resistance : 10 M
Description :

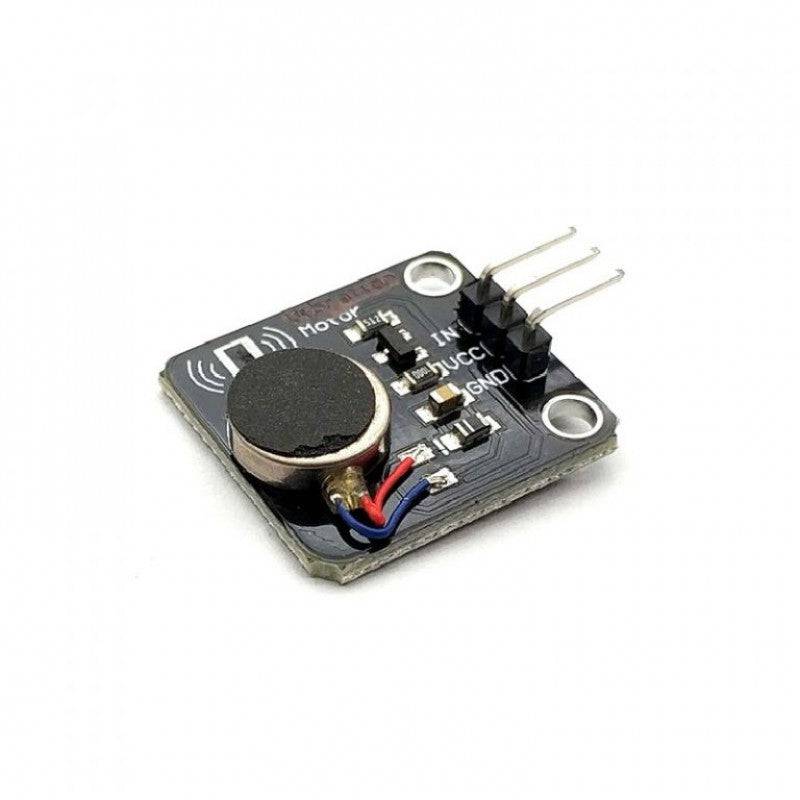

Do you need a vibration motor? So we have a small WM Vibration Motor Switch Toy Motor Sensor Module DC Motor Mobile Phone Vibrator DIY Kit Board sensor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone. The vibration intensity of the motor can be controlled by PWM; moreover, this module can easily convert electrical signals to mechanical vibration. Applications of this device include vibration-sensitive interactive products, wearable smart device, vibration reminders, etc.
Features:
- Rated voltage: 5.0VDC
- High rated speed
- Size: 21*23mm
- Fixed hole: 3mm
- Pitch: 15mm
- Flat motor
- Drive: MOS tube high-level trigger, low-level cutoff
- Compatible with UNO R3/ Mega2560
- Great for DIY projects
Specifications:
- Operating Voltage : 3 5.3 VDC
- Motor Diameter : 10mm
- Rated Speed : 9000 RPM (min)
- Rated Voltage : 5 VDC
- Rated Current : up to 60 mA
- Starting Current : up to 90 mA
- Starting Voltage : 3.7 VDC
- Insulation Resistance : 10 M
Package Included:
1 x DC Motor Mobile Phone Vibrator Vibration Motor Alarm Module Black
