- Input: 6V-40V (DC5.5 / 2.1 jack, terminals)
- Output: 5V / 3A (MAX) (with Apple identification resistor)
- Efficiency: 92% (MAX)
- Switching Frequency: 150KHZ
Description:
This is a mini DC step-down voltage converter module with fixed 5V voltage output. On-board DC 5.5X2.1mm power jack socket and 2pin screw terminals as the input power port with DC 6-40V voltage input and 2 USB power output port ideal for a DIY USB charger for your electronic devices such as power bank, smartphone, tablet or 9V/12V/24V/36V to 5V converter module. It has also large current output that can be used as a DIY USB fast charger for your car, smartphone, and tablet, or as a 36V 24V 12V 9V to 5V buck converter power supply module.
Specification:
- Input: 6V-40V (DC5.5 / 2.1 jack, terminals)
- Output: 5V / 3A (MAX) (with Apple identification resistor)
- Efficiency: 92% (MAX)
- Switching Frequency: 150KHZ
- Operating Temperature: -40 ℃ ~ + 85 ℃
Features:
- DC to DC LM2596S step-down voltage converter module with fixed voltage output.
- On-board screw terminals and DC 5.5X2.1mm dual power input jack with 6-40V voltage input.
- Dual USB power output port with 5V fixed voltage output and maximum 3A current output.
- Large current output can be used as a DIY USB fast charger for your car, smartphone, and tablet, or as a 36V 24V 12V 9V to 5V buck converter power supply module.
Package Included:

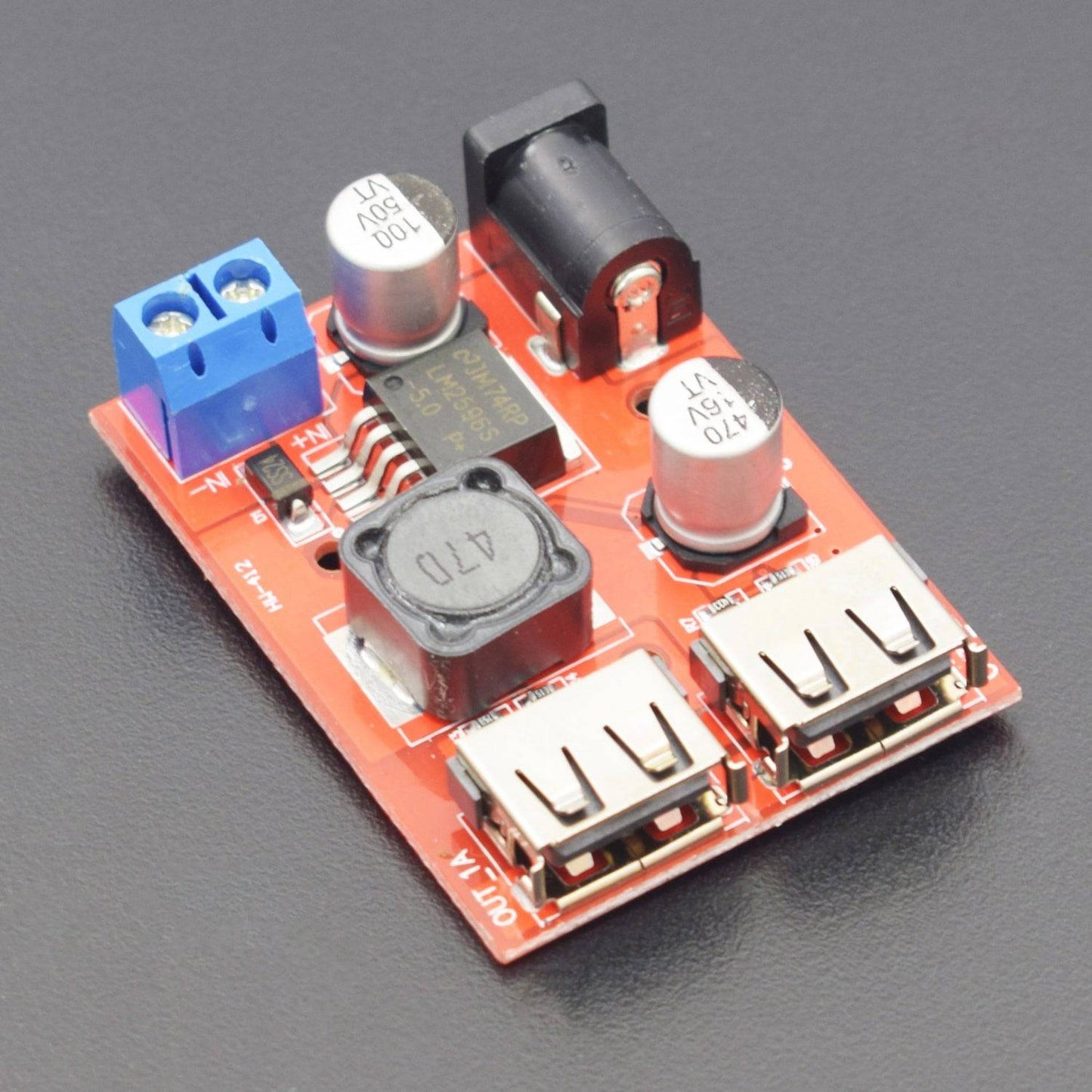

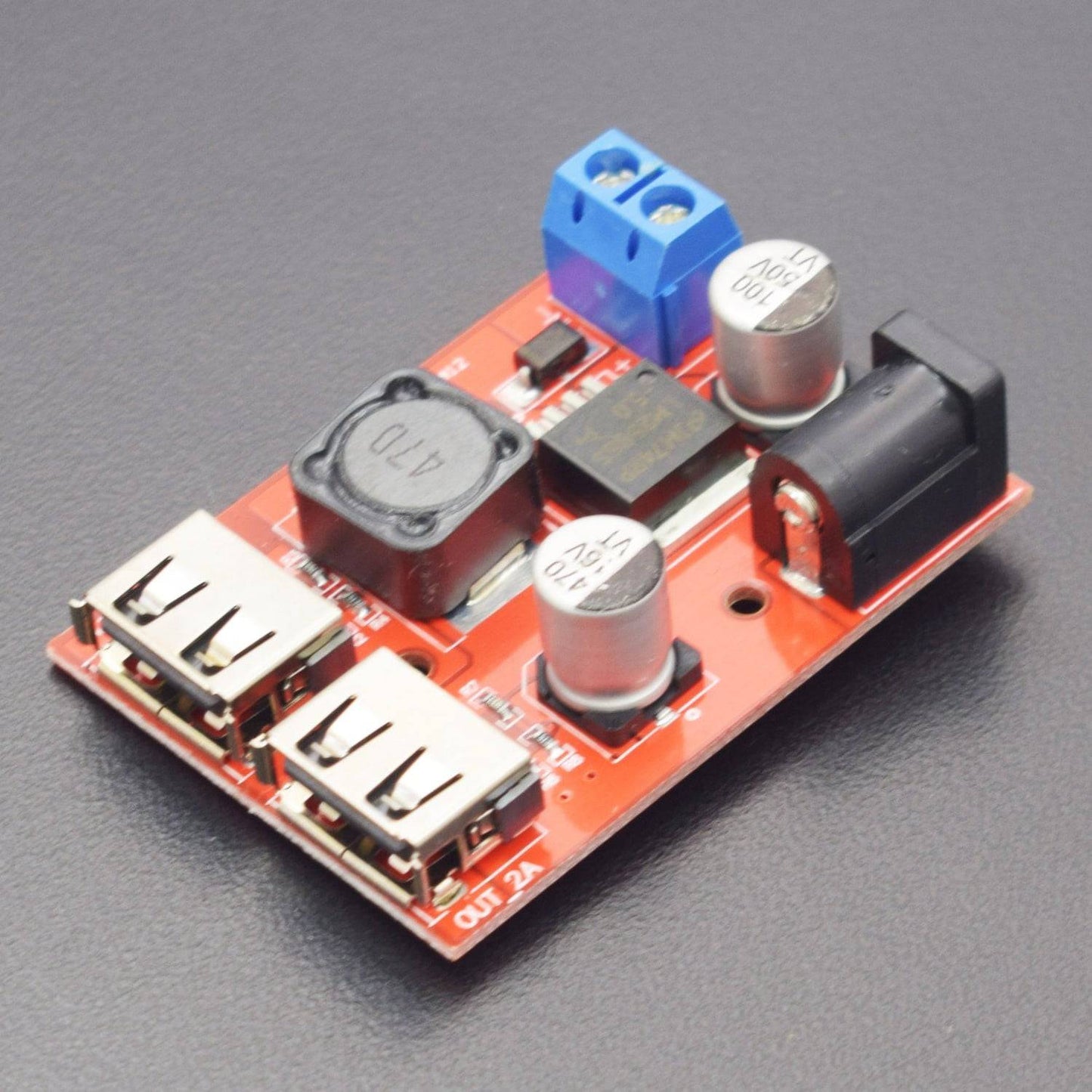

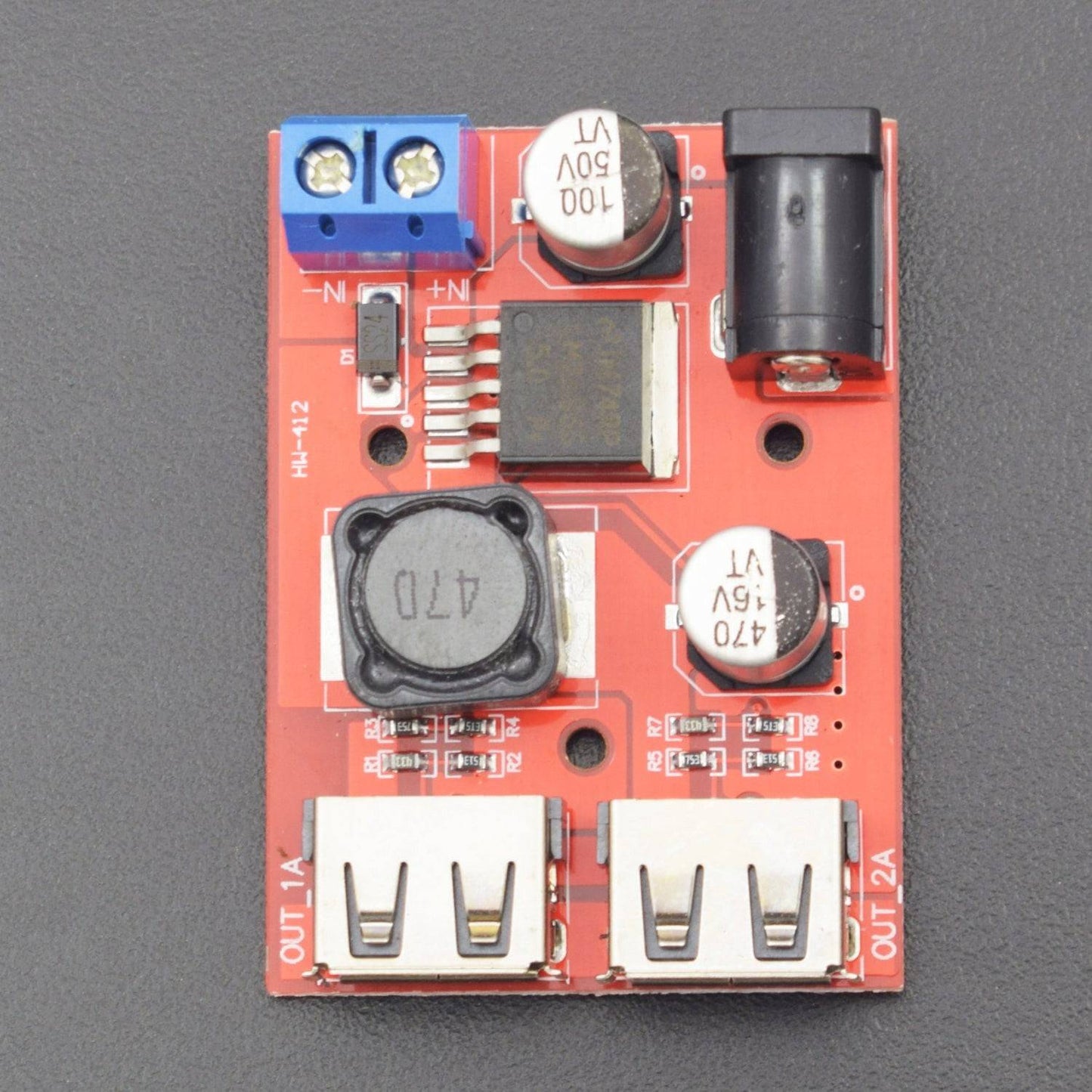

1 x DC-DC Voltage Regulator LM2596S Buck Converter Step Down Power Supply Module 6-40V to 5V 3A Dual USB
