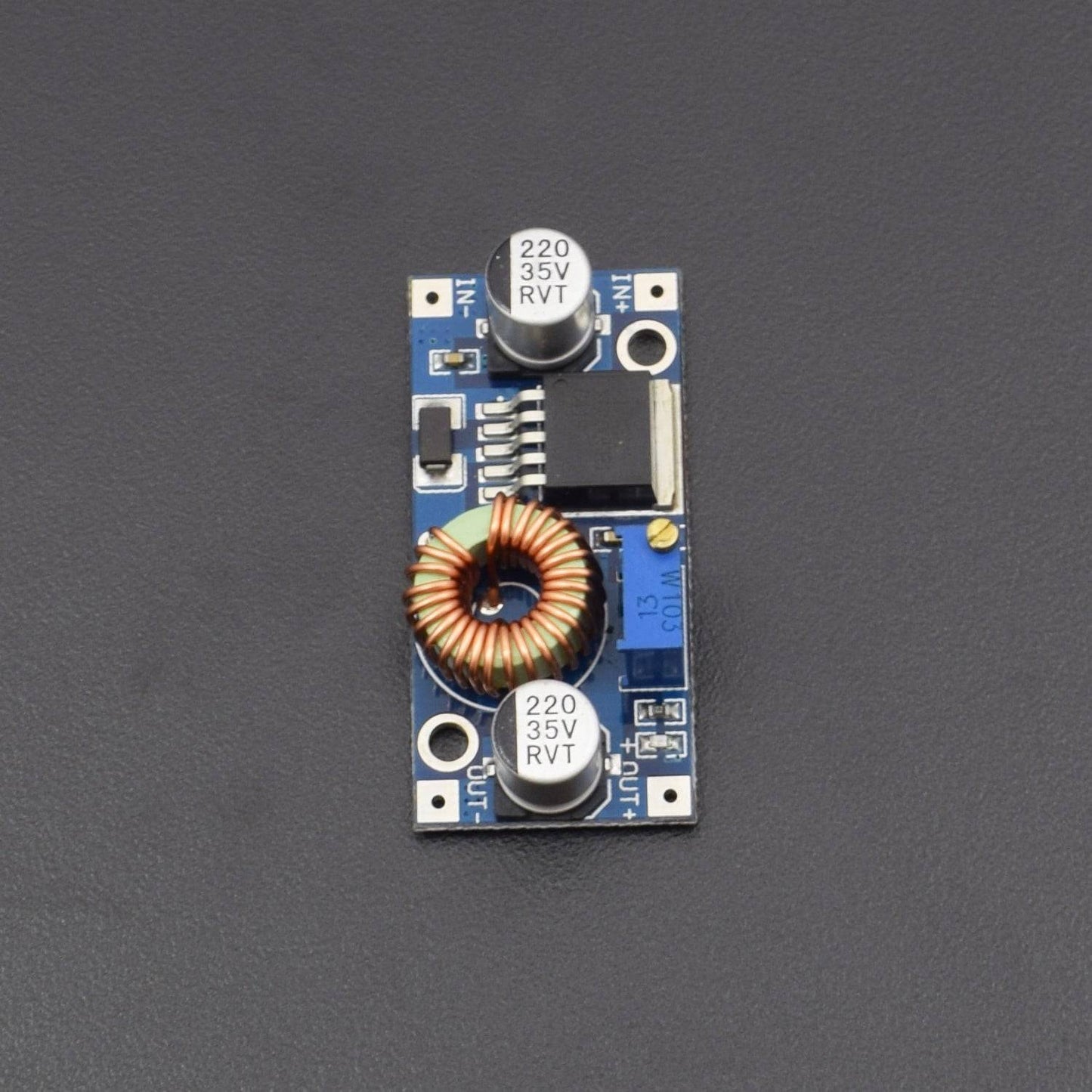

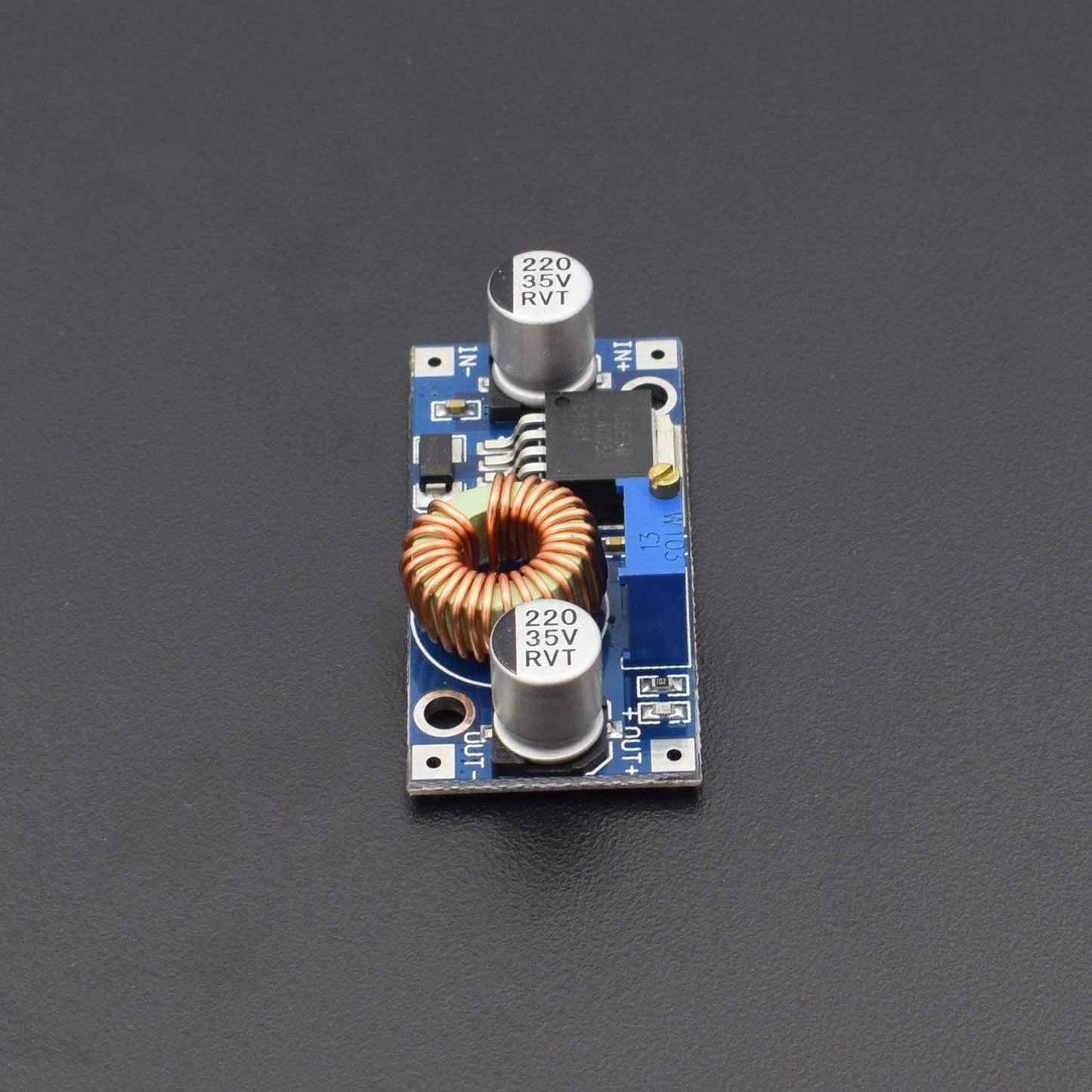

DC DC Step Down CC CV Voltage Converter 4-38V to 1.25-36V 12V/ 24V 5A 75W Buck Volt Regulator Power Supply Transformer -NA276

DC DC Step Down CC CV Voltage Converter 4-38V to 1.25-36V 12V/ 24V 5A 75W Buck Volt Regulator Power Supply Transformer -NA276

SKU:NA276

187 in stock

Regular price Rs. 360.00
Regular price Sale price Rs. 360.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Input voltage: 4-38V
Output voltage: 1.25-36V continuously adjustable
Output current: adjustabel;5A(Max)
Output power: 75W(Max)
Working temperature: -40 to +85 ℃
Frequency: 180KHz
Transfer efficiency: 96%(Max)


Module Features:
1. High-power, high efficiency, 5A, low ripple;

2. 3 IN 1:
(1) Work as buck module with over-current protection;
(2) Work as a high-power LED constant current driver module;
(3) Work as a charger for lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) with variety of voltage value; used for solar panels, wind turbines and other occasions;

How to set limited rate:
1. Yo can adjust constant voltage potentiometer in order to let the output voltage reach the voltage value you want;
2. Use 10A multimeter to measure short-circuit output current (directly connect two meters to output terminal), adjust constant current potentiometer at the same time to make output current reach preset over-current protection value. (If the current value on the multimeter shows 4A, the maximum current of the module can only be up to 4A. When the current reaches 4A, constant-voltage constant-current red indicator lights on, or lighting off)


Short-circuit protection: YES(limited current of 8A)
Over-temperature protection: YES(item will stop output atomatically)
Input reverse connection protection: NO (If necessary, connect the high-current diode on the input in series)
Installation: you need 4 screws with size 3mm
Wiring method: connect the terminals or welding terminals, V-IN: Input; V-OUT: Output
Size: (Length) 61.7mm x (Width) 26.2mm x (Height) 15mm


Package include:


1x DC DC Step Down CC CV Voltage Converter
