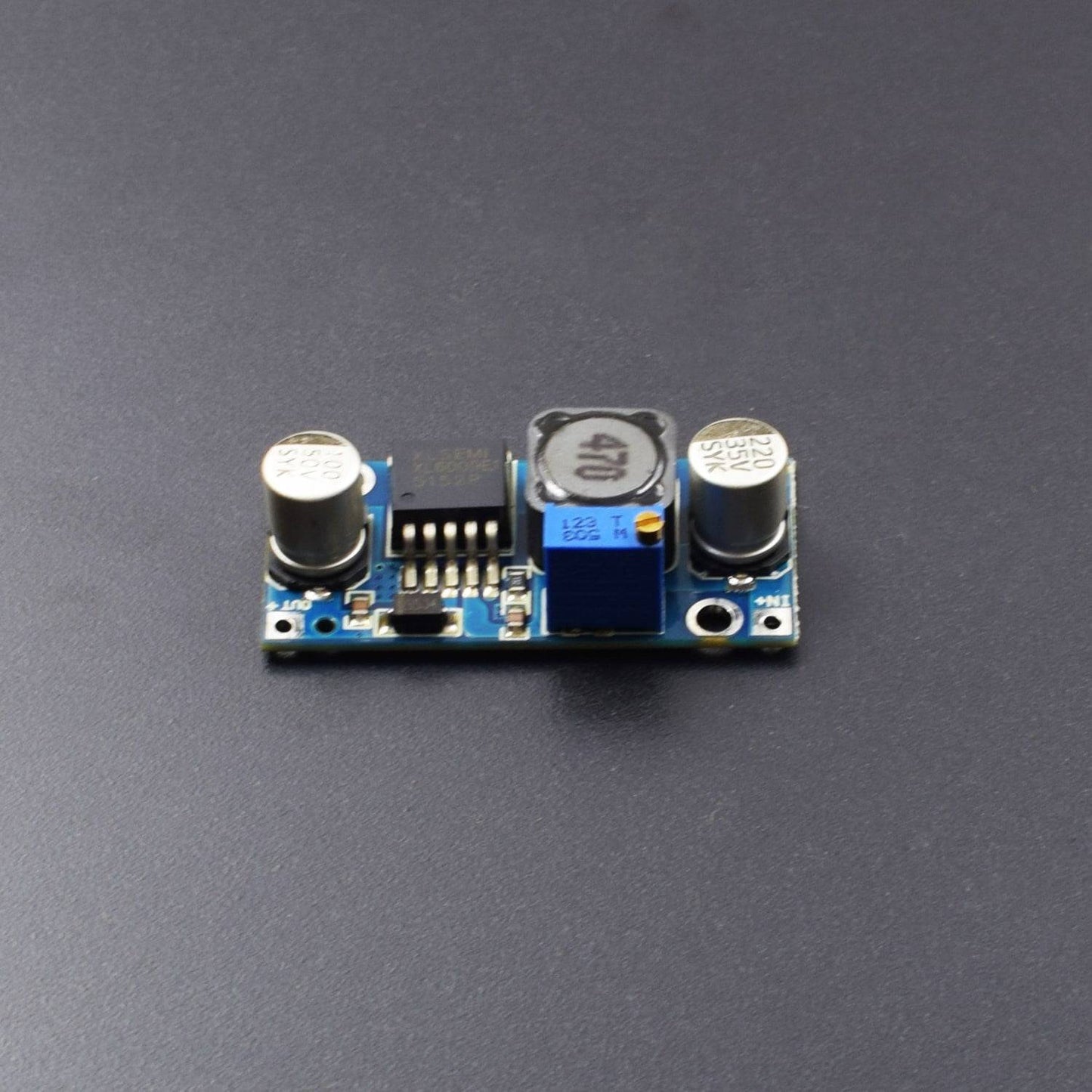

DC-DC Booster Adjustable Step up down Converter XL6009 Power Supply Module -MD0101
DC-DC Booster Adjustable Step up down Converter XL6009 Power Supply Module -MD0101
SKU:MD0101
370 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Input Voltage: 3 to 32V
- Input Current: 4A
- Output Voltage: 5 to 35V
- Output Ripple: mV
- Efficiency: 94%
Description:
This XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.
Specification:
| Input Voltage | 3 to 32V |
| Input Current | 4A |
| Output Voltage | 5 to 35V |
| Output Ripple | 50 mV |
| Efficiency | 94% |
| Switching Frequency | 400 KHz |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
Features:
- Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
- Wide Output voltage 5V ~ 35V;
- Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
- High switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)
Test Results:
- Input 3V Output 12V 0.4A 4.8W
- Input 5V Output 12V 0.8A 9.6W
- Input 7.4V Output 12V 1.5A 18W
- Input 12V Output 15V 2A 30W
- Input 12V Output 16V 2A 32W
- Input 12V Output 18V 1.6A 28.8W
- Input 12V Output 19V 1.5A 28.5W
- Input 12V Output 24V 1 A 24W

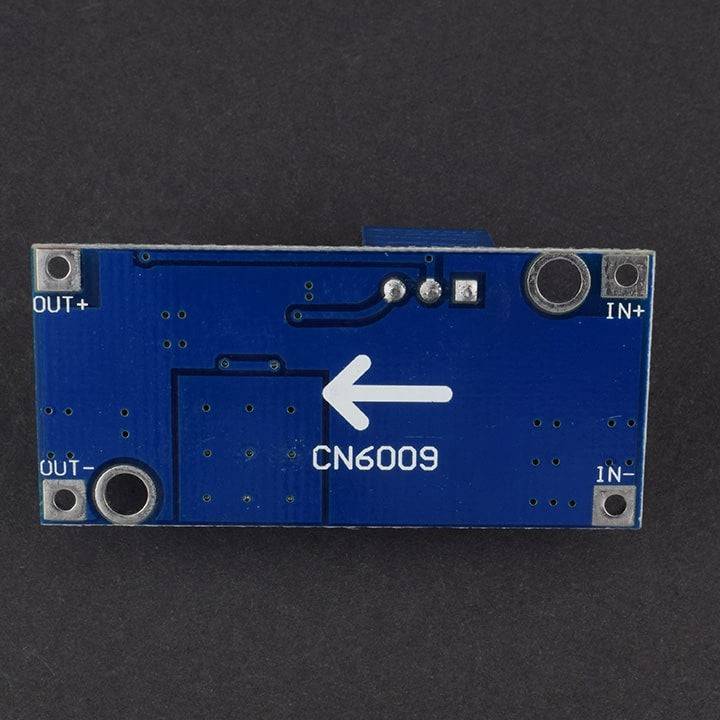

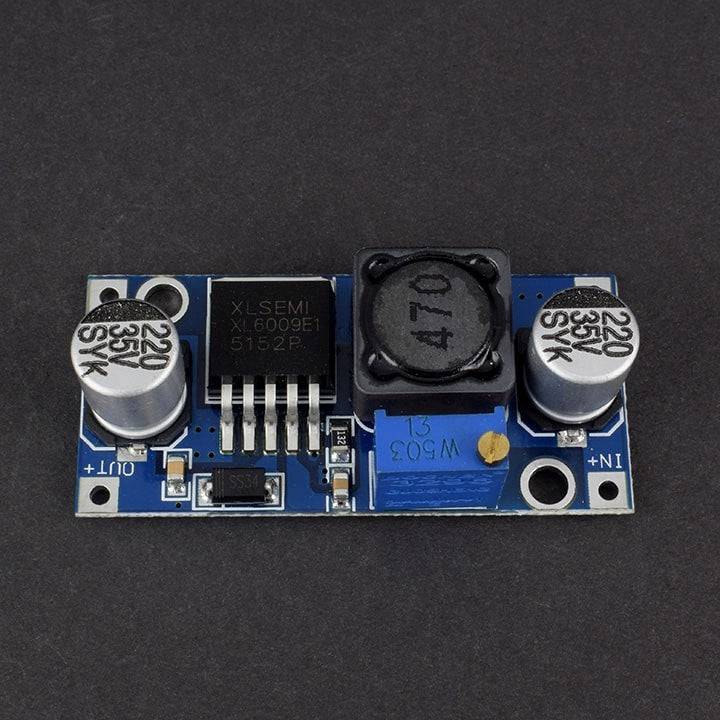

Pin Description:
- IN+ Input positive
- IN- Input negative
- OUT+ Output positive
- OUT- Output negative
Package Included :
1 x DC-DC Booster Adjustable Step up down Converter XL6009 Power Supply Module
