- Module Name: 600 w booster module
- Module Properties: non-isolate module (BOOST)
- Input Voltage: 12-60 v input (with wide input voltage range application)
- Input Current: 10 A(MAX)
Description:

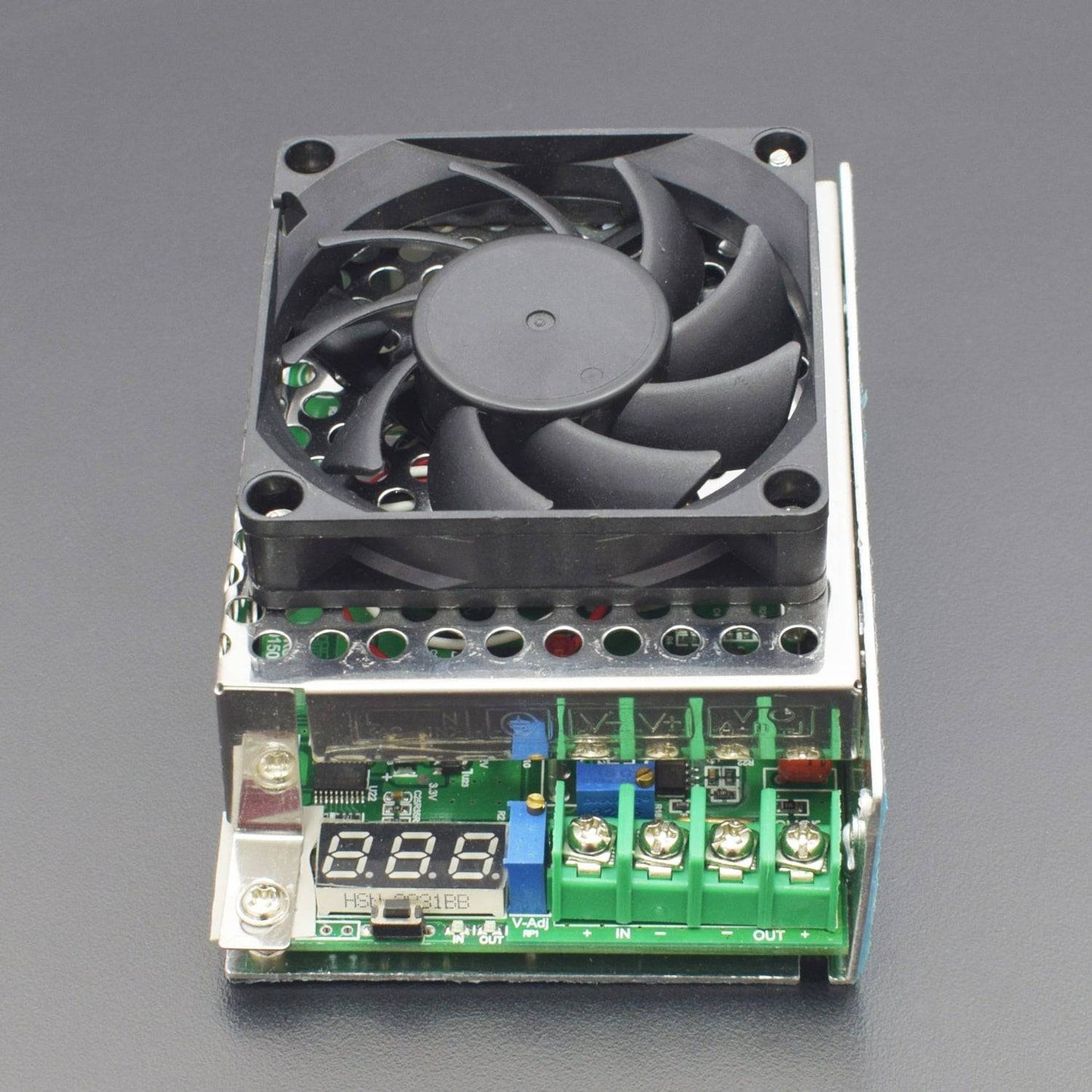

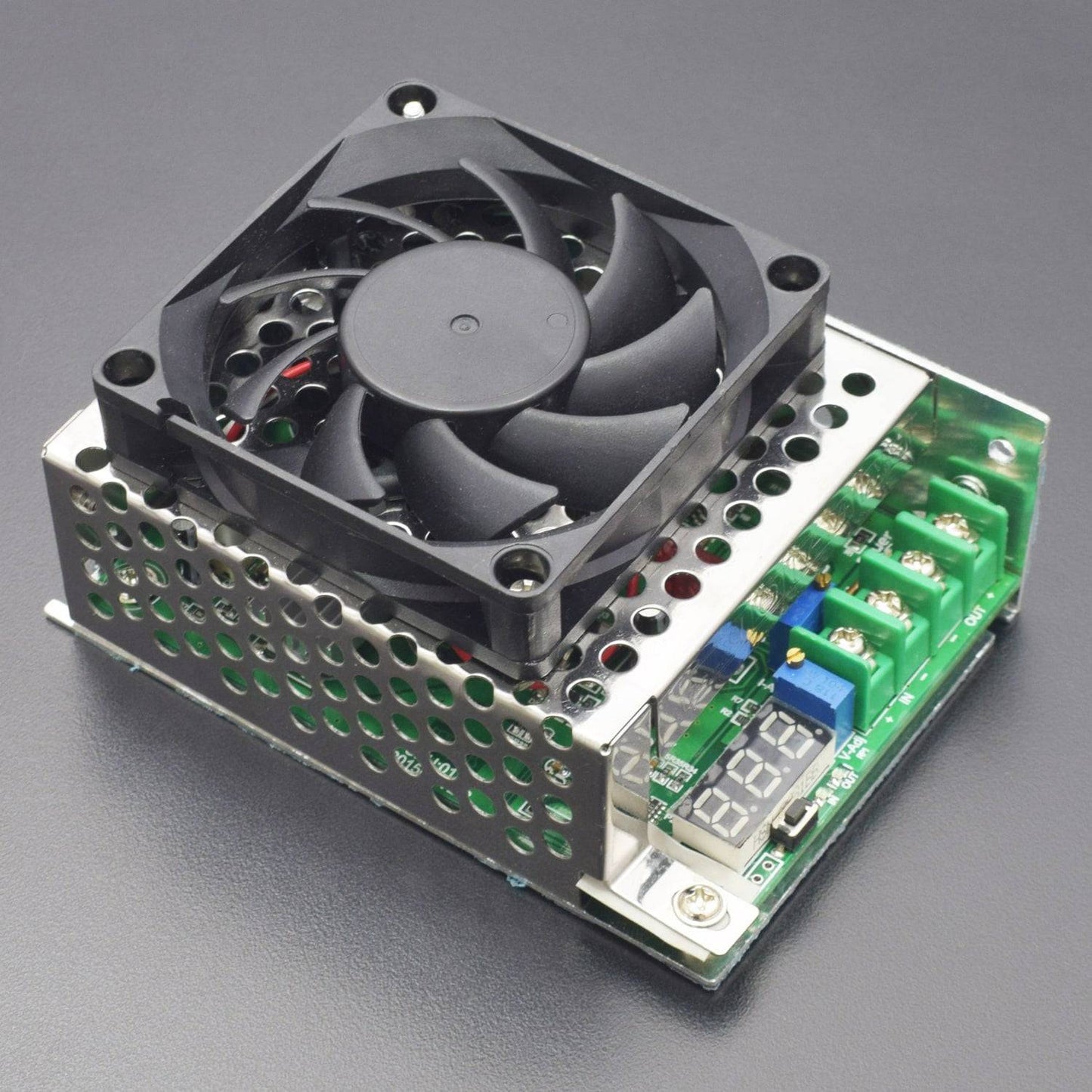

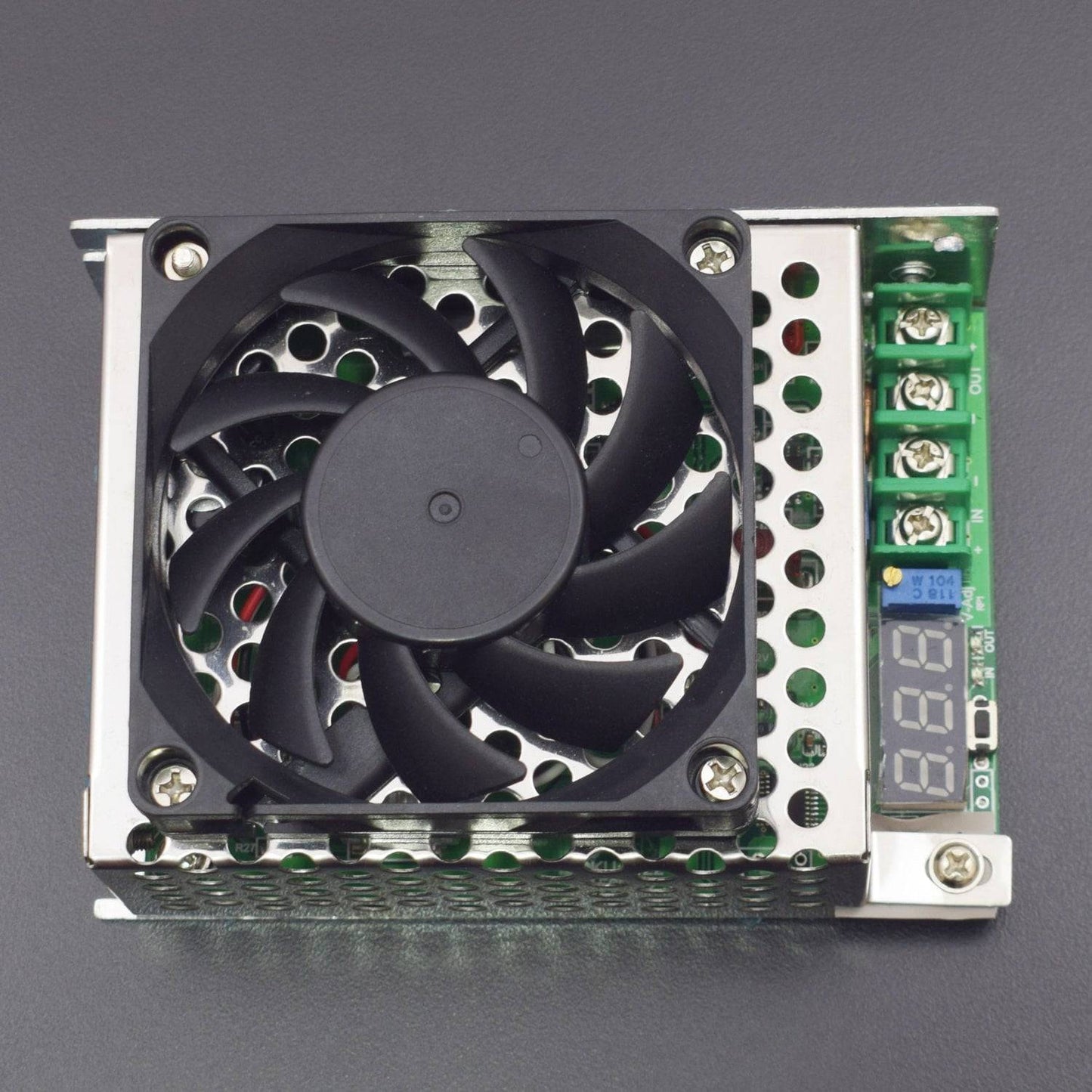

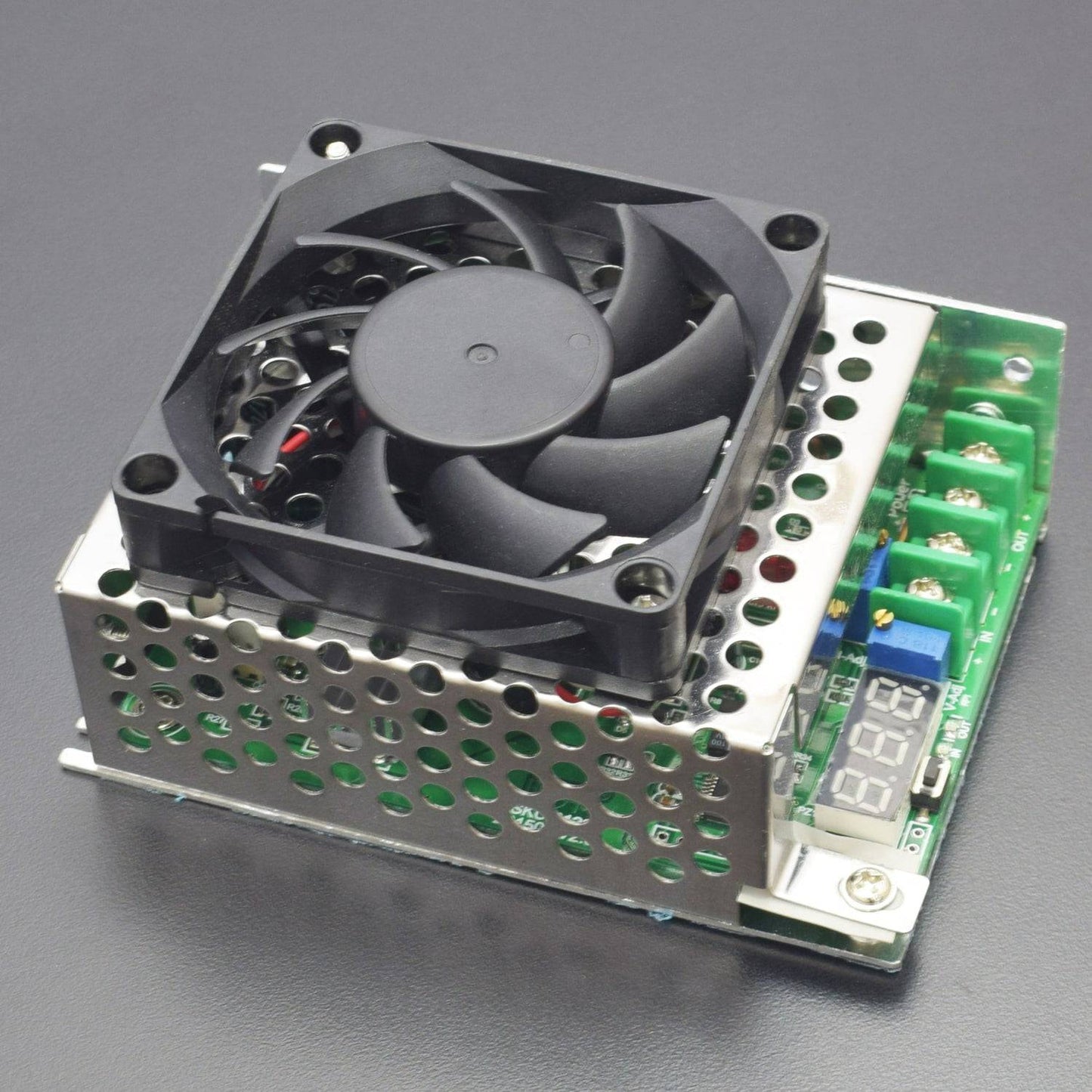

This is a 600w booster module with 12-60 v wide input voltage, 13-80 v adjustable wide output voltage, low input/output differential pressure, Conversion efficiency up to 95%. It's digital tube can display the input and output voltage by button switch, it with cooling fan more convenience. If the input more than 48V ,please use the separate DC 12v power for the cooling fan, or maybe damage the cooling fan.
Specification:
- Module Name: 600 w booster module
- Module Properties: non-isolate module (BOOST)
- Input Voltage: 12-60 v input (with wide input voltage range application)
- Input Current: 10 A(MAX)
- Output Voltage: 13-80 v continuous adjustable, the out put must be higher than input.
- Output Current: 10A MAX
- Working Temperature: - 40 ~ + 85 degrees
- Conversion Efficiency: up to 95% (efficiency and the input, output voltage, current and pressure difference)
Features:
- It has 12-60 v wide input voltage.
- It has 13-80 v adjustable wide output voltage.
- It has low input/output differential pressure.
- It has digital tube can display the input and output voltage by button switch.
Package Included:
1 x DC-DC Boost Converter 12-60V to 13-80V 10A 600W Step Up Charger Power Module with Fan
