- Input Voltage :5-32V.
- Input Current: 8A (MAX)
- Quiescent Current: 4mA
- Output voltage :1.25-20V
- Output Current: 5A (MAX)
- Output Constant Current: 0.2-5A

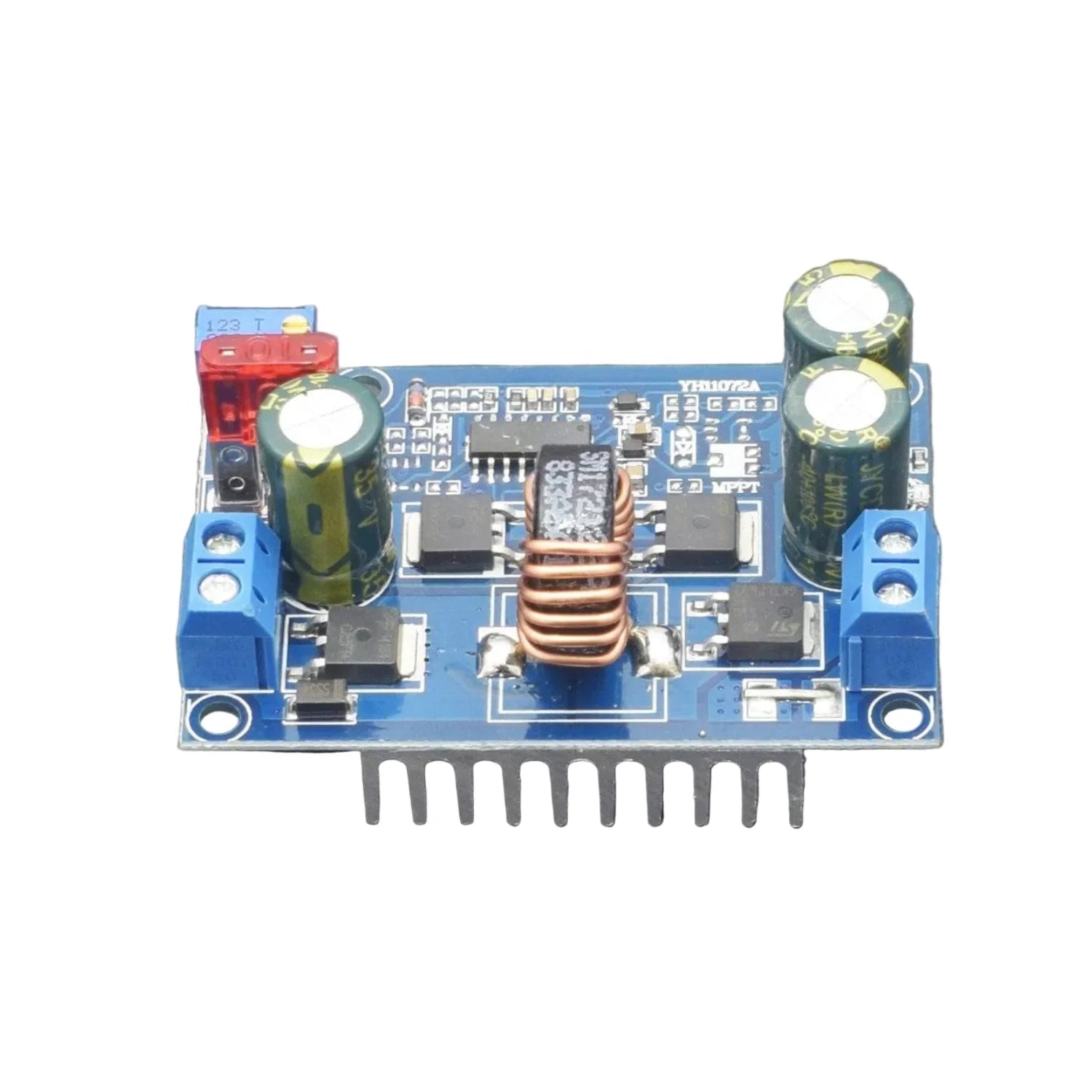

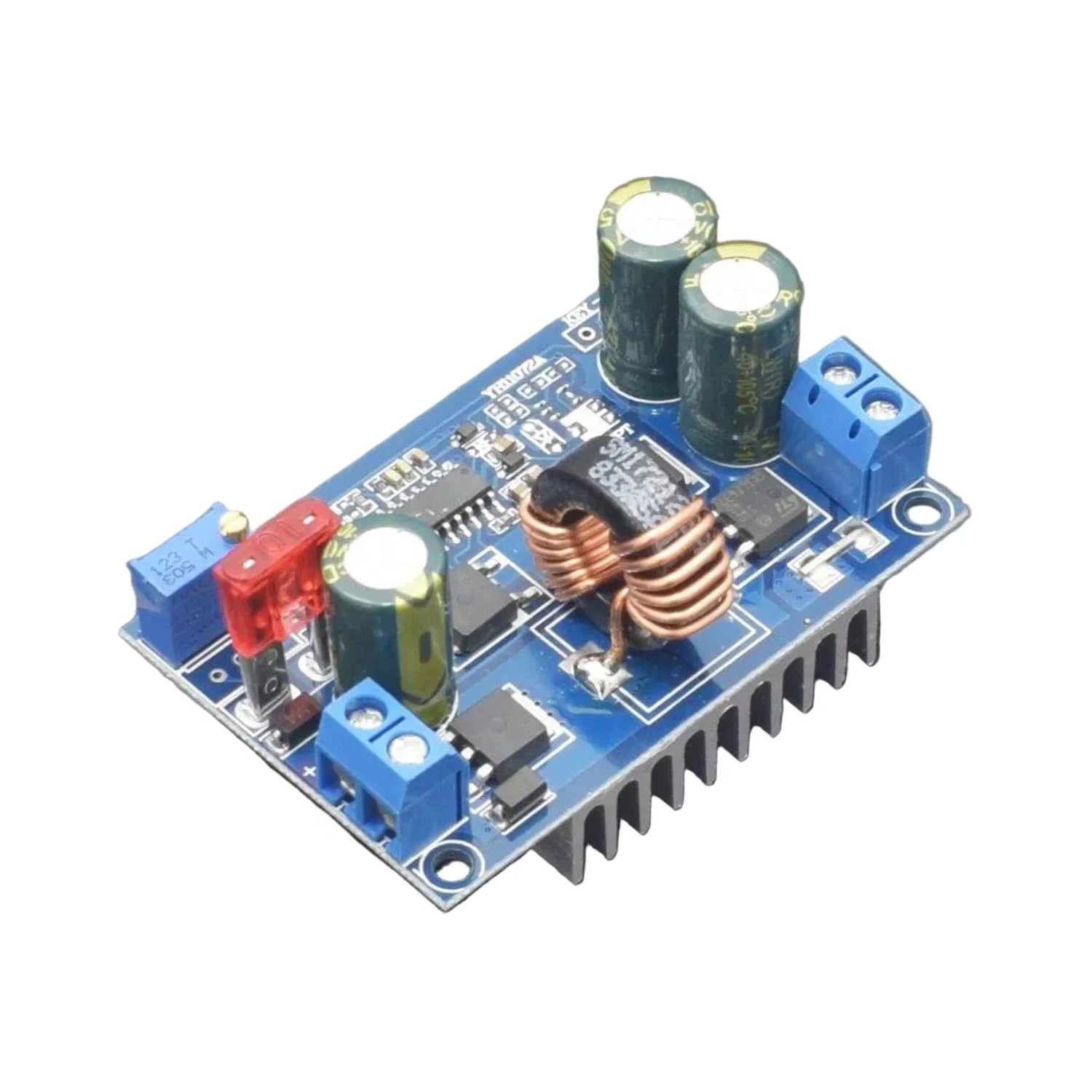

- PACKAGE INCLUDED : 1 x DC/DC Automatic Boost Buck Converter Module
DESCRIPTION
- Used for solar energy, car voltage regulator, battery charging, LED motivator and diy power supply.
- Module Name: 5A automatic step up/down constant voltage/current module.
- Module Properties: non-isolated synchronous rectifier automatic boost buck module.
- Input Voltage :5-32V.
- Input Current: 8A (MAX) peak 10A (6A long-term work)
- Quiescent Current: 4mA.
- Output voltage :1.25-20V continuously adjustable, the default output is 12V.
- Output Current: 5A (MAX) (3A long-term work)
- Output Constant Current: 0.2-5A.
- Working temperature: -40 to +85 degrees.
- Operating Frequency: 150KHz.
- Conversion efficiency: up to 96%.
- Overcurrent protection: Yes.
- Short-circuit protection: (enter 10A fuse) double circuit protection.
- Over-temperature protection: Yes, automatic reduces the output voltage if over temperature.
- Input Reverse Polarity Protection: No, (if necessary , please connect diode with input in series )
- Output power: 60W (maximum)
SPECIFICATION
- Non-isolated synchronous rectifier automatic boost buck module.
- Input DC5-32V and output 1.25-20V.
- Input Current 8A MAX peak 10A; quiescent current 4mA; output current 5A MAX, output constant current 0.2-5A adjustable.
- High conversion efficiency up to 96% and 150KHz operating frequency, 10A fuse, double short circuit protection .
- With overcurrent protection, overheat protection, output anti-irrigation protection.
