Description:

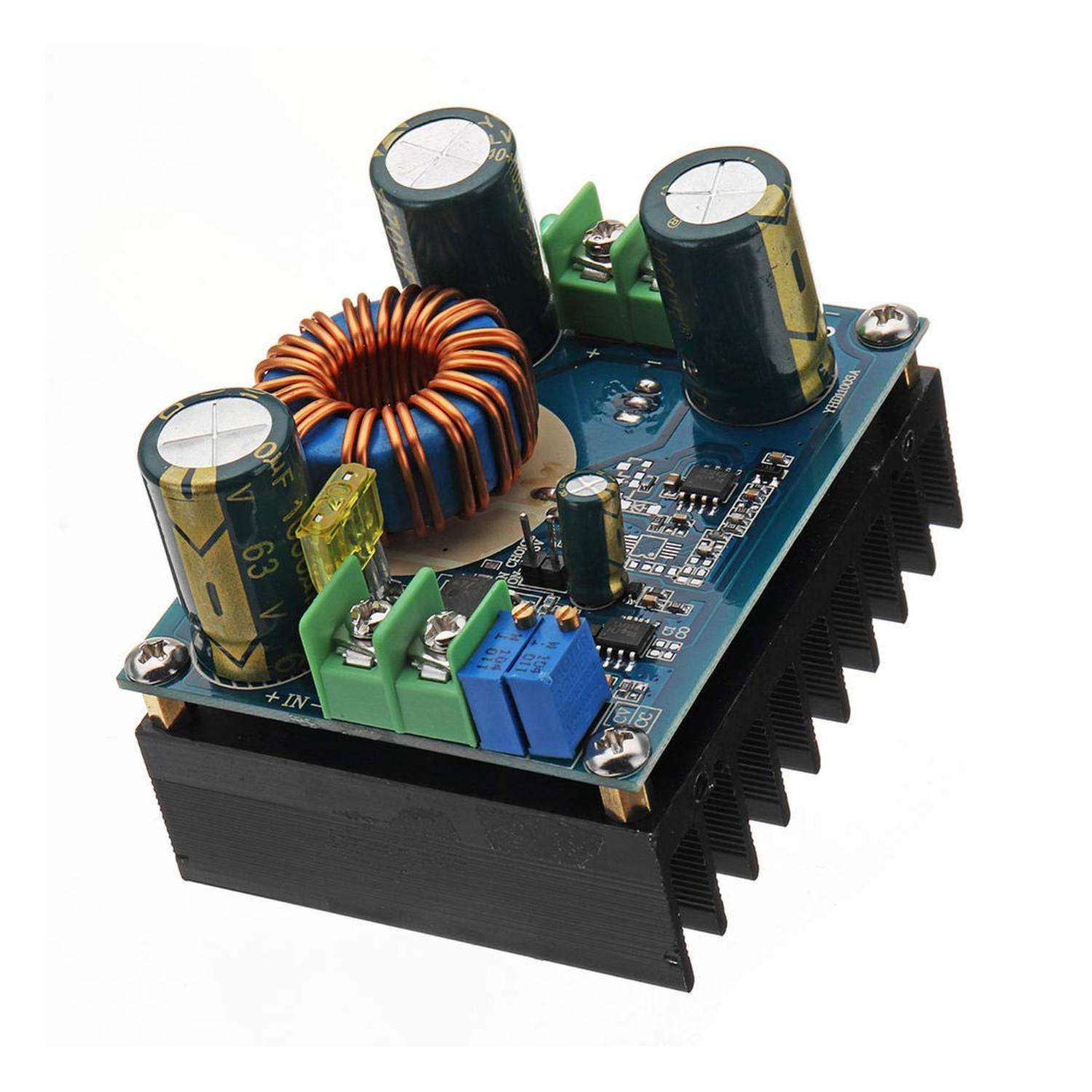

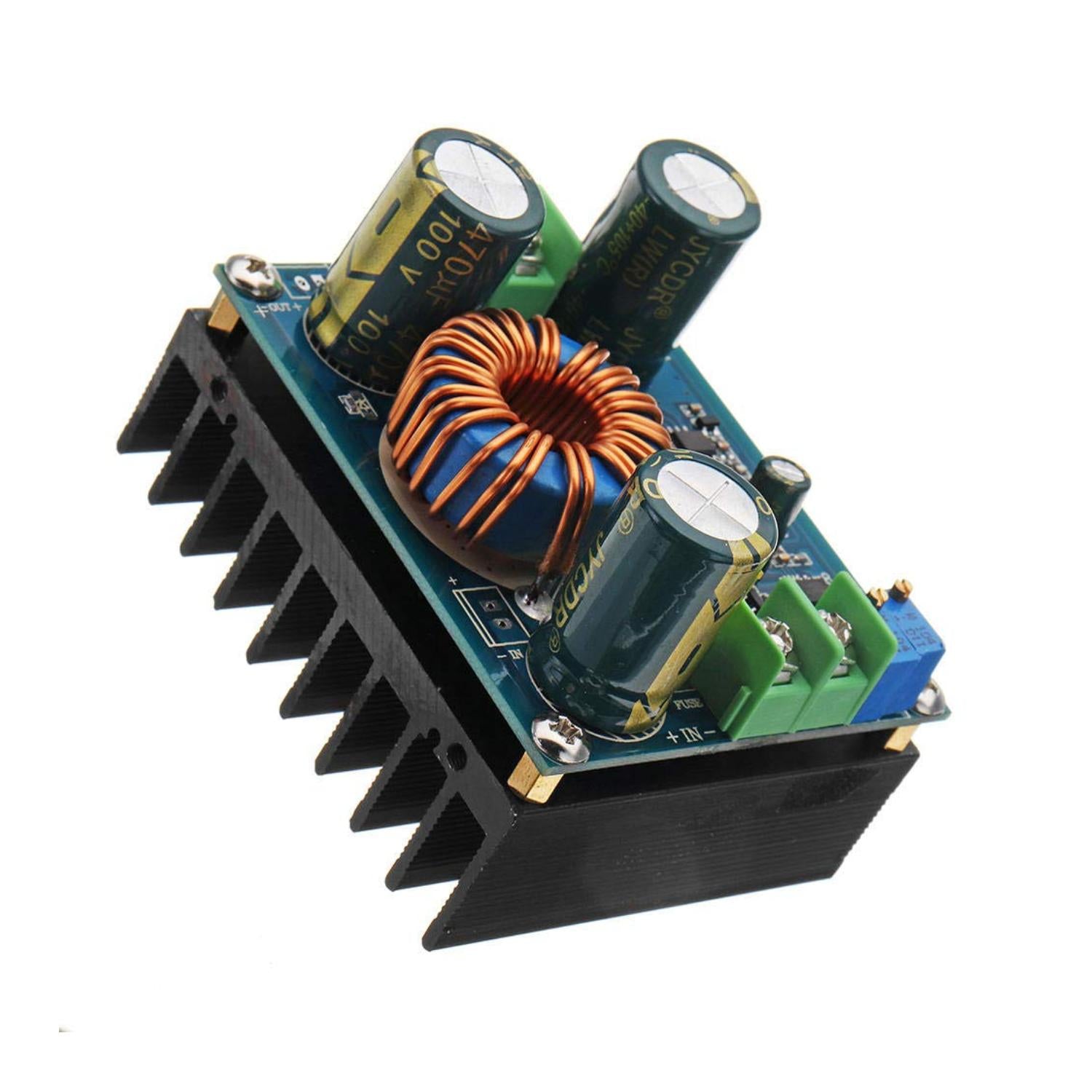

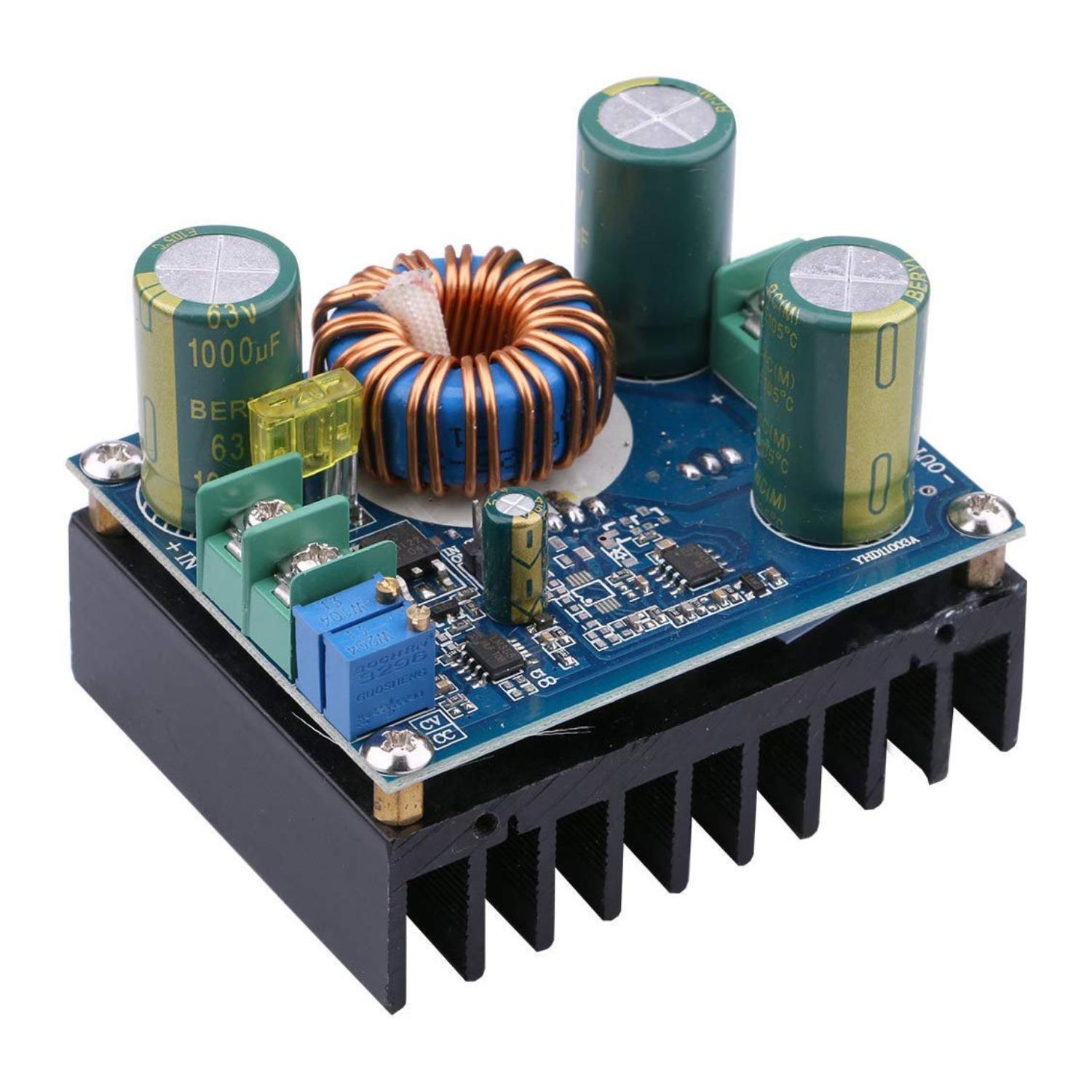

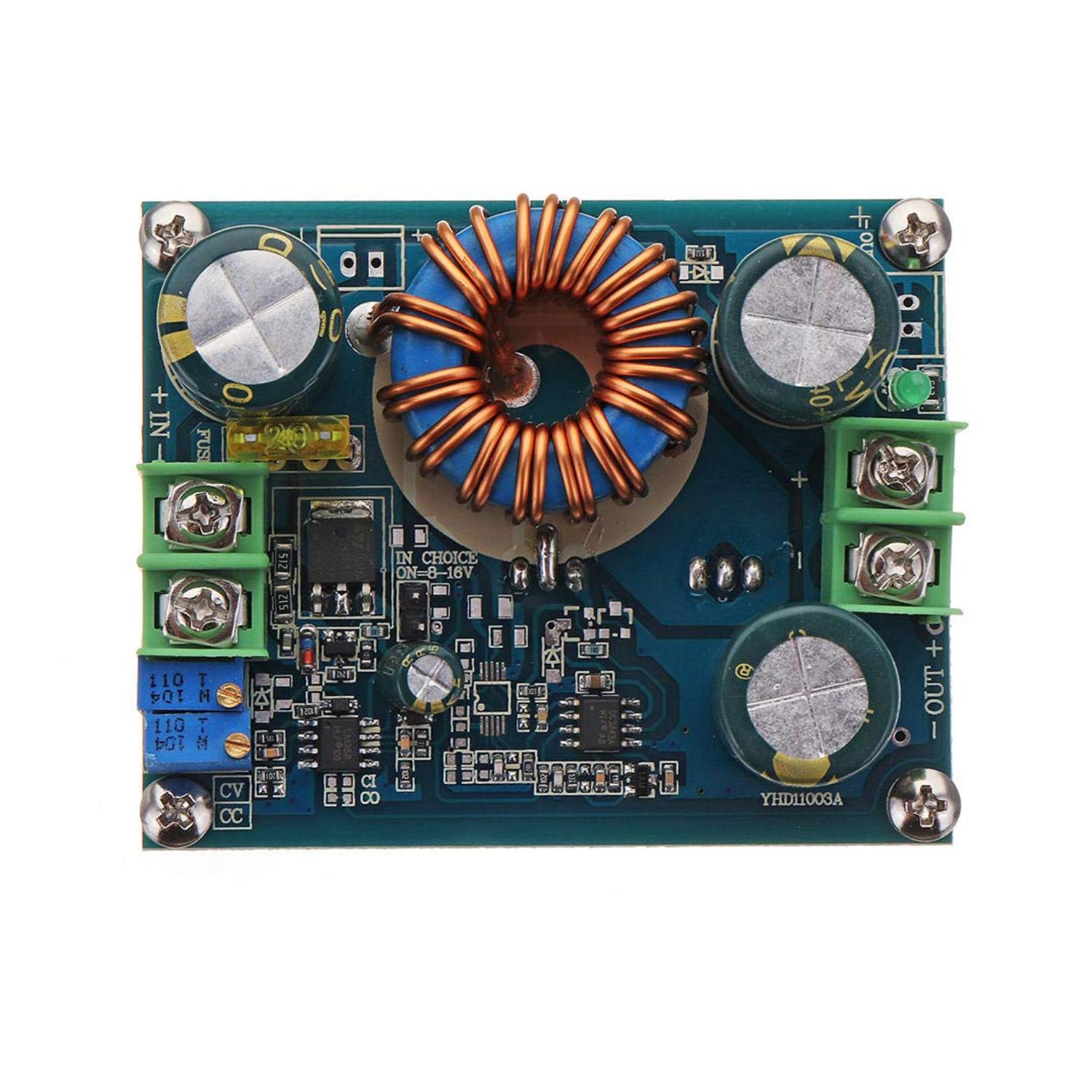

This is a DC boost converter, 600W 12A DC-DC step-up converter board 8-16V 12V 24V to 12-60V 48V voltage regulator booster module adjustable voltage step-up power supply module. This DC boost voltage converter inputs 8-16V; 600W 16A Boost power module output 12-60V, large adjustable range for various electronics.
This boost power converter with a large heat sink cools down fast and allowing it to work in lower temperatures, and work much more stable; The Boost power supply module with LED instruction light, clearly shows working condition. Adjustable dc boost converter easily adjusts voltage and amperage by screwing CC and CV Boost regulator module with solder-less terminals, convenient to connect with wire and need less assistance.
Specifications:
- Input Voltage : 12-60V or 8-16V ( Selectable )
- Input Current: 16A (MAX) enhances heat dissipation over 10A
- Output Voltage: DC12-80V adjustable
- Output Current : 12A MAX ,over 10A enhance heat dissipation
- Quiescent Operating Current: 15mA (12V to 20V, the output voltage is higher
- Quiescent current will increase)
- Constant Current Range: 0.1-12A
- Operating Temperature: -40 to +85 ℃(ambient temperature is too high to enhance heat dissipation)
- Operating Frequency: 150KHz
Features:
- 600W high power boost module
- High efficiency, ultra-low dropout voltage

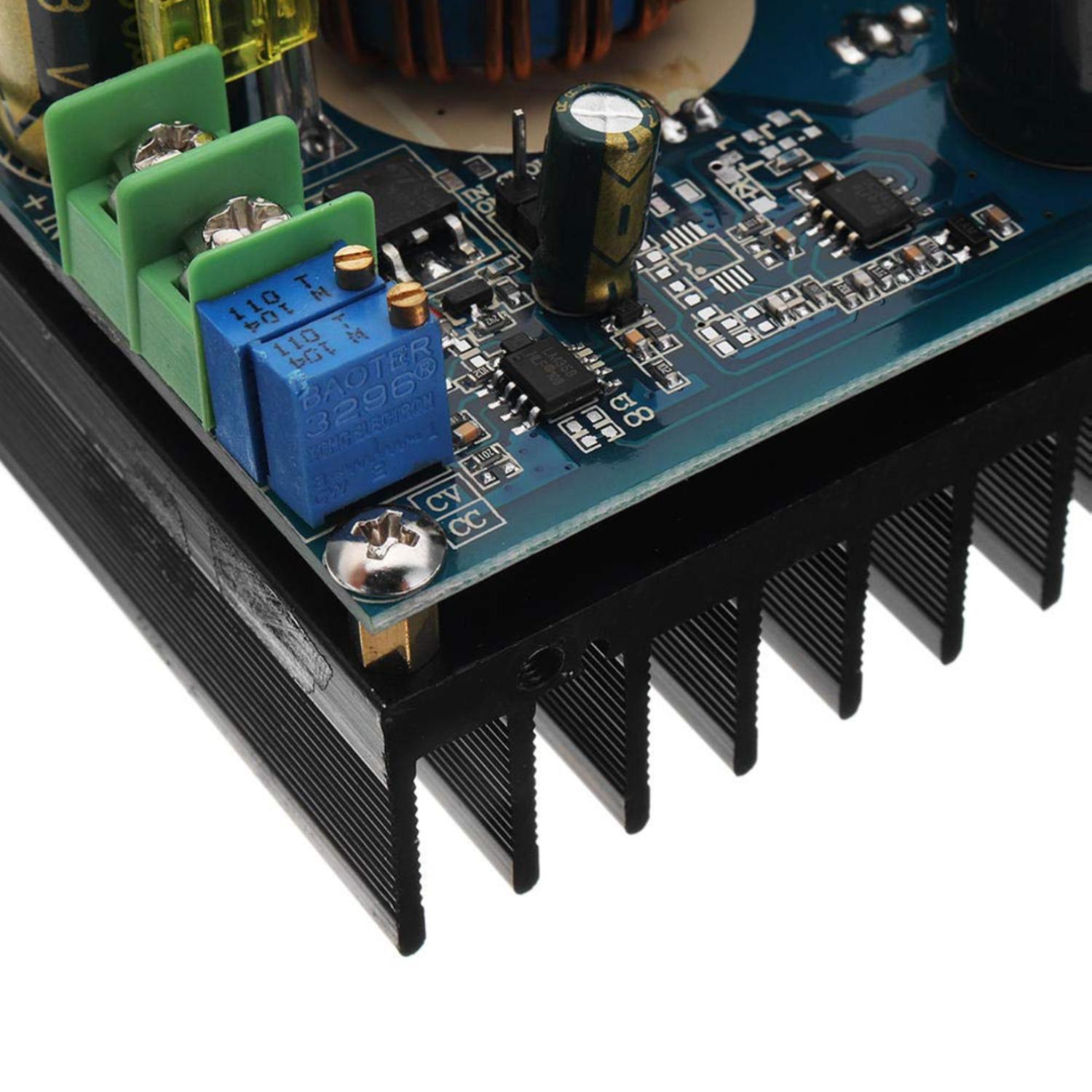

- Adjustable dc boost converter, easily adjust voltage and amperage by screwing CC and CV
- High efficient step up voltage regulator, 95% conversion efficiency and low heat generated
- Boost voltage regulator versatile to charge your electronics and lithium battery with suitable voltage and amperage, drive high-power LED lights
-

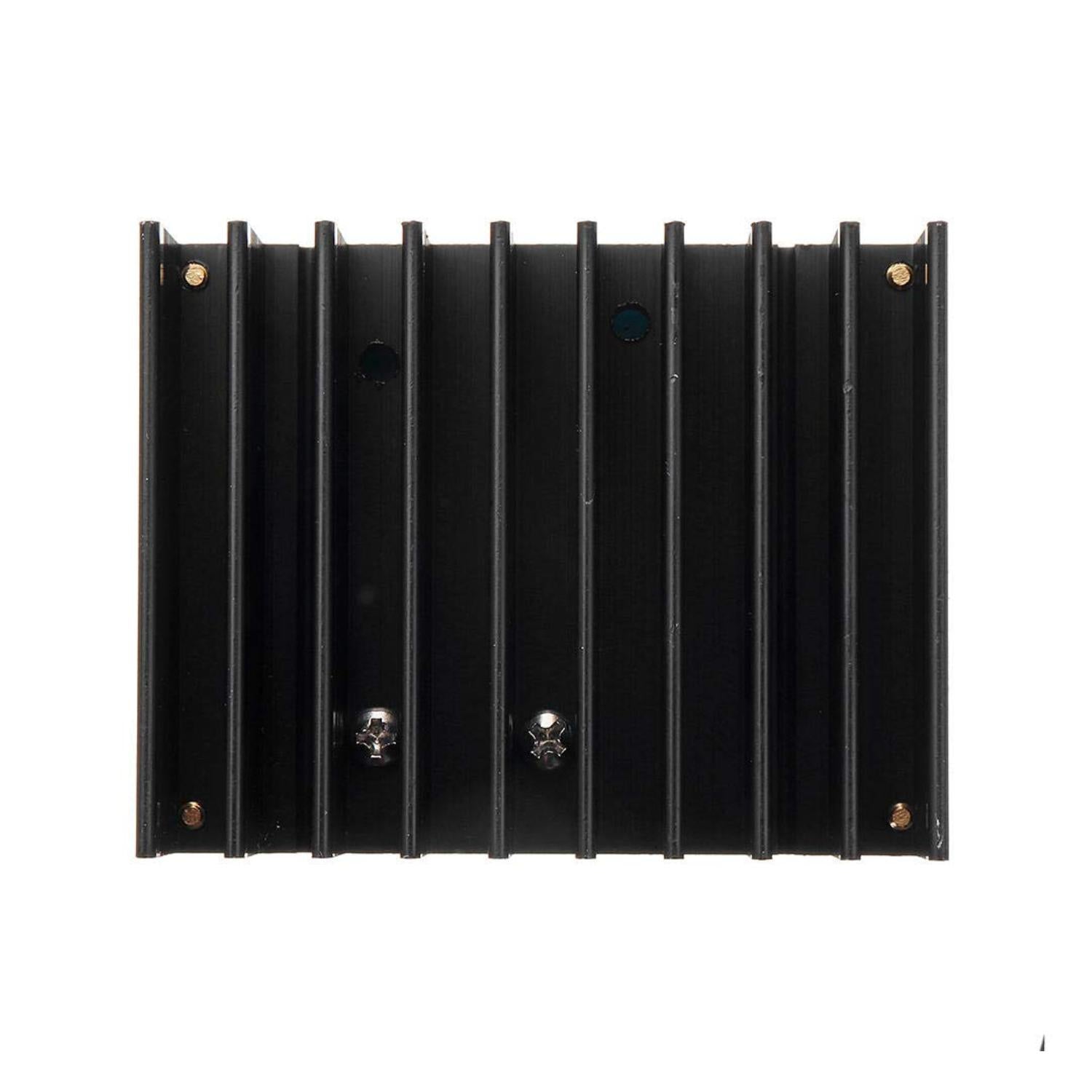

Boost power converter with large heat sink, cool down fast and allow to work in lower temperature, work much more stable
Application:
- DIY a regulated power supply, only 12V input, output 12-80V adjustable
- The power supply for your electronic device, according to your system can set the output voltage value
- As a vehicle power supply, power supply for your laptop/PDA etc
- DIY a laptop mobile power supply, with a 12V high-capacity lithium battery pack, travel with no worry
- Solar panels regulator
- Charge for the battery
- Drive high-power LED
Output Current Adjustment Method:
- Adjust CV potentiometer, according to your battery or LED, set the output voltage value to your need.
- Counterclockwise adjust CC potentiometer about 30 laps, and make the output current in the minimum.
- Connect the LED, and adjust CC potentiometer to the desired current.
- If charge for the battery, the battery should fully discharge at the first, then connected to the output, adjust CC potentiometer to desired current. (Must use a completely discharged battery to set, otherwise inaccurate. Because the more battery power remains, the smaller the charge current. )
- Please do not use a short-circuit way to adjust current, because the special circuit structure of the boost converter can not adjust in that way.
Package Included:
1 x DC Boost Converter
