DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch With Forward/Reverse Switch For Variable Speed Control Switch - RS4581/RS707

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch With Forward/Reverse Switch For Variable Speed Control Switch - RS4581/RS707

RS4581/RS707

30 in stock

Rs. 215.00
Rs. 215.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

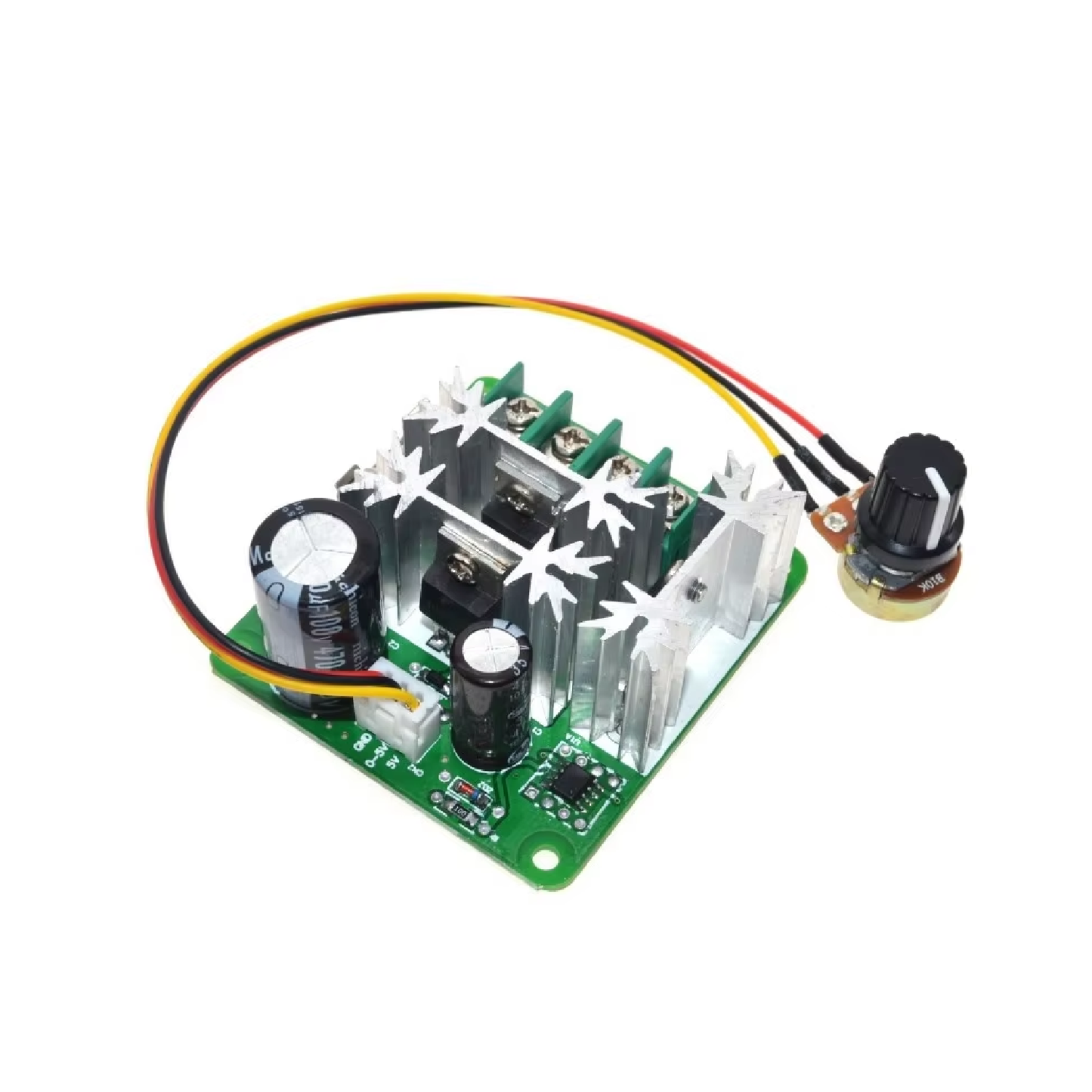

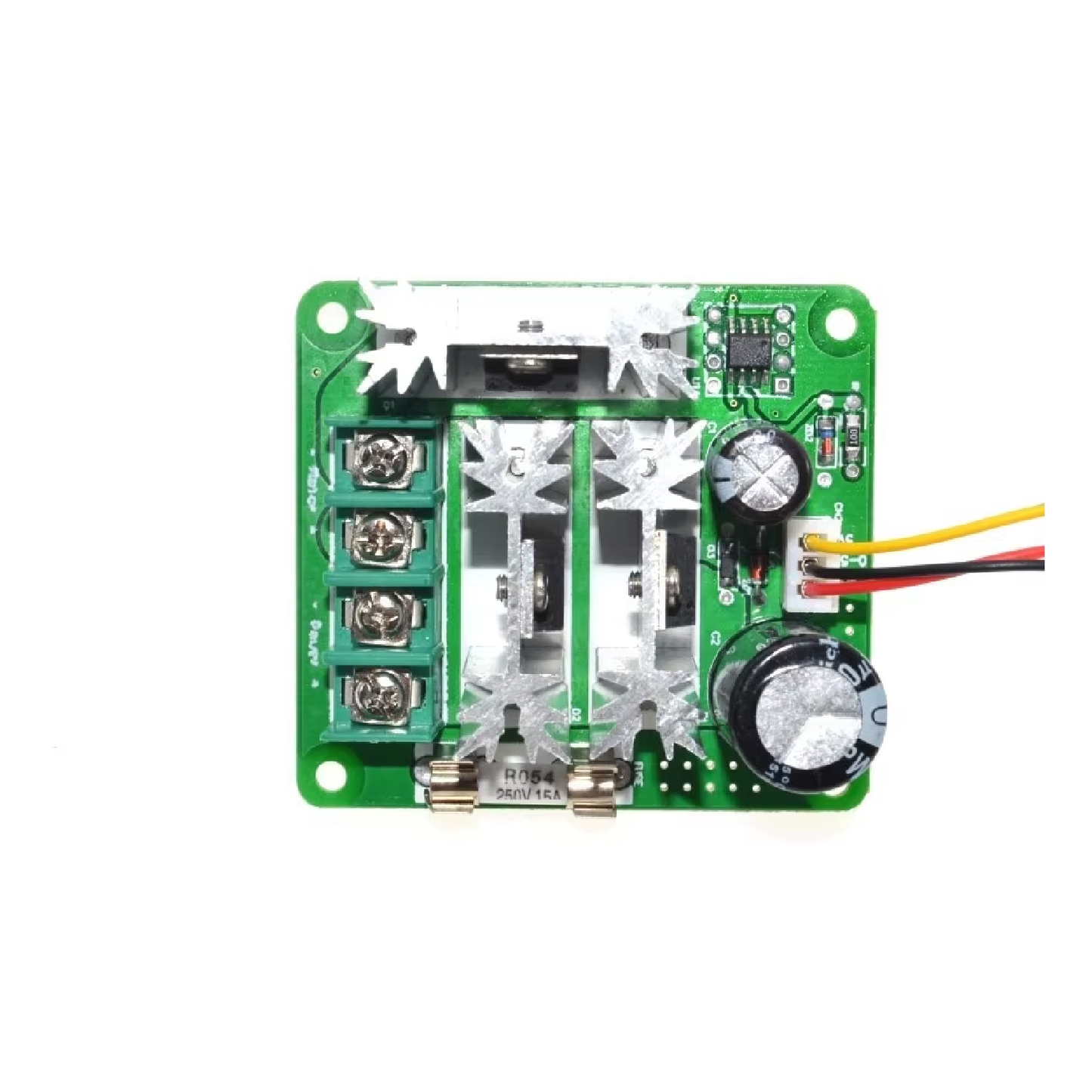

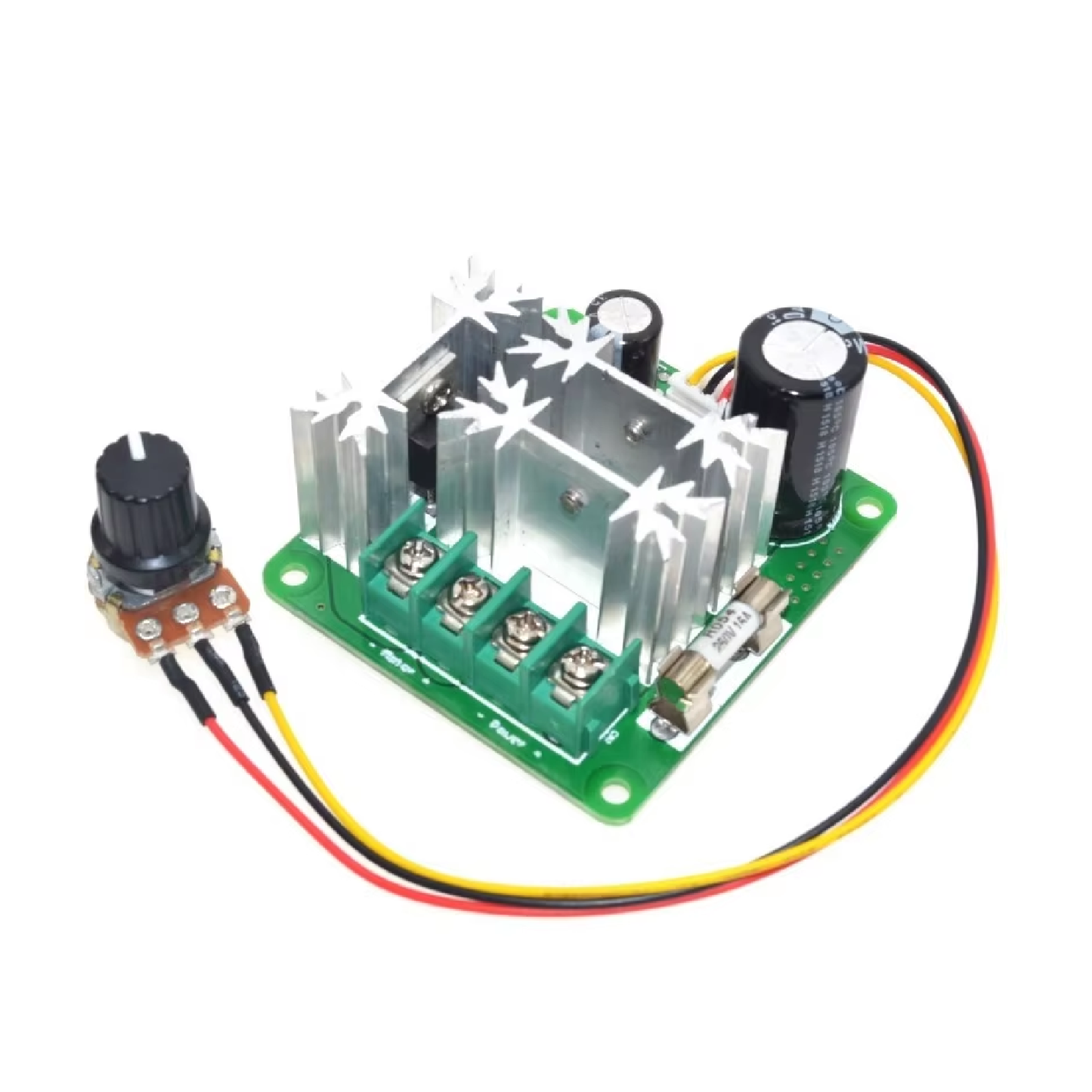

This DC Motor Speed Regulator controls the speed of a DC motor by adjusting the Pulse-Width-Modulated (PWM). It’s perfect for applications like fans, etc. providing a nice adjustment of motor speed.

With the use of a 0-5V external voltage control line, the speed controller supports the use of an external DC voltage control.

Specifications:

  • Operating Voltage (VDC) 6 ~ 90 Max.
  • Operating Current (mA) 8A
  • Maximum Current 15A
  • Controlled Power 0.01-1000W
  • Static Current 0.005A (Standby)
  • PWM Pulse Width Modulation Range 0%-100%
  • PWM Frequency 16KHZ

Features:

  • This DC Motor Speed Regulator controls the speed of a DC motor by adjusting the Pulse-Width-Modulated (PWM). It’s perfect for applications like fans, etc. providing a nice adjustment of motor speed
  • This motor speed control switch can control the motor speed from between 0% -100%.
  • Suitable for applications like fans, etc. providing nice adjustment of motor speed.
  • Support PLC control, stable performance, high efficiency, and low noise.

How to use:

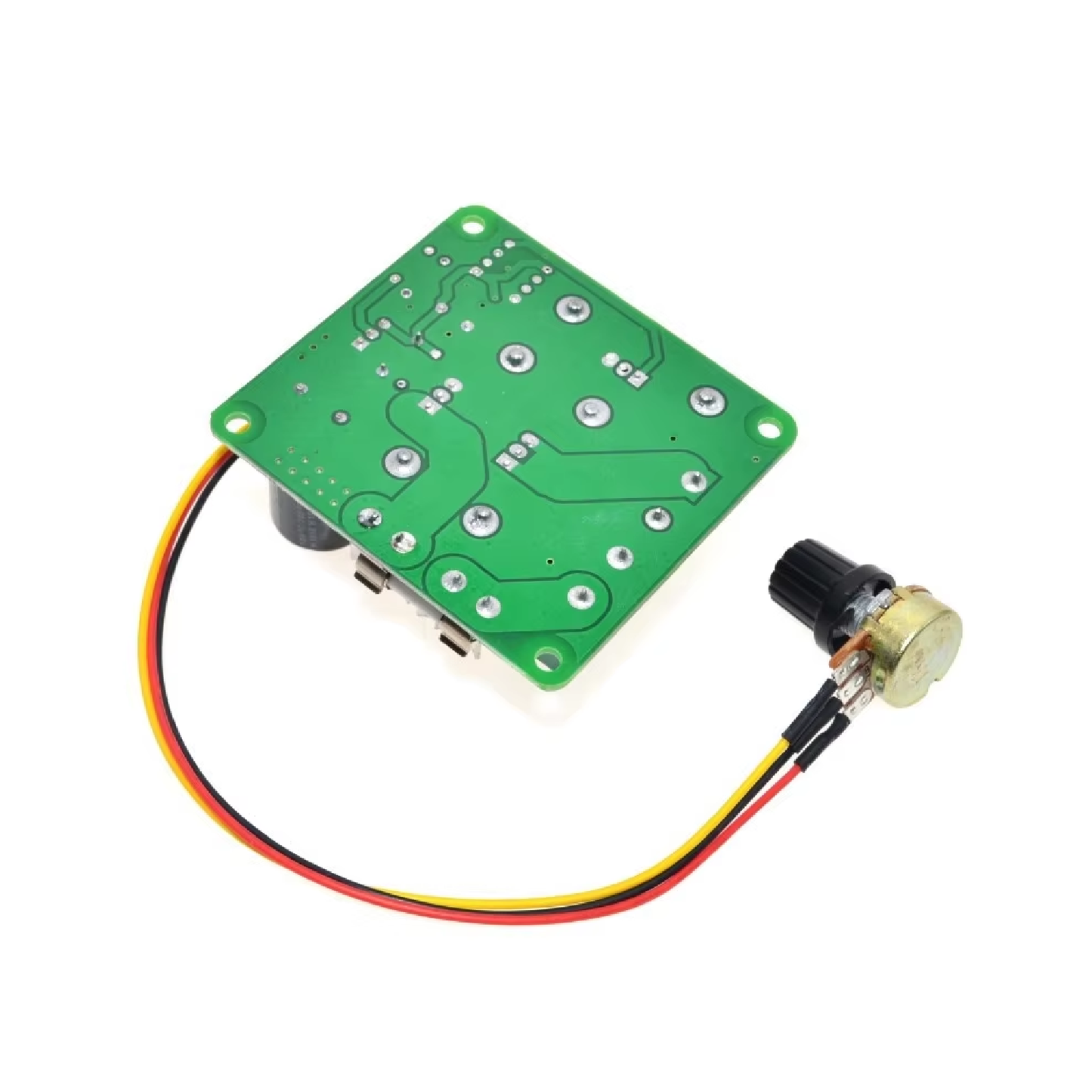

First, remove the potentiometer.you may take it down from one side of the circuit board or potentiometer side down under your need); Second, connecting 0-5V DC control signal to the middle pin marking 0-5V; Thirdly, connecting the earth wire of 0-5V DC control signal to the connecting piece on the pin marking GND;

Note:

This can NOT be used to the BRUSHLESS motor. Do not reverse the positive and negative terminals of the DC power supply, otherwise, the governor may be damaged. The motor can be positive or negative, regardless of when the direction is inconsistent with expectations, can be changed by adjusting the direction of the line sequence. Adjustment potentiometer knob to change the governor output duty cycle, the motor speed change.

Package Included:

1 x DC 6V-90V 15A Motor Governor
