- Model: XH-M604
- Input Voltage: DC 6-60 V (max 80 V)
- Display Precision: 0.1V
- Control Accuracy: 0.1V
Description:

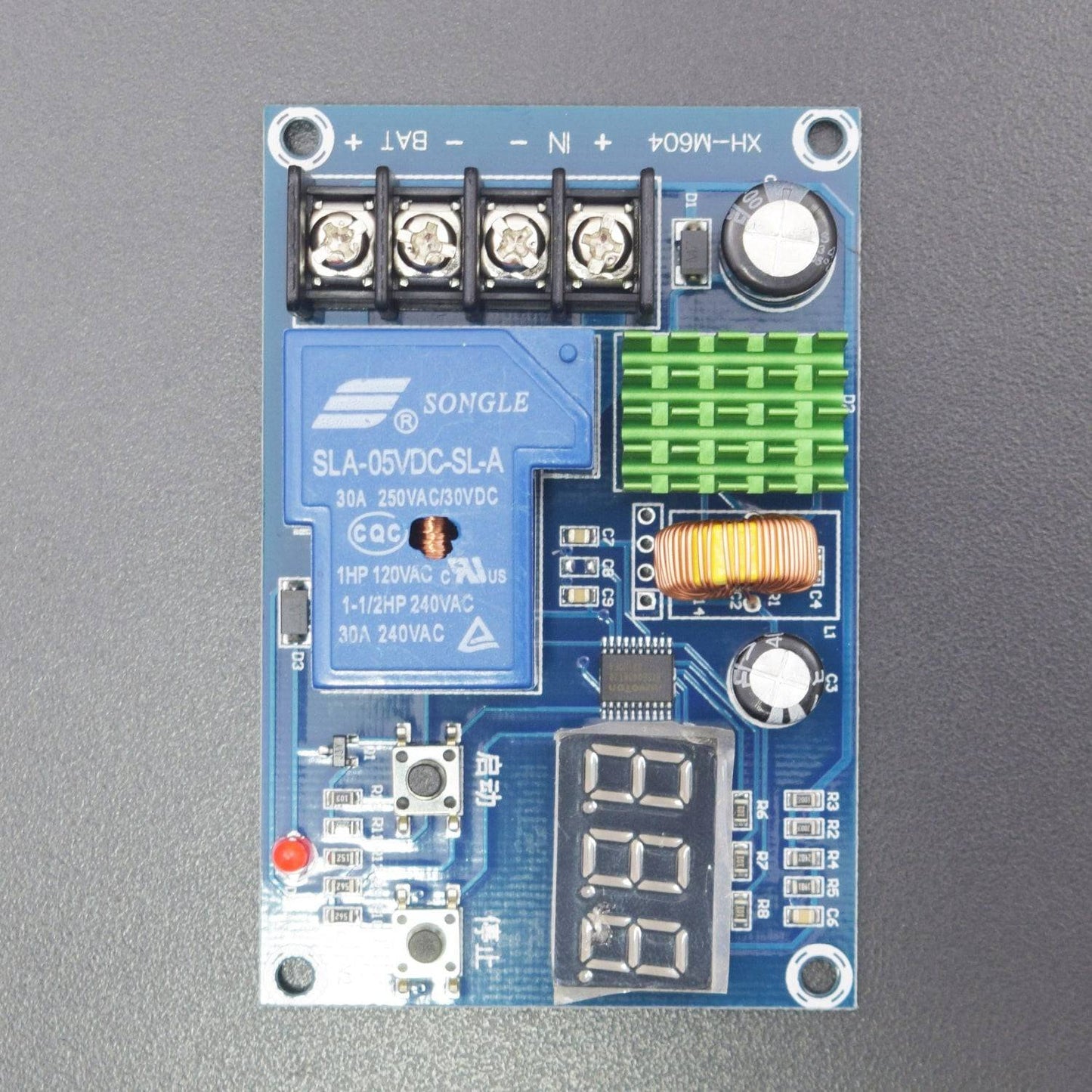

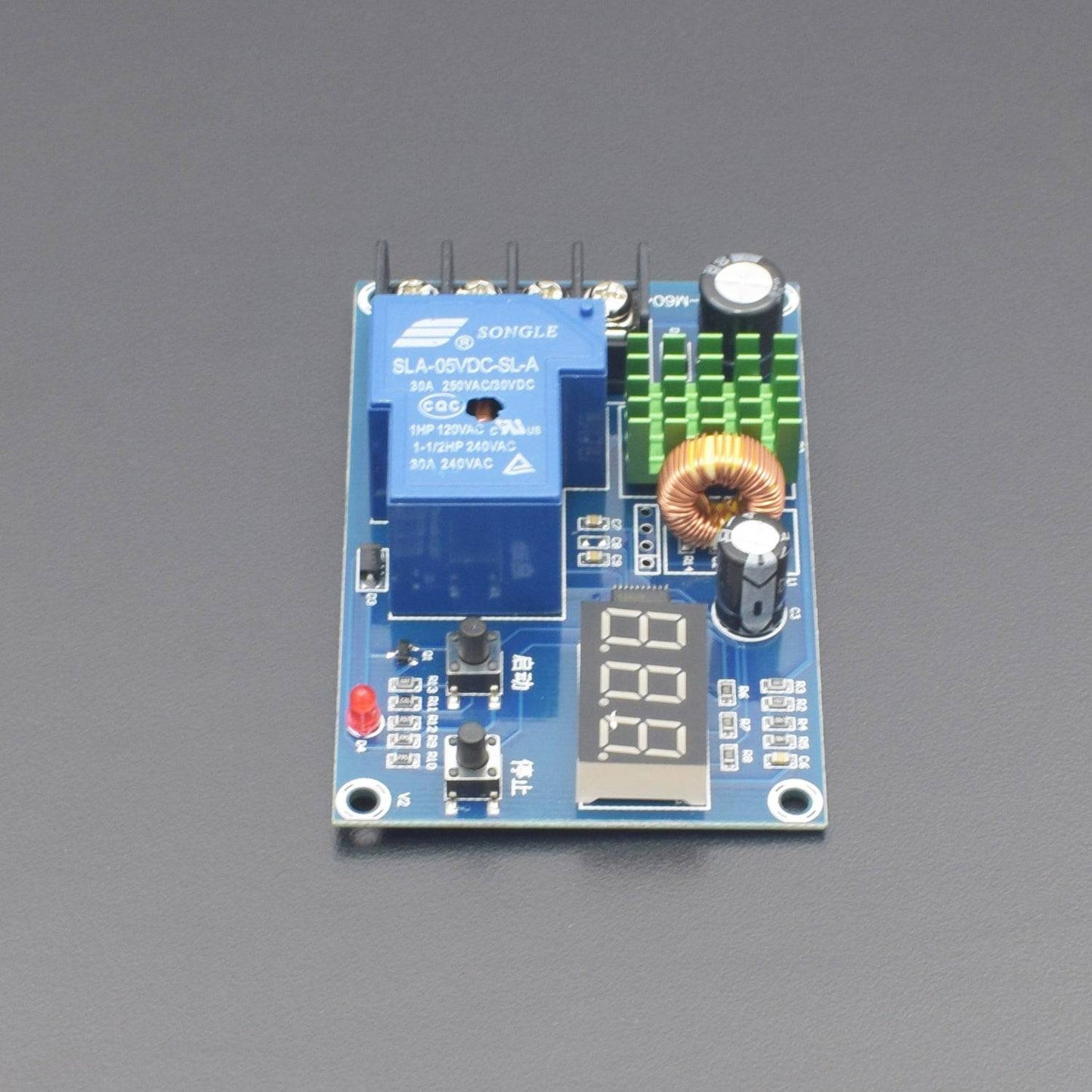

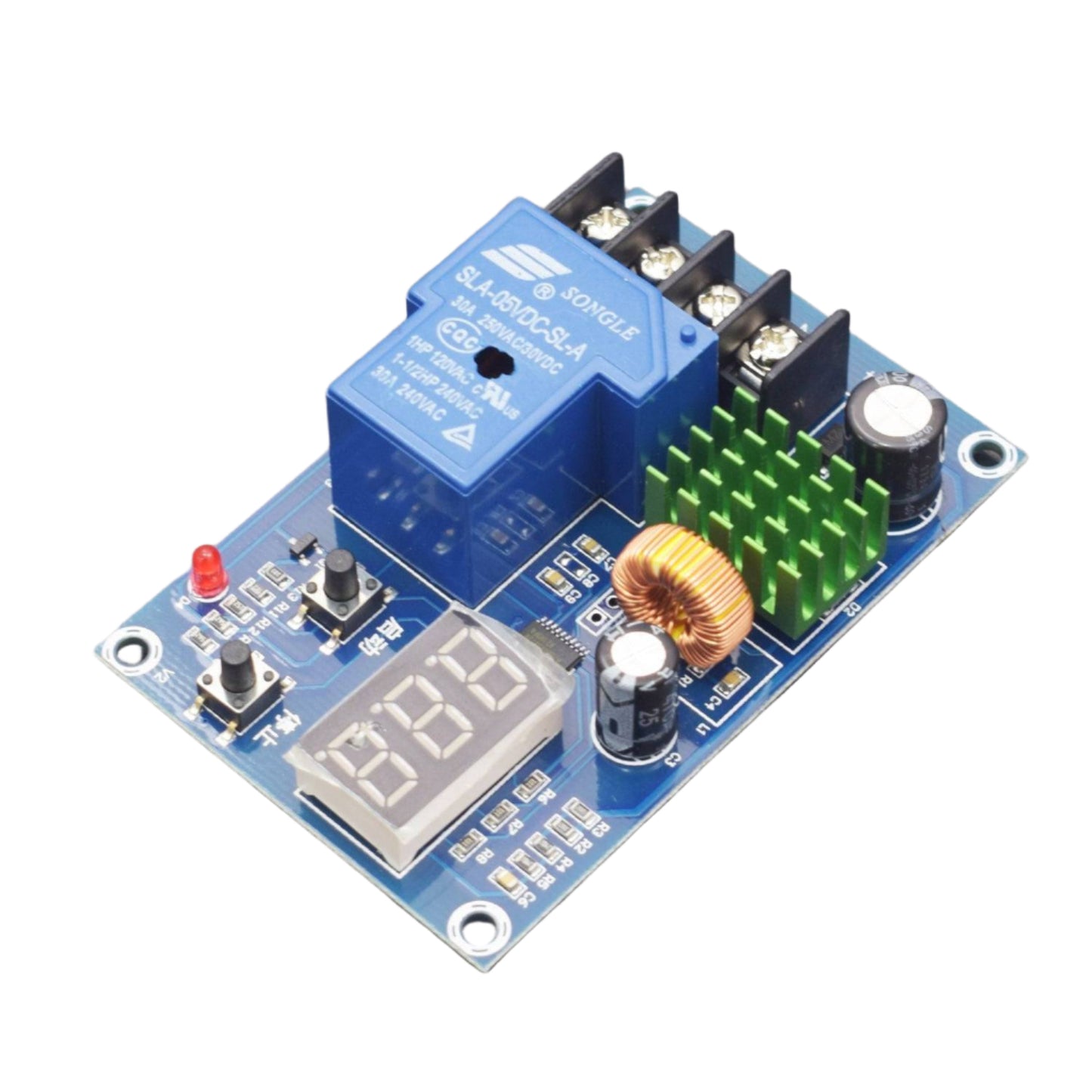

This digital battery charging protection switch is specially designed for the DC6-60V battery. On-board momentary push button to set the charging initiation voltage and charging stop voltage, when the battery voltage reach the setting values, the module will disconnect the charging circuit automatically to avoid the battery from overcharging to prolong the battery lifetime.
Specification:
- Model: XH-M604
- Input Voltage: DC 6-60 V (max 80 V)
- Display Precision: 0.1V
- Control Accuracy: 0.1V
- Type of Output: direct output
- Voltage Tolerance: +/- 0.1V
Features:
- Settable battery charging controller board for DC6-60V lead acid battery and lithium ion battery also compatible with solar panel and wind turbine.
- On-board momentary push button to set the charging initiation voltage and charging stop voltage and 3 digit red LED display the parameter easy to operation.
- On-board 30A 1 channel relay to control the power on/off automatically, when battery reach the values, module disconnect the power supply to avoid battery overcharging.
Operation Manual:
When setting the voltage value, start button play button, stop button role is off.
- Set the start voltage: The voltage status is displayed normally. Press the start voltage button to display the start charging voltage. According to the start button, the number flashes, set the start and stop buttons to set the start charging voltage value.
- Set the stop voltage: Normal voltage normal display mode, press the stop voltage button to display stop charging voltage. With the stop button, the number flashes and the charging voltage is stopped by the start and stop buttons.
- Setup error: While in power, press and hold the Start / Stop button. The number shows 888, which is the factory setting.
Application:
- The new energy battery of solar photovoltaic cells.
- Battery and electric car battery.
- Lead-acid batteries, nickel-hydrogen batteries, nickel lithium batteries, lithium ion batteries, polymer batteries, etc.
- All kinds of generators to charge the battery.
Note: This module do not have the buck converter function.
Package Included:
1 x DC 6V-60V Programmable Digital Battery Charge Controller Protection Switch for Lead Acid Lithium Solar Panel Battery
