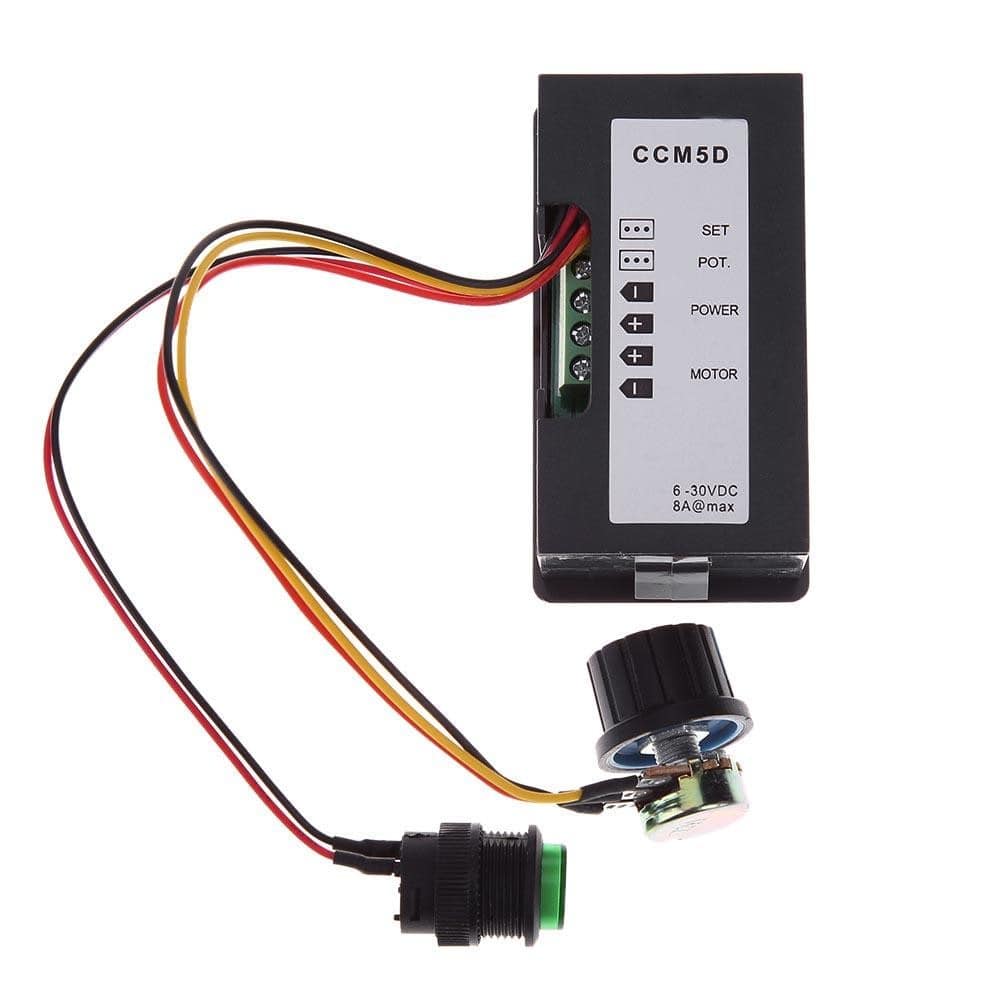

DC 6V 12V 24V 5A PWM DC Motor Speed Controller CCM5D Digital Display LED Motor Controller- RS2562

DC 6V 12V 24V 5A PWM DC Motor Speed Controller CCM5D Digital Display LED Motor Controller- RS2562

SKU:RS2562

50 in stock

Regular price Rs. 300.00
Regular price Sale price Rs. 300.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Power Voltage: 6V-30VDC
  • Power Maximum output current: 240W
  • Maximum continuous output current: 5A

Description:

This CCM5D Digital PWM DC Motor Speed Controller With Display is used to control the speed of a DC motor through PWM. This controller comes with a 3 digit 7 segment Red color display, which displays the duty cycle of the PWM from range 0 to 100. The adjustable speed range is 0% -100%. Suitable for DC motor ( or DC load) within 5A, maximum current 8A

Specification:

  • Input Power Voltage: 6V-30VDC
  • Power Maximum output current: 240W
  • Maximum continuous output current: 5A; (Crest value current 8A),
  • LED displays service ratio 0-100%
  • PWM Frequency: 16kHz
  • Adjustable duty cycle: 0% -100%

Features:

  • The CCM5D DC Motor speed regulator controls the speed of a DC motor by adjusting the Modulated Pulse Width (PWM).
  • Large 0.56-inch 3-digit LED display numbers allow viewing in the most adverse conditions.
  • The display range of the 3-digit LED display is "000-100". (For example, shown as "066 '' as picture 1, it means the PWM output duty cycle is 66%.)
  • The adjustable speed range is 0% -100%. Suitable for DC motor ( or DC load) within 5A, maximum current 8A
  • Incorporates a push button Push closed then push open.

Instructions:

Before try wiring the controller, make sure the power is off.

  • Connection cables refer to wiring diagrams.
  • Turn on the power and adjust the potentiometer.
  • The LED display shows the PWM output duty cycle.
  • Push the key, the controller closed, push again, the controller opens.

Package Included:

1 x DC 6V 12V 24V 5A PWM DC Motor Speed ​​Controller CCM5D Digital Display LED Motor Controller
