DC 5V One Channel WiFi Relay Module Smart Home Cell Phone WiFi Wireless Remote Control Switch - RS1823

• Module has two work modes:
  1. Cell phones, carry on the WiFi module
  2. Mobile phone and WiFi module
• Carrying on the same router, by mobile phone APP to control relay

Description:

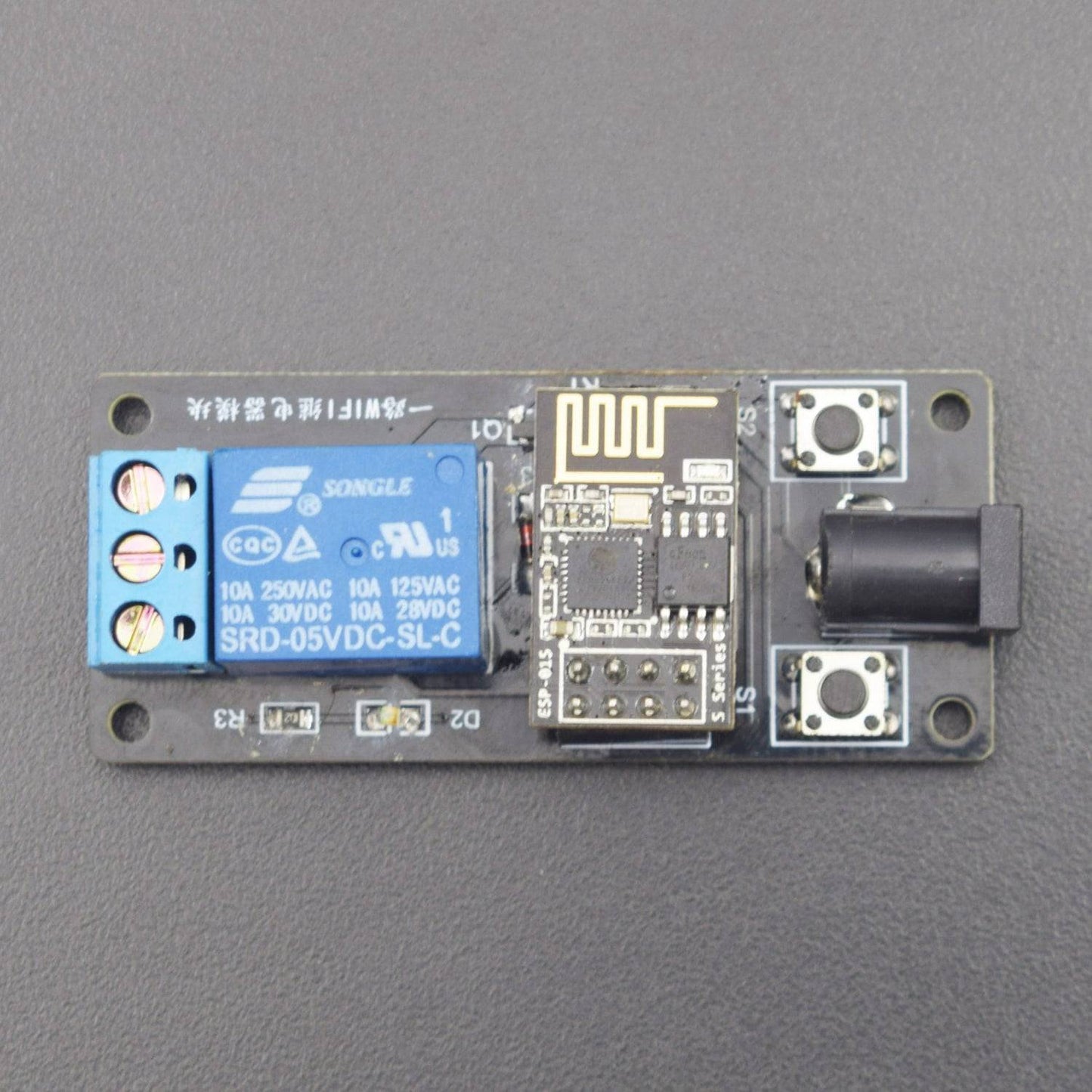

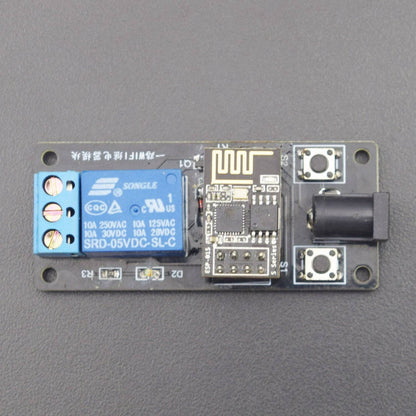

This is the DC 5V One Channel WiFi Relay Module Smart Home Cell Phone WiFi Wireless Remote Control Switch. This switch is with wireless control access control door lock and computer boot function. And if you want then delay time can be set. On-board the ESP8266 WiFi module has three work modes: STA (client), AP (hot), the STA + Ap( hot +client), according to the workings of a module to the corresponding choice of WiFi module working mode.Module need before use serial debugging software and USB to TTL module send serial command was carried out on the WiFi module configuration (don't power outages after configuration is complete, as some of the parameters of WiFi module cannot be saved when the power is cut off), mobile phone and WiFi module after establishing a network connection can use the phone APP control relay.

Features:

• Module has two work modes:
  1. Cell phones, carry on the WiFi module
  2. Mobile phone and WiFi module
• Carrying on the same router, by mobile phone APP to control relay
• Transmission distance:
  1. The open environment, the mobile phone when carrying on the WiFi module maximum transmission distance of 400 m
  2. When the WiFi module and cell phone carrying on the router at the same time the signal transmission distance in accordance with the router on the weak
• Module with diode effusion protection, short response time
• Module baud rate: 9600,8,1,0,0.

Pin Description:

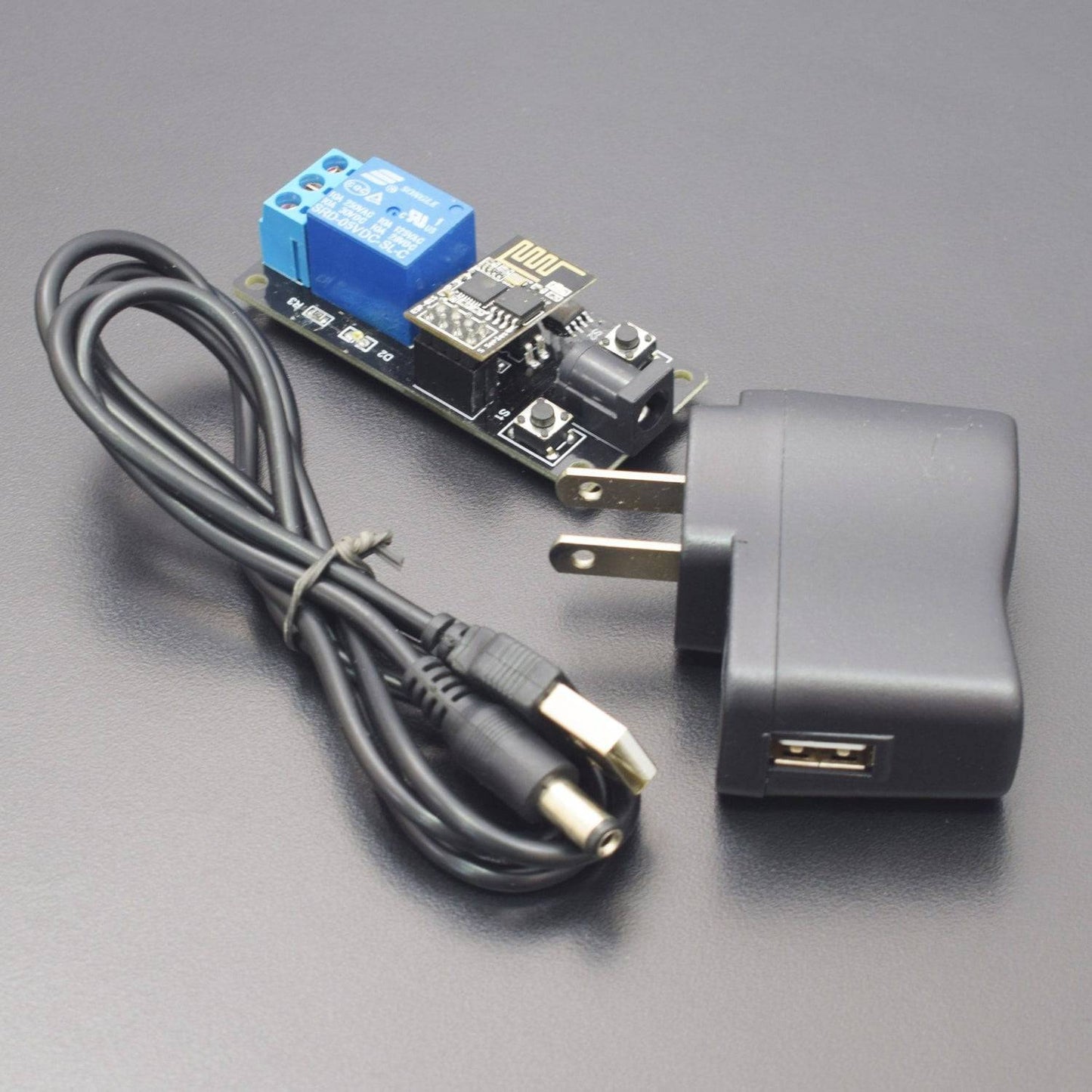

Package Included:

1 x DC 5V One Channel WiFi Relay Module Smart Home Cell Phone WiFi Wireless Remote Control Switch
