Description:

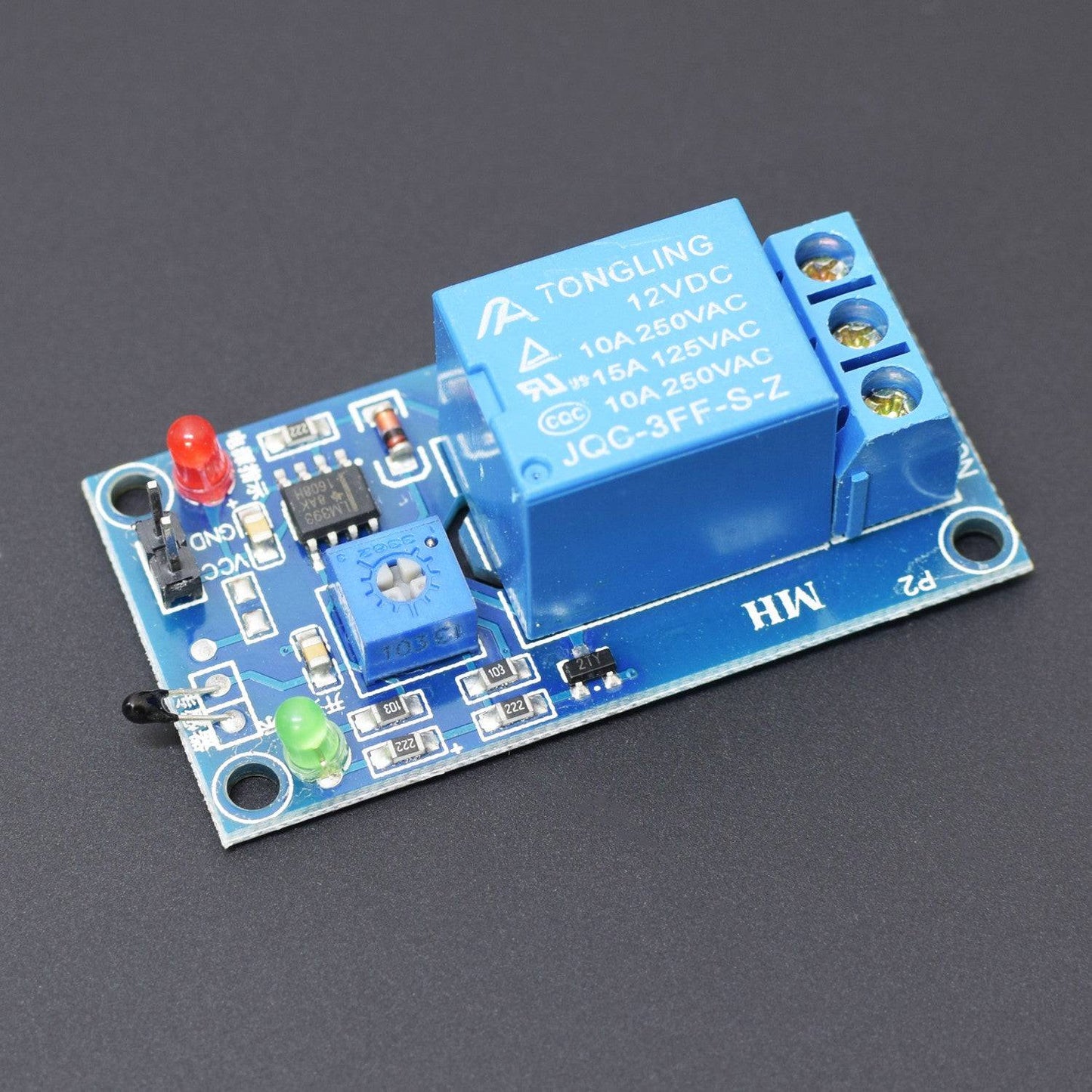

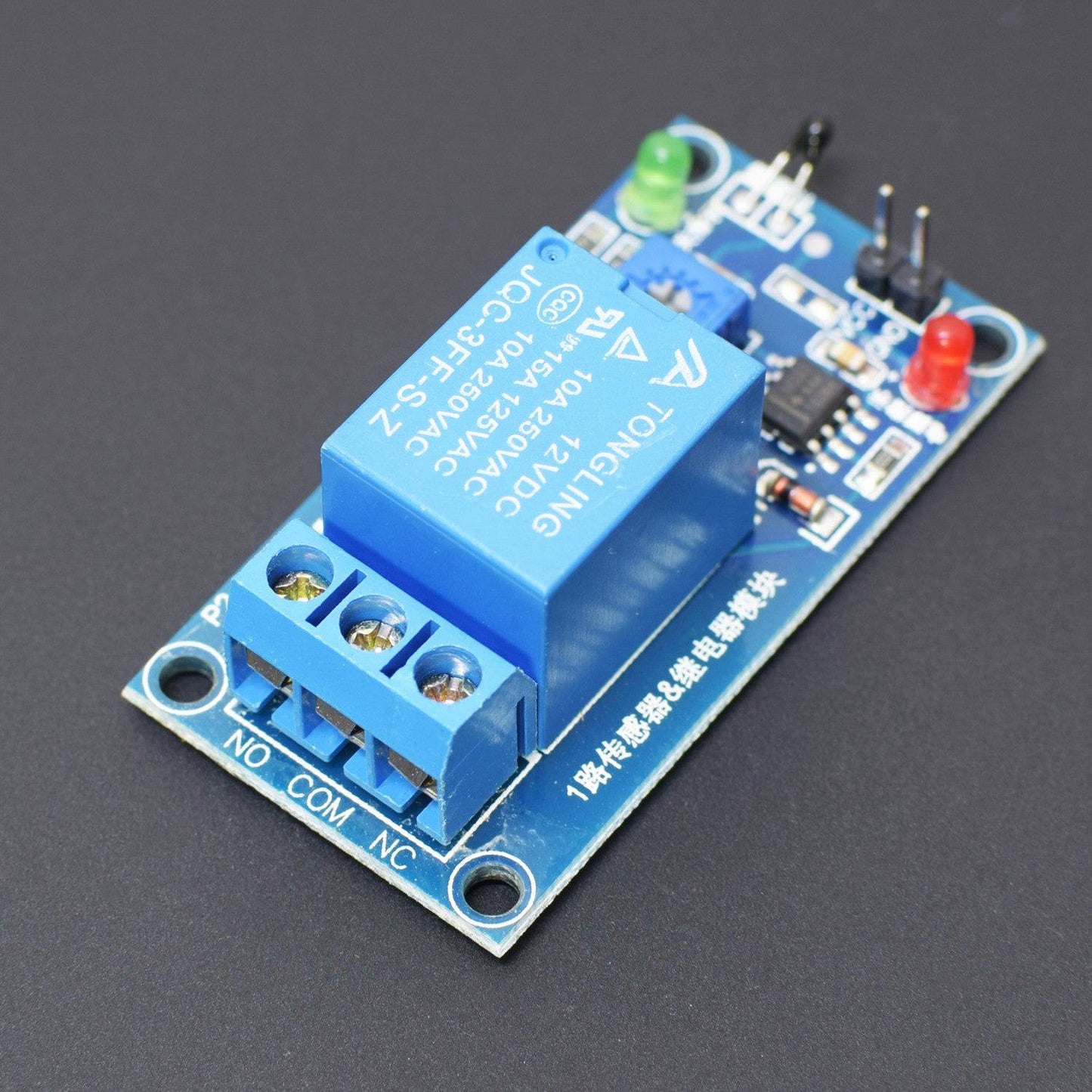

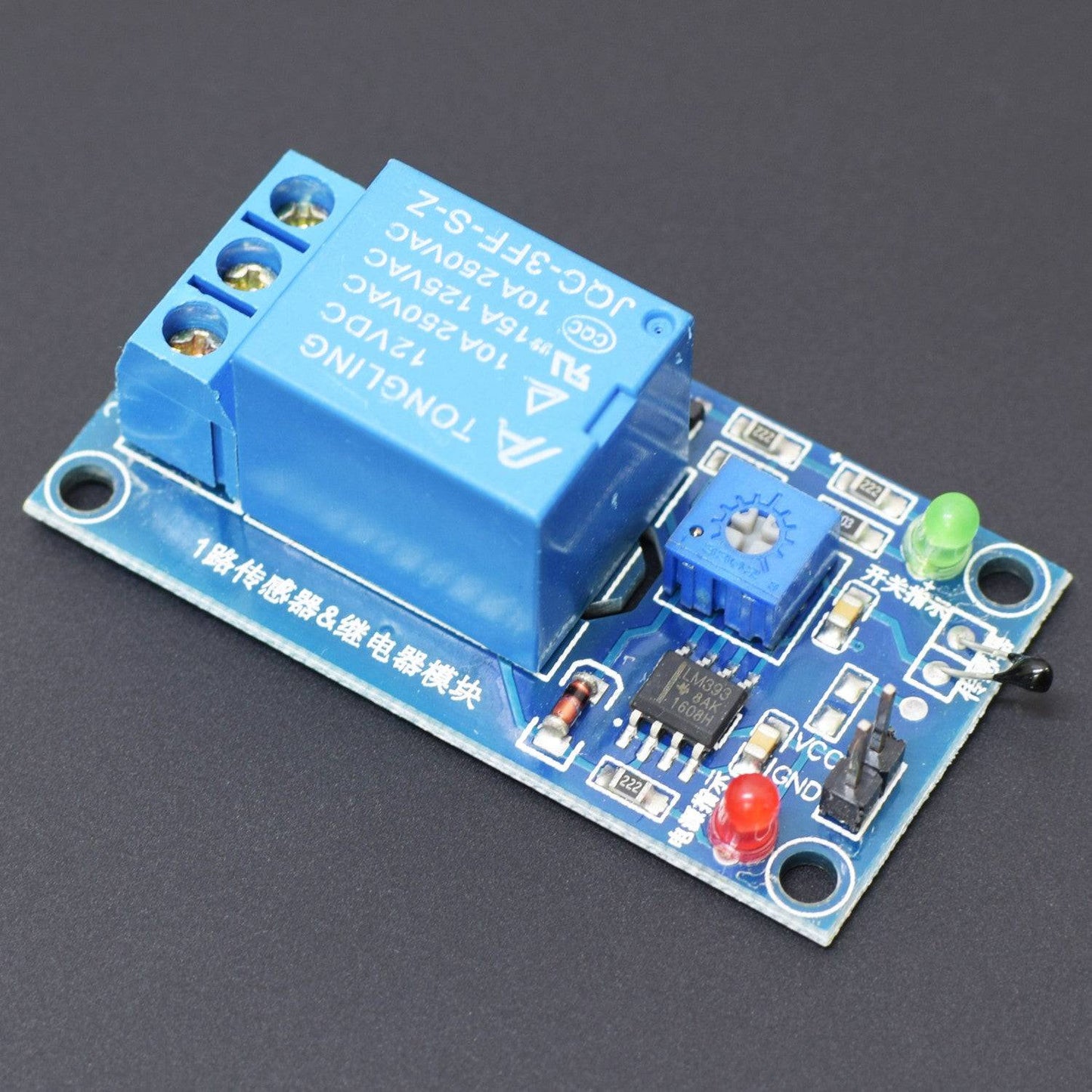

This is DC 5V 1-Channal Temperature Sensor Switch Relay Module Control Board. Automatic control temperature below the temperature start, or higher than the temperature start, select normally open output termination is higher than the set temperature starts, then the normally closed below the set temperature starts. The comparator output to directly drive relays, 220V AC or other devices can be connected. Adjust the temperature distribution bit.
Specifications:
- Supply Voltage: 5VDC
- Current: Greater Than 150mA
- Load: 250V 10A AC or 30V 10A DC
Features:
- The comparator output to directly drive relays, 220V AC or other devices can be connected.
- Adjust the temperature distribution bit.

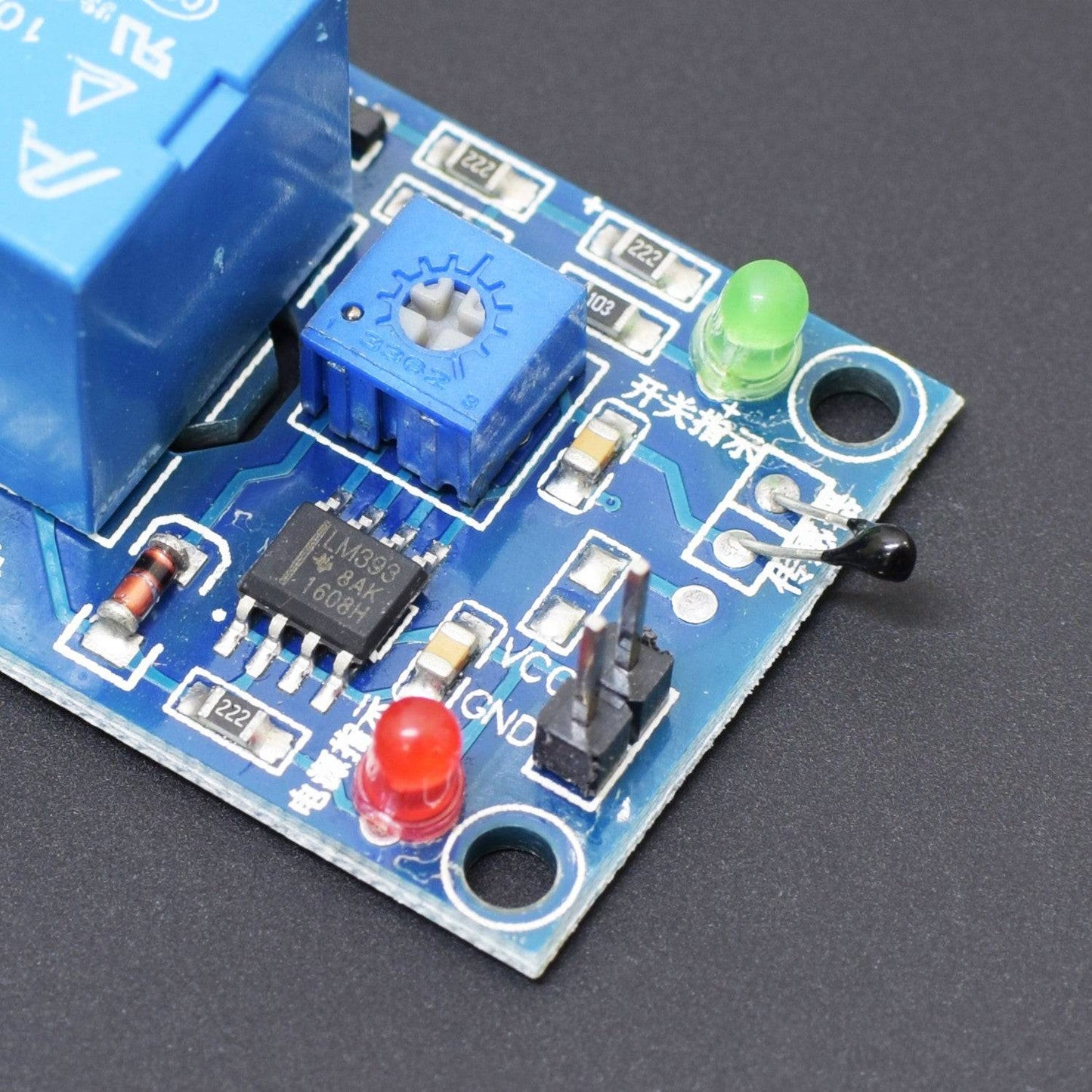

- The sensor interface can be installed pin plus thermal sensor with leads.
Using Instruction:
- Thermistor module on the ambient temperature the most sensitive, are generally used to detect the temperature of the surrounding environment, and replacement of the waterproof type thermal sensor can detect water temperature.
- The module when the ambient temperature exceeds the threshold value is set, the relay energized, the common terminal and the normally start turned, when the outside ambient temperature is less than the set threshold value, the relay is switched off, the common terminal and the normally closed end turned on.
- The public side, normally open, normally closed three ports, the equivalent of a dual-control switch, relay coil power, public end and often the beginning of conduction, radio, public end normally closed terminal conduction.
Package Included:
1 x DC 5V 1-Channal Temperature Sensor Switch Relay Module Control Board
