- Test for Charge Voltage: VCU 4.25 V ± 0. 0 5 V (4.2 0-4.35 V / each 0. 0 5 V per step)
- Increase Charge Voltage: vcd 4.10-4.00 V
- Voltage Test when discharging: vdd2.5 0 ± 0. 1 V (2.5-3. 0 V / each 0. 0 5 V per step)
- Summary of voltage relief: vdu 2.8 0 V ± 0. V1
- Operating Current: ≤300ua
Description:

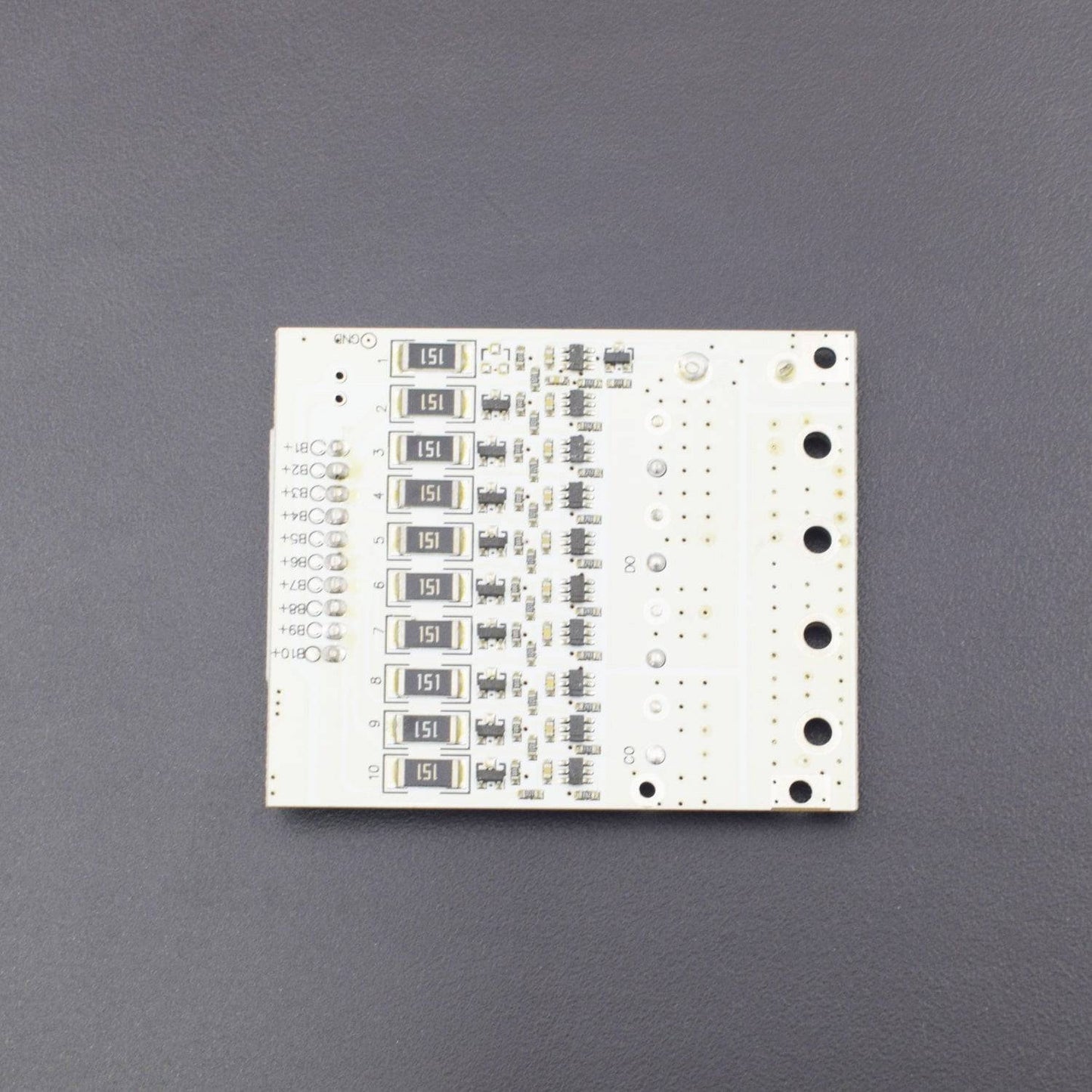

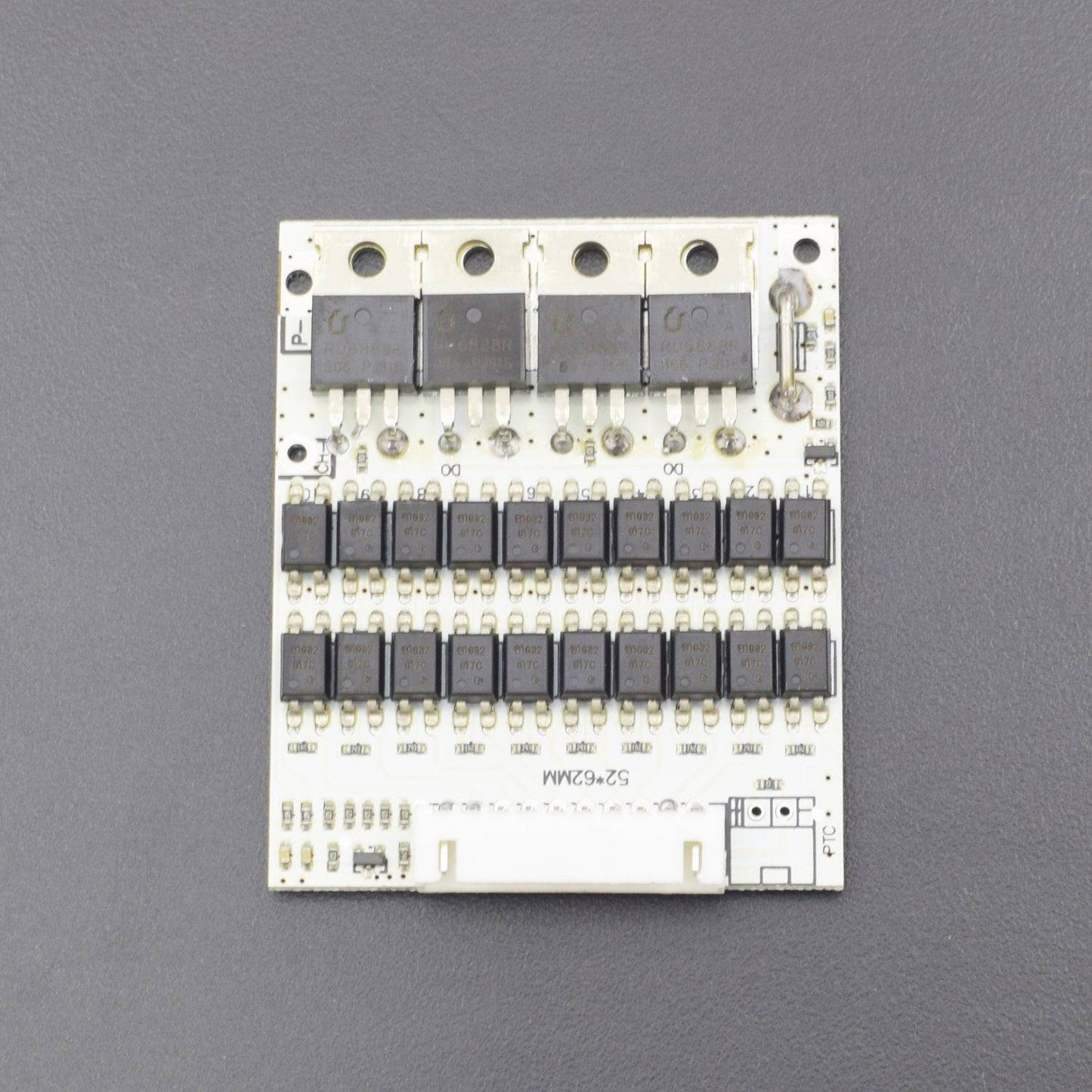

This product is a battery protection BMS PCB board with DC 42-45V input voltage and up to 30A output current. It is designed for 10 series Li-ion batteries. And you can use it for ternary batteries, manganese acid batteries and cobalt acid batteries. Besides, the board is equipped with balance function, which ensures that each battery cell is fully charged at the same time. This battery protection board can be used for ternary batteries, manganese acid batteries and cobalt acid batteries, professional and powerful. It has multiple protective functions including overcharge protection, over-discharge protection and short circuit protection.
Specification:
- Test for Charge Voltage: VCU 4.25 V ± 0. 0 5 V (4.2 0-4.35 V / each 0. 0 5 V per step)
- Increase Charge Voltage: vcd 4.10-4.00 V
- Voltage Test when discharging: vdd2.5 0 ± 0. 1 V (2.5-3. 0 V / each 0. 0 5 V per step)
- Summary of voltage relief: vdu 2.8 0 V ± 0. V1
- Operating Current: ≤300ua
- Short Circuit Protection: 40a 3A
- Short Circuit Protection duration: 500 MS
- Temperature Protection: 55/65/75 degrees
- Typical Output Current: 30A
- Max. Output Current: 45A
- Single Cell Balance Voltage: 4.19 V ± 0. 0 2 V
- Balance balance for a single cell: ≤ 55ma
- Charging Current: ≤10a Dim
Features:
- Easy Installation
- Input voltage DC 42-45V
- Charing current max.10A
- Output current up to 30A
- Charging protection and Balance charging
- Suitable for 10 packs of Li-ion battery
Package Included:

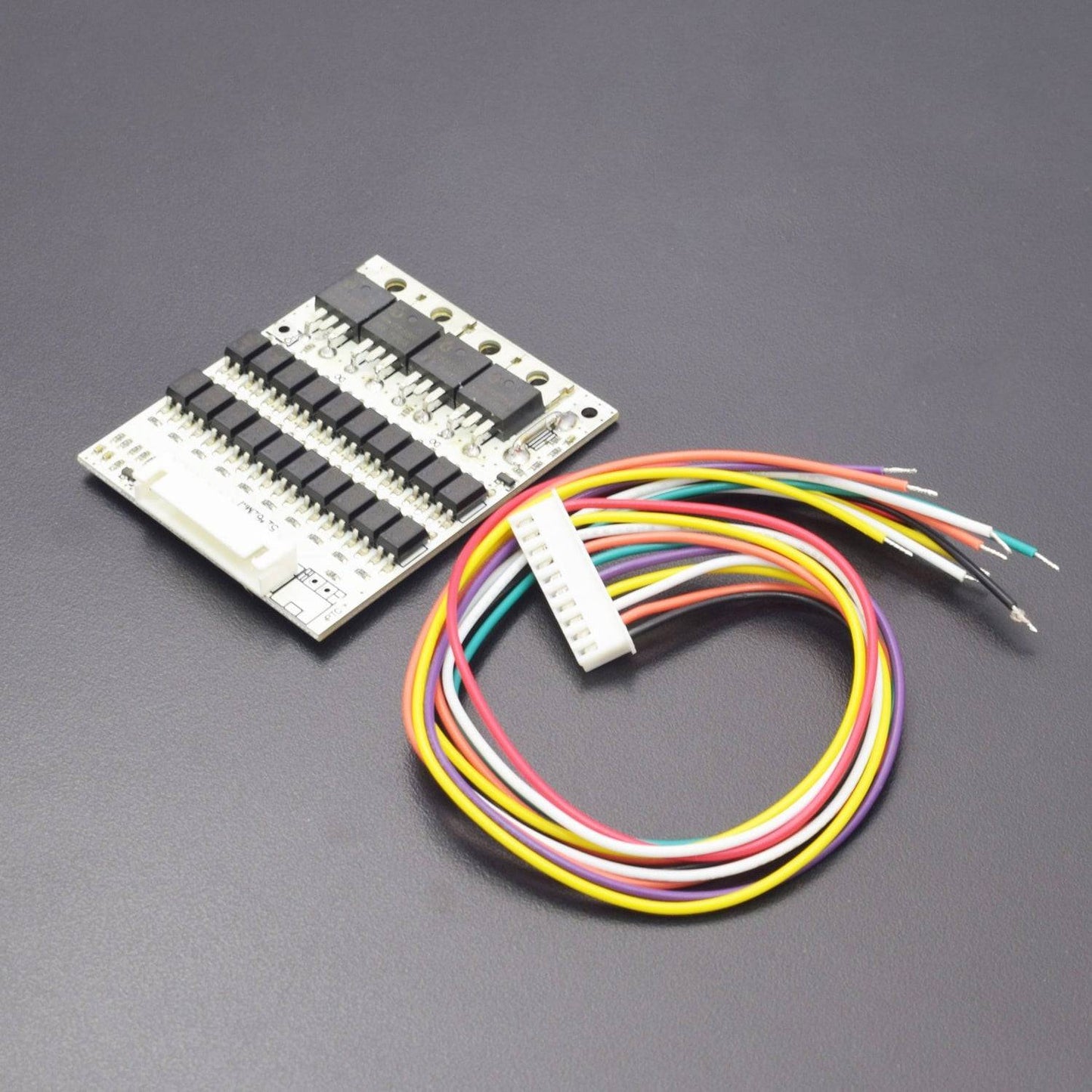

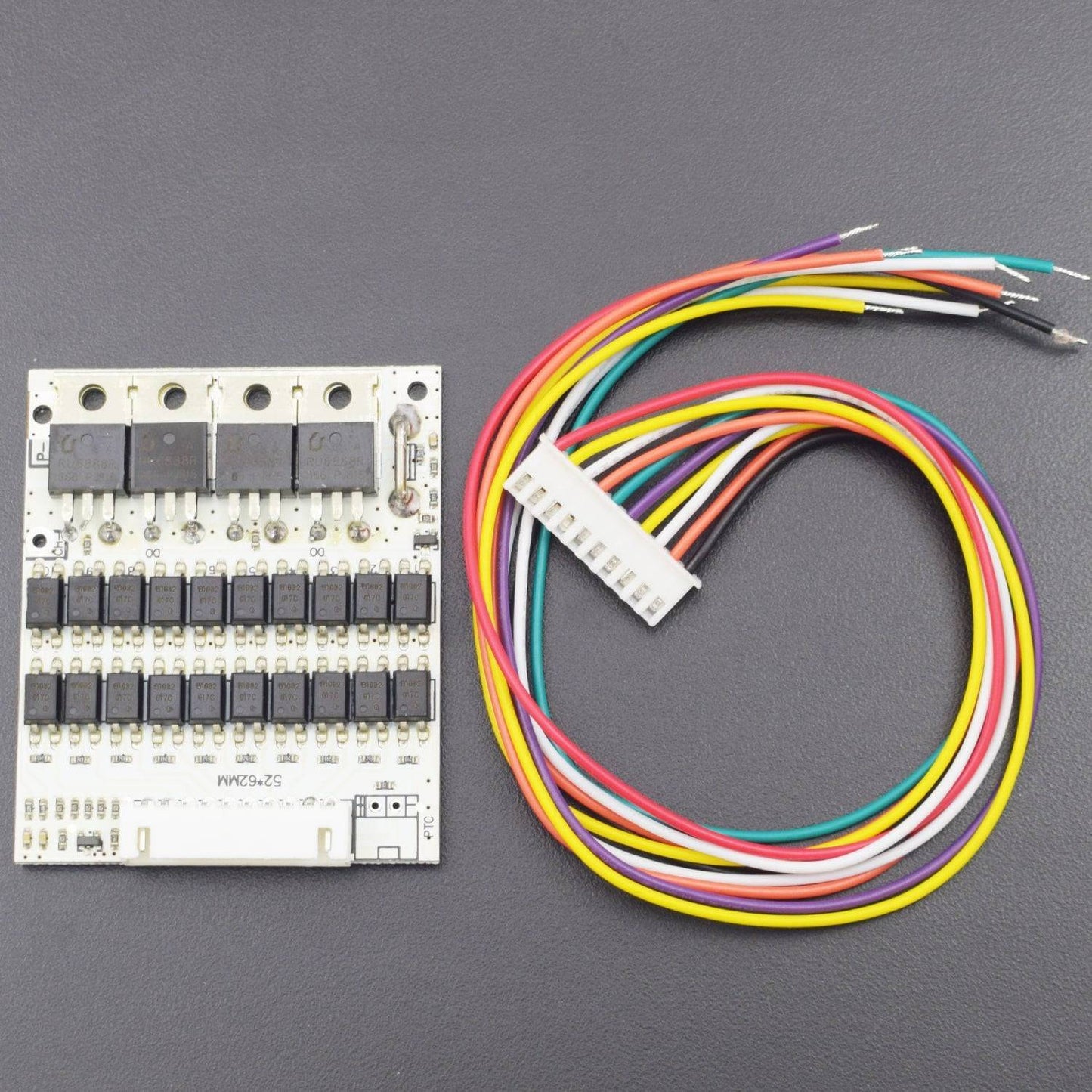

1 x DC 42-45V Input PCB Board Battery Protection BMS 30A Max for 10S 36V Li-ion Lithium Cell
