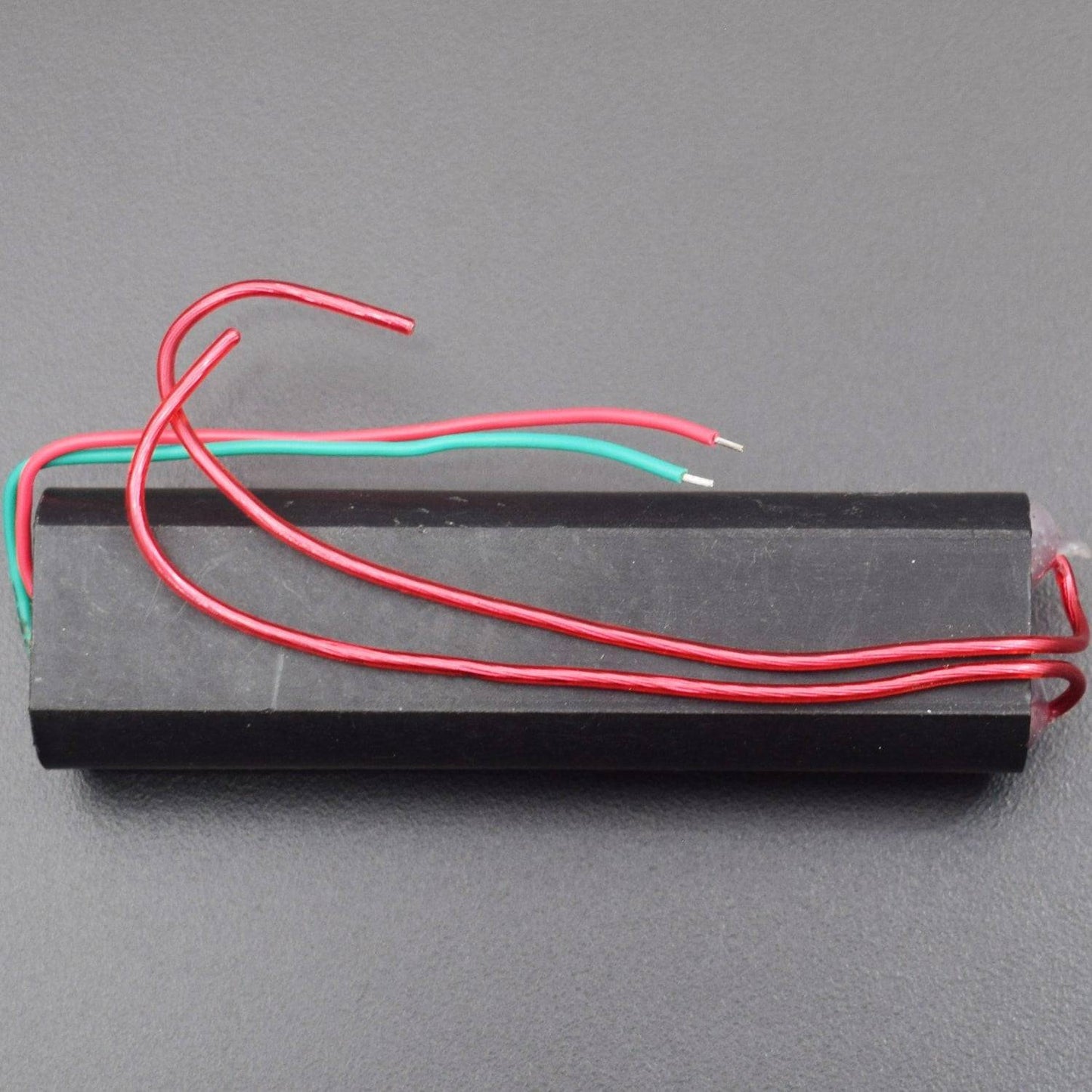

DC 3.7V-7.4V to 1000KV High Voltage Generator Transformer Boost Inverter Module 89x26mm - RS1061

DC 3.7V-7.4V to 1000KV High Voltage Generator Transformer Boost Inverter Module 89x26mm - RS1061

SKU:RS1061

609 in stock

Regular price Rs. 200.00
Regular price Sale price Rs. 200.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Voltage: DC 3.7V - 7.4V
  • Input Current: 4A
  • Input Wire Length: 10cm (Red positive Green negative)
  • Output Voltage: 800KV - 1000KV (Please be careful when using)


Description:

The high-voltage module uses the principle Tesla coil is made of high-voltage pulse output voltage current, small size, high efficiency, simple external circuit(just plug in the switch, the battery can be) discharge intensity violent. This module is a small production with a high-pressure science inverter transformer/booster finished module, the input terminal DC 3.7V - 7.4V can get 800KV DC high voltage (about 1.5-2 cm arc) at the output can be used as high school science experiments, electronic equipment, negative ion generator, high voltage source to use when making small science.

Specification:

  • Input Voltage: DC 3.7V - 7.4V
  • Input Current: 4A
  • Input Wire Length: 10cm (Red positive Green negative)
  • Output Voltage: 800KV - 1000KV (Please be careful when using)
  • Output Current: 0.5A
  • Output Wire Length: 16cm
  • Discharge Time: 10s
  • Arc distance/High voltage discharge distance range: 15mm - 20mm
  • Power supply: 1x 3.7V Lithium Battery, 2x 3.7V Lithium Batteries in series(such as 18650 Battery), NiCd/NiMH Batteries, 4V/6V Lead-acid Batteries, etc. (6V battery is Recommended for the best effect)

Note:

  • The high-voltage module should not be powered on when it is under high voltage no-load status. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity and voltage is proportional to the high voltage arc distance)
  • During the experiment, please test the arc distance from short to long, DO NOT exceed the maximum arc distance, or the high voltage energy might not be released and it may easily damage the module.
  • The input voltage will affect the output voltage and Arc distance.
  • The power of the module is large and the heat dissipation inside is weak. Please let the module work intermittently, continuous work no longer than 1 minute. Improper voltage and long working hours may easily damage the module.

Package Included:

1 x DC 3.7V-7.4V to 1000KV High Voltage Generator Transformer Boost Inverter Module
