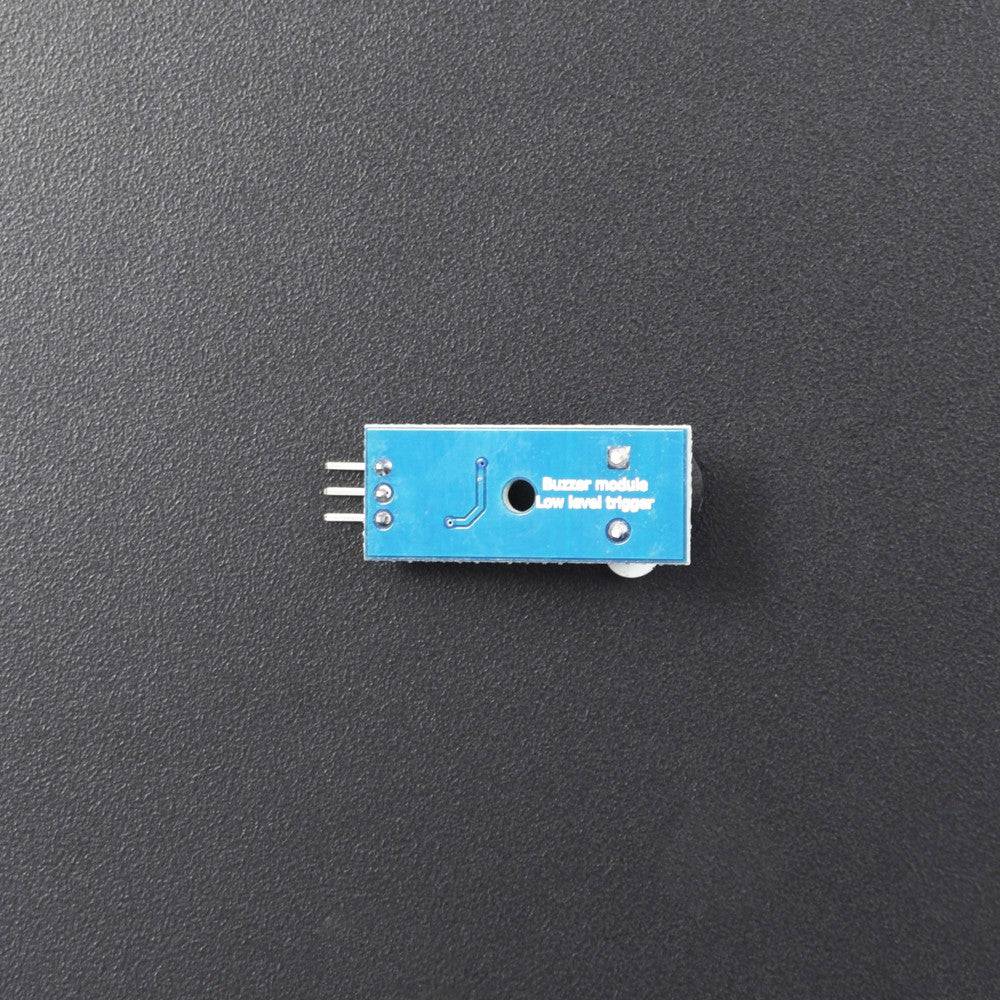

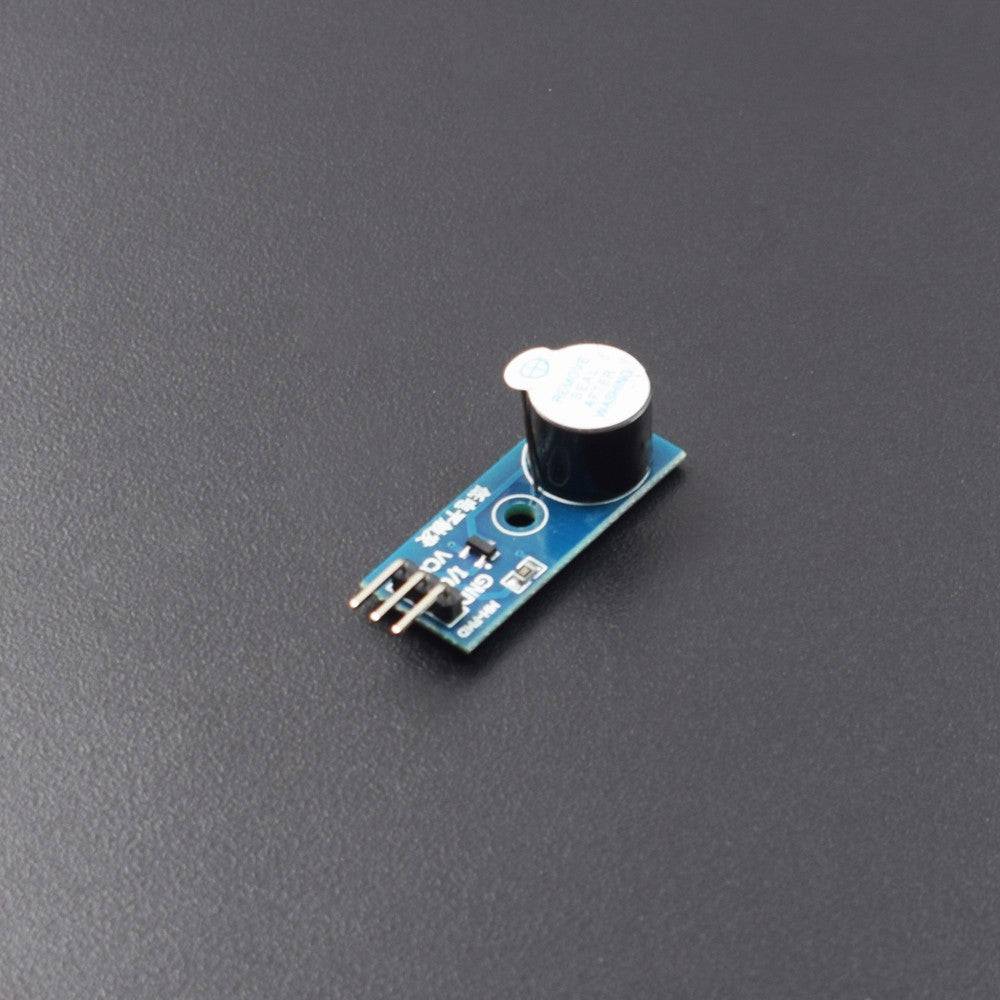

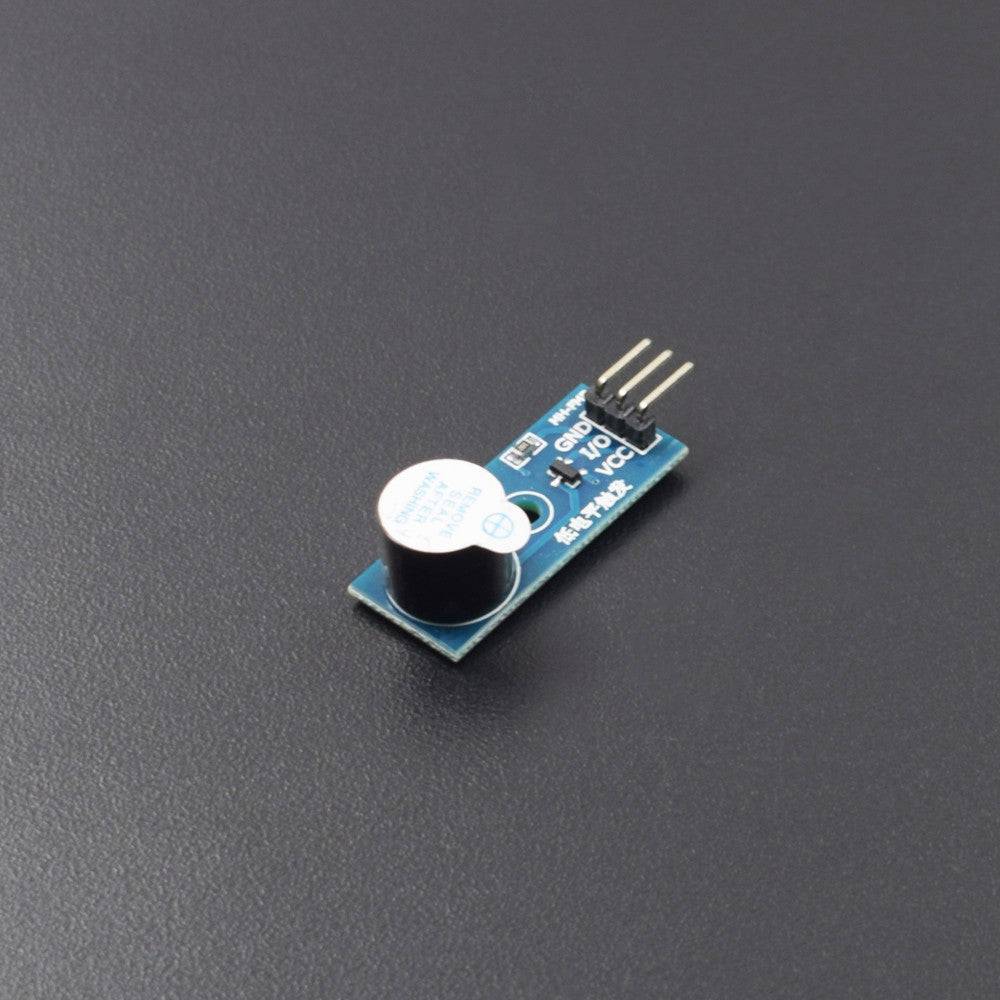

DC 3.3-5V Passive Buzzer Module Low Level Trigger Buzzer Alarm Sound Module for Arduino - ML036

DC 3.3-5V Passive Buzzer Module Low Level Trigger Buzzer Alarm Sound Module for Arduino - ML036

SKU:ML036

232 in stock

Regular price Rs. 30.00
Regular price Sale price Rs. 30.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Work Voltage: 3.3-5V
  • With a fixed bolt hole for easy installation
  • PCB Dimension: 3.3 x 1.3cm
  • Module adopts 9012 transistor drive

Description:

This buzzer module can be used to build alarm/doorbell DIY circuits. It's useful whenever you need audio feedback in a project. Passive buzzer is a device you have to send it an AC sound signal and you can control the sound. The arduino needs to generate the tone. With enough hardware and software you can make it play music. The only downside ( besides a bit of extra programming) is that it takes processor-time to generate the sound. This could be an issue if your program is doing lots of other thing at the same time. A piezo speaker can be driven directly from the arduino.

Specification:

  • Work Voltage: 3.3-5V
  • With a fixed bolt hole for easy installation
  • PCB Dimension: 3.3 x 1.3cm
  • The module adopts 9012 transistor drive
  • No oscillation source, need square wave (frequency 2K-5K ) to drive
  • Sound frequency control, you can make a “do re mi fa sol la si” effect
  • VCC: 3.3V-5V
  • GND: The Ground
  • I/O: I/O Interface of SCM

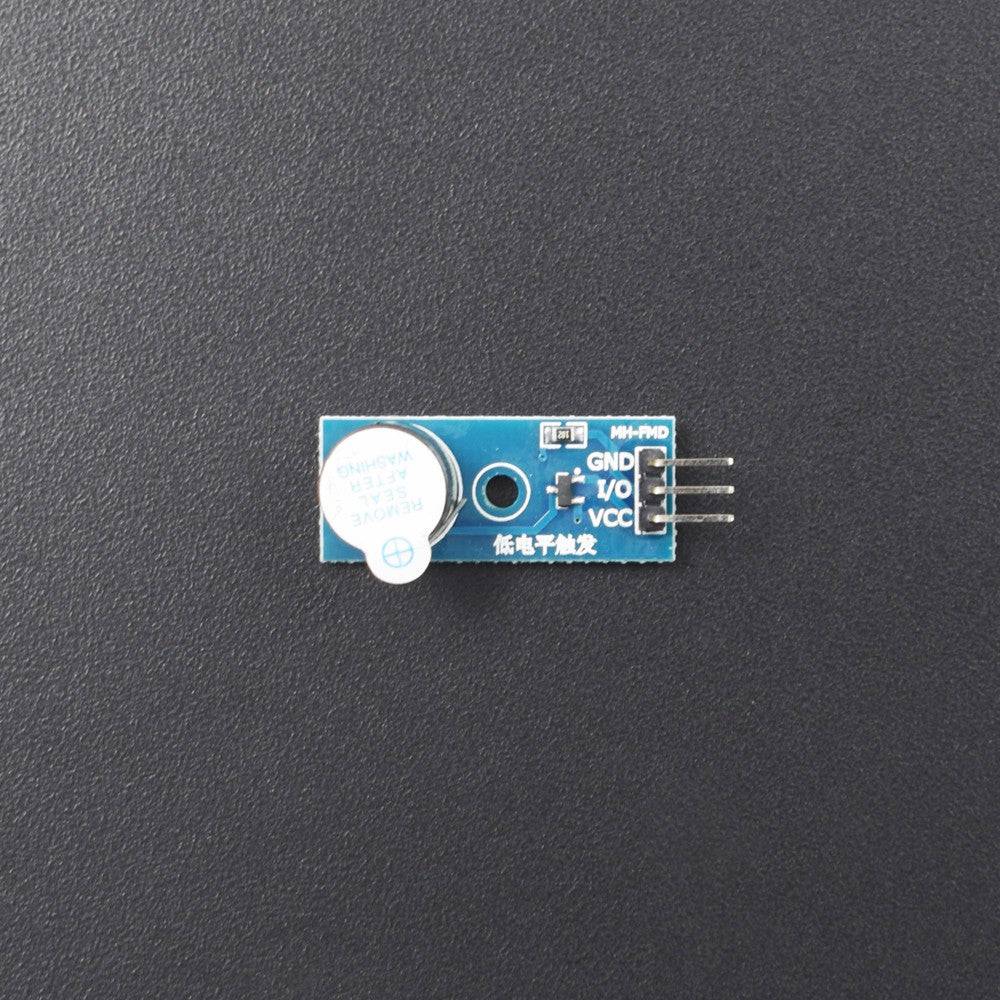

Pin Specification:

  • VCC: 3.3V-5V
  • GND: The Ground
  • I/O: I/O Interface of SCM

How To Use:

  1. Play Indian National Anthem using Passive Buzzer Module
  2. Control the frequency of Buzzer Module using Push Buttons

Package Included:

1 x DC 3.3-5V Passive Buzzer Module Low Level Trigger Buzzer Alarm Sound Module for Arduino
