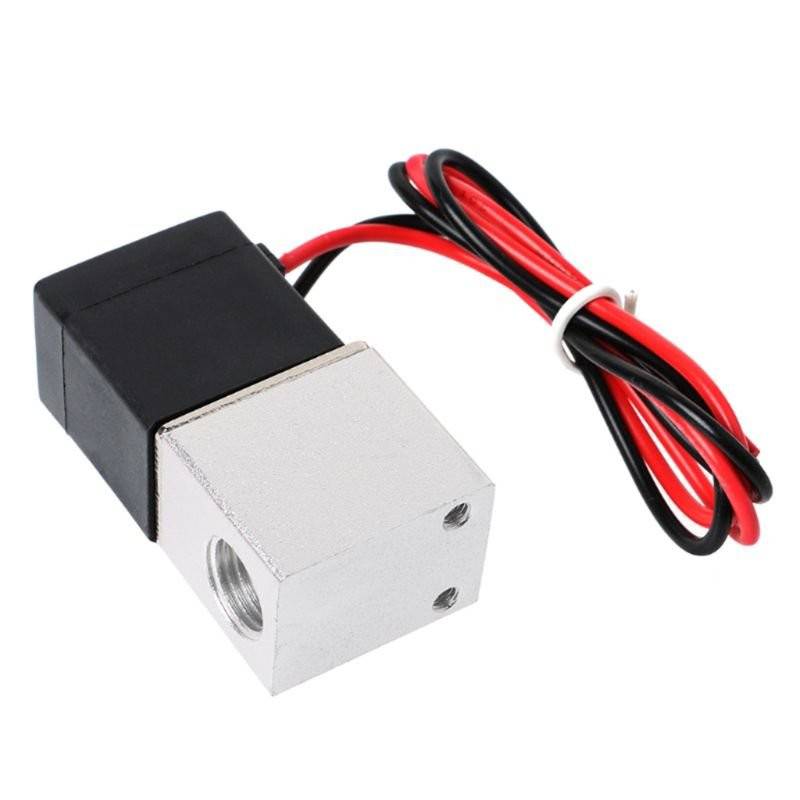

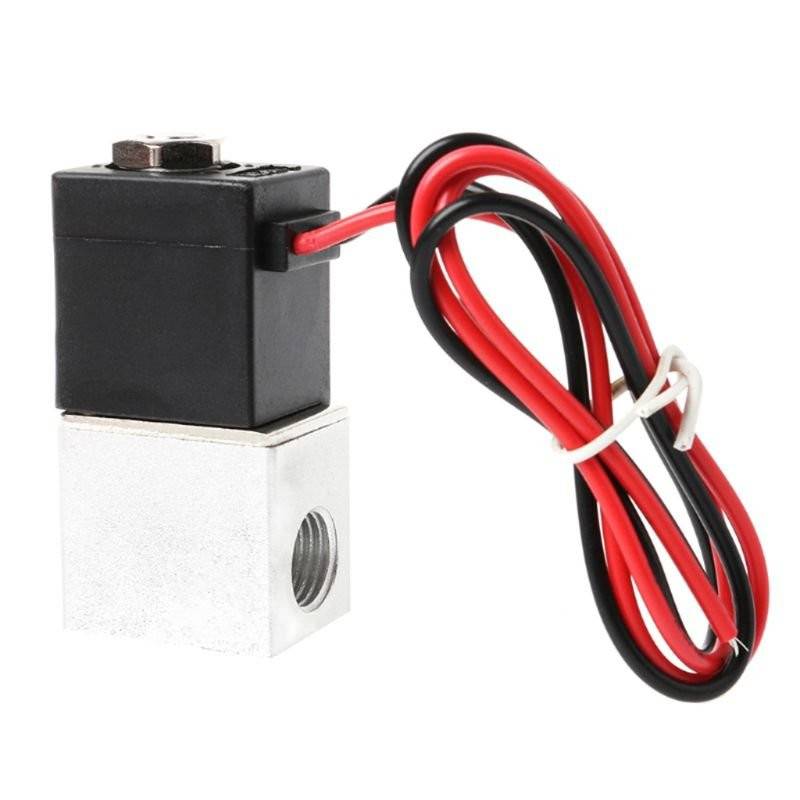

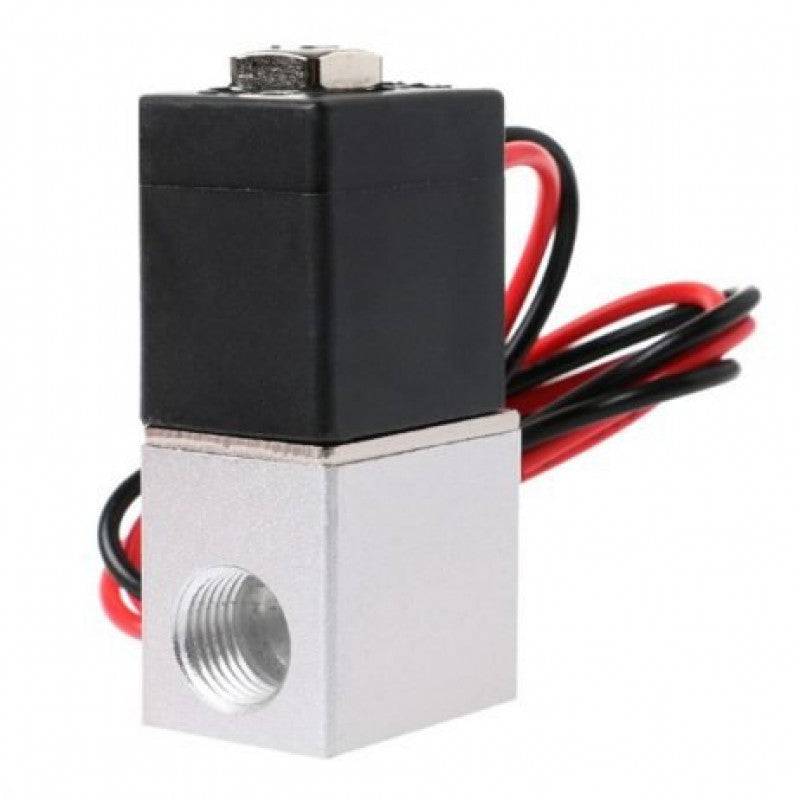

Description:
The valve works with the solenoid coil which operates electronically with a DC 24-volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage is removed.
Specifications:
- Valve Type: 2 Way Normally Open
- Port Size: 1/8 NPT Female Port
- Coil Voltage: DC 24V
- Service Media: Air, Gas, Liquid, Water
- Operation Model: Direct Acting
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
- Operating Temperature: -10 to 80 C
- Coil Power: 6.5W
Note:
While Connecting the Valve in the Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value).
Package Included:
1 x DC 24V Solenoid Valve 1/8 2 Way Normally Closed Direct-Pneumatic Valves
