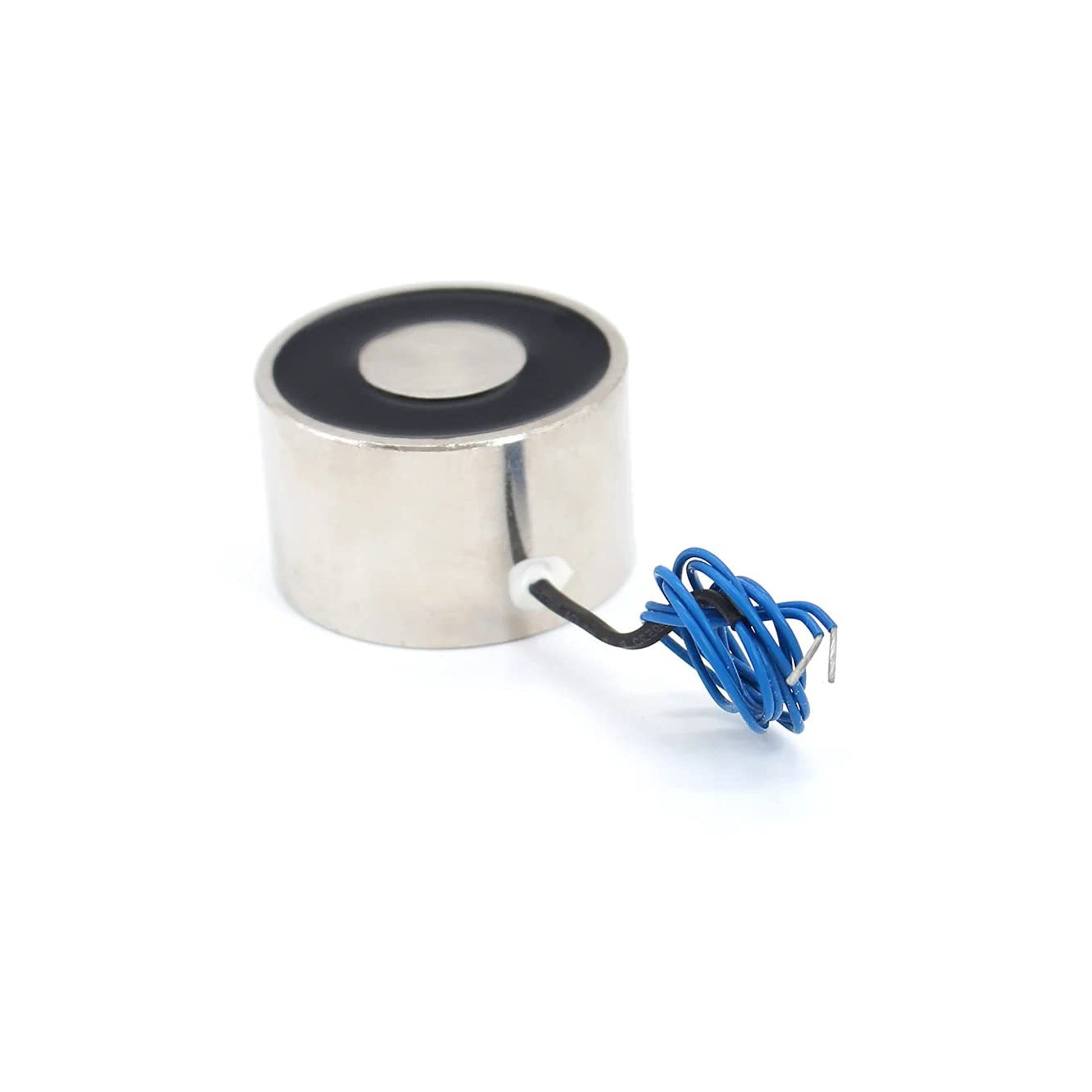

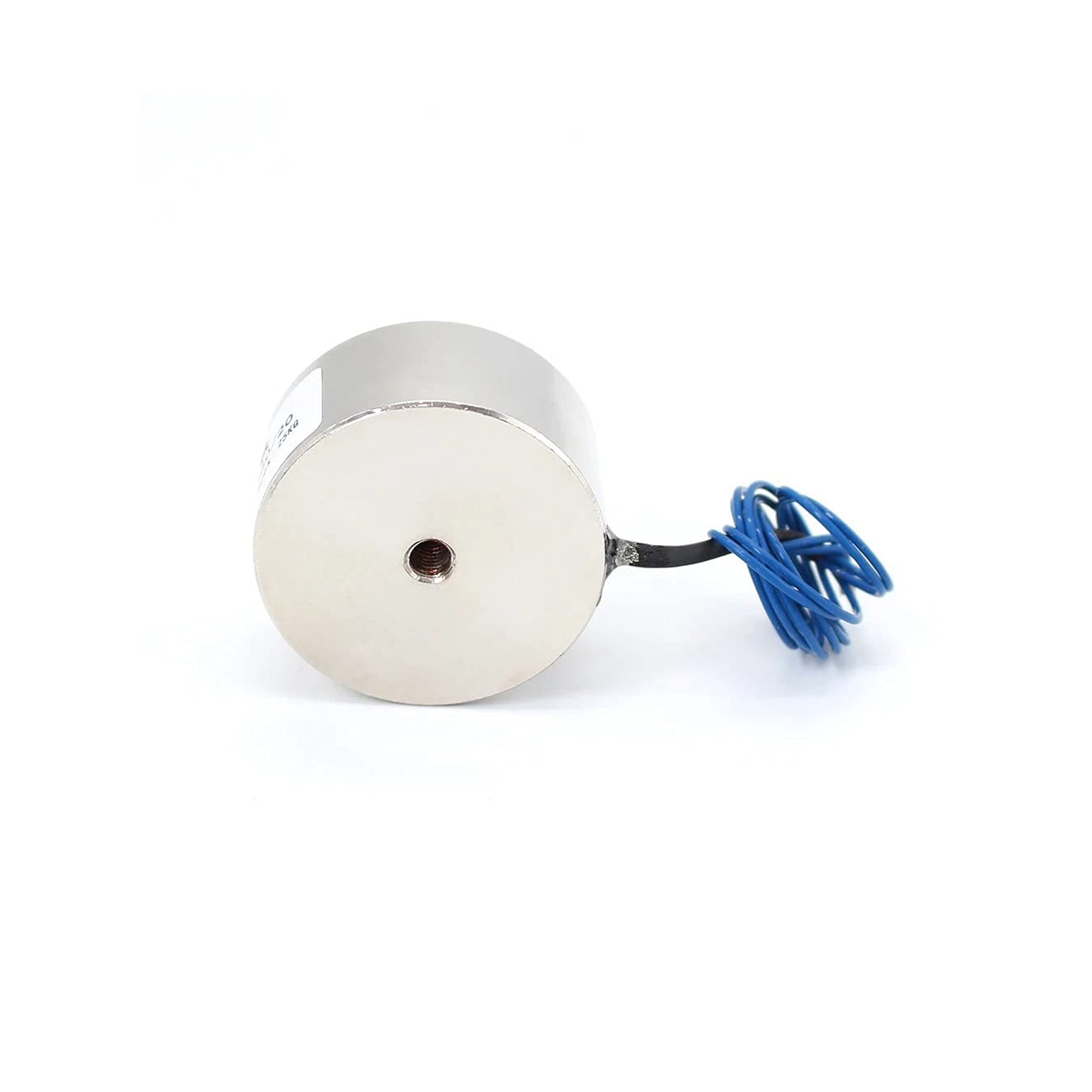

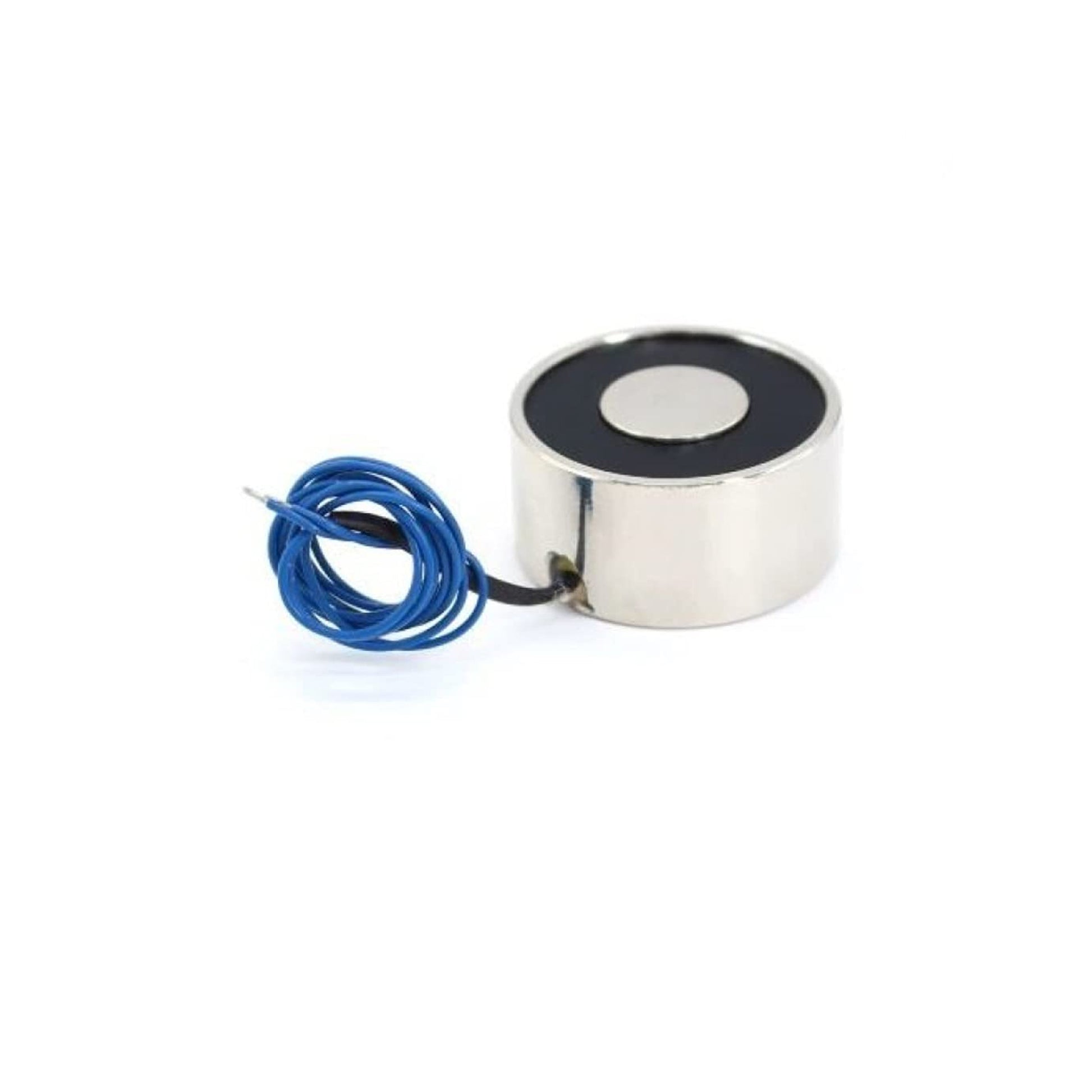

DC 24V Lifting Solenoid Electromagnet P40/20 Lifting Electromagnet - 30KG Holding Solenoid For Automation - RS2951

Description:

This DC 24V KK-P40/20 Lifting Solenoid Electromagnet delivers powerful, reliable magnetic attraction, capable of lifting to 30 kg. Engineered for precision, it activates instantly with electric current and uniquely ensures minimal residual magnetism upon de-energization, making it ideal for automation and precise handling tasks.

Specifications:

• Item Type: Lifting Electromagnet
• Electromagnetic Force: 30 kg
• Voltage Rating: 24VDC
• Current Rating: 0.34A
• Holding/ Suction Force: 30KG
• Operating Voltage: 24VDC
• Max. Operating Current: 340mA
• Power Consumption: 7.5W
• Operating Temperature: -25 to 105°C
• Cable Length: 30cm
• Bolt Size: M5
• Body Material: Mild Steel

Features:

• Our DC-powered DC 24V P40/20 Lifting Solenoid generates a magnetic field of high power with high efficiency.
• DC 24V P40/20 Lifting Solenoid highly efficient electromagnet generates a magnetic field of a strong pull (high attractive force) with low energy consumption. You can adjust to the desired attractive force by changing the power applied and the magnetic gap between the electromagnet and the substance.
• DC 24V P40/20 Lifting Solenoid is a lightweight, compact design for space-saving. Compact mechanism with high reliability.
• DC 24V P40/20 Lifting Solenoid has high mechanical strength and excellent durability.
• Widely applied in automation: assembly line, sorting machine, mechanical alarm, experimental facility, etc.

Precaution:

• The object to be sucked must have good magnetic permeability.
• Proper use of power supply and rated voltage.
• The object to be sucked must be flat and clean.
• The object to be sucked must be greater than or equal to the surface of the magnet( For example the magnet is 20 x 15 mm, so the surface area is S=r²π=10²π mm² so the object to be sucked must be greater than or equal to 10²π mm²)
• The object to be sucked must be greater than 5mm. (If the thickness decreases, the suction decreases)
• The object to be sucked must be close, the middle can't be interspersed with objects or gaps
• Suction means more than 5cm in thickness and surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fits together on an iron-based material.
• An electromagnet in working condition, electromagnetic conversion would produce a certain amount of heat, and electricity more frequently, the higher the temperatures, which is a normal phenomenon.

Working Principle:

An electromagnet is simply a coil of wire. It is usually wound around an iron core. However, it could be wound around an air core, in which case it is called a solenoid. When connected to a DC voltage or current source, the electromagnet becomes energized, creating a magnetic field just like a permanent magnet. The magnetic flux density is proportional to the magnitude of the current flowing in the wire of the electromagnet.

The polarity of the electromagnet is determined by the direction of the current. The north pole of the electromagnet is determined by using your right hand. Wrap your fingers around the coil in the same direction as the current is flowing (conventional current flows from + to -). The direction your thumb is pointing in is the direction of the magnetic field, so north would come out of the electromagnet in the direction of your thumb. DC electromagnets are principally used to pick up or hold objects.

Package Included:

1 x DC 24V Lifting Solenoid Electromagnet
