Description:

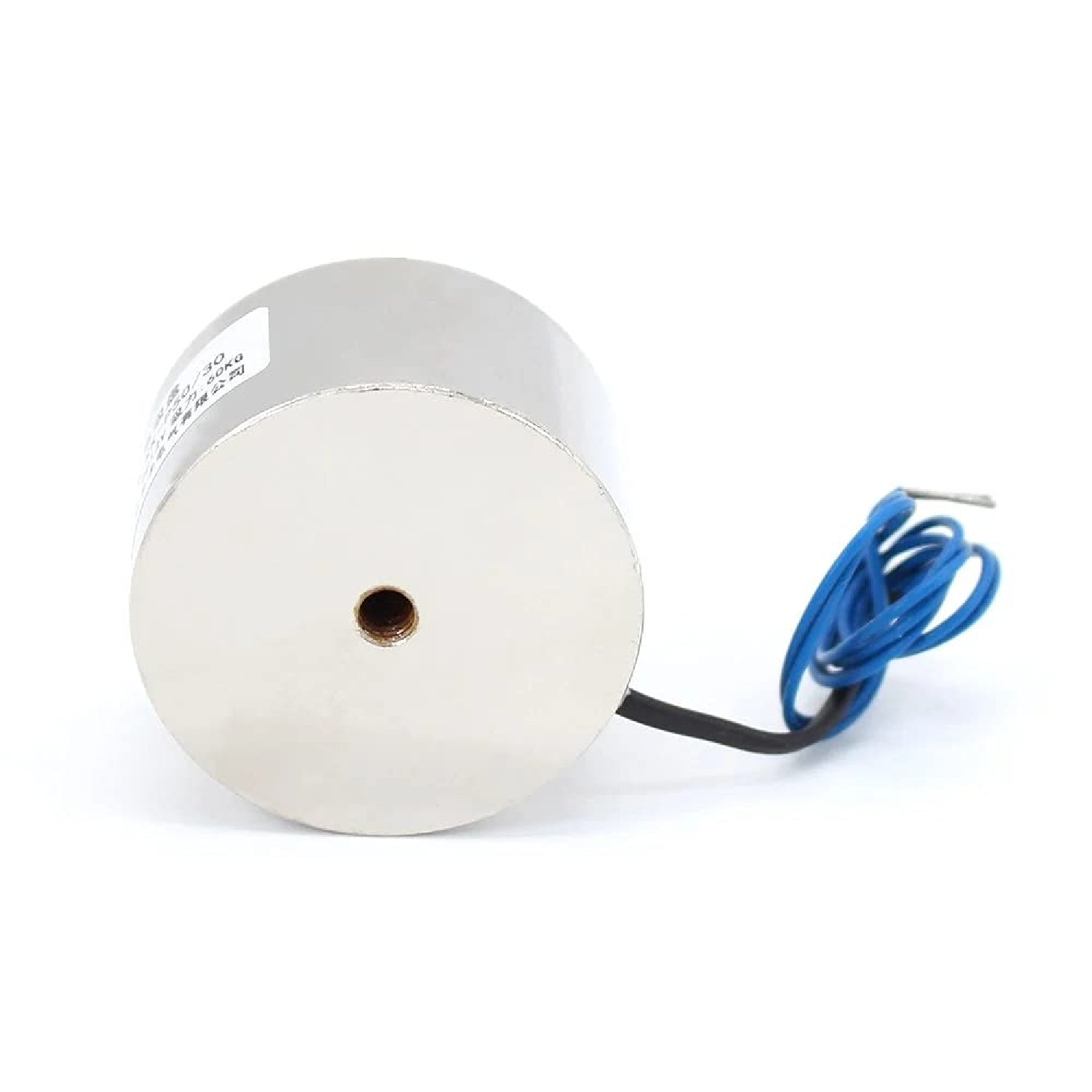

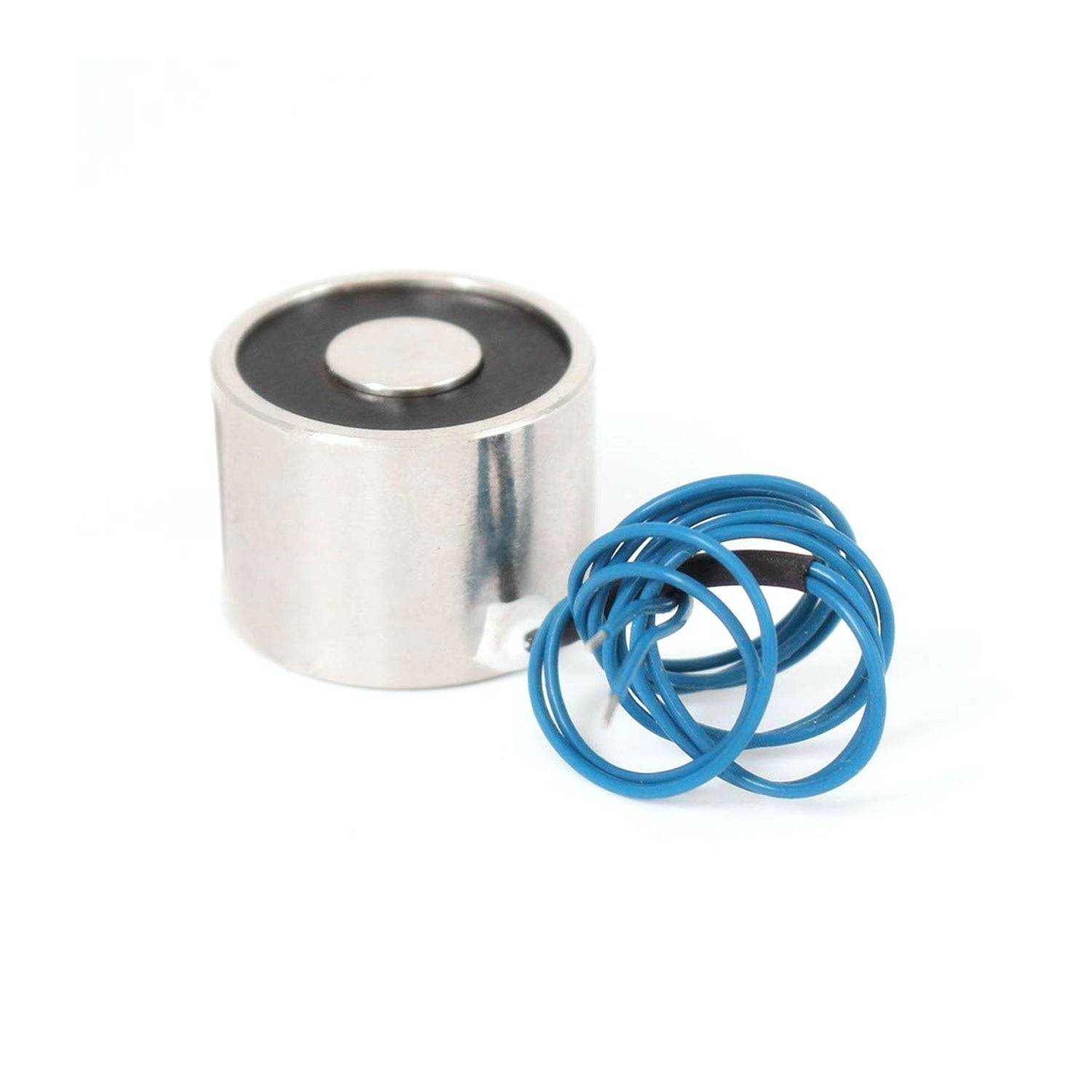

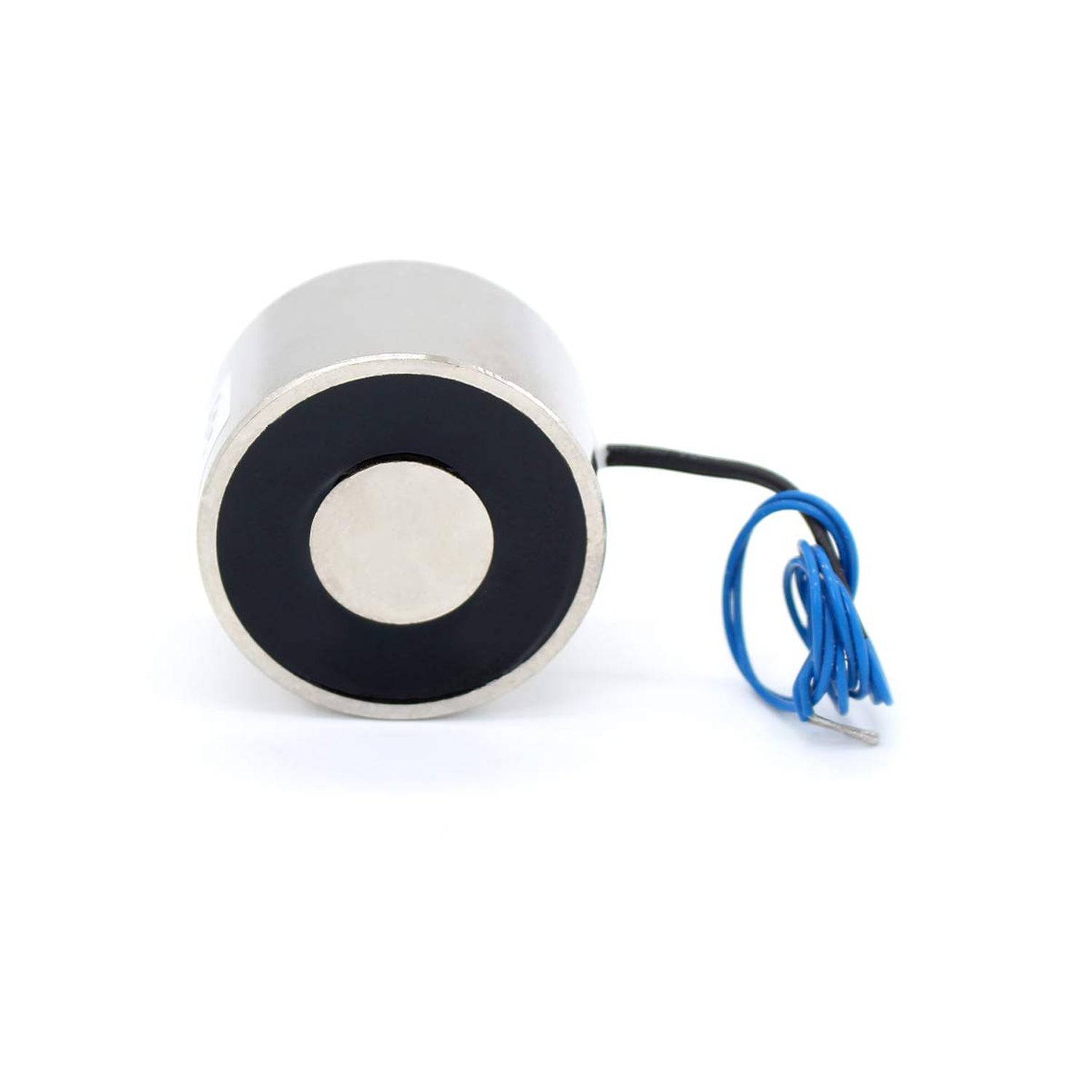

This DC 24V P40/35 Lifting Solenoid Electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied. This compact functional device offers high power with high reliability.
The adsorption area should be smooth, flat, and clean, and can't be too large and too thin. The electromagnet requires direct contact with no distance. The electromagnet is only suitable for intermittent work, such as 1 second on and 1 second off. It's okay to work like this all day.
Specifications:
- Model: 24V P40/25
- Electromagnet Force: 35KG
- Voltage Rating: 24V DC
- Current Rating: 0.4A
- Power Consumption: 10W
- Operating Temperature: -40 to 125°C

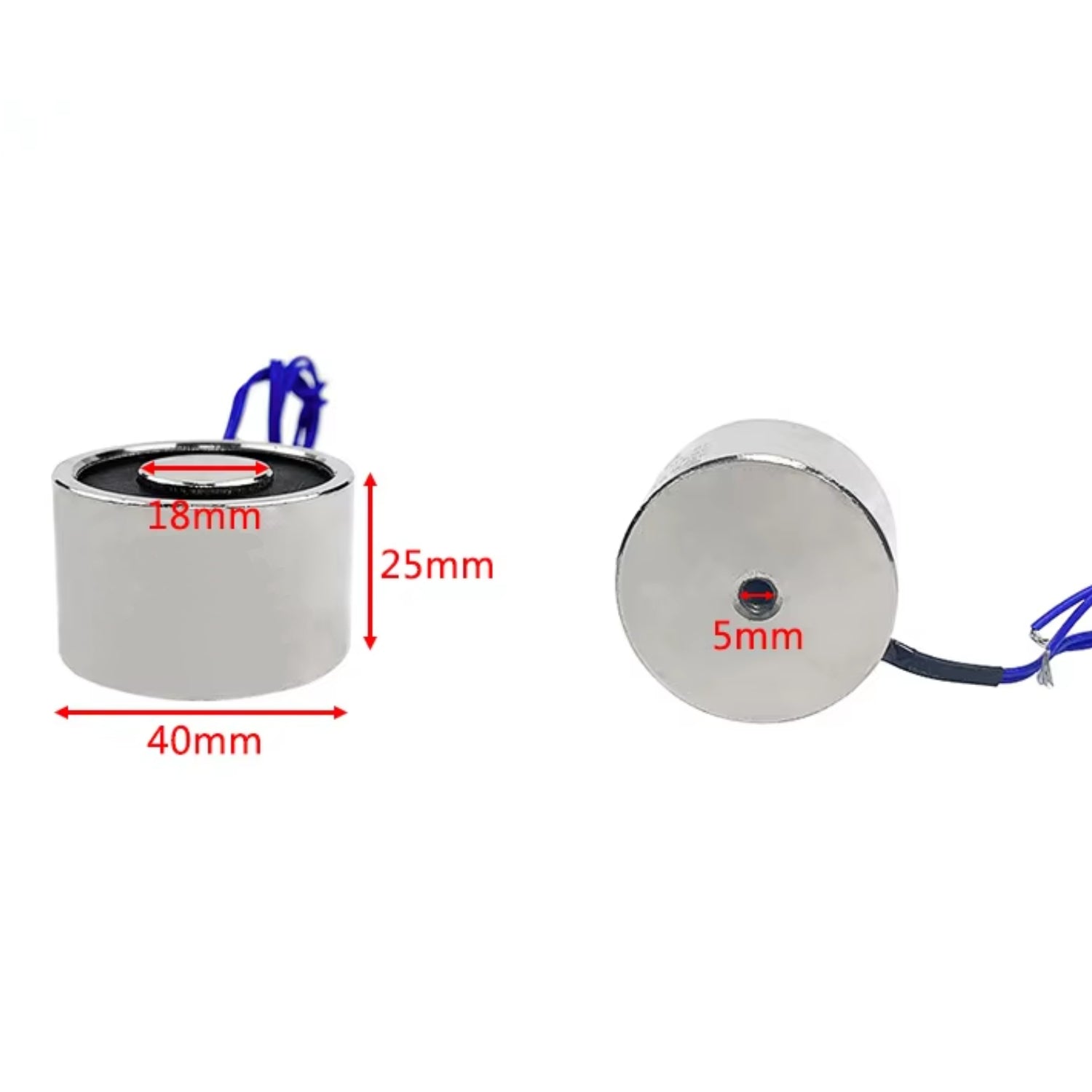

- Bolt Size: M5
Features:
- Its highly efficient electromagnet generates a magnetic field of a strong pull (high attractive force) with low energy consumption.
- You can adjust to the desired attractive force by changing the power applied and the magnetic gap between the electromagnet and the substance.
- When an electromagnet is energized, the problem is how to release the magnetic force whthatemains on the device after the power is turned off. Our electromagnet is designed with measures to release and minimize this residual magnetic force.
- Lightweight, compact design for space-saving.
- Compact mechanism with high reliability.
- Long life.
- High mechanical strength and excellent durability.
- Widely applied in automation: assembly line, sorting machine, mechanical arm, experimental facility, etc.
Precaution:
- The object to be sucked must be close, the middle can’t be interspersed with objects or gaps.
- Suction means more than 5cm in thickness and surface roughness, the surface is greater than the cross-sectional area of the electromagnet, and maximum suction completely fits together on an iron-based material.
- The object to be sucked must have a good magnetic permeability.
- Proper use of power supply, and rated voltage.
- Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, and electricity more frequently the higher temperatures, which is a normal phenomenon.
- The object to be sucked must be greater than 5mm. (If the thickness decreases, the suction decreases)
Package Included:
1 x DC 24V P40/25 35KG Lifting Solenoid Electromagnet
