- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 5mA
- Working voltage: 12V
Description:
The module uses genuine quality relay, normally open interfaces. Using SMD optocoupler isolation, driving ability, stable performance, The module can be high or low by a jumper setting the trigger. Fault-tolerant design, even if the control line is broken, the relay will not operate. The power indicator (green), the relay status indicator (red). The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.

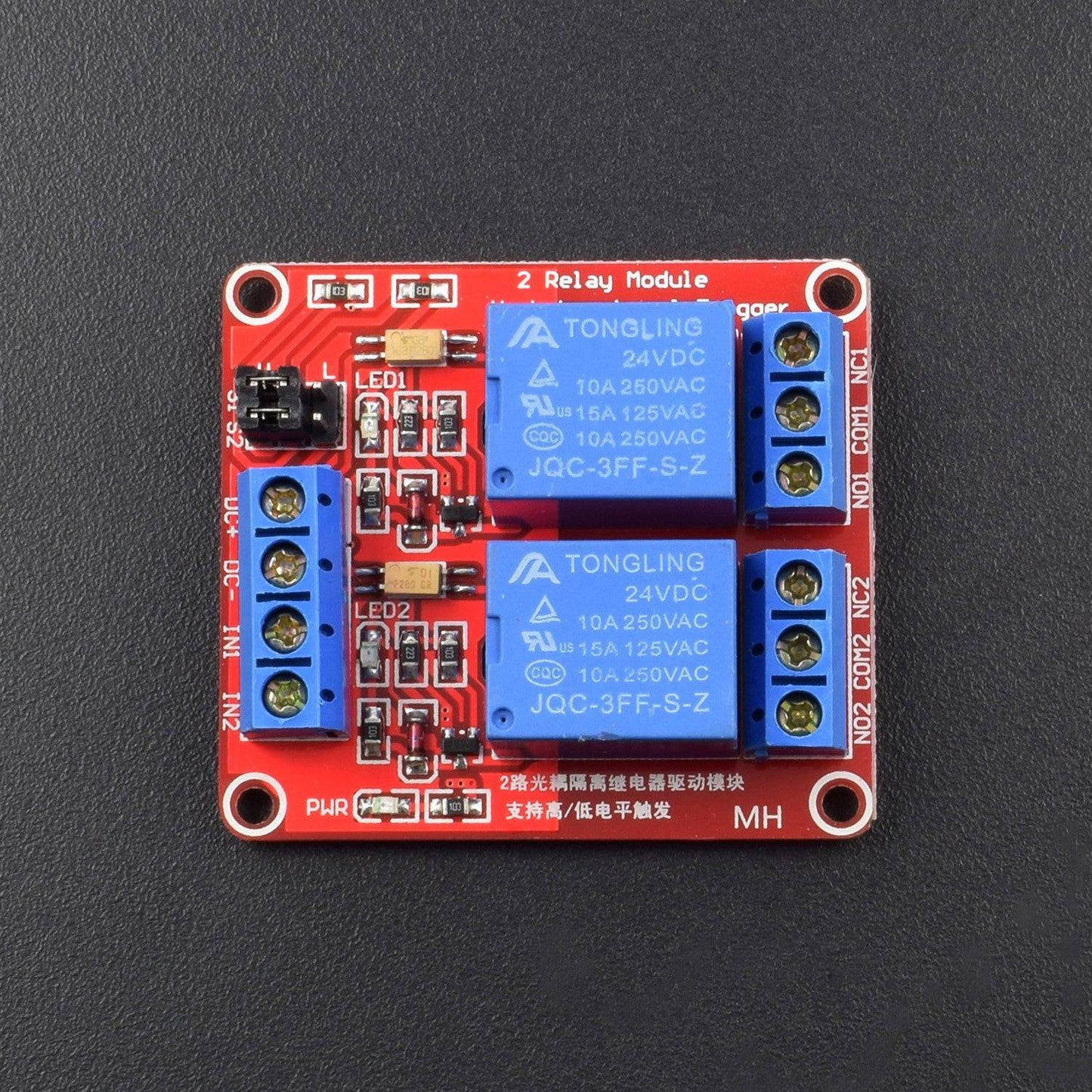

Module Interface:
- DC +: then the power supply positive (voltage according to the relay requirements, with 5V.12V and 24V choice);
- DC-: connected to the power supply negative;
- IN1: 1 signal trigger side, you can set the high or low-level control relay pull;
- IN2: 2-way signal trigger side, you can set the high or low-level control relay pull;
Relay output:
- NO1: 1 relay normally-open interface;
- COM1: 1 relay common interface;
- NC1: 1 relay normally closed interface;
- NO2: 2 relays normally-open interface;
- COM2: 2 relays common interface;
- NC2: 2 relays normally closed interface;
Technical Parameters:
- Relay version: 24V
- Quiescent current: 5mA
- Maximum current: 50mA
- Trigger current: 2-4mA
- Trigger voltage (low level): 0-8V
- Trigger voltage (high level): 8.5-24V

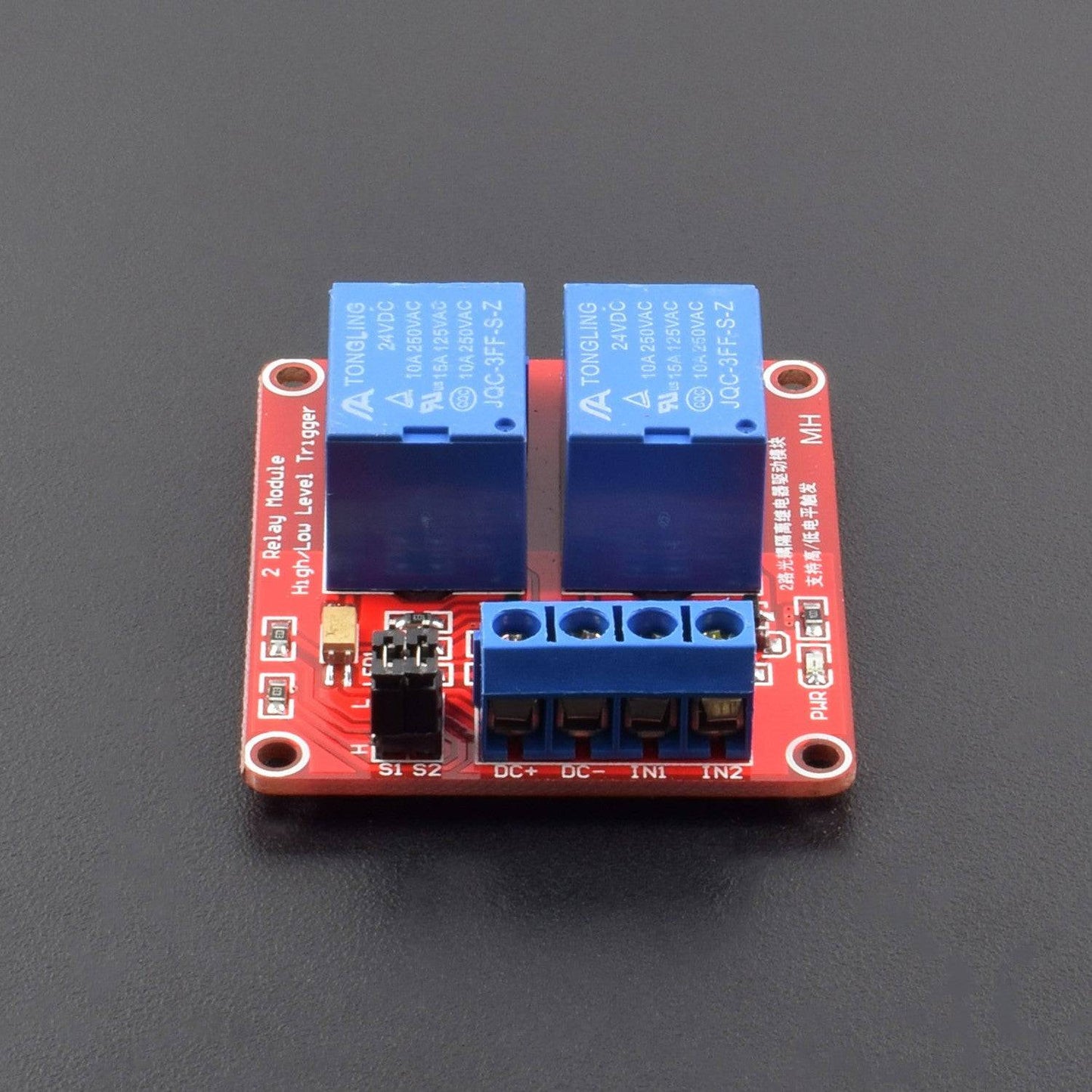

High and low trigger select side:
- S 1 for 1-Channel relay high and low trigger selection
- S 2 for 2-Channel relay high and low trigger selection
- COM and LOW connection, the corresponding relay is a low-level trigger, COM and HIGH-side connection is high when the trigger
Package Included:

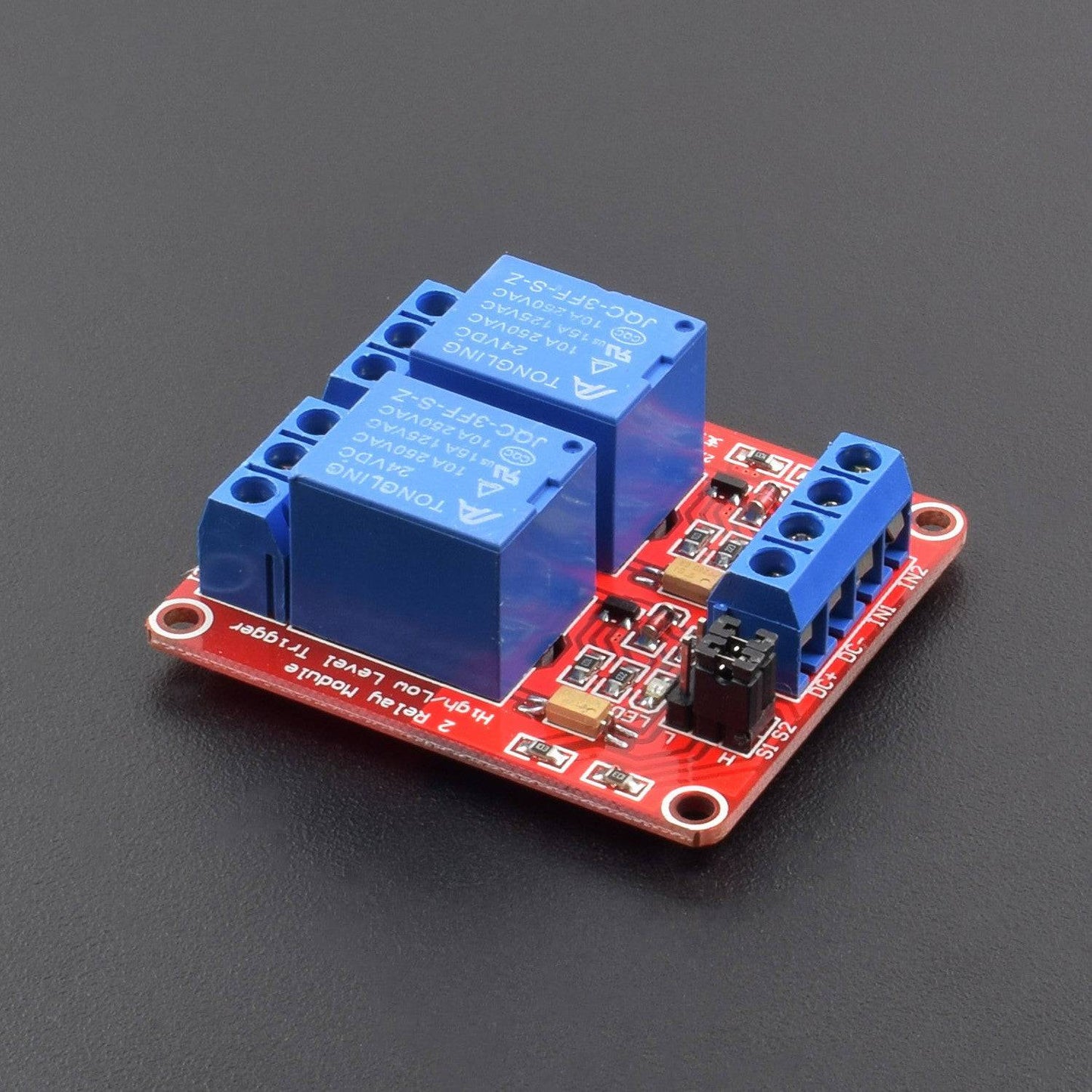

1 x DC24V 2-Channel Relay Module
