Description:

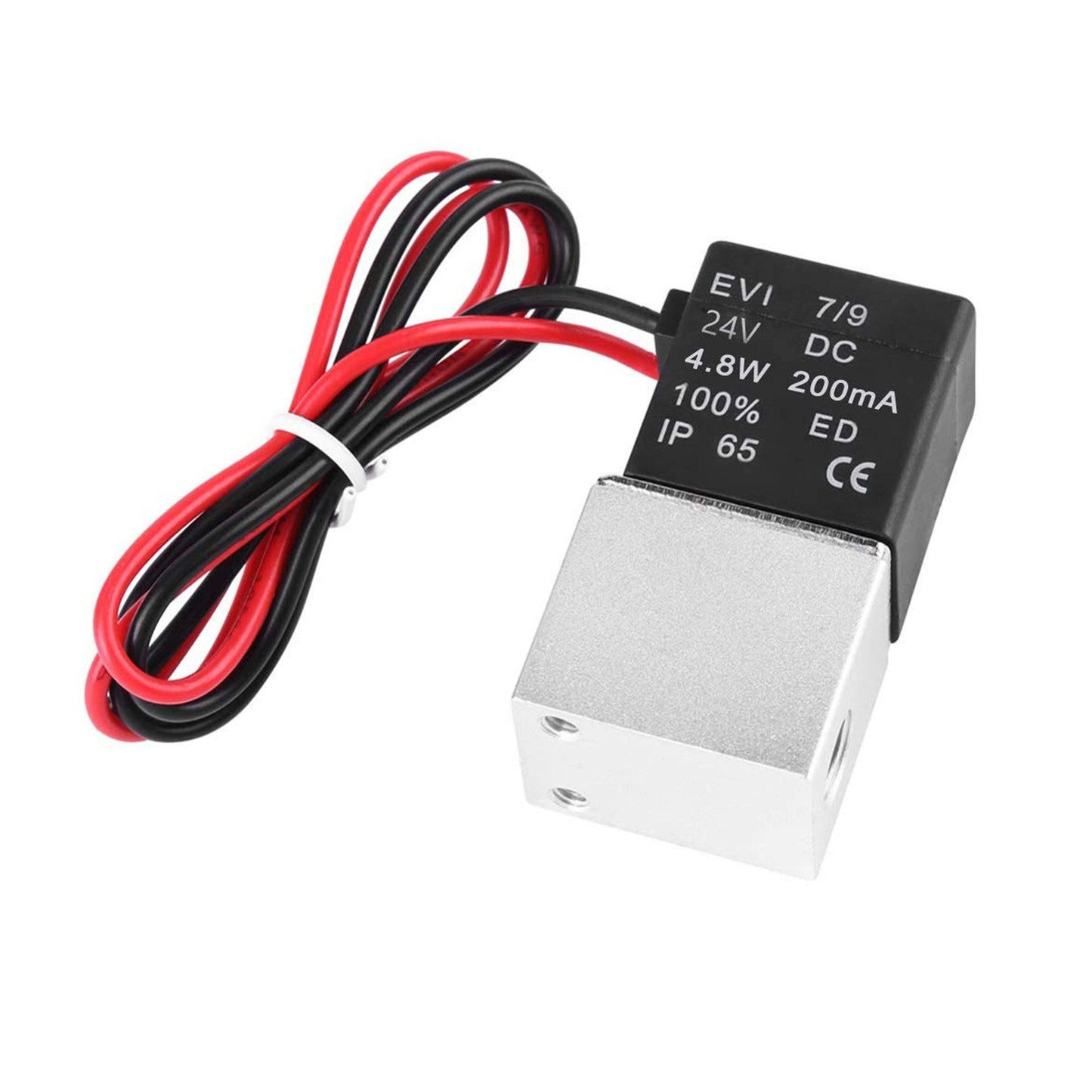

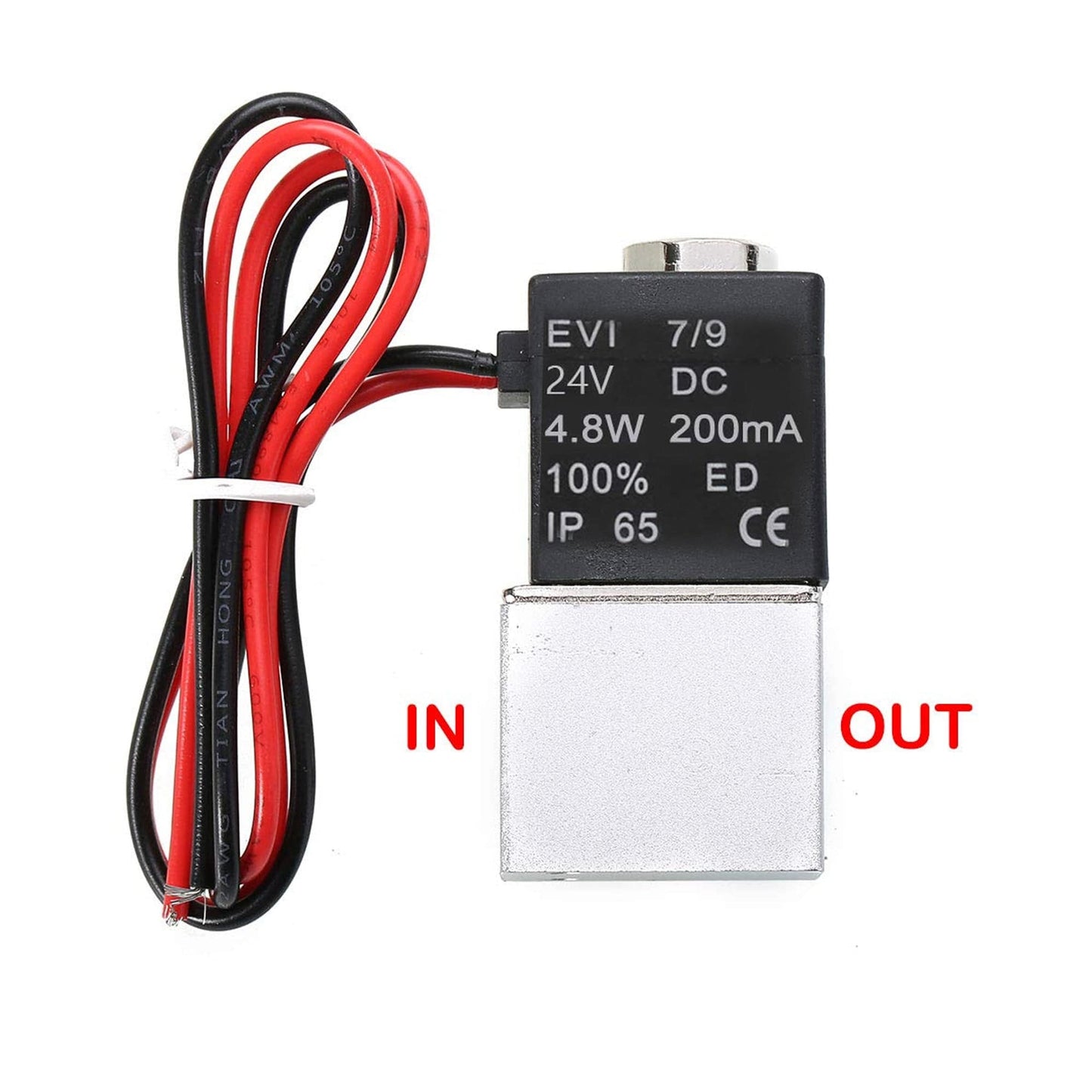

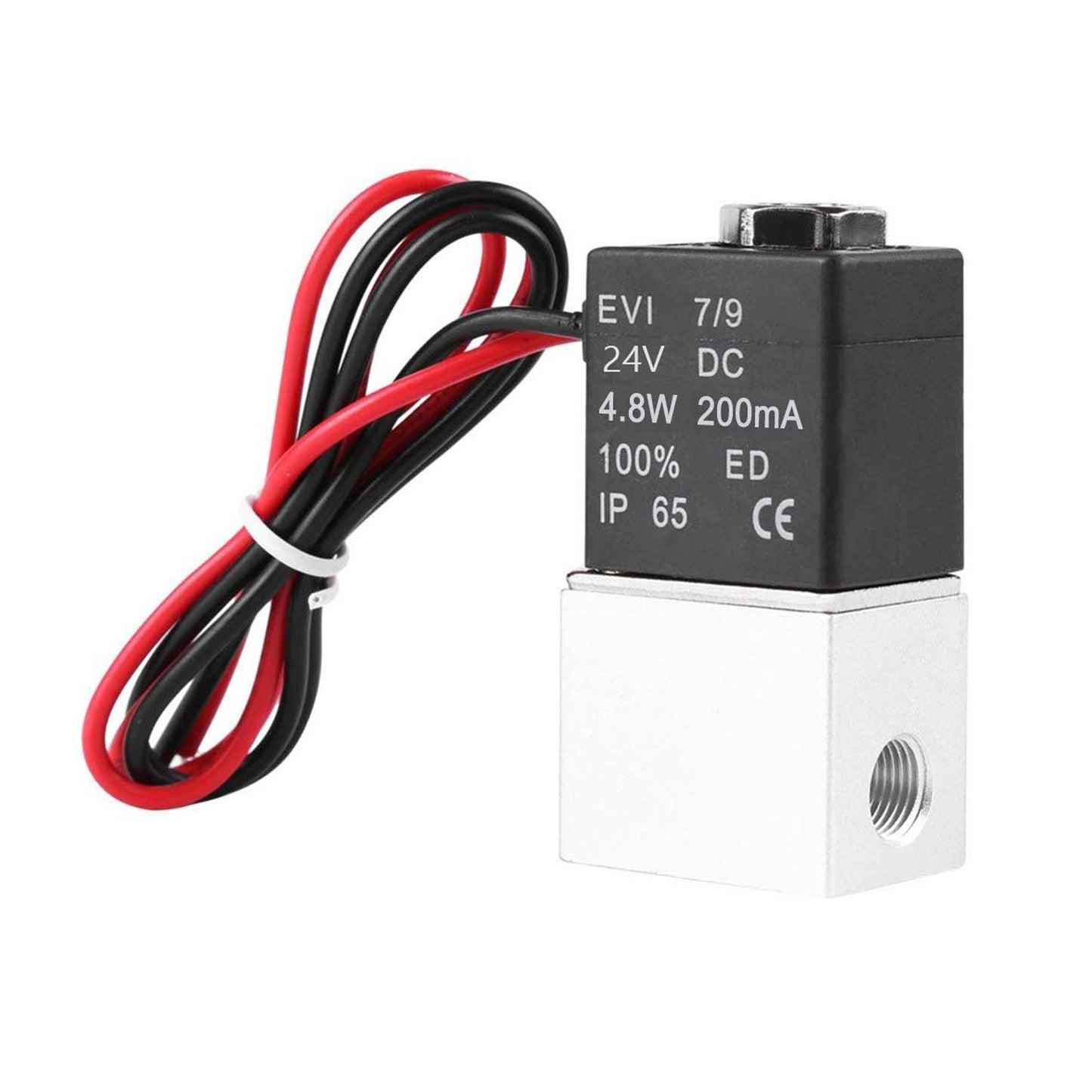

The DC 24V 1/4″ Solenoid Valve works with the solenoid coil which operates electronically with a DC 24V supply. As it is a normally closed assembly, DC 24V 1/4″ Solenoid Valve opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage is removed.
Specifications:
- Port Size: 1/4" NPT Female Port
- Coil Voltage: 24V DC
- Coil Power: 4.8W
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Pressure Range: 1.2Mpa(can be operated at 0 PSI (Vacuum))
- Operating Temperature: -10 to 80 °C
Package Included:
1 x DC 24V 1/4″ Solenoid Valve DC 24V Solenoid Valve 1/4″ 2 Way Normally Closed Direct-Pneumatic Valves For Water Air Gas Hot
