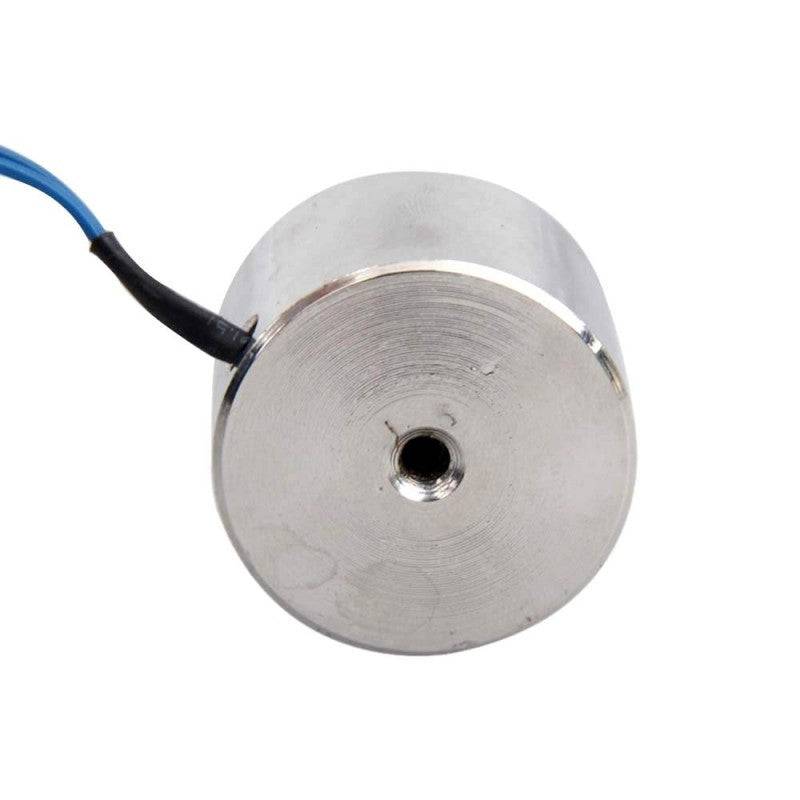

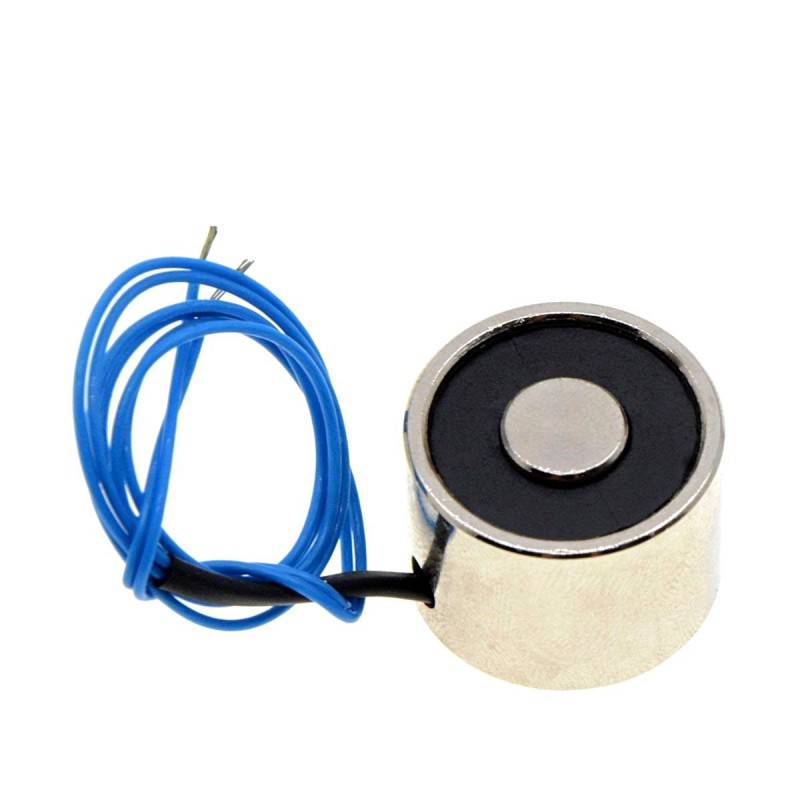

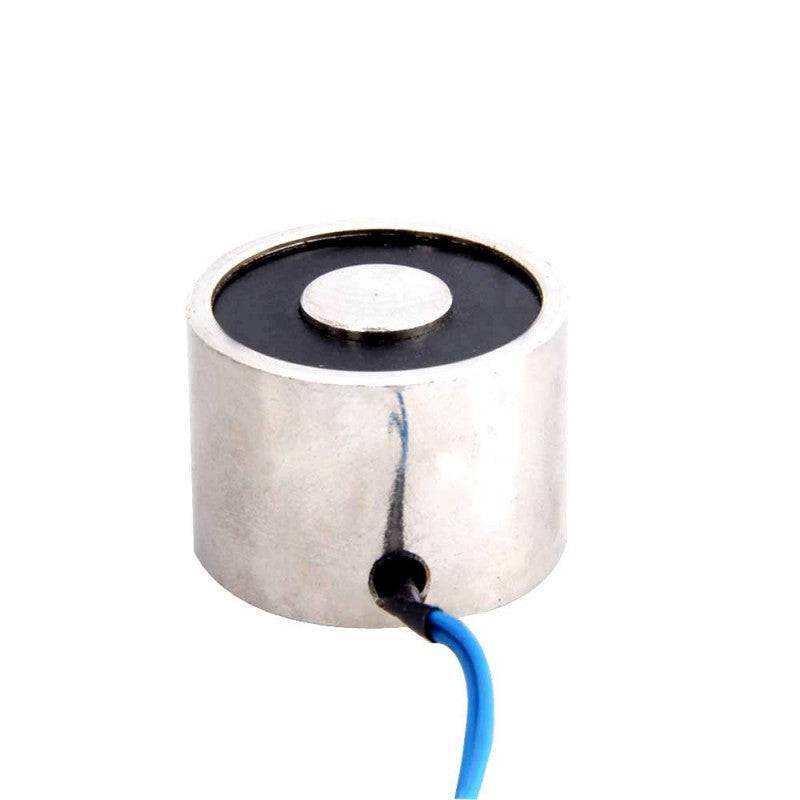

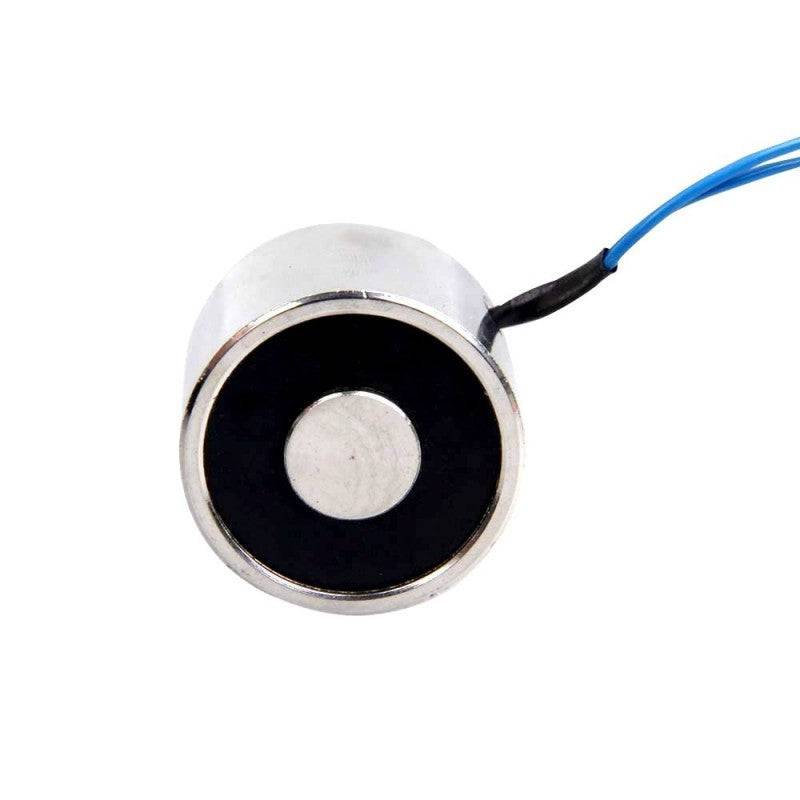

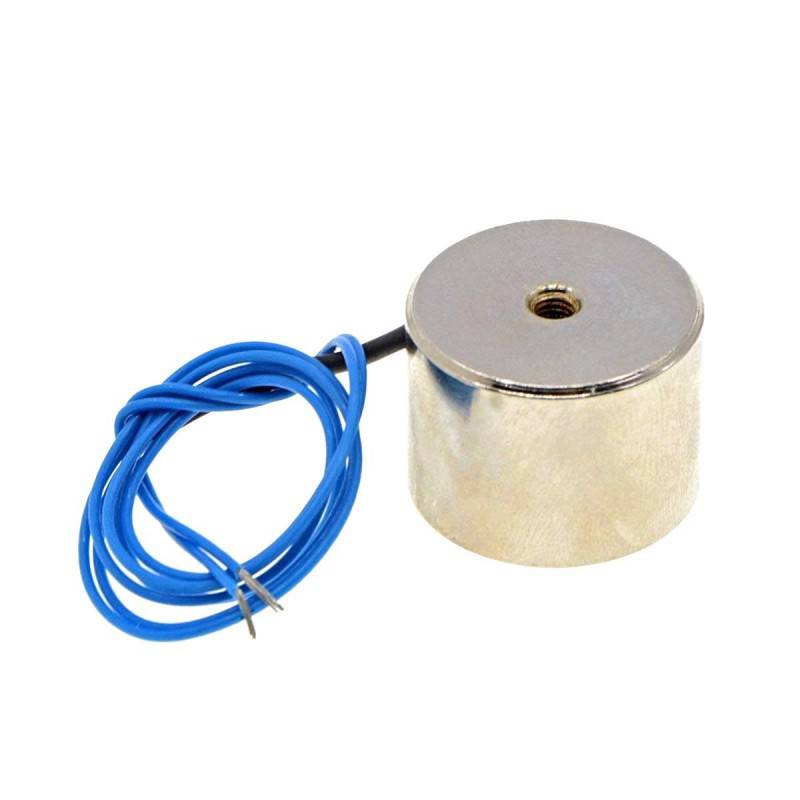

DC 12V KK-P25/20 Lifting Solenoid KK-P25/20 8KG Lifting Solenoid Electromagnet - RS3425

DC 12V KK-P25/20 Lifting Solenoid KK-P25/20 8KG Lifting Solenoid Electromagnet - RS3425

SKU:RS3425

In stock

Regular price Rs. 199.00
Regular price Sale price Rs. 199.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This DC 12V KK-P25/20 Lifting Solenoid Electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied. This compact DC 12V KK-P25/20 Lifting Solenoid offers high power with high reliability. The structure and design to release the residual magnetism left after de-energization is also one of its unique features.

Specifications:

  • Model: 12V KK-P25/20
  • Holding/ Suction Force: 8KG
  • Operating Voltage: 12V DC
  • Max. Operating Current: 0.17mA
  • Power Consumption: 2W
  • Operating Temperature Range: -20°C to 120°C
  • Cable Length: 30cm
  • Bolt Size: M4
  • Body Material: Mild Steel

Working Principle:

An electromagnet is simply a coil of wire. It is usually wound around an iron core. However, it could be wound around an air core, in which case it is called a solenoid. When connected to a DC voltage or current source, the electromagnet becomes energized, creating a magnetic field just like a permanent magnet. The magnetic flux density is proportional to the magnitude of the current flowing in the wire of the electromagnet.

The polarity of the electromagnet is determined by the direction of the current. The north pole of the electromagnet is determined by using your right hand. Wrap your fingers around the coil in the same direction as the current is flowing (conventional current flows from + to -). The direction your thumb is pointing in the direction of the magnetic field so north would come out of the electromagnet in the direction of your thumb. DC electromagnets are principally used to pick up or hold objects

We supply many varieties of electromagnets with a higher power as well as lower, original dimensions, etc to satisfy your unique requirements.

Note: Images may be seen differently from the actual product in terms of Dimensions

Precaution:

DC 12V KK-P25/20 Lifting Solenoid must meet the following conditions to achieve maximum suction:

  • The object to be sucked must have a good magnetic permeability.
  • Proper use of power supply, and rated voltage.
  • The object to be sucked must be flat and clean.
  • The object to be sucked must be greater than or equal to the surface of the magnet( For example the magnet is 20 x 15 mm, so the surface area is S=r²π=10²π mm² so the object to be sucked must be greater than or equal to 10²π mm²)
  • The object to be sucked must be greater than 5mm. (If the thickness decreases, the suction decreases)
  • The object to be sucked must be close, the middle can't be interspersed with objects or gaps
  • Suction means more than 5cm in thickness and surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fits together on an iron-based material.
  • Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, and electricity more frequently the higher temperatures, which is a normal phenomenon.

Features:

  • DC 12V KK-P25/20 Lifting Solenoid generates a magnetic field of high power with high efficiency.
  • Minimized in residual magnetic.
  • DC 12V KK-P25/20 Lifting Solenoid is a lightweight, compact design for space-saving.
  • DC 12V KK-P25/20 Lifting Solenoid has high mechanical strength and excellent durability.
  • DC 12V KK-P25/20 Lifting Solenoid widely applied in automation: assembly line, sorting machine, mechanic alarm, experimental facility, etc.

Package Included:

1 x DC 12V KK-P25/20 Lifting Solenoid KK-P25/20 8KG Lifting Solenoid Electromagnet
