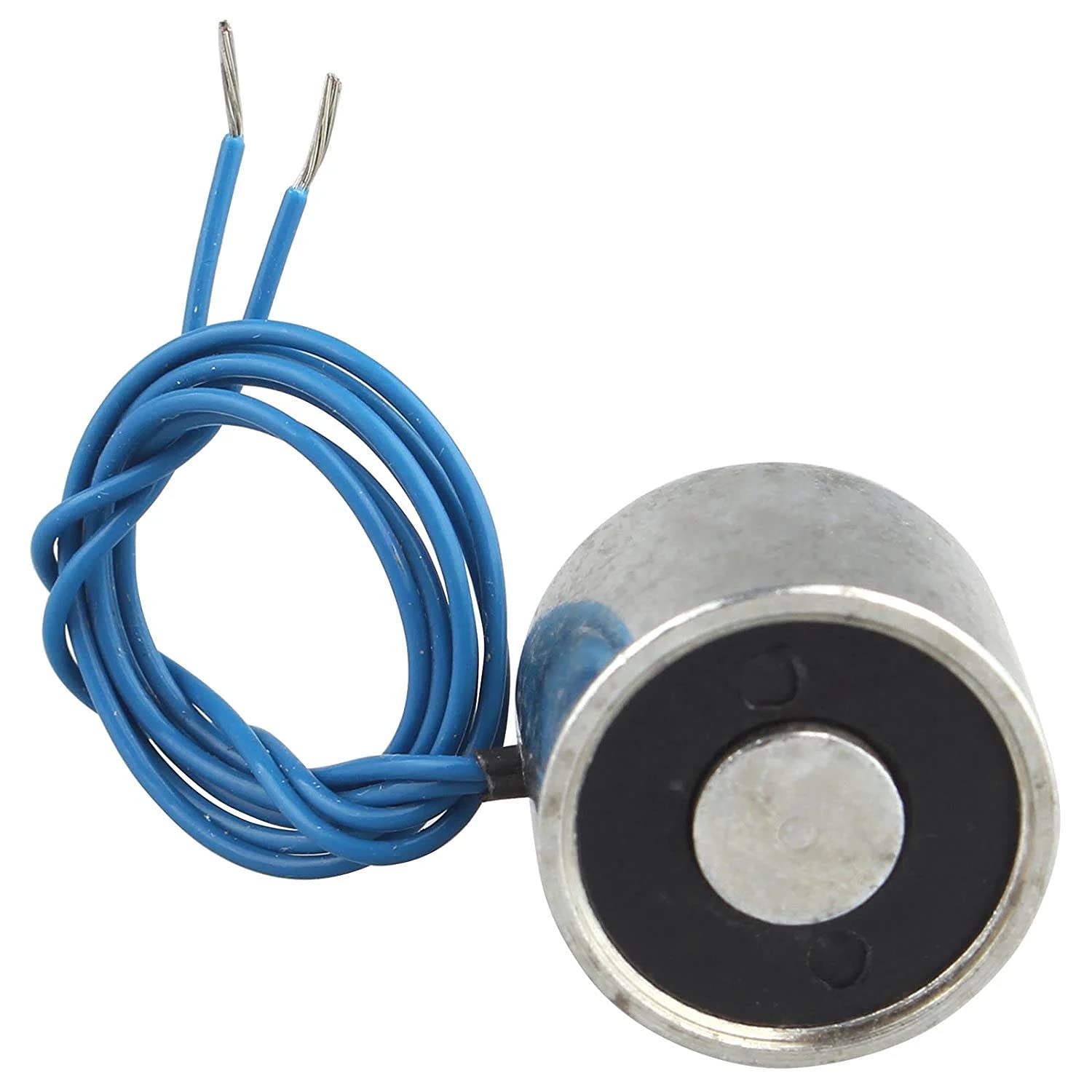

DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet - RS3061/RS3585

DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet - RS3061/RS3585

SKU:RS3061/RS3585

16 in stock

Regular price Rs. 159.00
Regular price Sale price Rs. 159.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet operates on the principle of electromagnetism to generate a magnetic field and attract magnetic objects.

Specifications:

  • Model: 12V KK-P20/15
  • Holding/Suction Force: 3 Kg
  • Operating Voltage: 12VDC
  • Operating Current: 0.17mA
  • Power Consumption: 2W
  • Operating Temperature Range: -20 to 120 degrees Celsius
  • Cable Length: 30cm
  • Bolt Size: M4
  • Body Material: Mild Steel

CONDITIONS FOR MAXIMUM SUCTION:

  • The object to be attracted should have good magnetic permeability.
  • The object should be flat and clean.
  • The object's surface area should be greater than or equal to the cross-sectional area of the electromagnet (20mm x 15mm).
  • The object should have a thickness of at least 5mm; thinner objects result in reduced suction.
  • The object should be in close proximity to the electromagnet, without gaps or other objects in between.
  • The object should be made of an iron-based material for maximum suction.

Package Included:

1 x DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet
