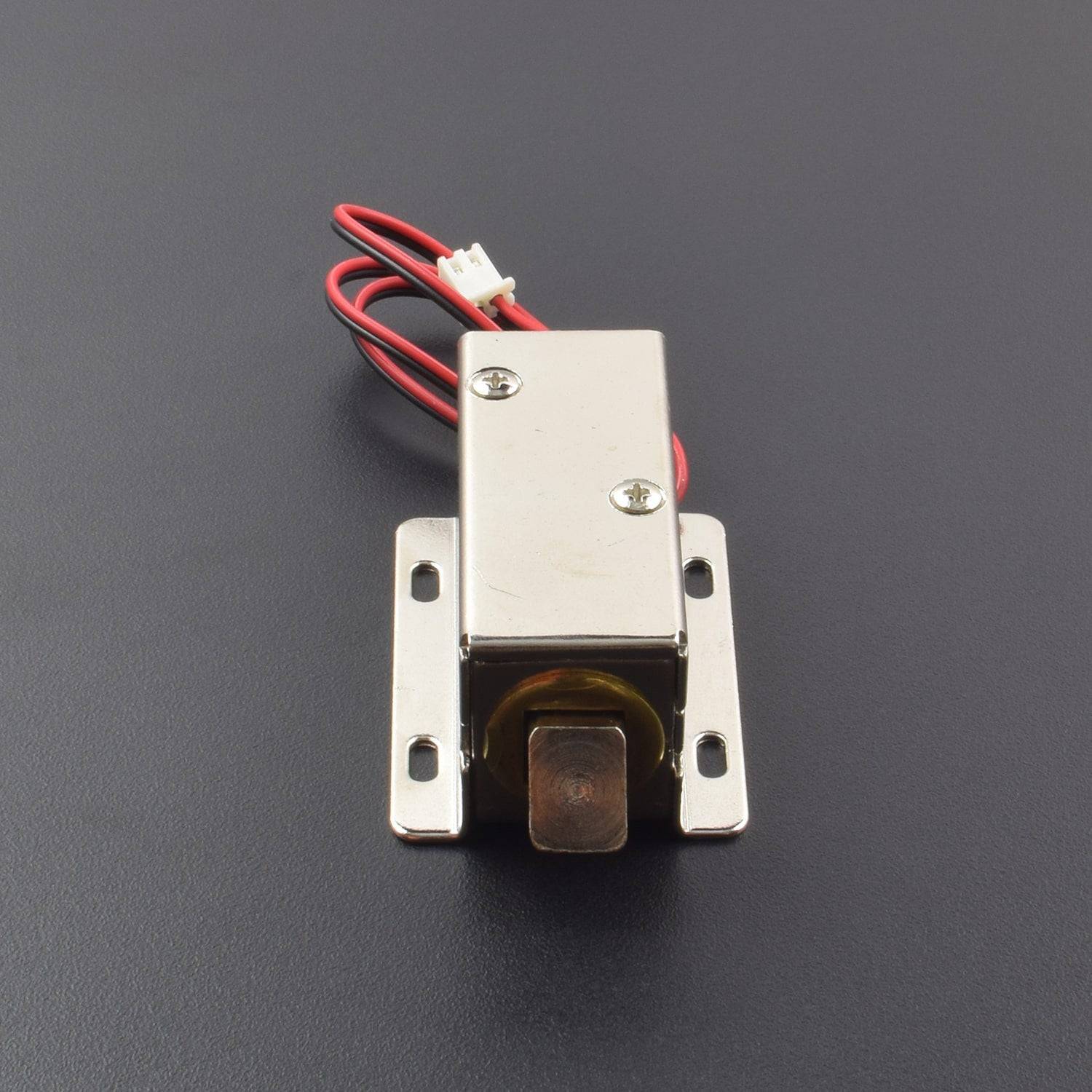

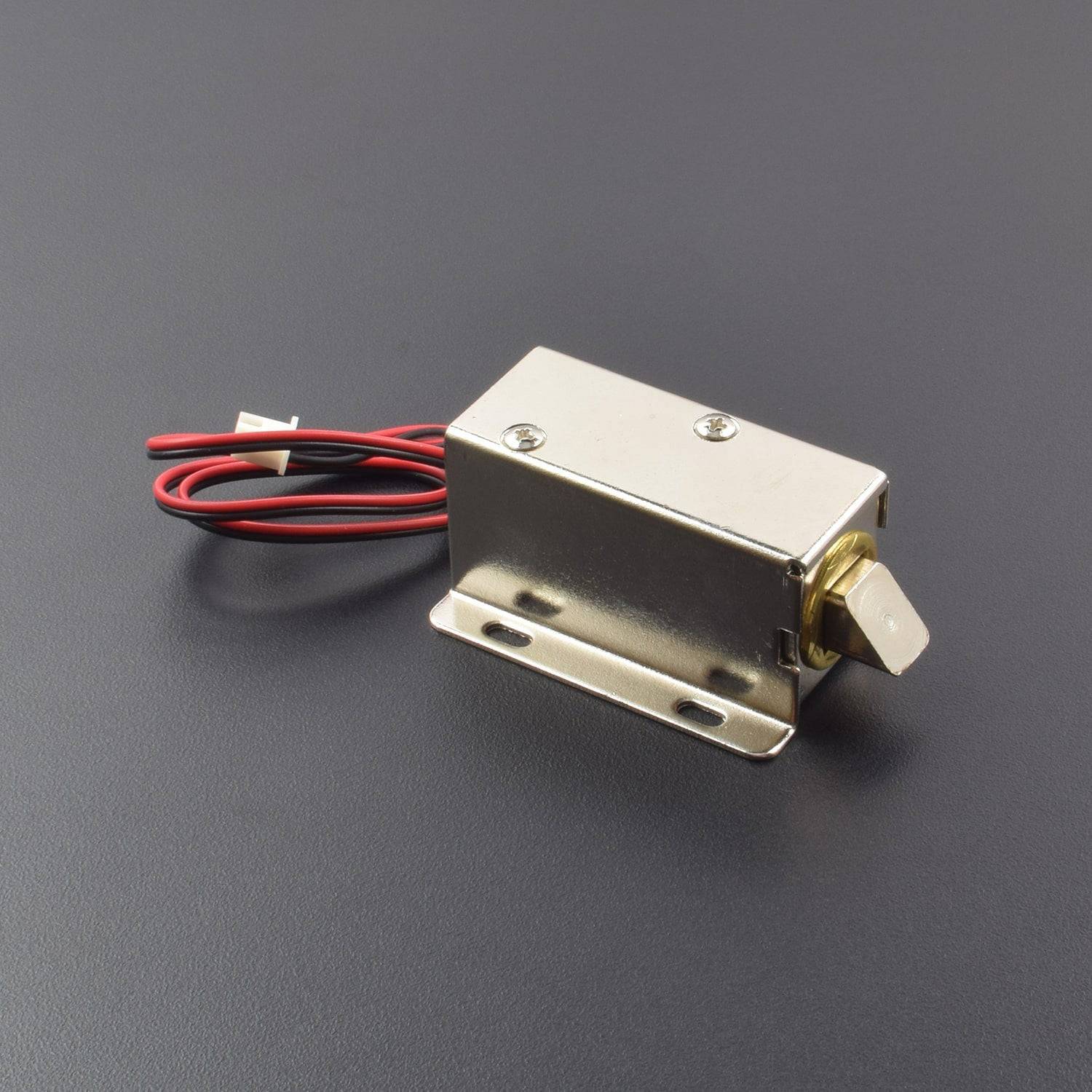

DC 12V Electric Solenoid Lock Toungue Upward Assembly for Doors Cabinet Drawer - AB102

DC 12V Electric Solenoid Lock Toungue Upward Assembly for Doors Cabinet Drawer - AB102

SKU:AB102

45 in stock

Regular price Rs. 299.00
Regular price Sale price Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Voltage: DC12V
  • Current: 0.6A
  • Energized forms: intermittent
  • Unlocking time: 1S
  • High quality ultra-compact electric lock
  • Rustproof, durable, safe, convenient to use

Description:

Want to lock a door, drawer or any other moving part then this solenoid lock is perfect for you. You can interface this electromagnetic lock to any Microcontroller, Arduino or even Raspberry Pi using a simple relay if you want you can directly use a one-channel relay driver module. Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the centre of the coil. This makes the solenoid able to pull from one end. This solenoid, in particular, is nice and strong and has a slug with a slanted cut and a good mounting bracket. It's basically an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can't open the door because the solenoid slug is in the way. It does not use any power in this state. When 9-12 Volt DC is applied, the slug pulls in so it doesn't stick out anymore and the door can be opened.

Specifications:

Model

DC 12V Cabinet Door Lock

Rated Operating Voltage

12V DC

Rated Current

0.80A

Power Consumption

9.6Watt

Holding Force

2.45N

Unlocking Time

1 sec

Body Material

Iron Metal

Energized forms

Intermittent

Features:

  • High-quality ultra-compact electric lock.
  • Rustproof, durable, safe, and convenient to use.
  • Suction which tightly sucks the iron, thus locking the door.
  • Applicable for being installed in the escape door or fire door electronic controlled system.
  • Adopts the principle of electric magnetism, when the current is through the silicon, the electromagnetic lock will achieve a strong.

Package Included:

1 x DC 12V Electric Solenoid Lock Tongue Upward Assembly for Doors Cabinet Drawer
