- Supply Voltage: 12V DC(<15V DC)
- Current: Not Less than 2A(Recommended)
- Power Interface: 2.1/5.5 DC Interface
- Audio Input: Bluetooth Receiver V4.0
Description:

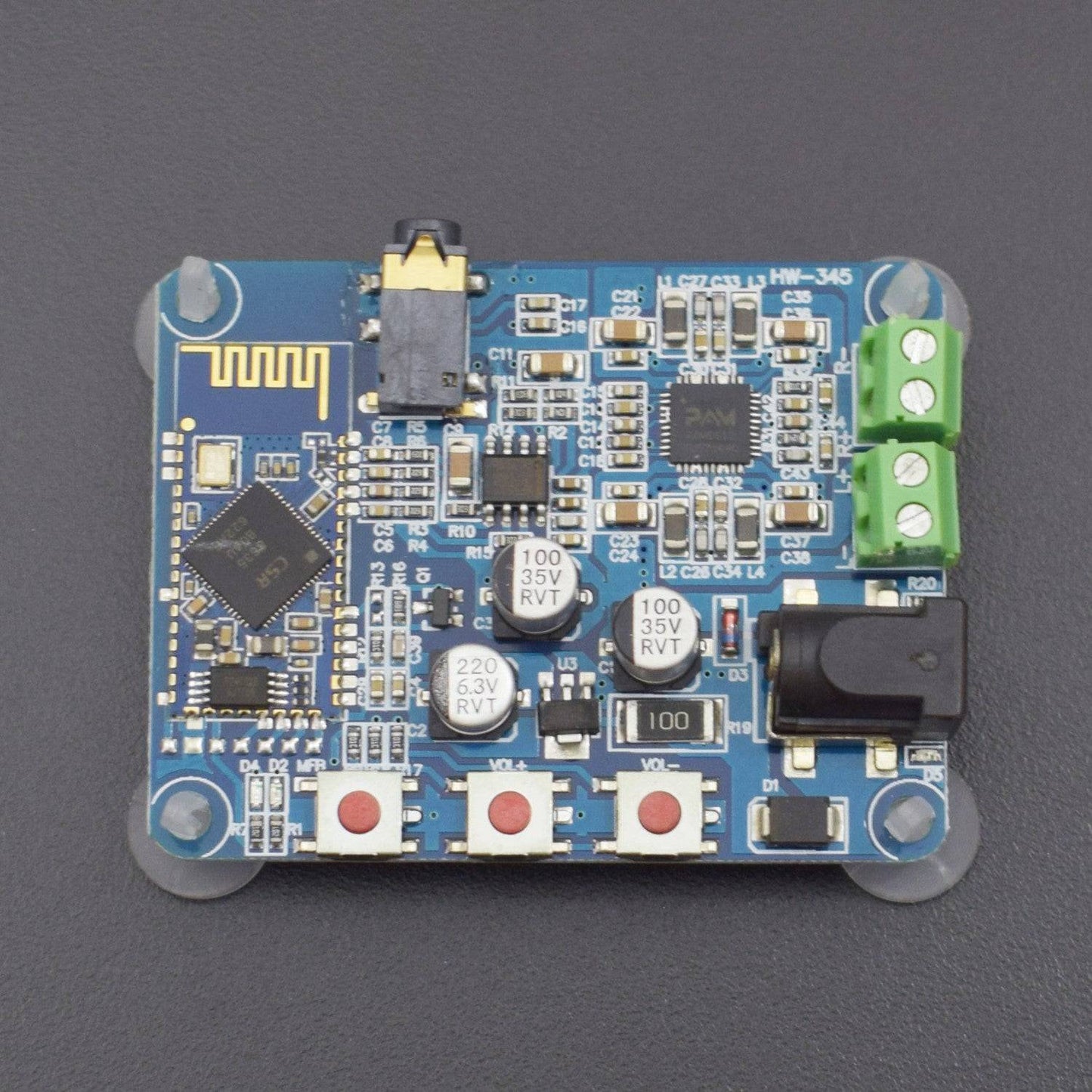

This is DC 12V Bluetooth 4.0 PAM8610 Audio Receiver Stereo Amplifier Board 2x10W Module Board. Distortion free sound, can achieve good range with BLE 4.0 Standard. Equipped with 2.1 DC power interface. Bluetooth V4.0, high software compatibility. The module has 3 buttons for adjustment for convenient and easy operation.
Specification:
- Supply Voltage: 12V DC(<15V DC)
- Current: Not Less than 2A(Recommended)
- Power Interface: 2.1/5.5 DC Interface
- Audio Input: Bluetooth Receiver V4.0
- Audio Output: Terminals
- Applicable Speaker Impedance: 4-16 ohm
- Number of Channels: Two-channel Stereo
Features:
- Sound quality is very good by using this module.
- Equipped with 2.1 DC power interface.
- Bluetooth V4.0, high software compatibility.
- With 3 buttons for adjustment, convenient and easy operation.
- Applicable speaker impedance: 4-16 ohm (8 ohm is the best).
Package Included:
1 x DC 12V Bluetooth 4.0 PAM8610 Audio Receiver Stereo Amplifier Board 2x10W Module Board
