DC 12V 2 Channel Relay Module With Isolated Optocoupler High and Low Level H/L Level Trigger Module for Arduino -NA189

DC 12V 2 Channel Relay Module With Isolated Optocoupler High and Low Level H/L Level Trigger Module for Arduino -NA189

NA189

In stock

Rs. 85.00
Rs. 85.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

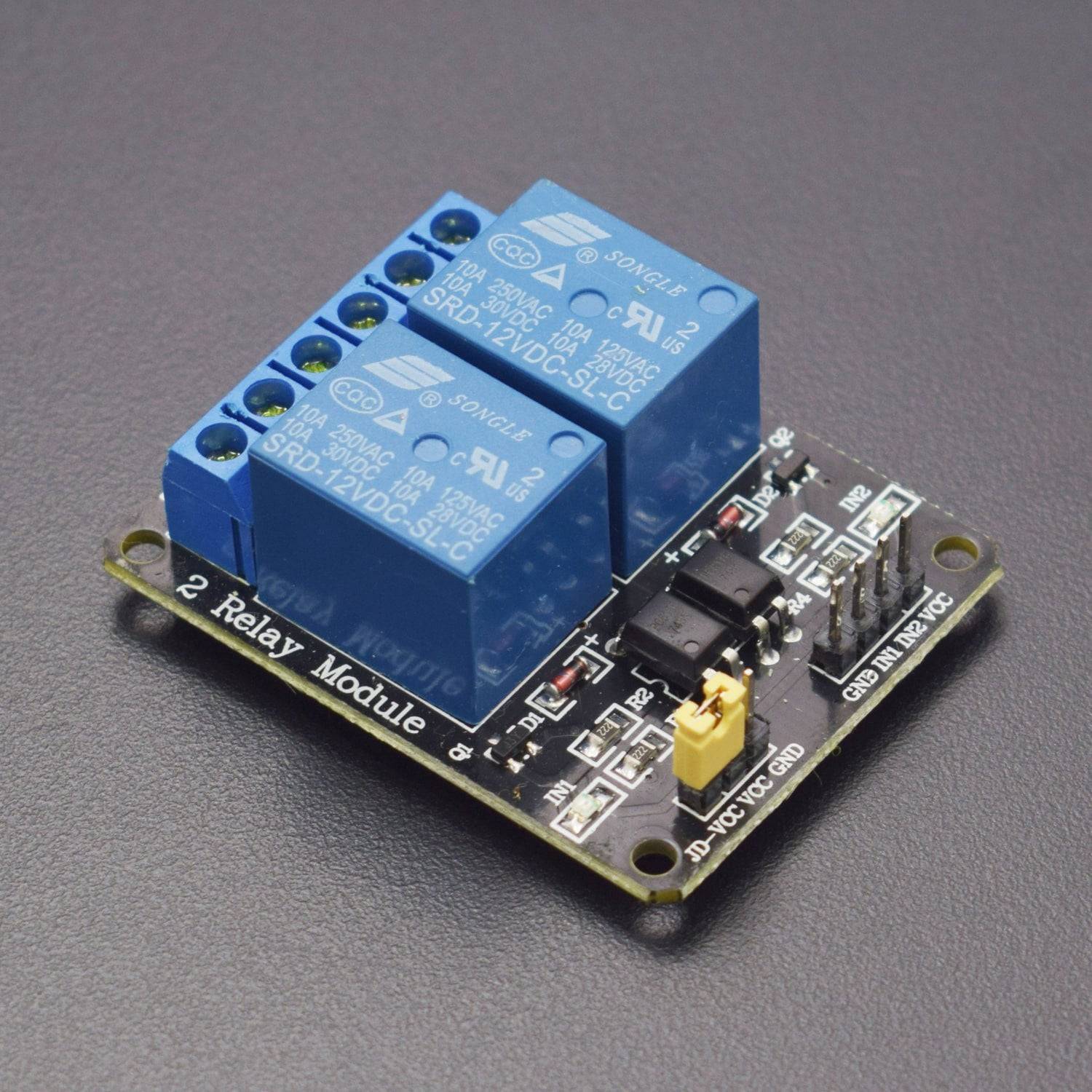

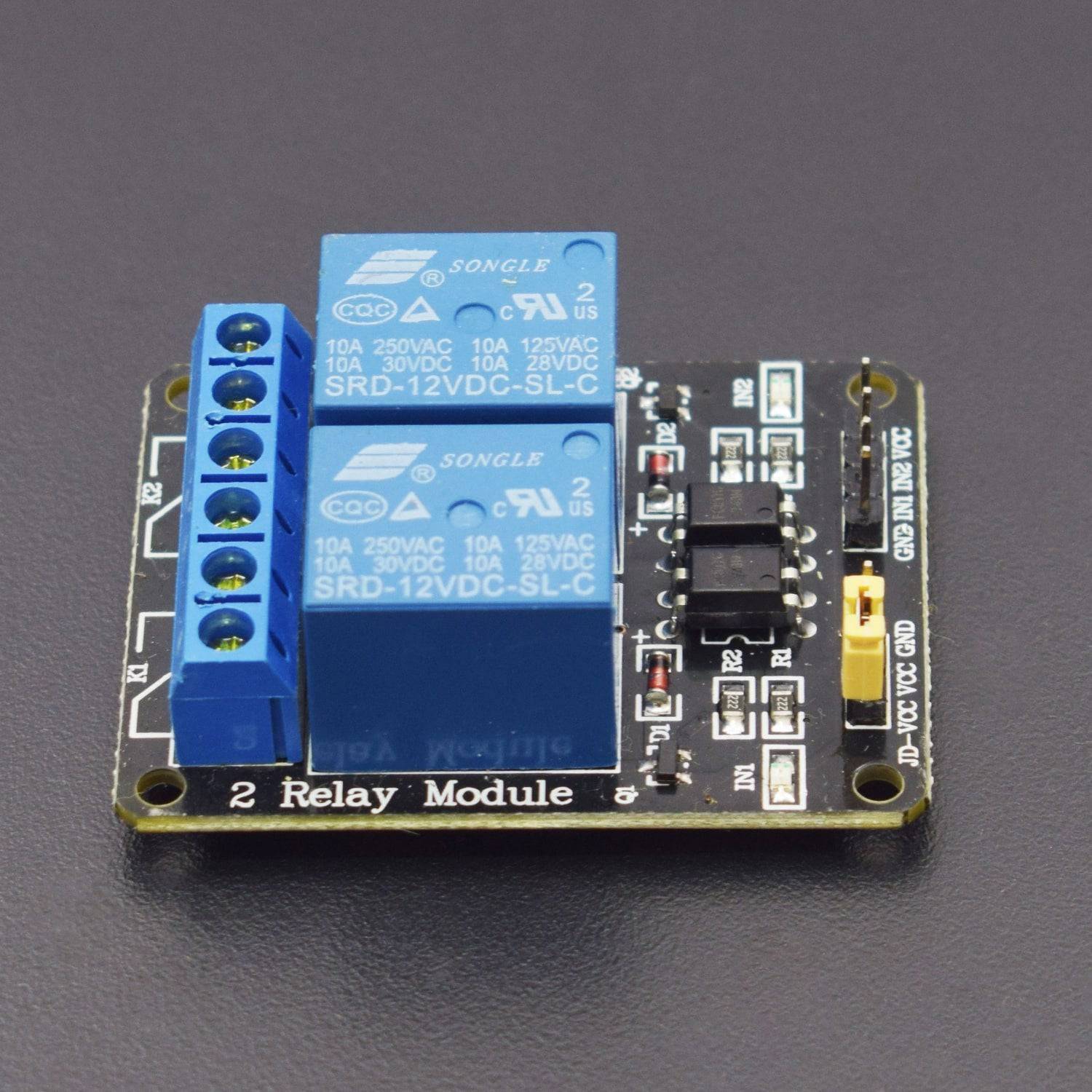

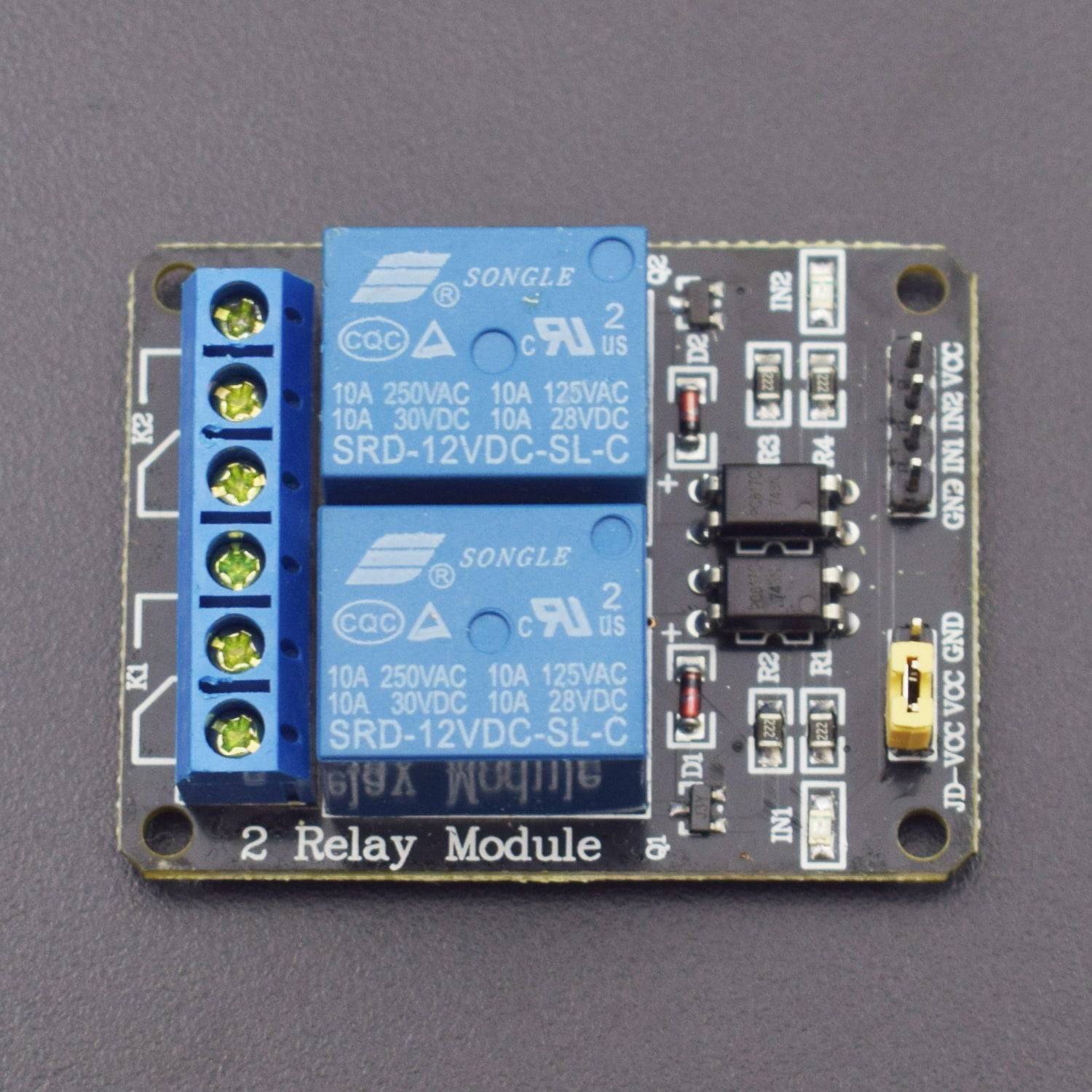

1. Size: 50.5 x 38.5 x 18.5mm (length x width x height)
2. Weight: 31g
3. PCB color: Black
4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
5. Relay with a common end, a normally open end, and a normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
8. VCC is the system power supply and JD_VCC is the relay power supply, use with the jumper cap


Module parameters:

1. Size: 50.5 x 38.5 x 18.5mm (length x width x height)
2. Weight: 31g
3. PCB color: Black
4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
5. Relay with a common end, a normally open end, and a normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
8. VCC is the system power supply and JD_VCC is the relay power supply, use with the jumper cap

Electrical parameters:

  • Supply voltage: 12V
  • Current: greater than 100mA
  • Load: 250V 10A AC or 30V 10A DC

Wiring instructions:

  • VCC: System power supply positive
  • GND: System power supply negative
  • IN1--IN2: Relay Control Port
(Do not reverse the connection, the reverse connection will cause the module to burn out.)
Package includes:
1 x DC 12 V 2 Channel Relay Module
