DC 12V 2 Channel Bluetooth Wireless Control Relay Module - RS3522

DC 12V 2 Channel Bluetooth Wireless Control Relay Module - RS3522

SKU:RS3522

Regular price Rs. 815.00
Regular price Sale price Rs. 815.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Easy to set up and pair with Android Phone
  • Onboard Bluetooth status indicator and relay indicator
  • With 2 optocoupler isolation, strong anti-interference ability
  • Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
  • Effective control distance(on open area): 10m
  • Module Operating Voltage: 12VDC
  • On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
  • Module with diode effusion protection short response time

Description :

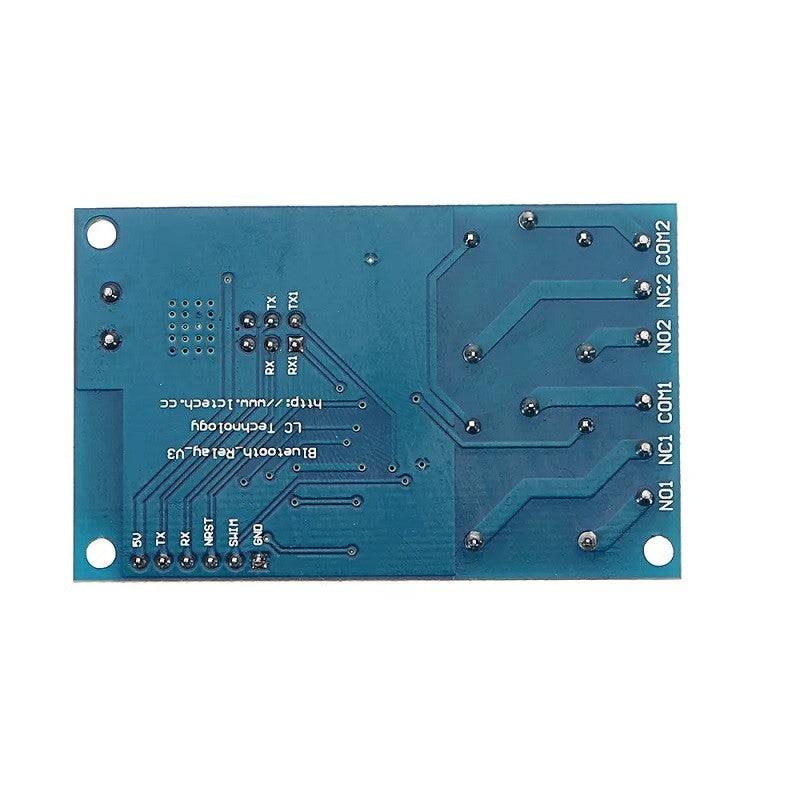

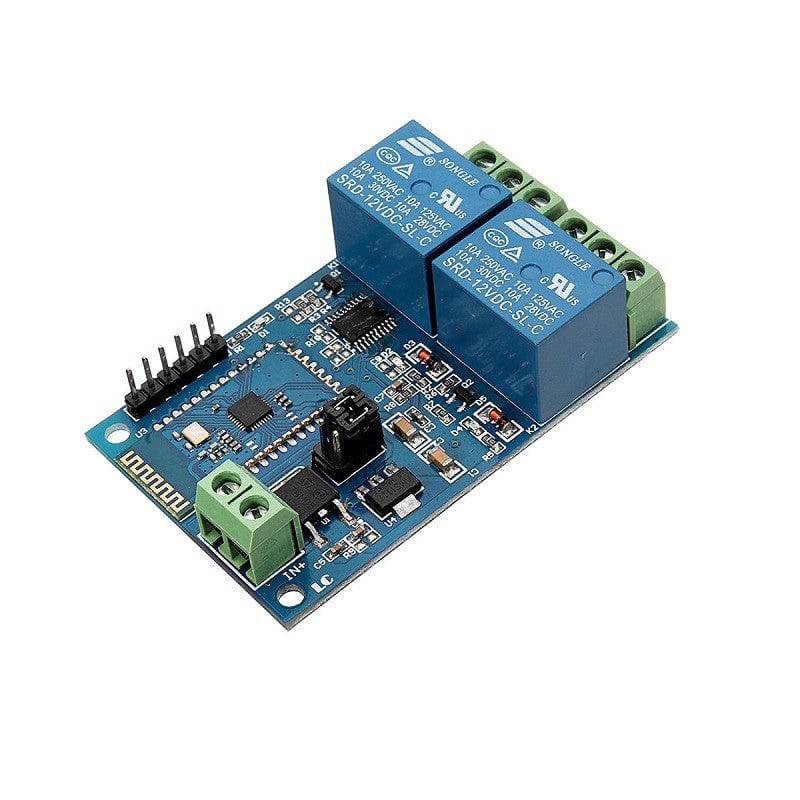

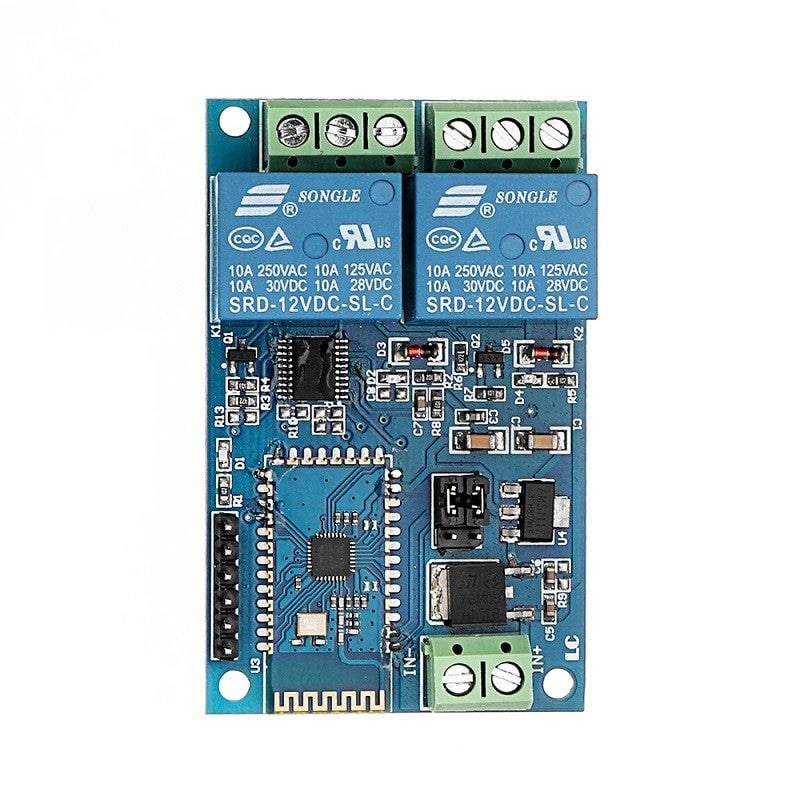

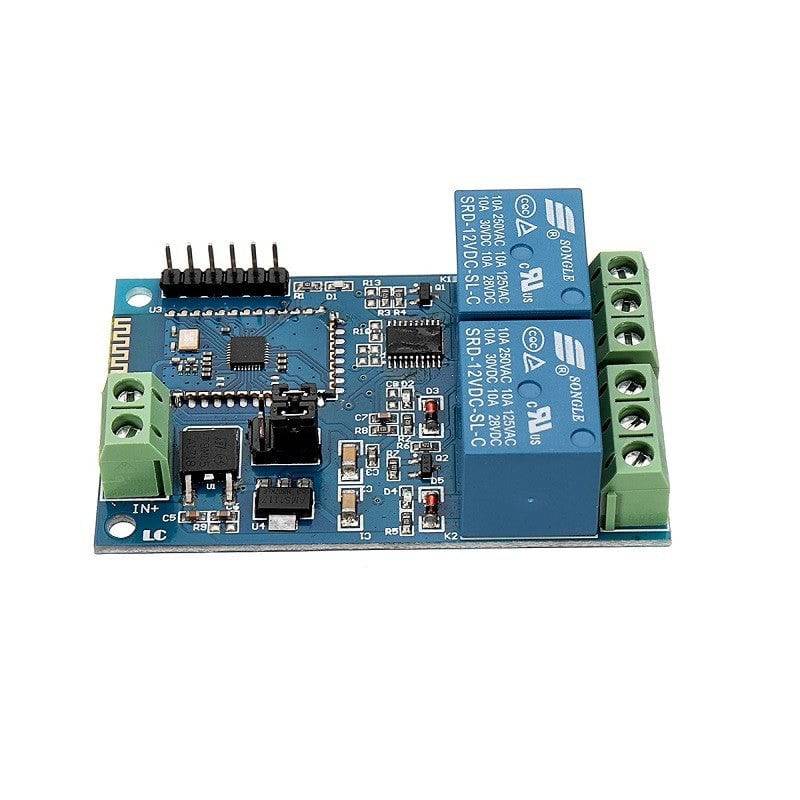

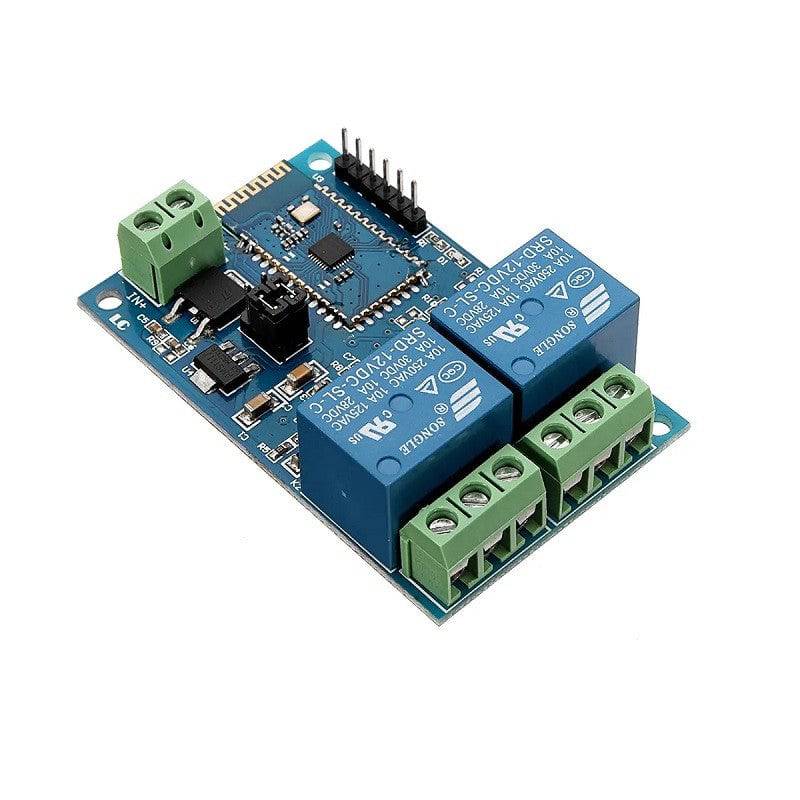

The DC 12V 2 Channel Bluetooth Wireless Control Relay Module contains 2 relay channels that operate on 12VDC to handle the appliances of 230VAC or 30VDC up to the 10A current. The relay module comes with an onboard integrated SPP-C Bluetooth serial slave module, which can be used to control relay switching by sending commands via the mobile phone APP with very easy to set up.

LED Indication:

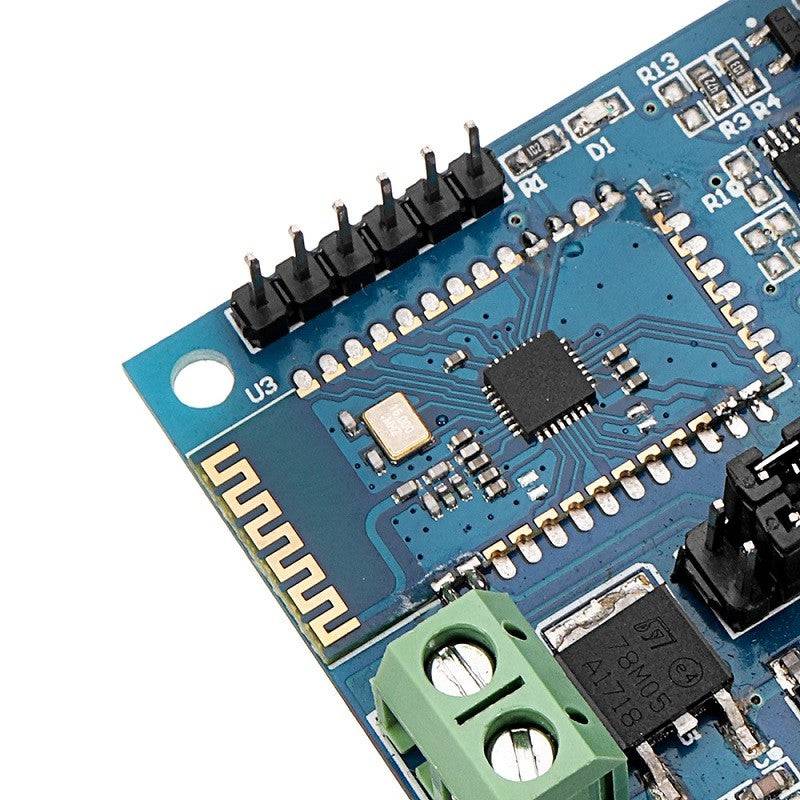

  • LED D1(Blue): Bluetooth state indicator:
  • D1 blink slowly-Search Module over Bluetooth and wait till pairing
  • D1 Continue ON means connection established and ready to use
  • LED D2/D3/D2/D5 (Red): Relay indicator
  • These LEDs will show the status of Relay ON-OFF individually

Specifications and Feature:

  • Easy to set up and pair with Android Phone
  • Onboard Bluetooth status indicator and relay indicator
  • With 2 optocoupler isolation, strong anti-interference ability
  • Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
  • Effective control distance(on open area): 10m
  • Module Operating Voltage: 12VDC
  • On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
  • Module with diode effusion protection short response time

Package Include:

1 x DC 12V 2 Channel Bluetooth Wireless Control Relay Module
