- Temperature Range: -9-99 ℃
- Accuracy: 1 ℃
- Control Accuracy: 1 ℃
- Setting Range: -9-99 ℃
- Refresh Rate: 0.5S
- Input Power: DC12V
Description:
This is DC 12V 10A intelligent digital display thermostat temperature controller switch blue. It has imported high-speed single-chip microcomputer, precise and intelligent control. Three windows (start - real-time - stop) display + output status indicator, free control. It can automatically judge heating and cooling according to set temperature. It can be used in various space temperature control, water temperature control, incubators, etc.
Specification:
- Temperature Range: -9-99 ℃
- Accuracy: 1 ℃
- Control Accuracy: 1 ℃
- Setting Range: -9-99 ℃
- Refresh Rate: 0.5S
- Input Power: DC12V
- Output: relay output, capacity 220V 10A / 12V 10A
- Environmental Requirements: -10-60 centigrade
- Humidity: 20% -85%
- Temperature Sensor: NTC(3950-10k 1%)
Feature:
- Imported high-speed microcontroller, precise Intelligent Control
- Three window display at a glance
- Setting is simple, easy to operate
- Wide Range -9 ~ 99 ℃ arbitrarily set
- Space for a variety of temperature control, temperature control, incubators, etc.
Usage:
Connect the power supply and equipment to the controller power is displayed as a measured temperature, set up according to their needs STAR or STOP, the thermostat 10A relay outputs to meet a variety of high-power loads, connect the control circuit, for the thermostat to power

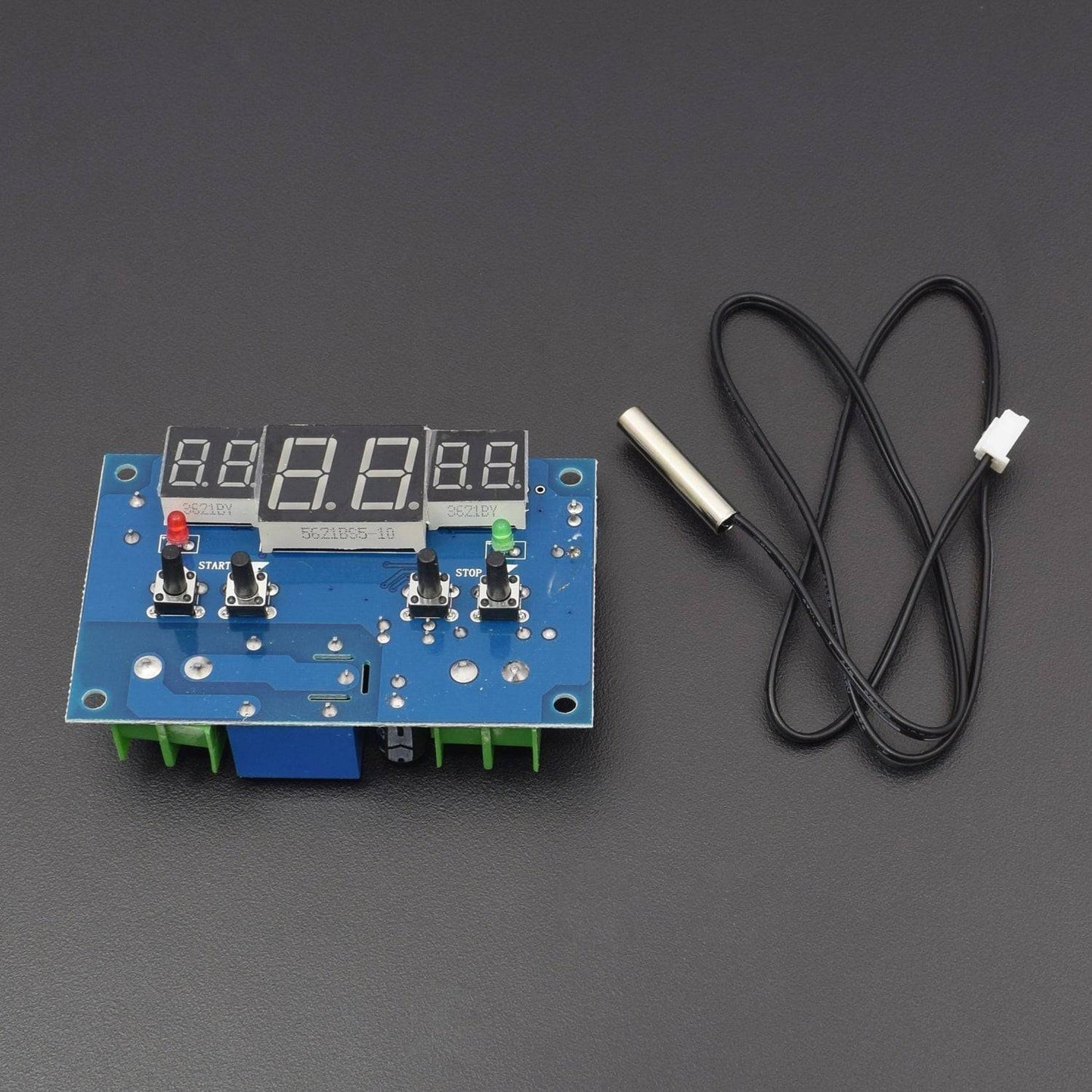

Component Description:
- Start Indicator: START (red) indicator light, said the relay is closed, the machine starts to work
- Stop Lights: STOP (green) light is on, the relay is lost, the device stops working
- Digital Tube: Middle red LED display for the current temperature detected
- Green LED on the left to set the start temperature
- Right side of the green LED is set to stop temperature
-
Key:
- START "▲ ▼" to set the starting temperature
- STOP "▲ ▼" set the stop temperature
Hot Start - Cooling Mode:
- Set the starting temperature value> stop temperature value,
- When the detected temperature ≥ start temperature, the relay is closed, refrigeration equipment work;
- When the detected temperature ≤ stop temperature, the relay off, refrigeration equipment stops working
- For example: Set the starting temperature is 30 centigrade , stop temperature is 25 centigrade ,
- When the detected temperature ≥ 30 centigrade , the relay is closed, the start Indicator (red) lights;
- When the detected temperature value ≤ 25 centigrade the relay off, stop Indicator (green) light.
Cold Start - Heating Mode:
- When the detected temperature ≤ start temperature relay is closed, the heating device operates;
- When the detected temperature ≥ stop temperature, the relay off, the heating device is stopped.
- For example: Set the starting temperature is 25 centigrade , stop temperature is 30 centigrade ,
- When the detected temperature value ≤ 25 centigrade , the relay is closed, the start Indicator (red) lights;
- When the detected temperature ≥ 30 centigrade , the relay off, stop Indicator (green) light.
Package Included:

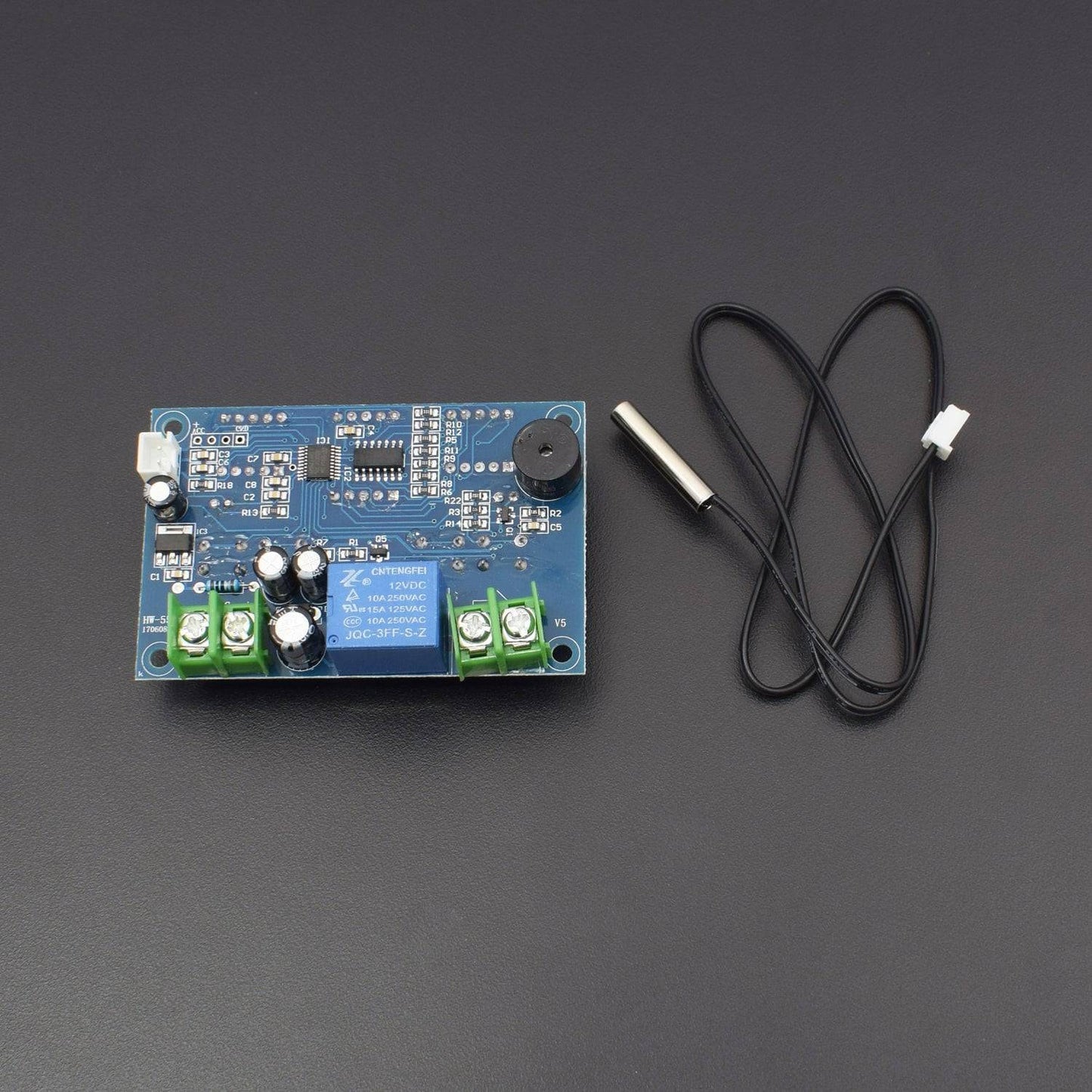

1 x W1401 DC 12V Intelligent Digital Temperature Controller Module
