Description:

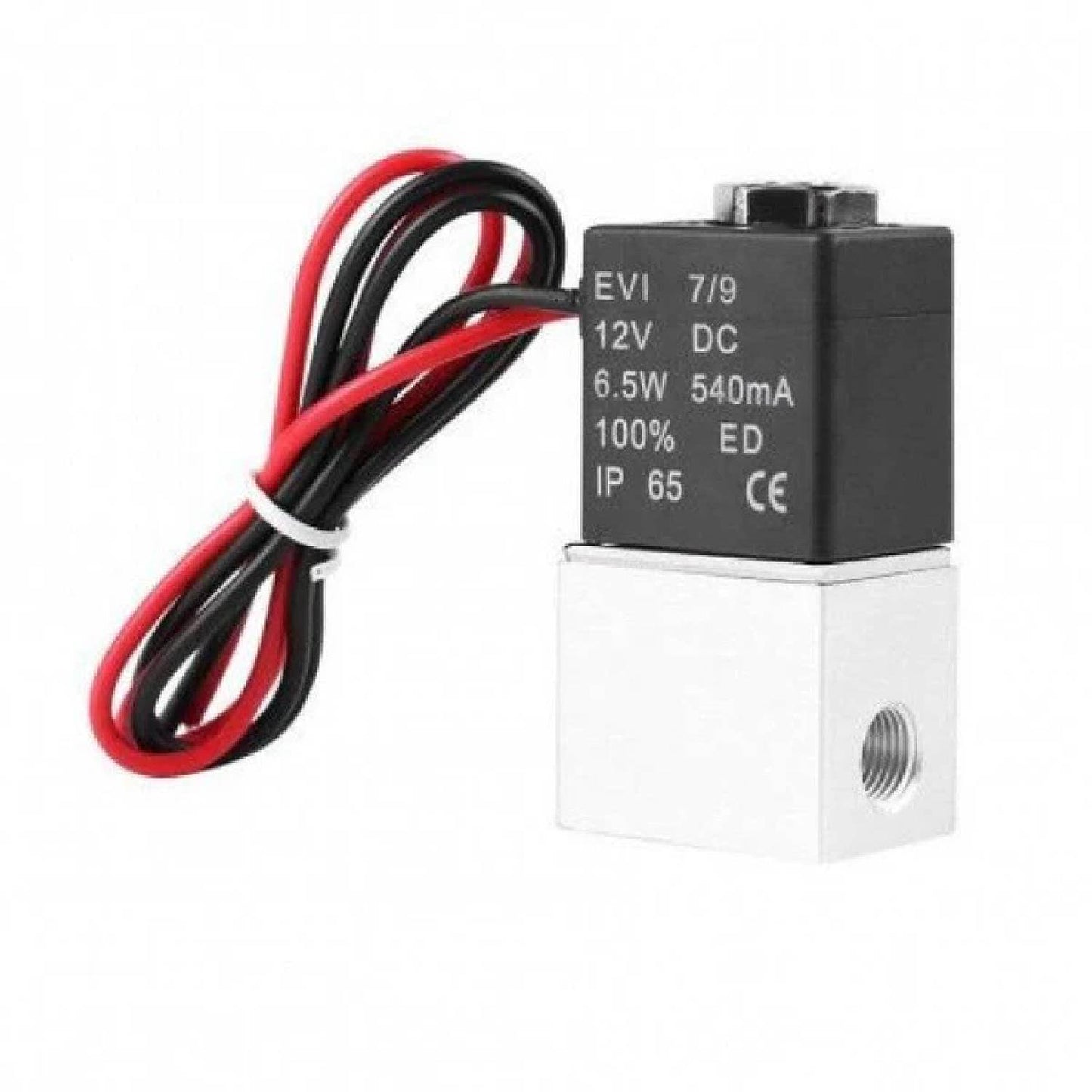

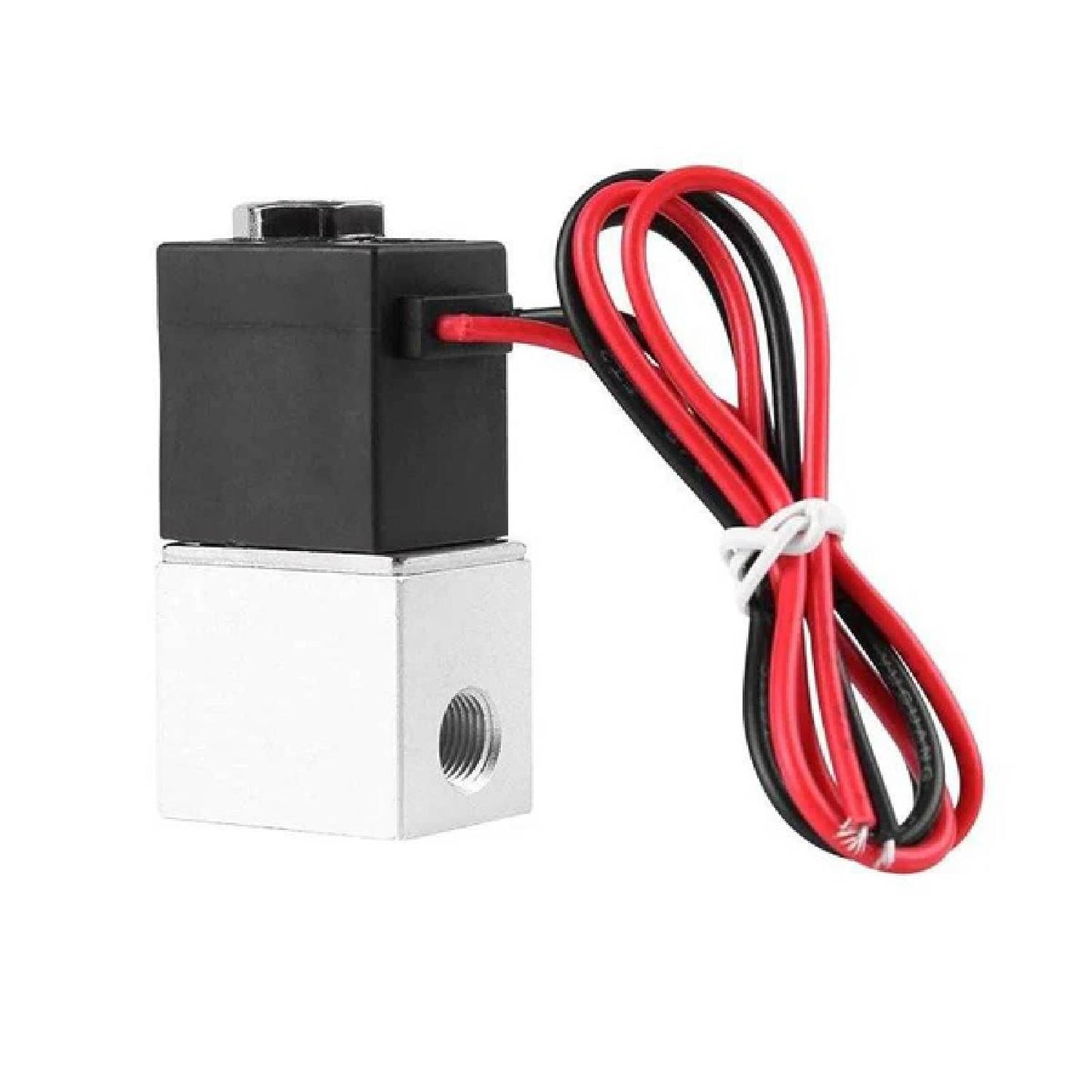

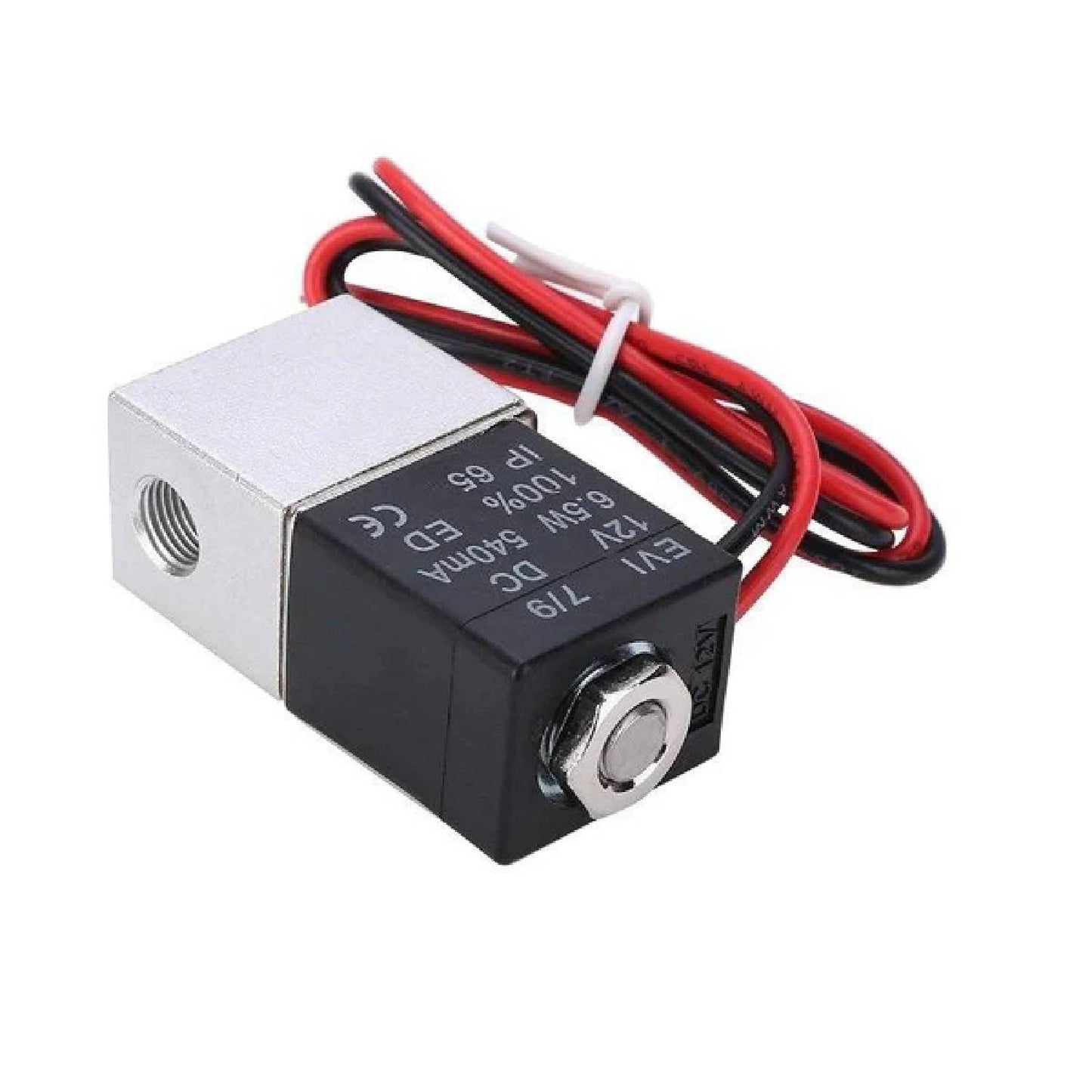

DC 12V 1/8 inch Solenoid Valve 2 Way Normally Closed Pneumatic Aluminium Electric Solenoid Air Valve with 1/4inch WIC Valve series 2-way normally closed solenoid is to control on/Off of air and inert gas. This solenoid has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port. The valve stays closed when the coil is de-energized, and it opens when energized. Has two holes in the bottom and can be mounted in any position.
Specifications:
- Valve Type: 2 Way Normally Open
- Port Size: 1/8 NPT Female Port
- Coil Voltage: DC12V
- Service Media: Air, Gas, Liquid, Water
- Operation Model: Direct Acting
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
- Operating Temperature: -10 to 80°C
- Coil Power: 6.5W
Features:
- The electric solenoid valve is made of high-quality material, with a long serving life.
- It will become hot when it works because there are so many coils inside. It’s a normal and safe phenomenon.
- Compact size and durable, it is an ideal replacement for your broken or old threads.
- The electric solenoid valve is made of high-quality materials, has a long service life, and is easy to install and maintain.
- Solenoid valves are durable, practical, and stable for most needs
Package Included:
1 x DC 12V 1/8 inch Solenoid Valve Mechanical Parts Normally Closed Electric Solenoid Valve 2 Way Positions Solenoid Valve For Water Air Pneumatic Tool For Gas, Liquid Tools
