- Model: CCM6DS
- Potentiometer: resistance B100K, opening 8mm
- Work Voltage: 12V-50VDC (wide range)
- Work Current: 30A
Description:
This is a 1500W DC motor PWM speed controller module. The module can control the speed of DC motors up to 1500W providing a current of 30A max. and at operating voltage between 12V to 50VDC. The module comes with a fully shielded enclosure to provide rigidity to the module and allow a better heat transfer across the module. The module has 5 high-quality MOSFETs and 2 hig-quality capacitors. There is an onboard fuse, which protects the module from overvoltage.
Specification:
- Model: CCM6DS
- Potentiometer: resistance B100K, opening 8mm
- Work Voltage: 12V-50VDC (wide range)
- Work Current: 30A
- The Power Range: maximum 1500W, recommended 12V250W, 24V350W, 48V500W use.
- Speed Range: 0% -100%
- The product frequency: 21KHz
Features:
- CCM6DS DC Motor Speed Regulator controls the speed of a DC
- motor by adjusting Pulse-Width-Modulated (PWM).
- Suitable for the DC motor (or DC load) within 30A.
- Adjustable speed range is from 0%-100%.
- Potentiometer with switch function.
- Incorporate a 30A fuse, and with the protection function of
- reverse connect power supply.
- Potentiometer cable length 20cm.

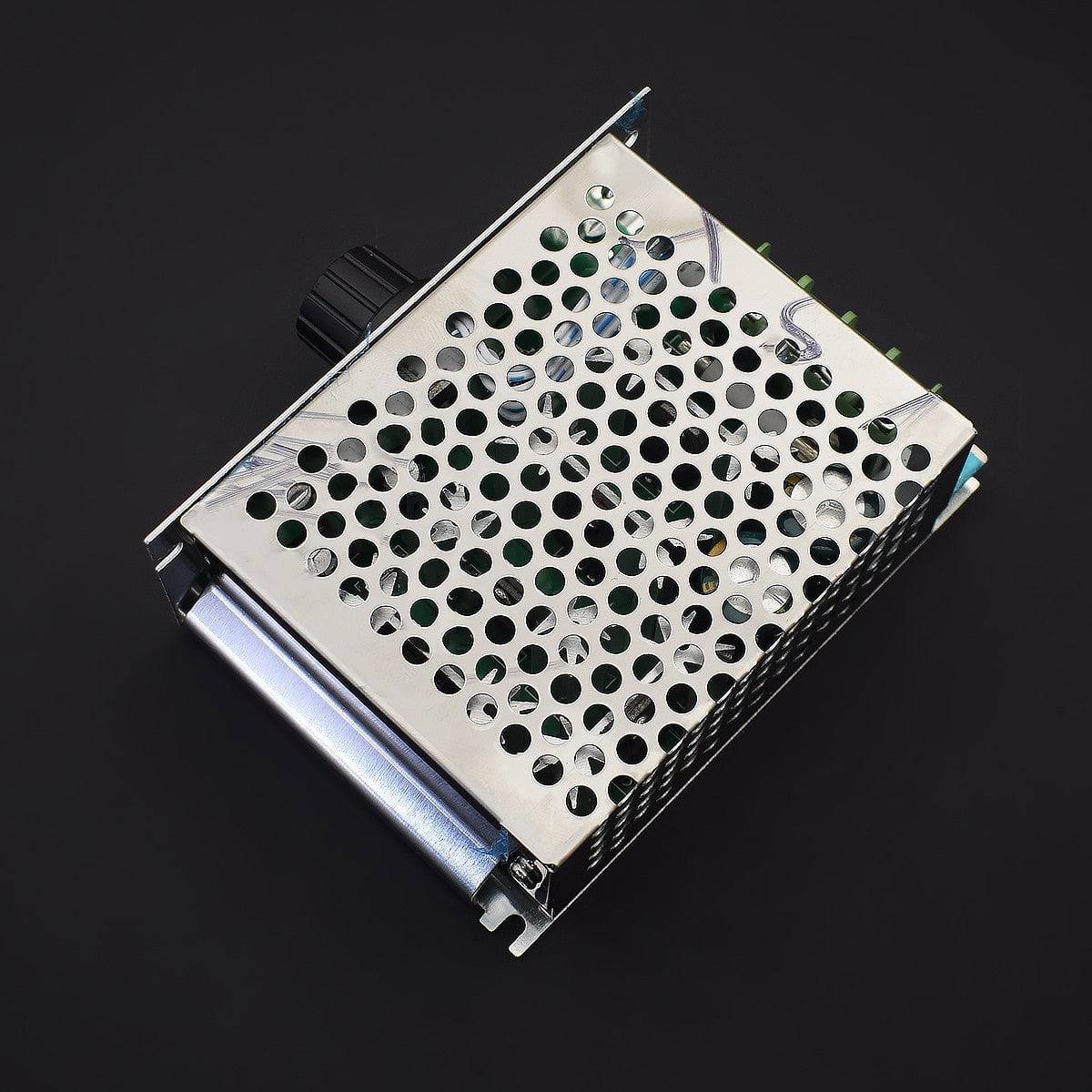

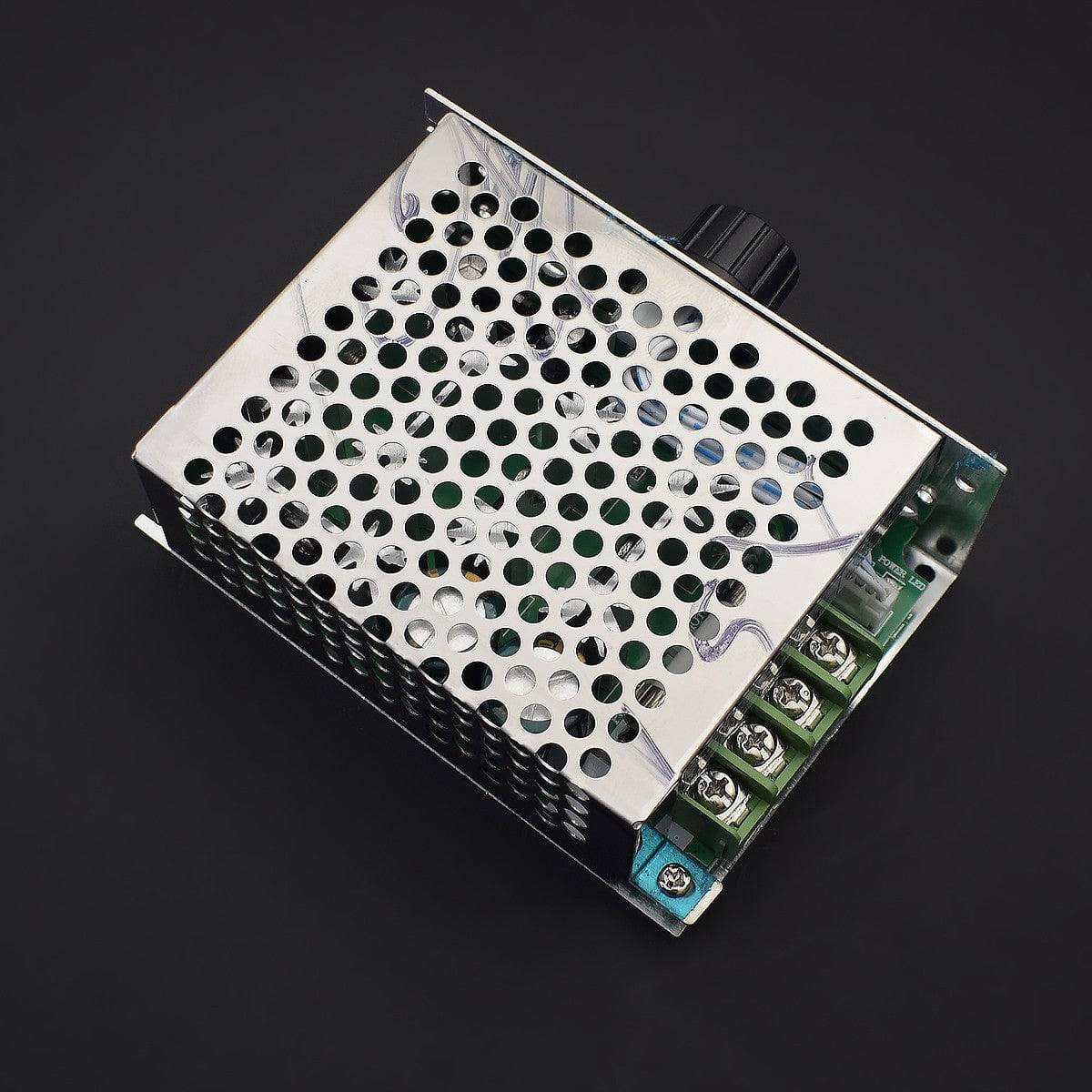

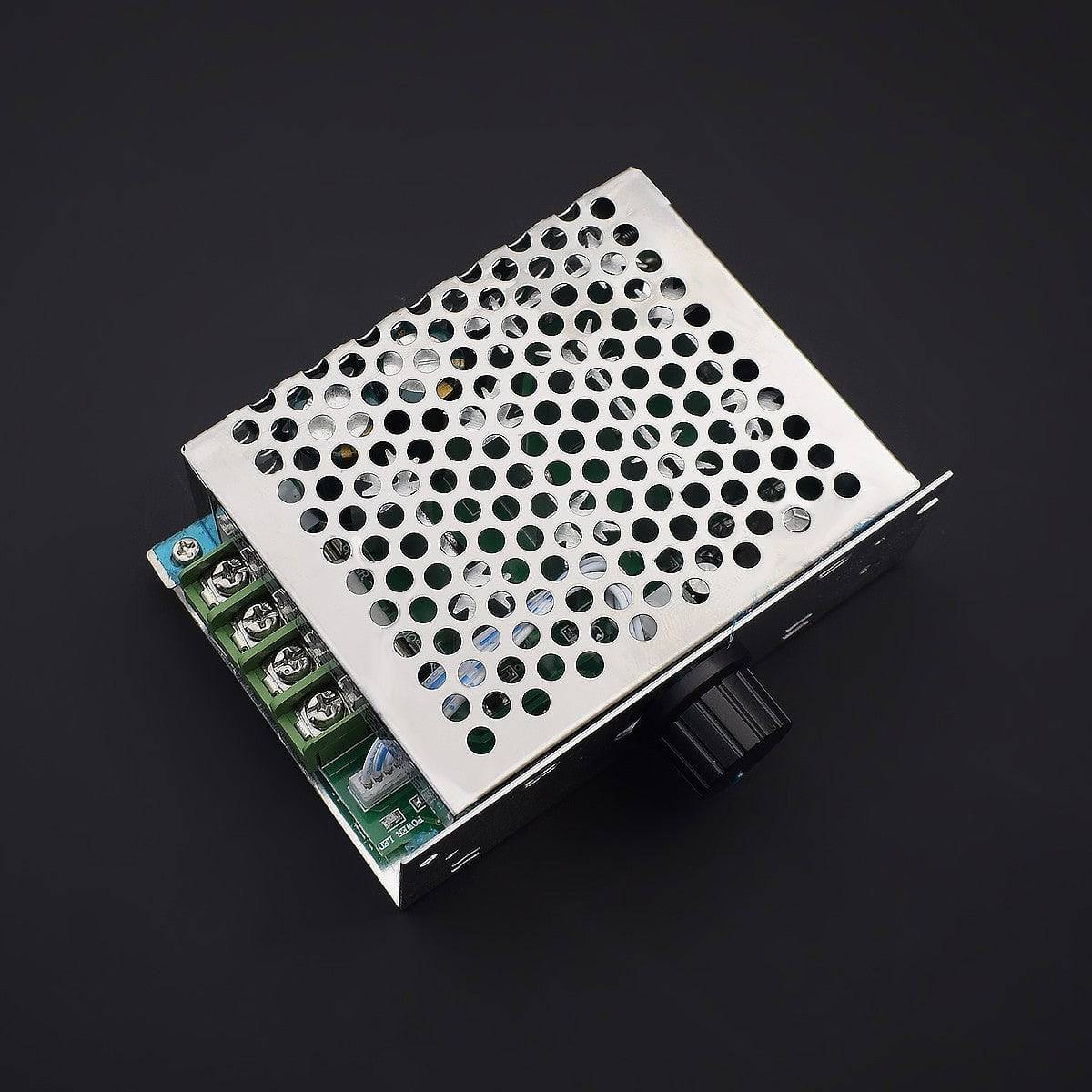

- Equipped with aluminum shell and connection label, installed easily.
Caution:
- DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
- Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
- The motor can be divided into positive and negative poles. When the running direction is inconsistent with the desired direction, the direction can be changed by adjusting the thread
- The potentiometer knob can change the governor output duty cycle to change the motor speed.
Package Included:
1 x DC 12-50V 30A 1500W Motor Speed Controller Adjustable PWM Motor Speed Regulator with Shell CCM6DS 21KHz
