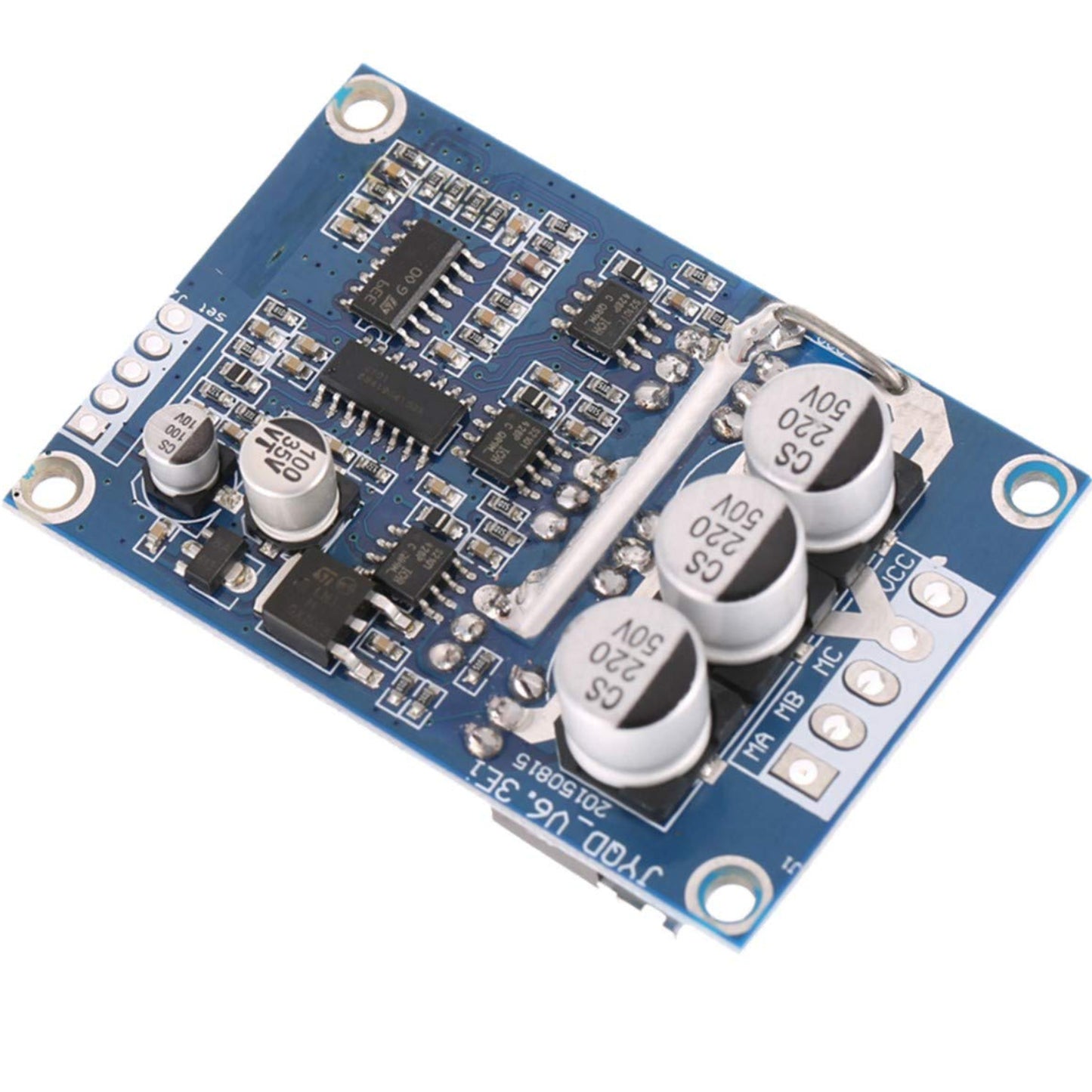

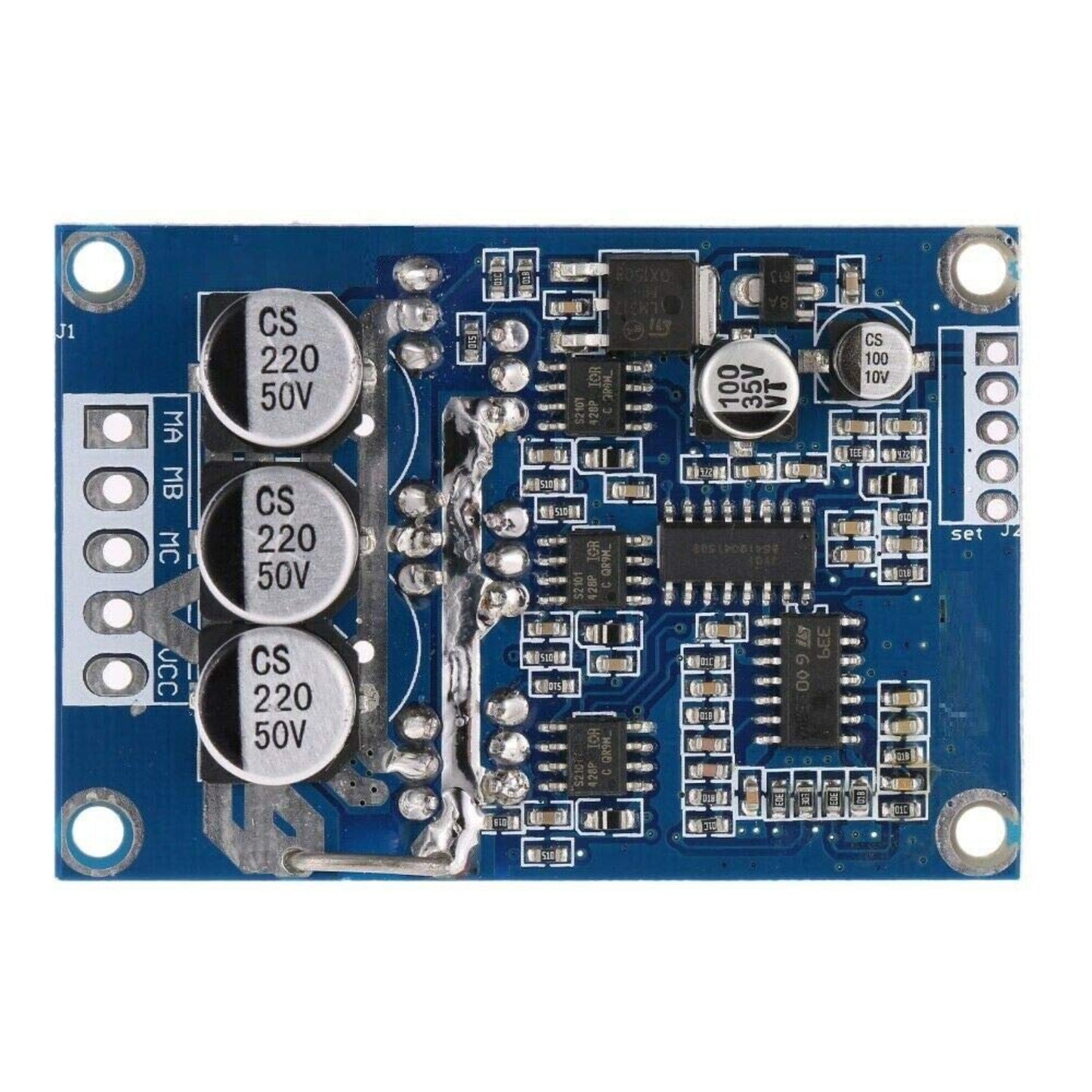

Description:
The 12V-36V Brushless Motor Controller is made of high-quality material, is durable, not easy to damage, and has good performance and a long service life. The speed controller is manufactured under strict quality control and standard requirements and has a high safety factor, so it can be used with confidence. The Brushless Motor Controller Board is easy to use and has stable performance. If you are looking for high quality, this will be the ideal choice.
Specifications:
- Operating voltage: DC 12V-36V.
- Operating current: 15A.
- Driver power: 500W
- Speed voltage: 0.1V-5V.
- Operating temperature: -40-85°C
- Humidity: 90% RH
- Colour: Blue
Features:
- The Brushless Motor Controller is made of high-quality material.
- It has good performance and long service life.
- The DC brushless motor controller is easy to use.
Wiring Control Terminal For Set:
- The speed of the available potentiometer system can also be connected to MCU control, when the potentiometer control wiring, the center pin of the potentiometer is connected to the VR speed port, the potentiometer connected to both ends of the terminal voltage 5V and GND higher speed faster.
- Motor direction control wiring methods: you can switch the control can also be connected to MCU control, to GND in one direction, and then in a 5V direction.
- Press speed signal: high and low output. IC cannot understand the information with the customer's request.

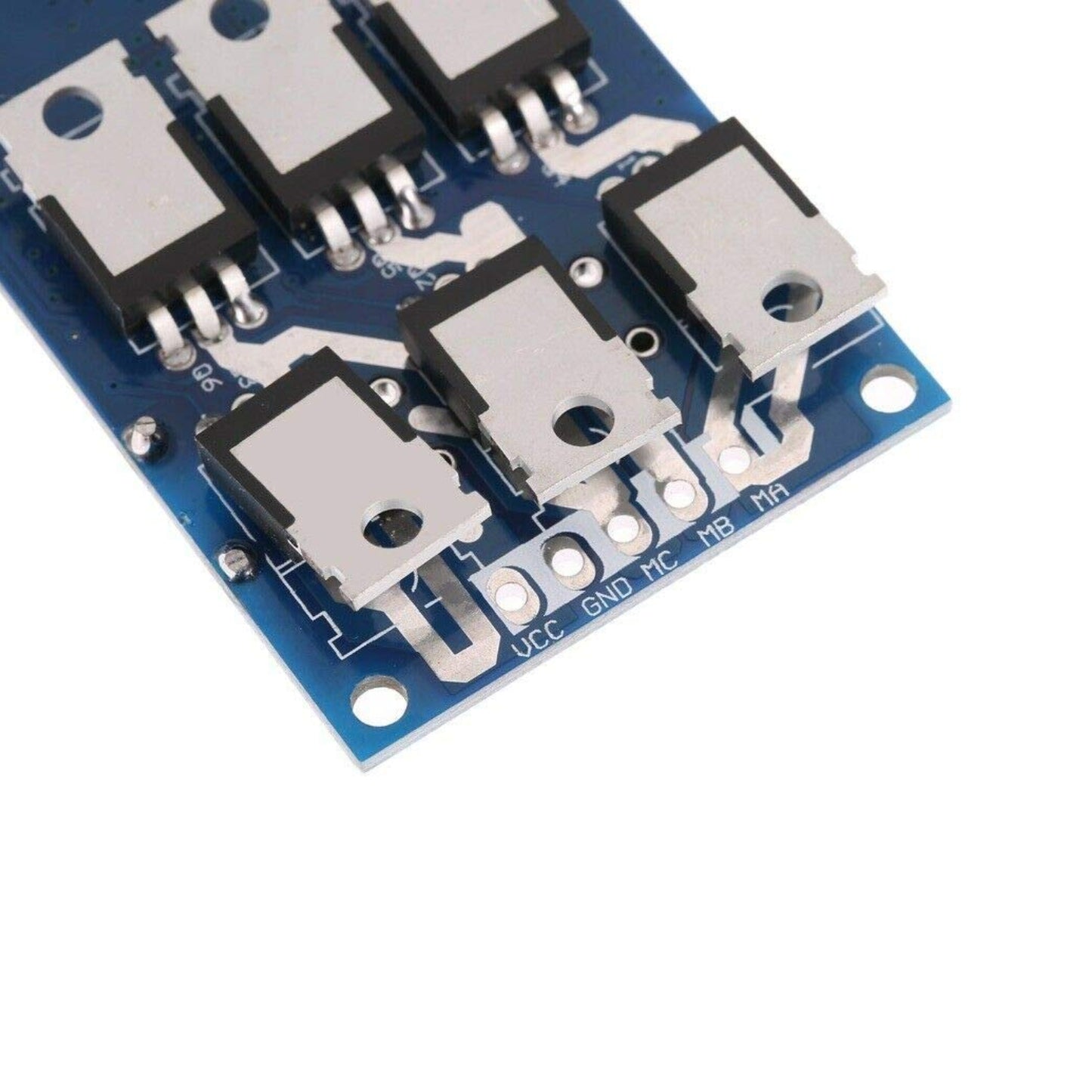

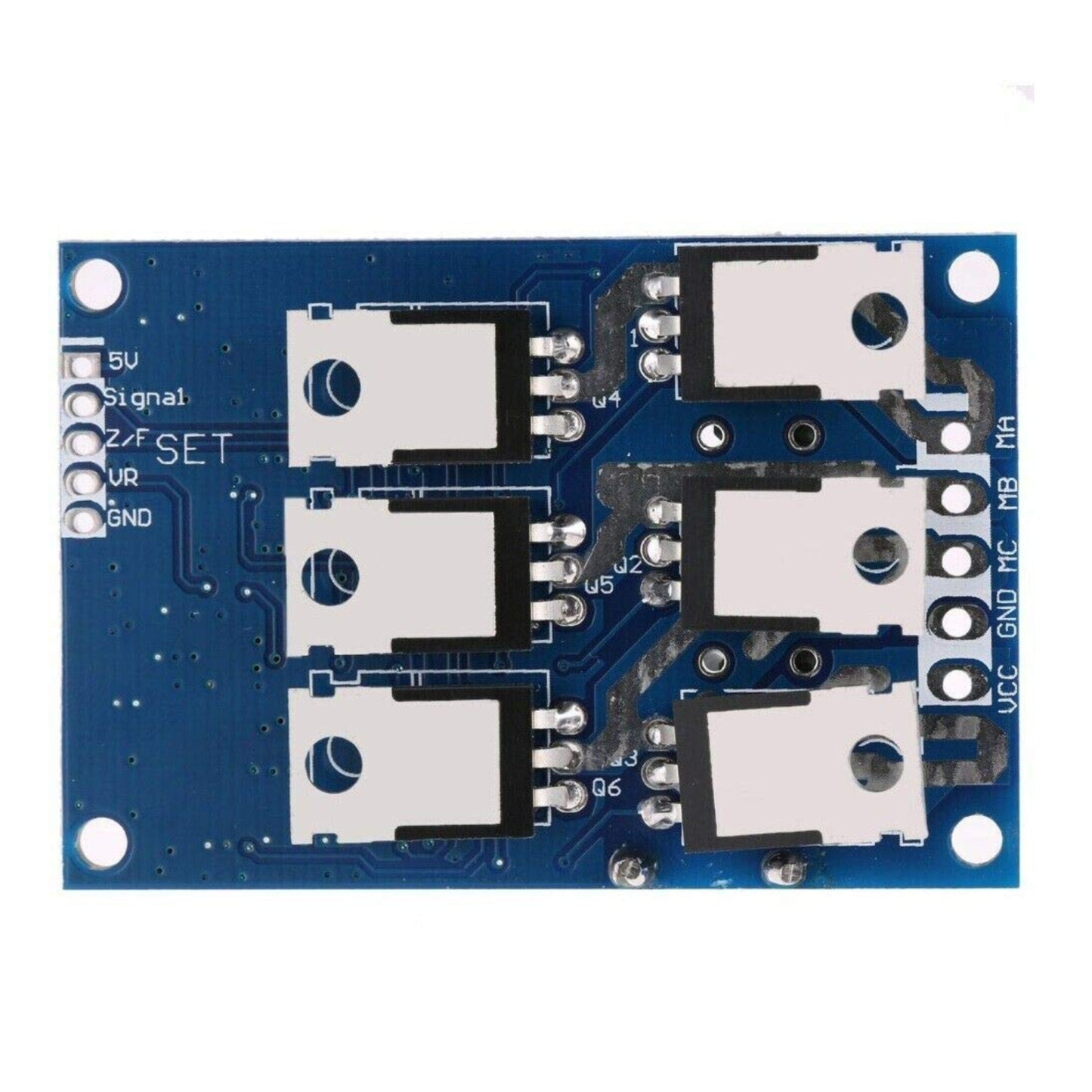

Pin Description:
Package Included:
1 x DC 12-36V Brushless Motor Controller Driver Board 500W Brushless Motor Controller
