- Working Voltage: DC 10-50 V
- Rated Current: 60A
- PWM Frequency: 15KHz
-
Control Power: 0.01-3000 W
- 12V: 720W(max)
- 24V: 1440W(max)
- 36V: 2160W(max)
- 50V: 3000W(max)
- Quiescent Current: 0.04 A
Description:

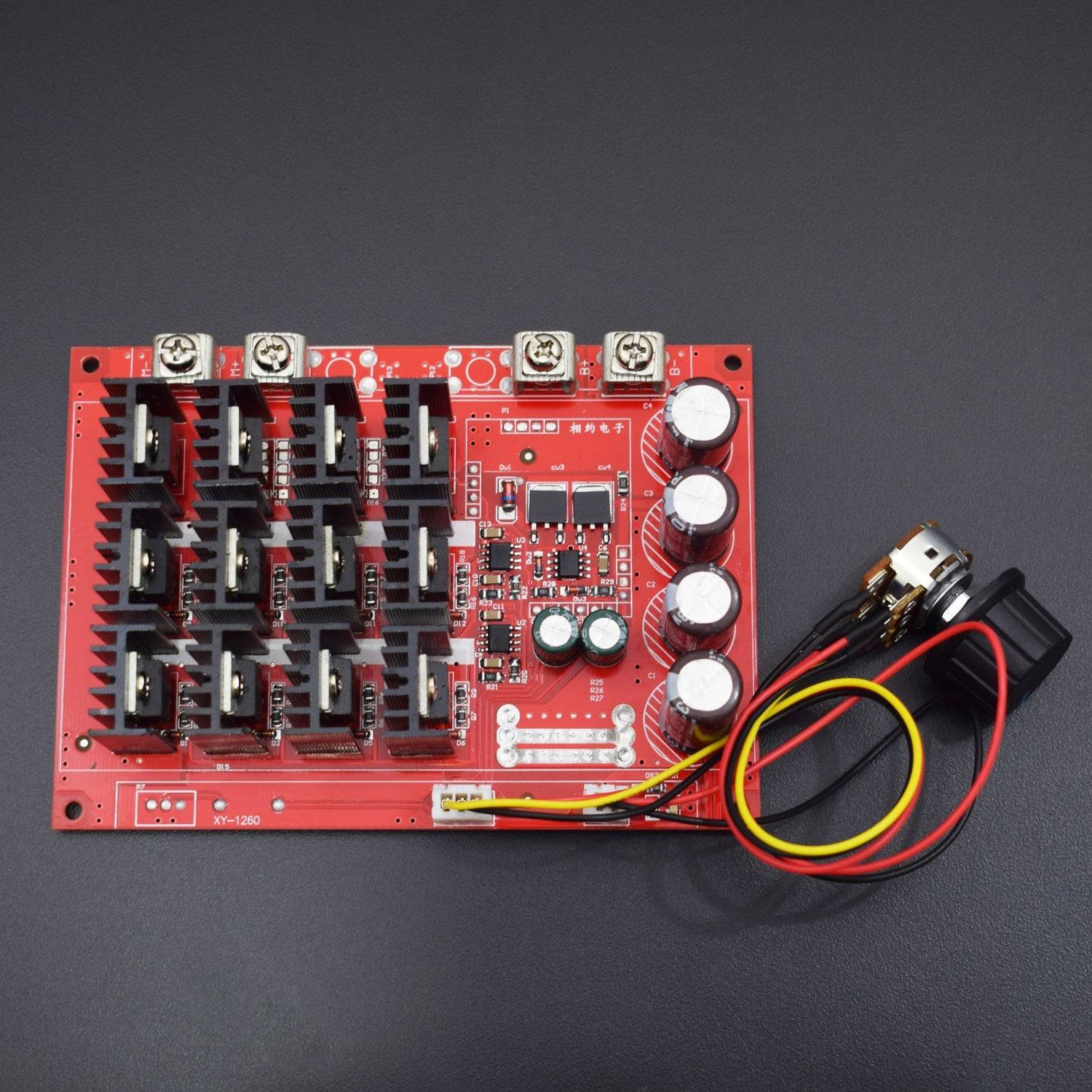

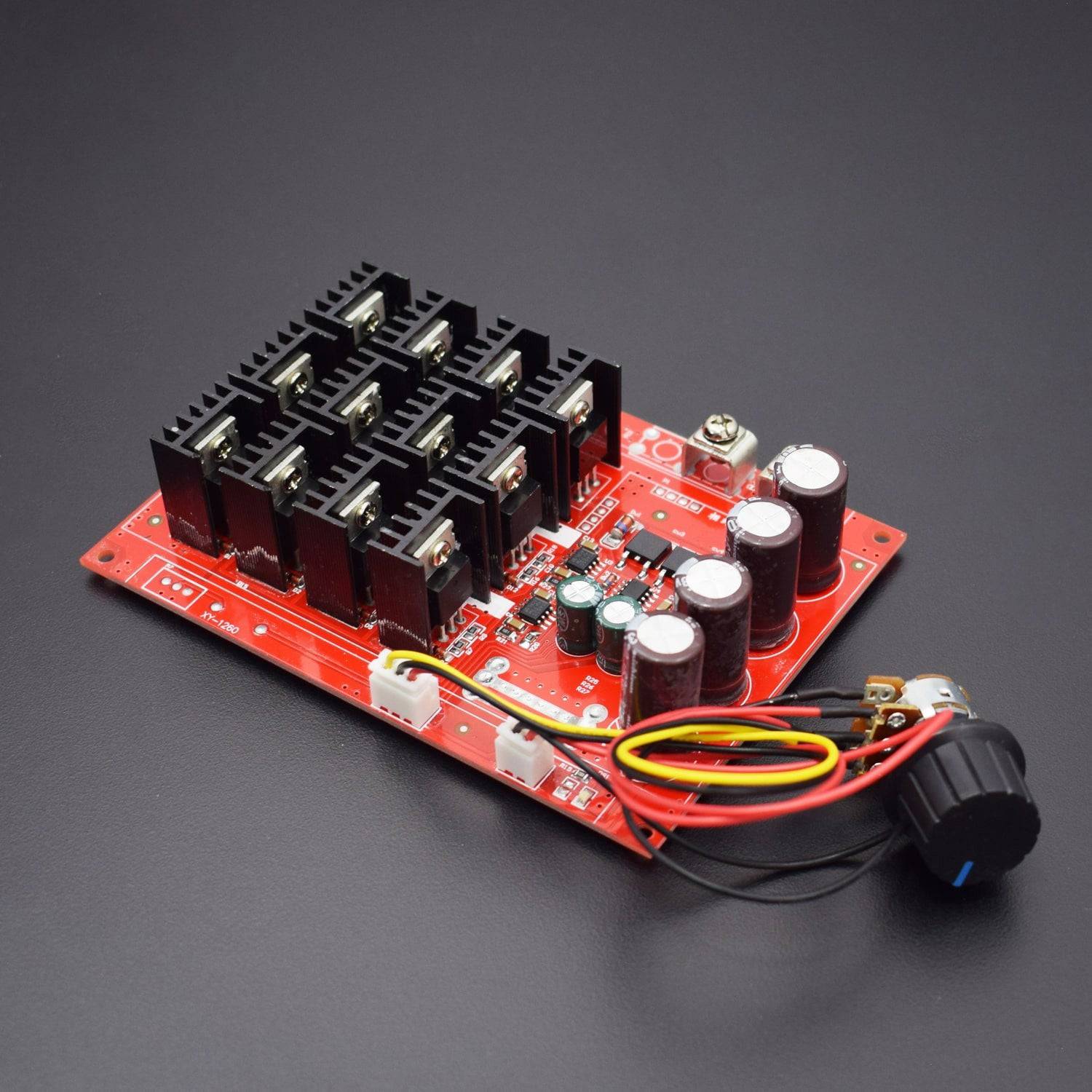

This is DC 10-50V 60A High Power Motor Speed Controller Module PWM HHO RC Driver Controller 12V 24V 48V 3000W Extension Cord Switch. It uses PWM modulation system to adjust light & speed. With radiators to doing heat dissipation created by MOS tube. With wire to connect potentiometer for more convenient speed control.
Specification:
- Working Voltage: DC 10-50 V
- Rated Current: 60A
- PWM Frequency: 15KHz
-
Control Power: 0.01-3000 W
- 12V: 720W(max)
- 24V: 1440W(max)
- 36V: 2160W(max)
- 50V: 3000W(max)
- Quiescent Current: 0.04 A
- PWM Duty Ratio: 5-100%
- Working Temperature: -20 to +40Degrees Celsius
Features:
- Compact in size, wide voltage & current range.
- Use the PWM modulation system to adjust light & speed.
- With radiators to doing heat dissipation created by MOS tube.
- With wire to connect potentiometer for more convenient speed control.
- The protective case creates better durability; max power of 3000W and small noise.
Package Included:
1 x DC 10-50V 60A High Power Motor Speed Controller PWM HHO RC Driver Controller Module 12V 24V 48V 3000W Extension Cord Switch
