DB9 to RS232 RS485 Converter Board DB9 Female Screw Terminal to RS232 RS485 Conversion Board- RS2882

DB9 to RS232 RS485 Converter Board DB9 Female Screw Terminal to RS232 RS485 Conversion Board- RS2882

SKU:RS2882

Regular price Rs. 60.00
Regular price Sale price Rs. 60.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

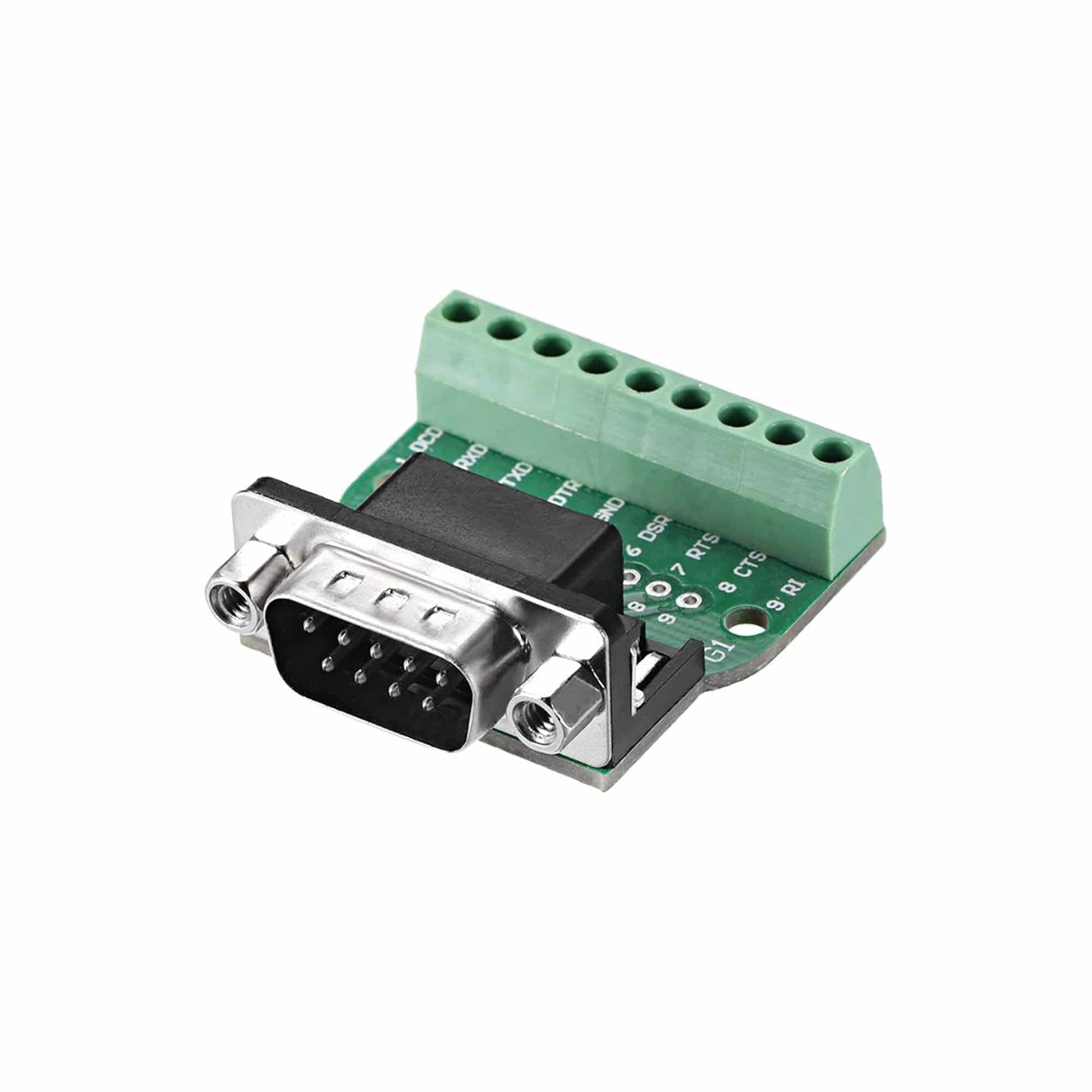

This is a DB9 to RS232 RS485 Converter Board module, RS232 Serial DB9 9-pin to 9 Position Screw Terminal Block. Connector DB9 adapter terminals to facilitate the commissioning equipment of the project. The wire size range of the 9 Positions Screws Terminal Block is 22-14AWG. All-copper DB9 Socket, anti-oxidation, contact better. The terminal pitch is 3.96mm, the screw hole diameter is 2mm, and need to use a slotted screwdriver width of 2mm to be removable.

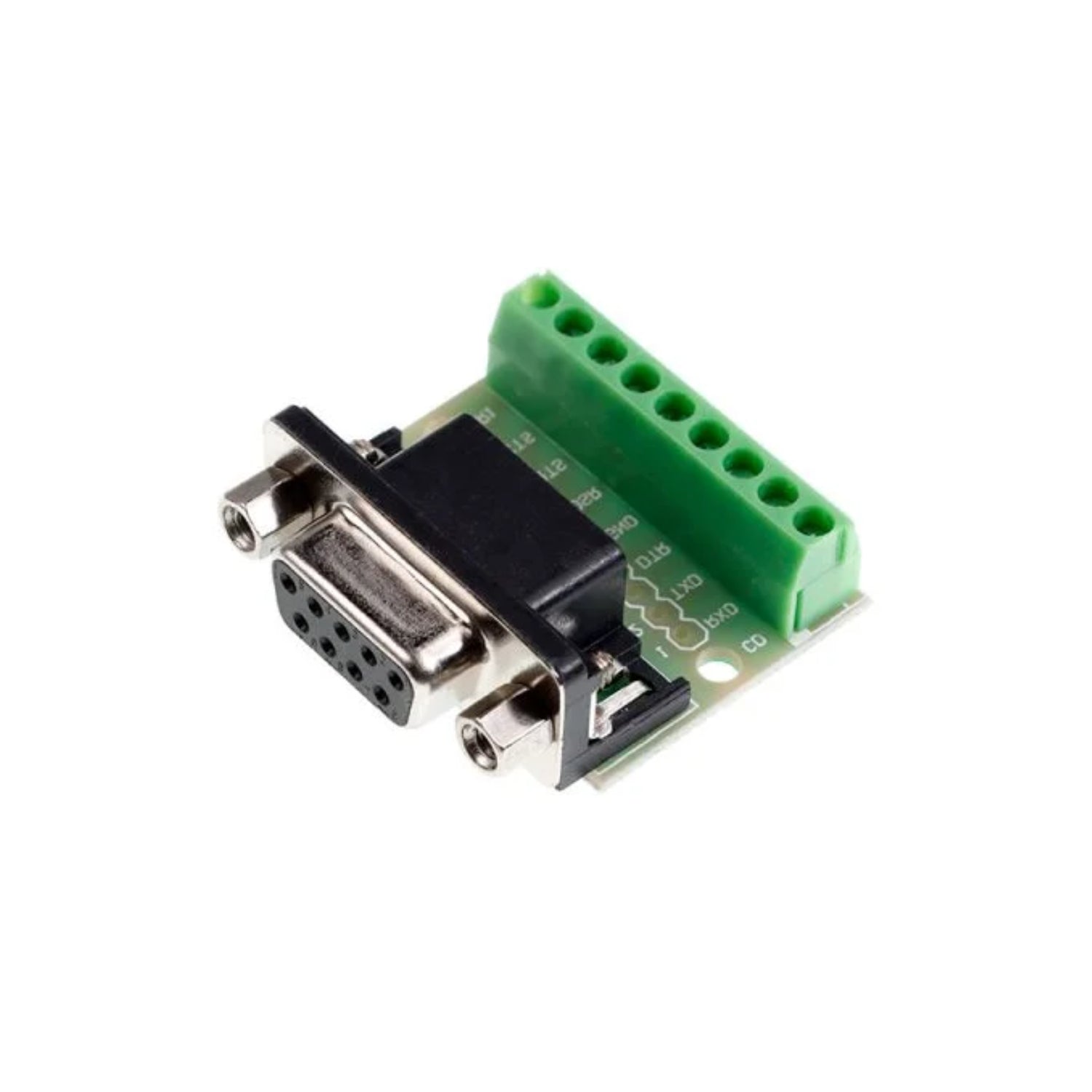

DB9 Female Adapter Plate Signal Module and connector DB9 adapter terminals are to facilitate the project, and site commissioning equipment. DB9 to RS232 RS485 Converter Board head turn a terminal and row needles. The DB9 female head above the Allen screw with protruding, terminal and row needles have Numbers corresponding, the terminal with high strength pressure is picking terminal. The common terminal can ratio, long service life, contact with reliable and DB9 terminals and the revolution of the row needles.

Specifications:

  • Colour: Green
  • Screw Terminal: 9

Features:

  • DB9 to RS232 RS485 Converter Board is perfect for experimentation and prototype work

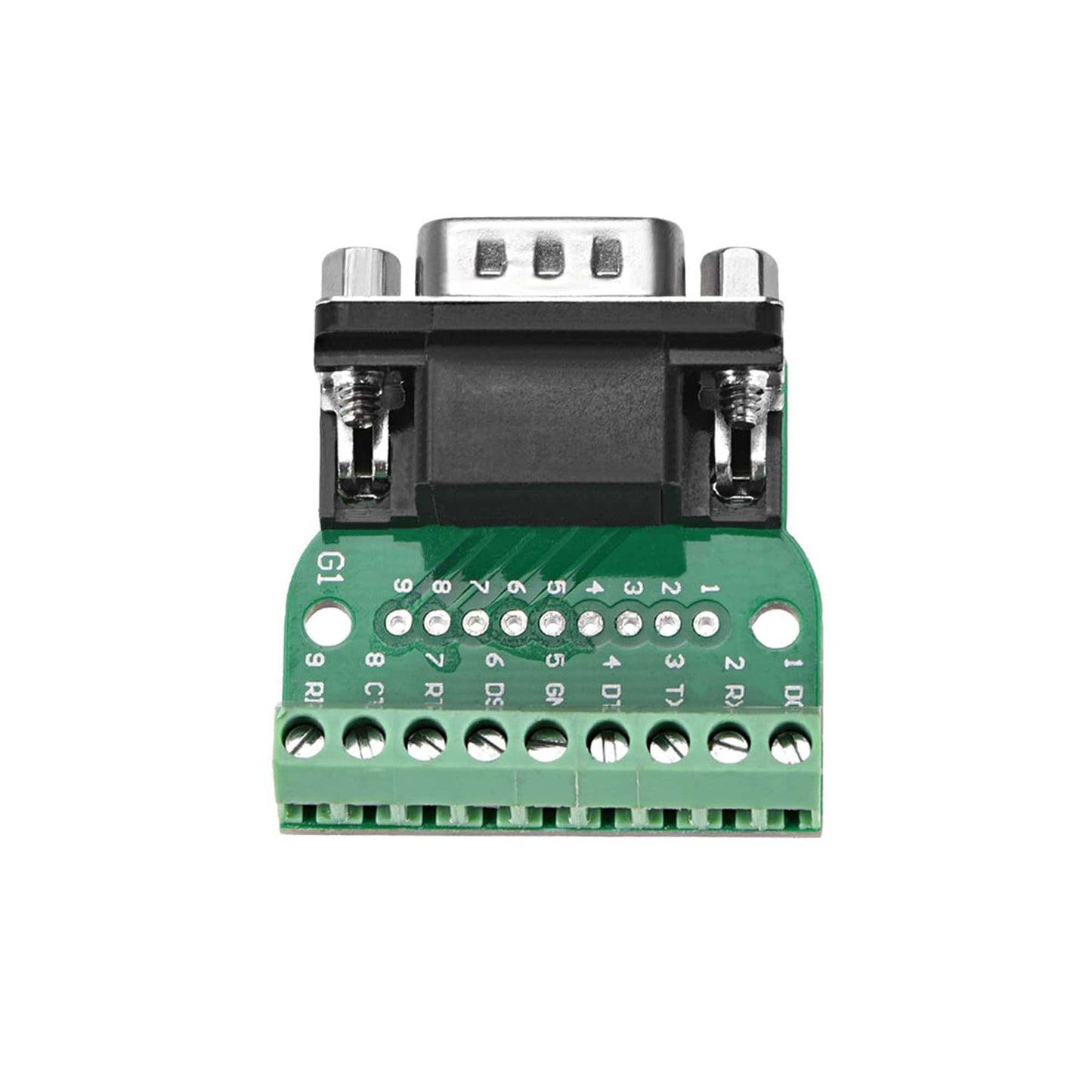

  • Brings all 9 pins of a DB9 connector to screw terminal blocks
  • The DB9 to RS232 RS485 Converter Board used for communication debug

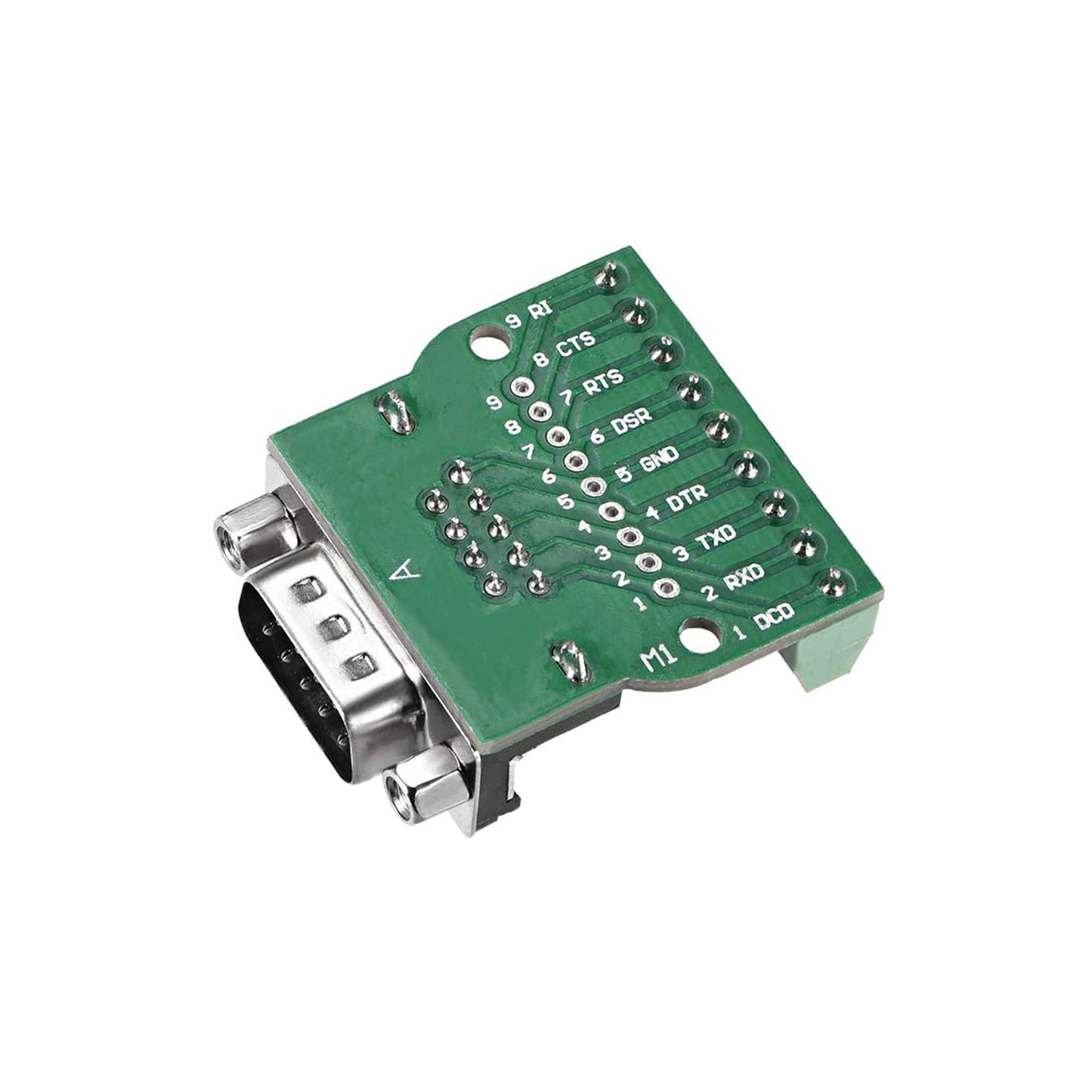

  • 9 pcs signal line was all lead out, name and number clearly labelled
  • All-copper DR9 seat, anti-oxidation, better contact
  • Military board, three anti-paint sprays an entire board, corrosion-resistant
  • Terminal spacing 3.96MM, screw hole diameter 2MM, need to use a width of 2MM screwdriver for assembly
  • DB9 to RS232 RS485 Converter Board use of environmentally friendly copper terminals, through IS0-9001

Package Included:

1 x DB9 Female Screw Terminal to RS232 RS485 Conversion Board
