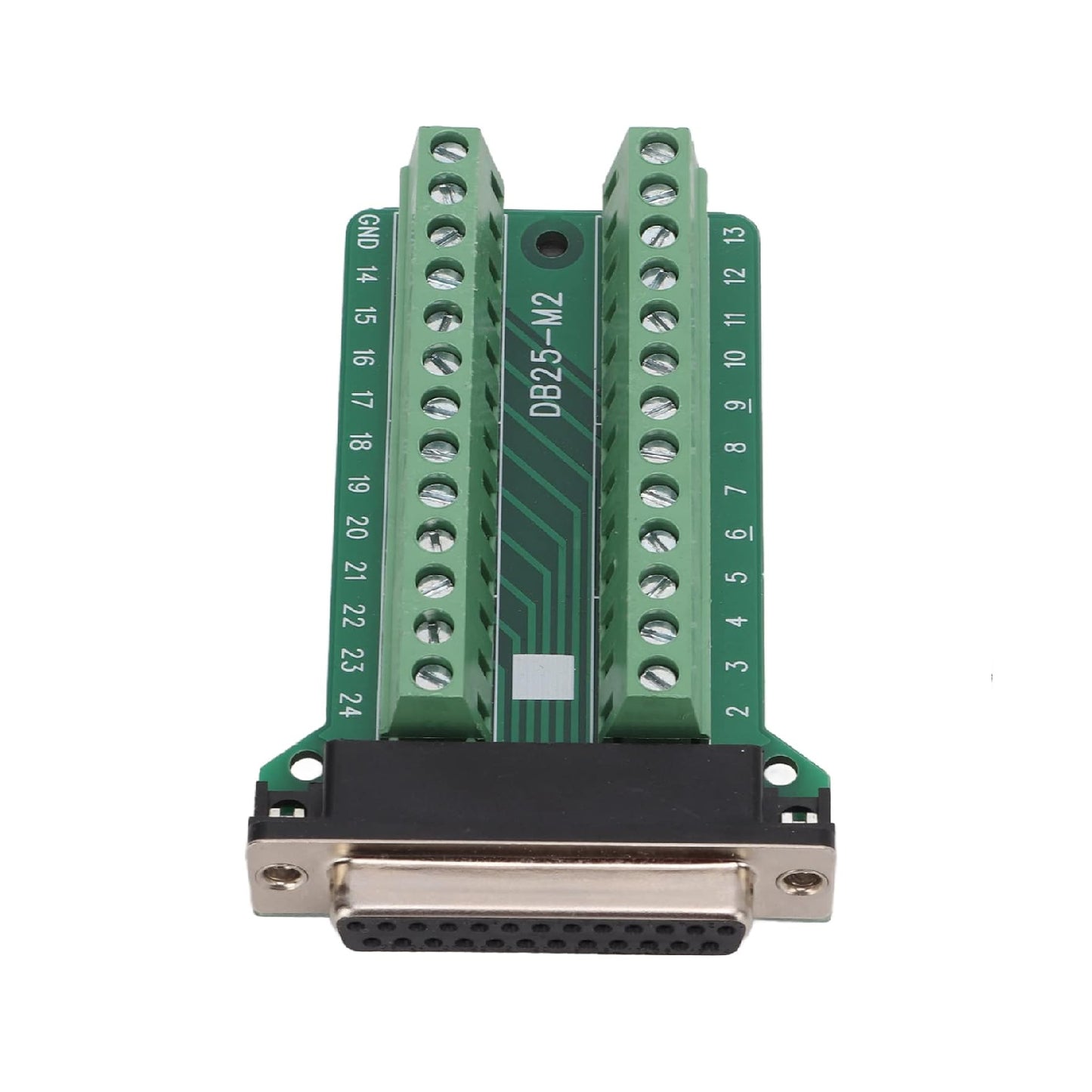

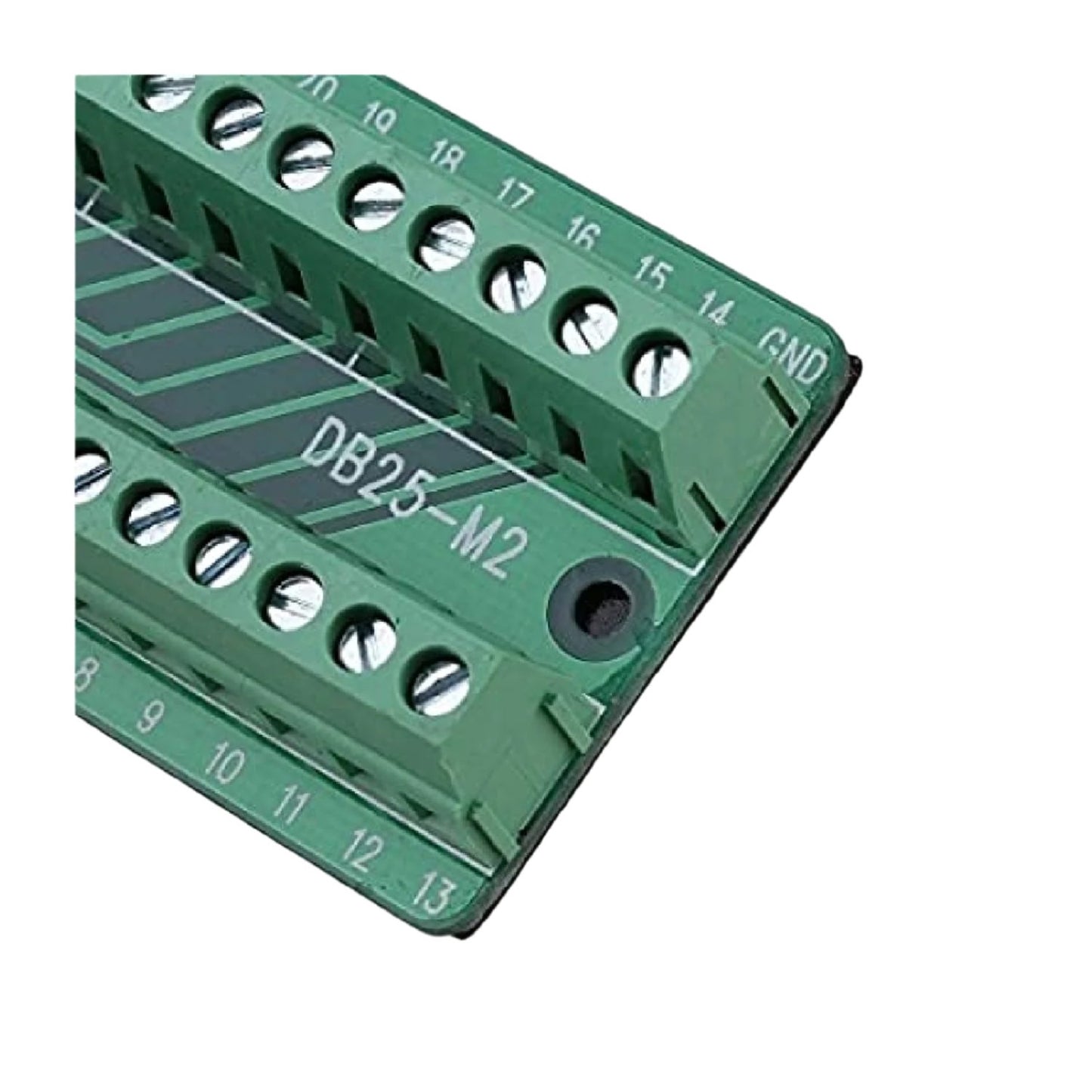

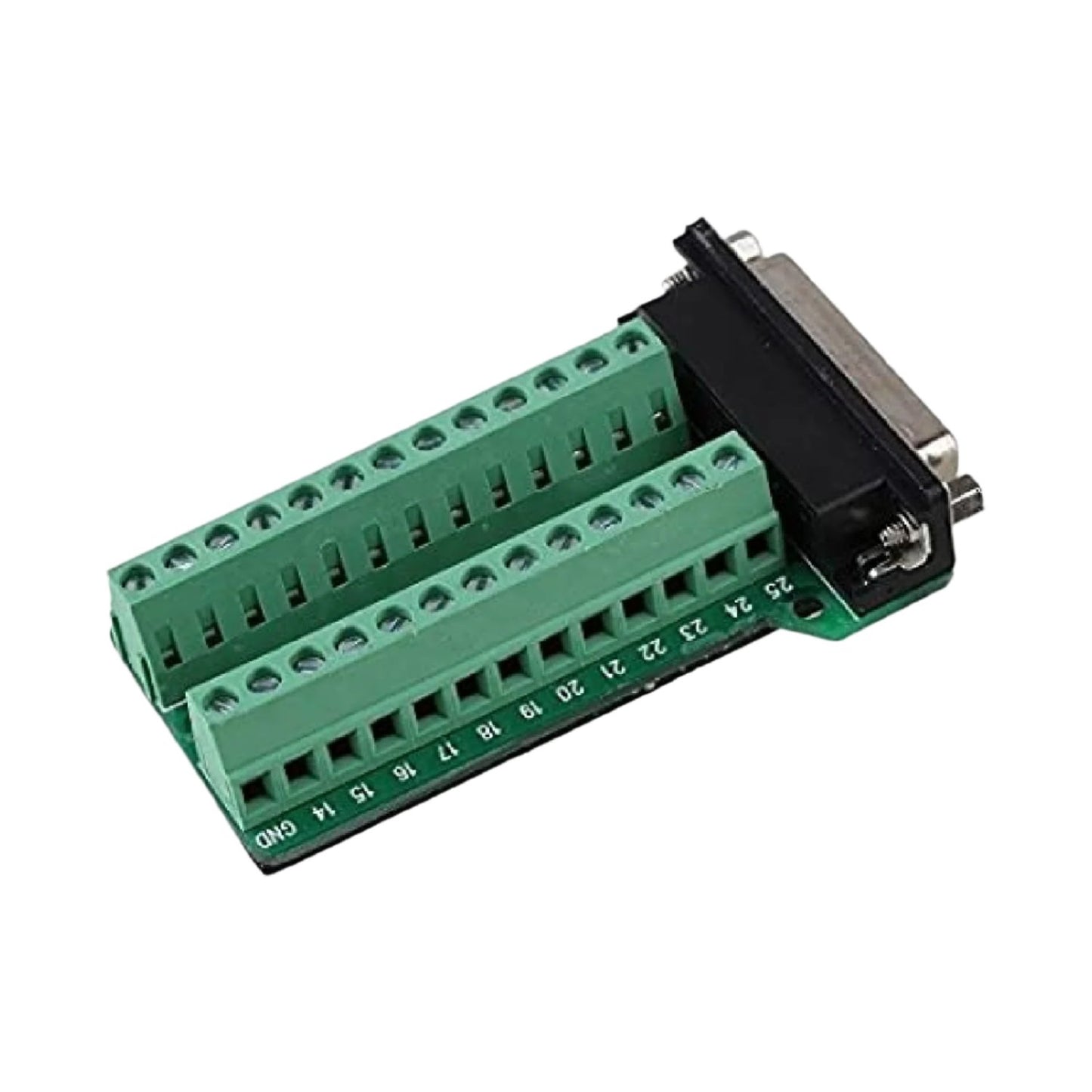

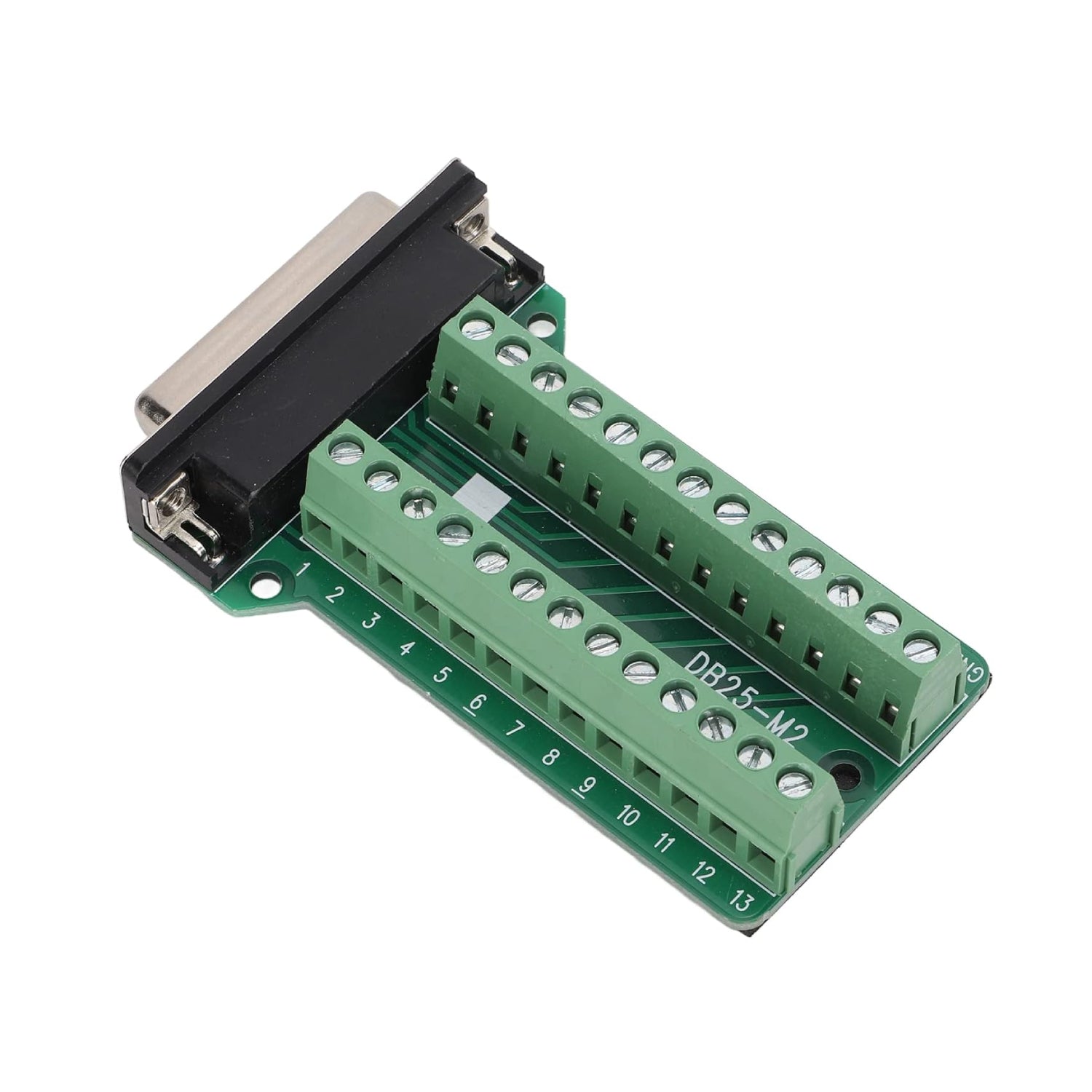

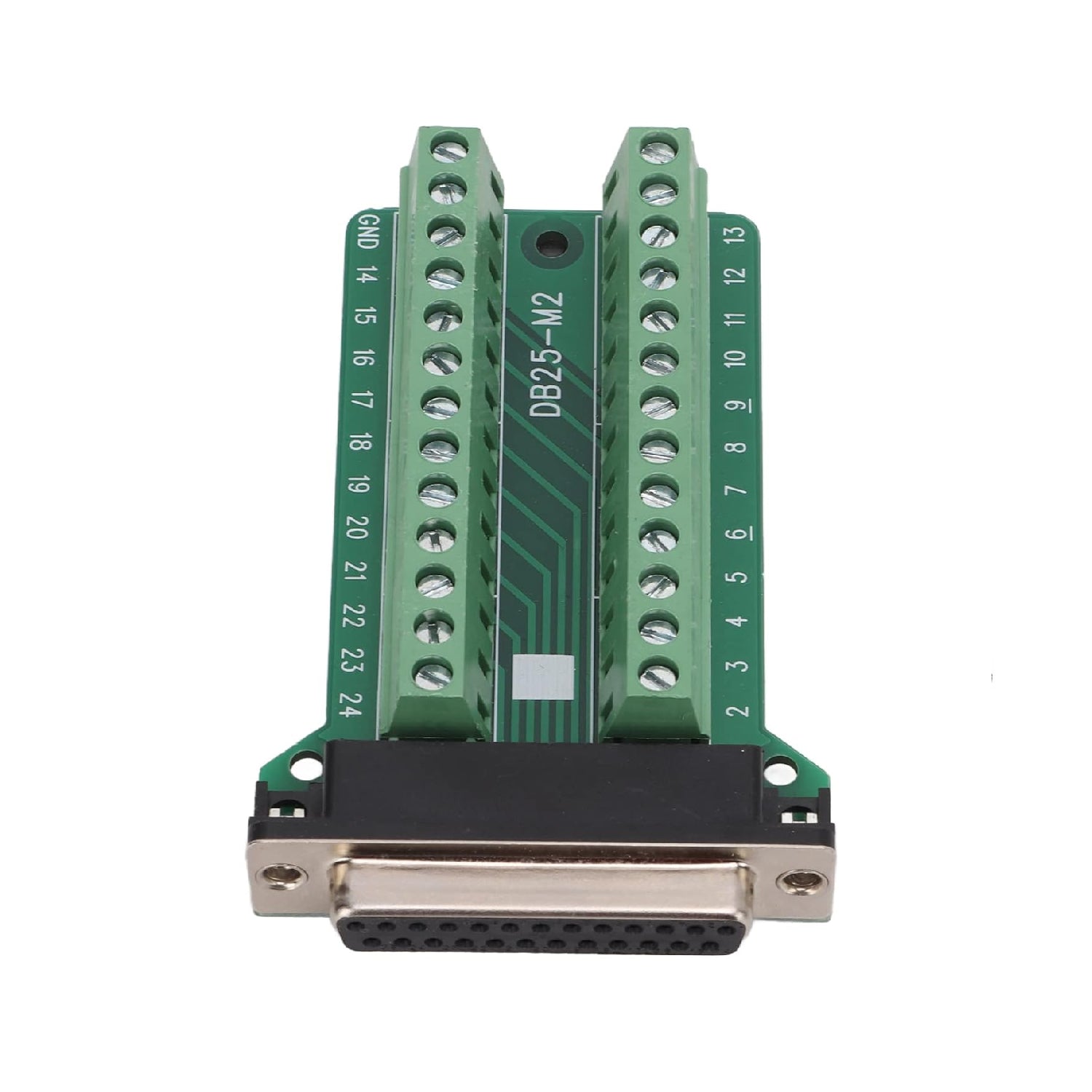

DB25-M2 DB25 to Terminal Block With Nut (Female DB25) DB25 To Terminal Block Connector DB25 Male to Terminal Block Adapter For DIY Electronics - RS3928

DB25-M2 DB25 to Terminal Block With Nut (Female DB25) DB25 To Terminal Block Connector DB25 Male to Terminal Block Adapter For DIY Electronics - RS3928

RS3928

In stock

Rs. 183.00
Rs. 183.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

DB25-M2 DB25 to Terminal with Nut Adapter used for communication debug. With 25 pcs signal line was all lead out, and names and numbers were clearly labeled.

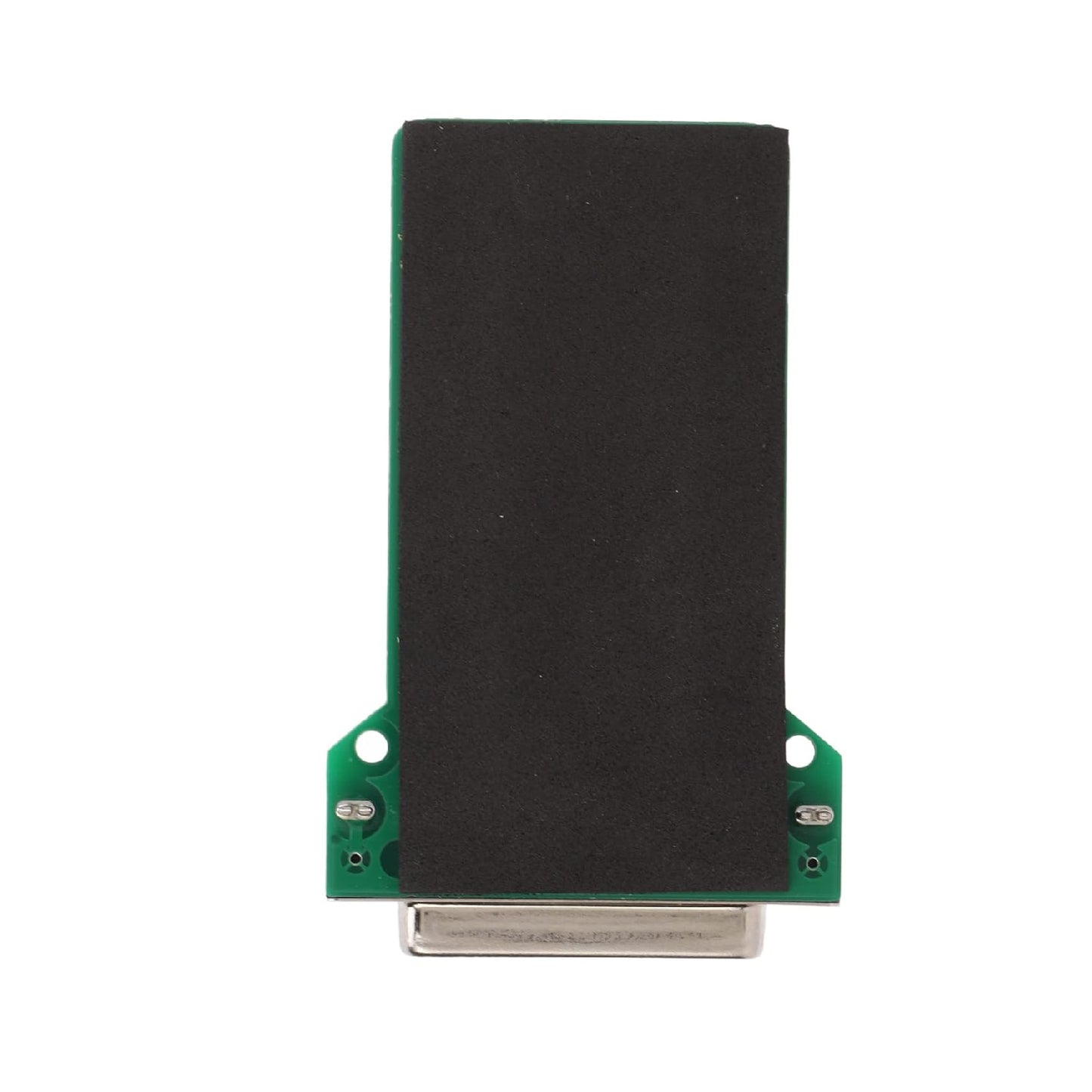

The DB25 Male To Female Serial Cable spacing of connector is 3MM, screw hole diameter 2.5MM, need to use a width of 2.5MM screwdriver for assembly, terminals can accept 24-12AWG Wire and max 10A current. it also has an insulated 3 mm thickness pad at the bottom.

Specifications:

  • Connector Type: DB25 To Terminal With Nut
  • Material: Copper, Metal, Plastic
  • Connect Type: Screw Nut
  • Colour: Green And Black

Features:

  • Serial connector and terminal block, mounted on printed circuit board.
  • Ideal for system integrators and installers, because it allows connections without soldering (terminal block with screws).
  • The terminals can accept 24-12AWG wire and max 10A current.

Package Included:

1 x DB25-M2 DB25 To Terminal With Nut
