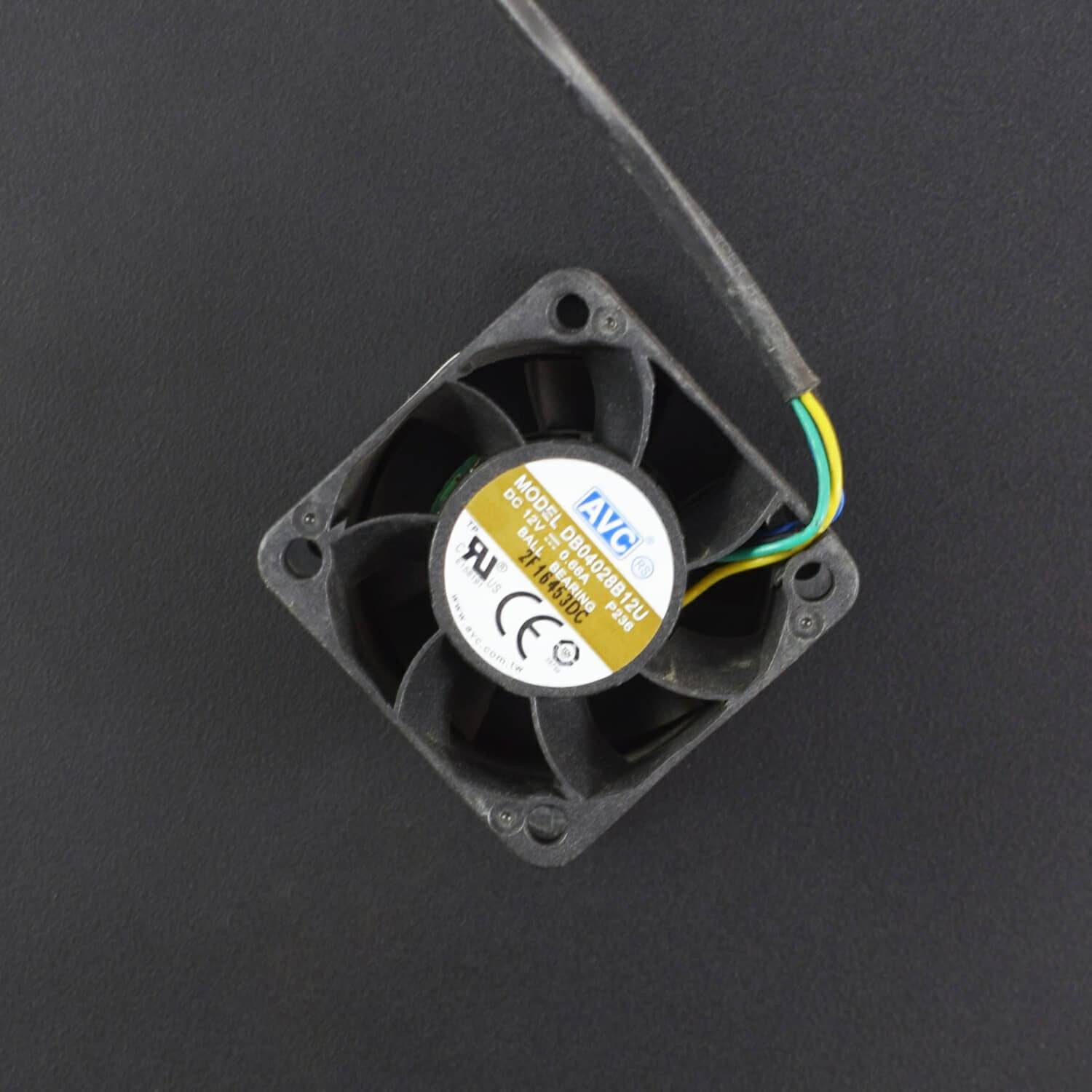

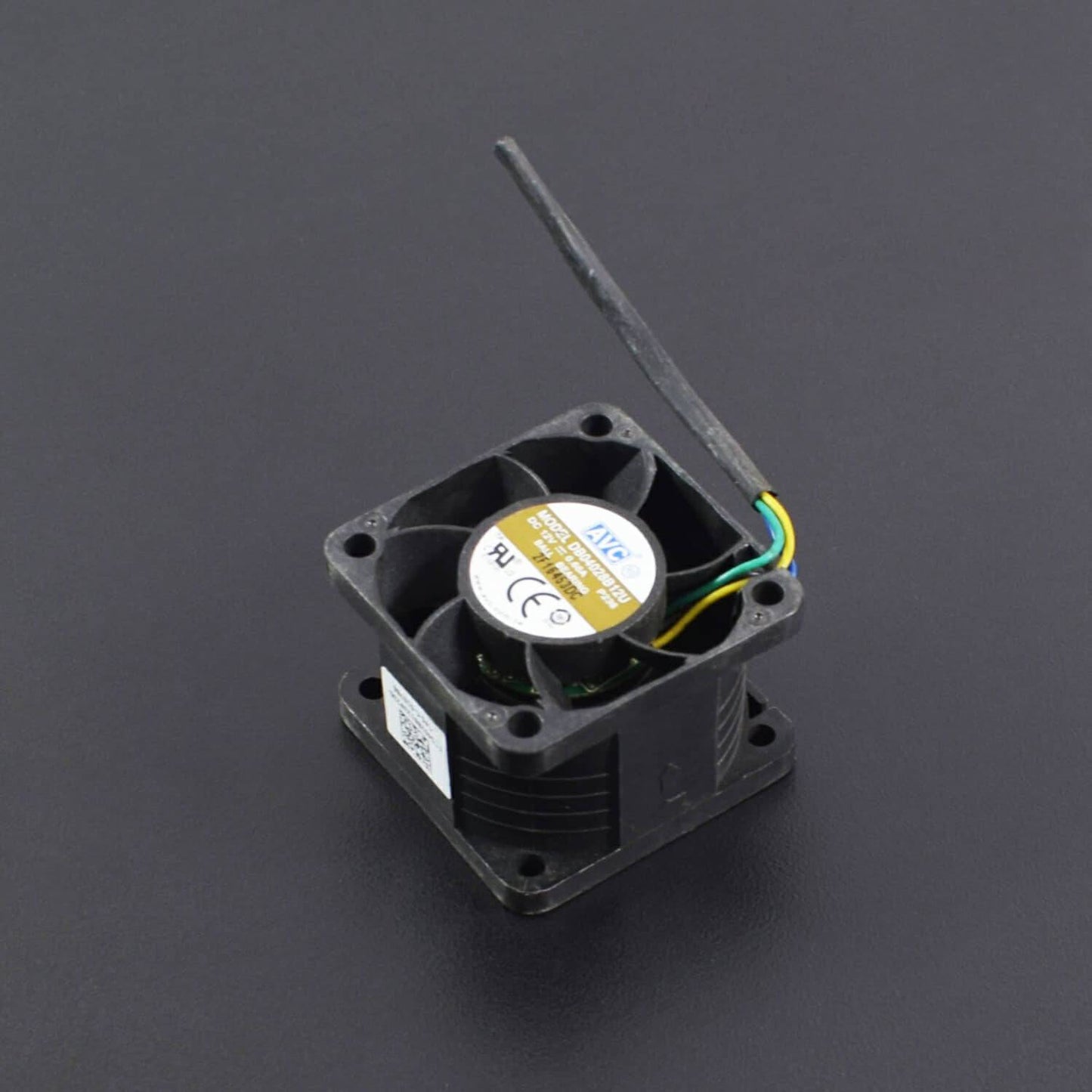

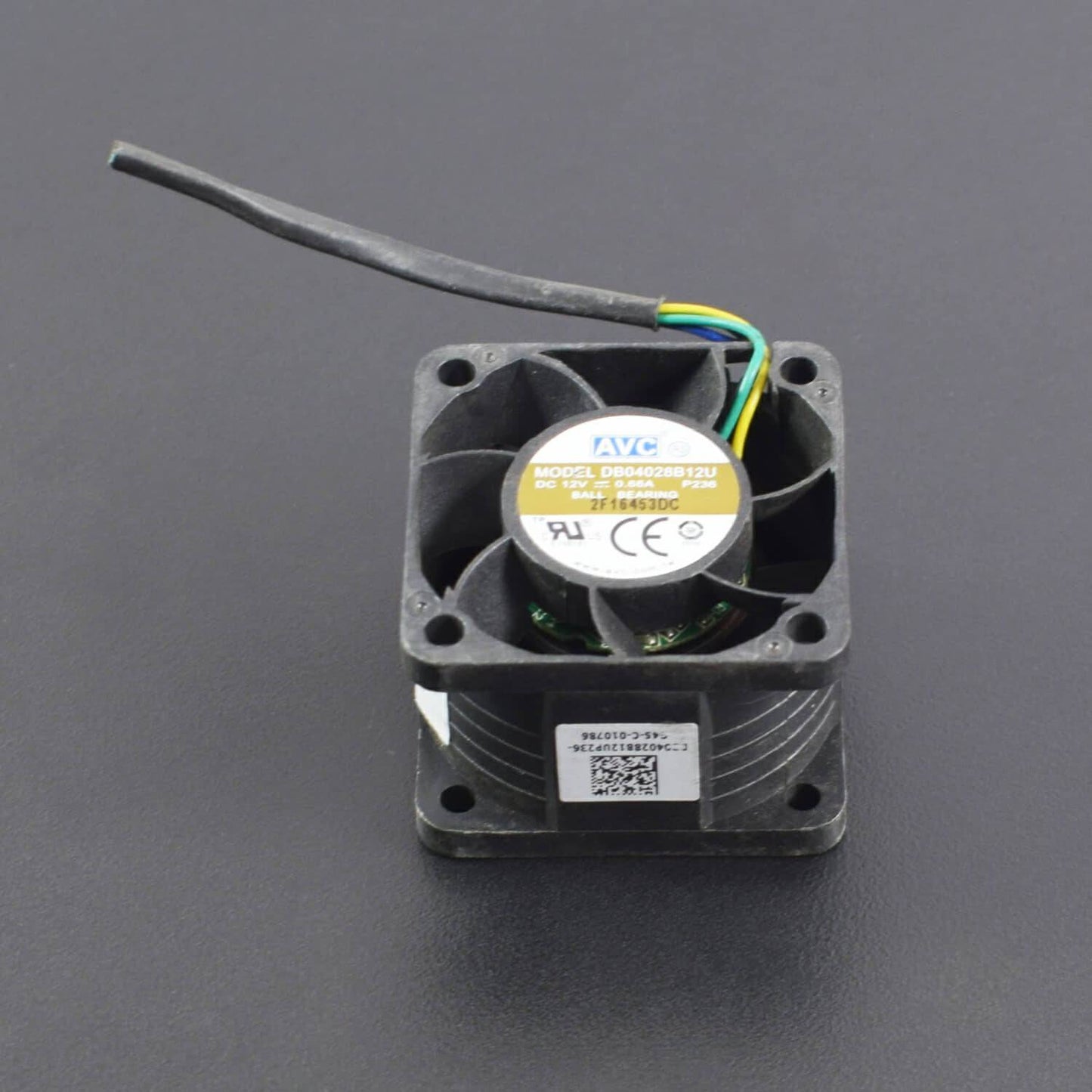

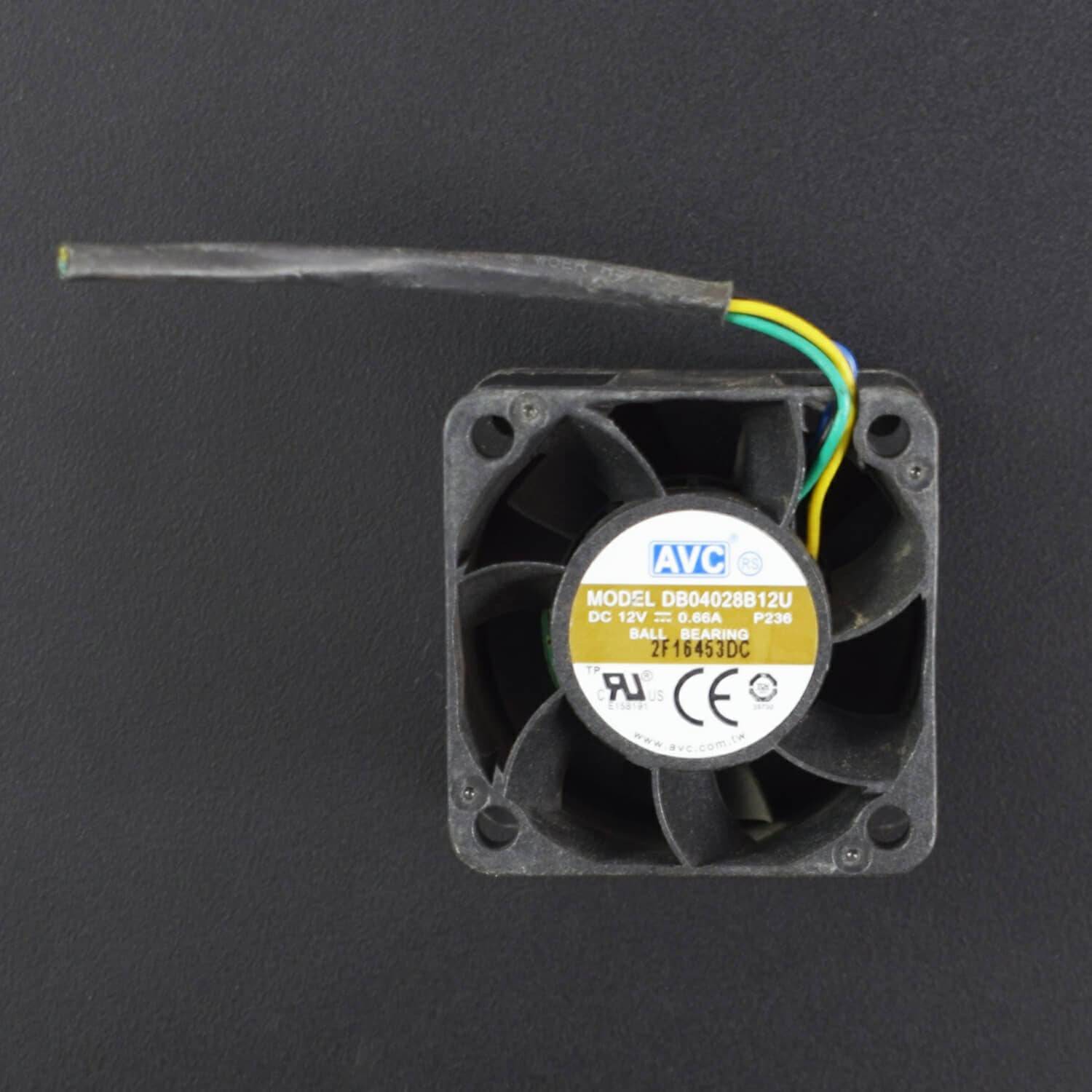

DB04028B12U 4CM 40mm x 28mm 12V 0.66A Speed: 4800RPM Wind: 102.09CFM 4Wire PWM CPU Cooling Fan-RS2076

• Part Number: DB04028B12U
• Voltage: 12V
• Operating voltage: 7.0-13.4V
• 4CM 40X40X28MM 12V 0.66A 4Wire
• Speed: 4800RPM Wind: 102.09CFM Noise: 53.0dBA

Description:

• Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
• Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
• Fan rotation: run counterclockwise from fan blade..
• Temperature: -20 degrees Celsius to +70 degrees Celsius Storage temperature: -40 degrees Celsius to +80 degrees Celsius.
• Power range: plus or minus 15% of rated power supply.
• Insulation resistance: greater than 500 megohms.

Specification:

• Model DB04028B12U
• Size 40 ¡Á 40 ¡Á 28mm
• Bearing: Dual ball bearing
• Voltage: 12V
• Current: 0.66A
• Power: 7.92W
• Operating voltage: 7.0-13.4V
• Maximum speed 15000RPM ¡À 10%
• Radiator Noise 54 dB
• Maximum air flow: 23.78 CFM (cubic feet / min) = 0.673 m3 / min (m / min)
• Maximum pressure: 1.32 inH2O (inches / water column) = 33.65 mmH2O (mm / water column)

Package Included:

1 x DB04028B12U 4CM 40mm x 28mm 12V 0.66A PWM CPU Cooling Fan
