Description:

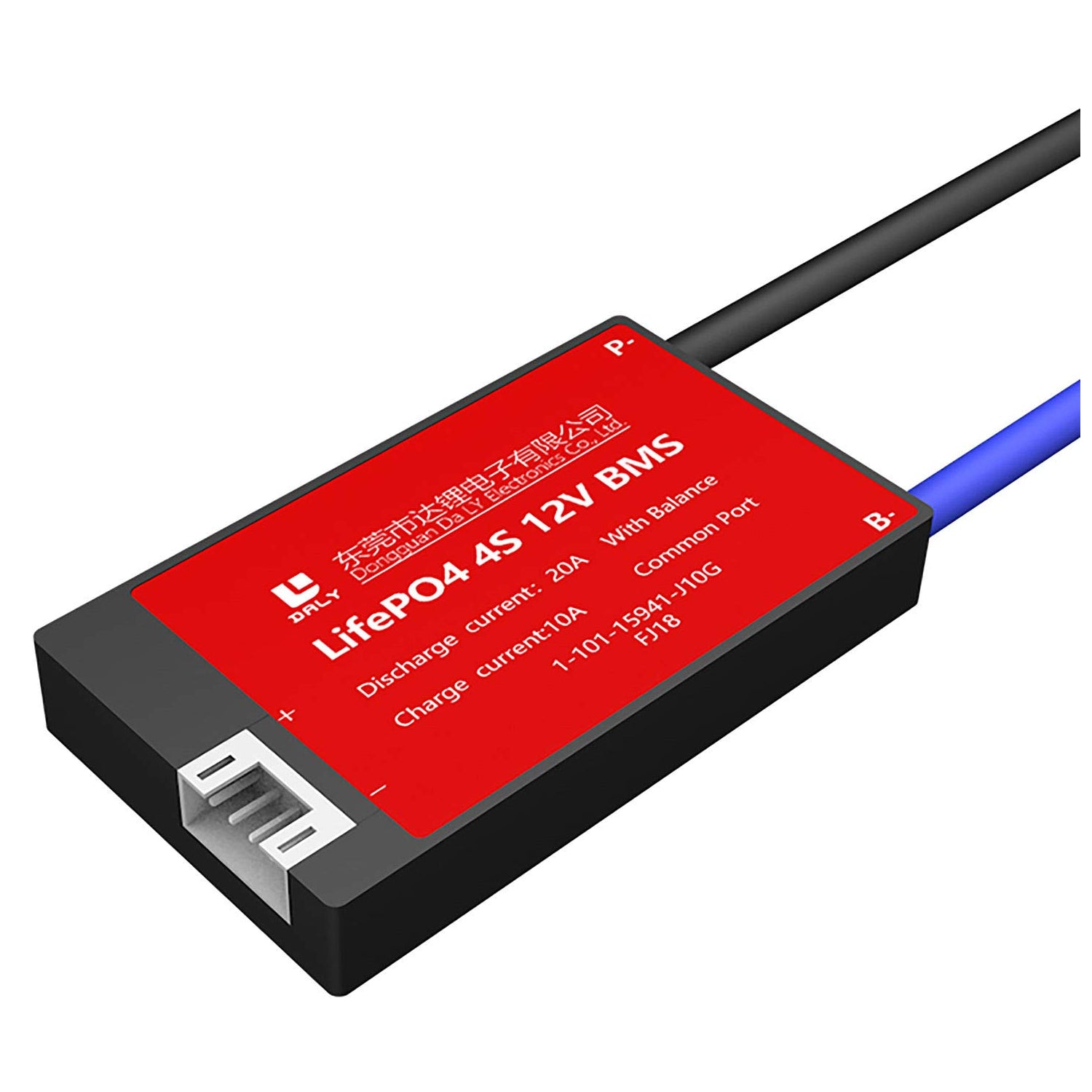

DALY 4S 12V 20A BMS Board has overcharge, over-discharge, short circuit, and temperature protection. DALY BMS maximizes optimizes the lithium battery performance, and extends the battery lifetime to a large extent.
DALY 4S 12V 20A BMS Board has double protection by injection patent technology and patent shell. Waterproof, Dustproof, Shockproof and Anti-static; High-quality components, pressure-resistant and durable material, high acquisition accuracy.
DALY 4S 12V 20A BMS Board is easy to plug and unplug, which allows you to effortlessly create an electrical connection between the battery pack and the BMS.
Specifications:
- Model: 4S 12V 20A
- Balance Current: 30±5MA
- Balance Detect Voltage: 3.50V
- Cable Size: 14AWG
- Charge Current: 10A
- Over Discharge Detect: 2.2±0.1V
- Over Discharge Release: 2.5±0.1V
- Overcharge Detect Voltage: 3.75±0.05V
- overcharge Release Voltage: 3.55±0.05V
- Operating Temperature:-20 to 70°C
Features:
- Intelligent battery balancing-passive.
- Cell over-voltage and under-voltage protection.
- State of charge calculations.
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions
Package Included:

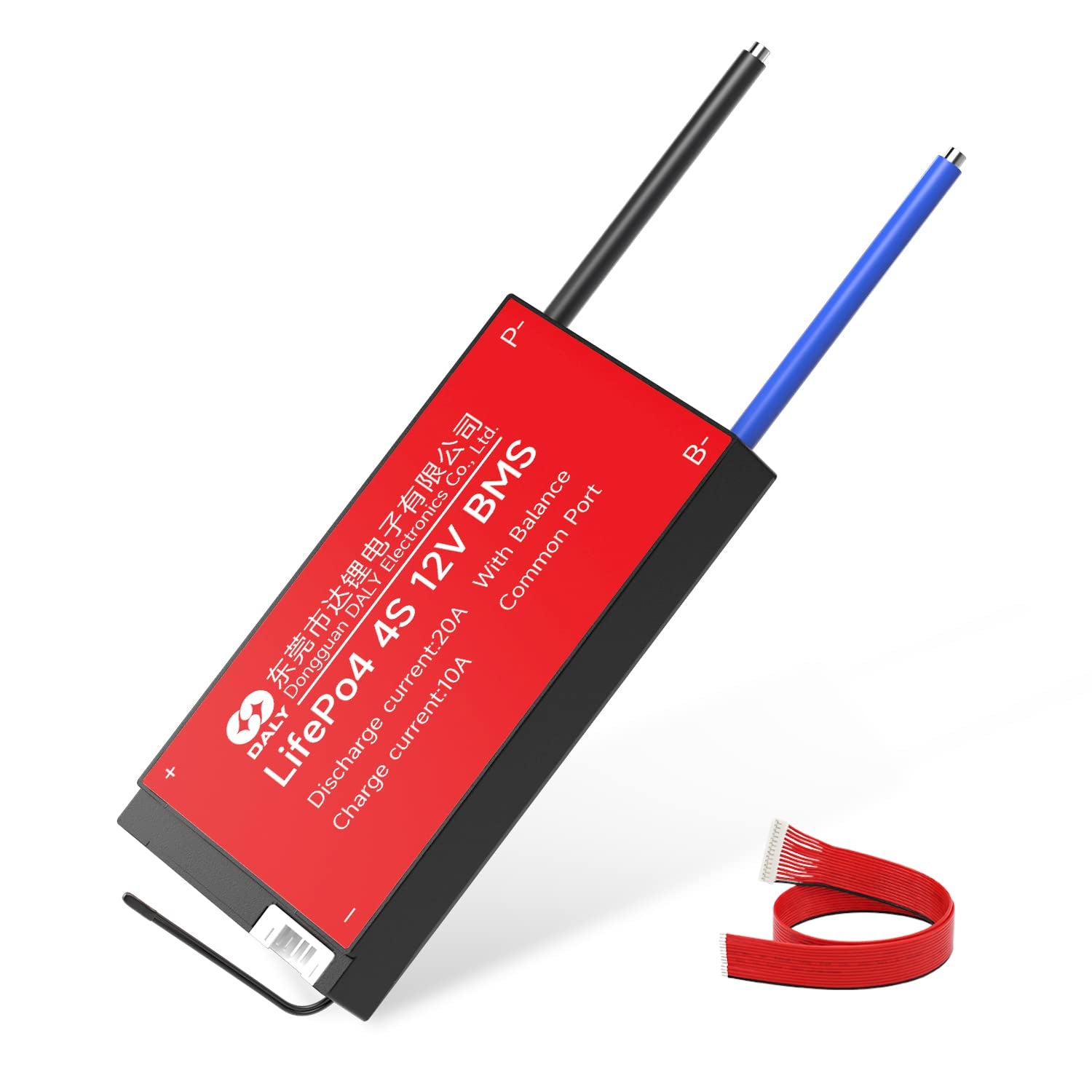

1 x DALY 4S 12V 20A BMS Board LifePo4 BMS Battery Protection Board Battery Management System
