Description:

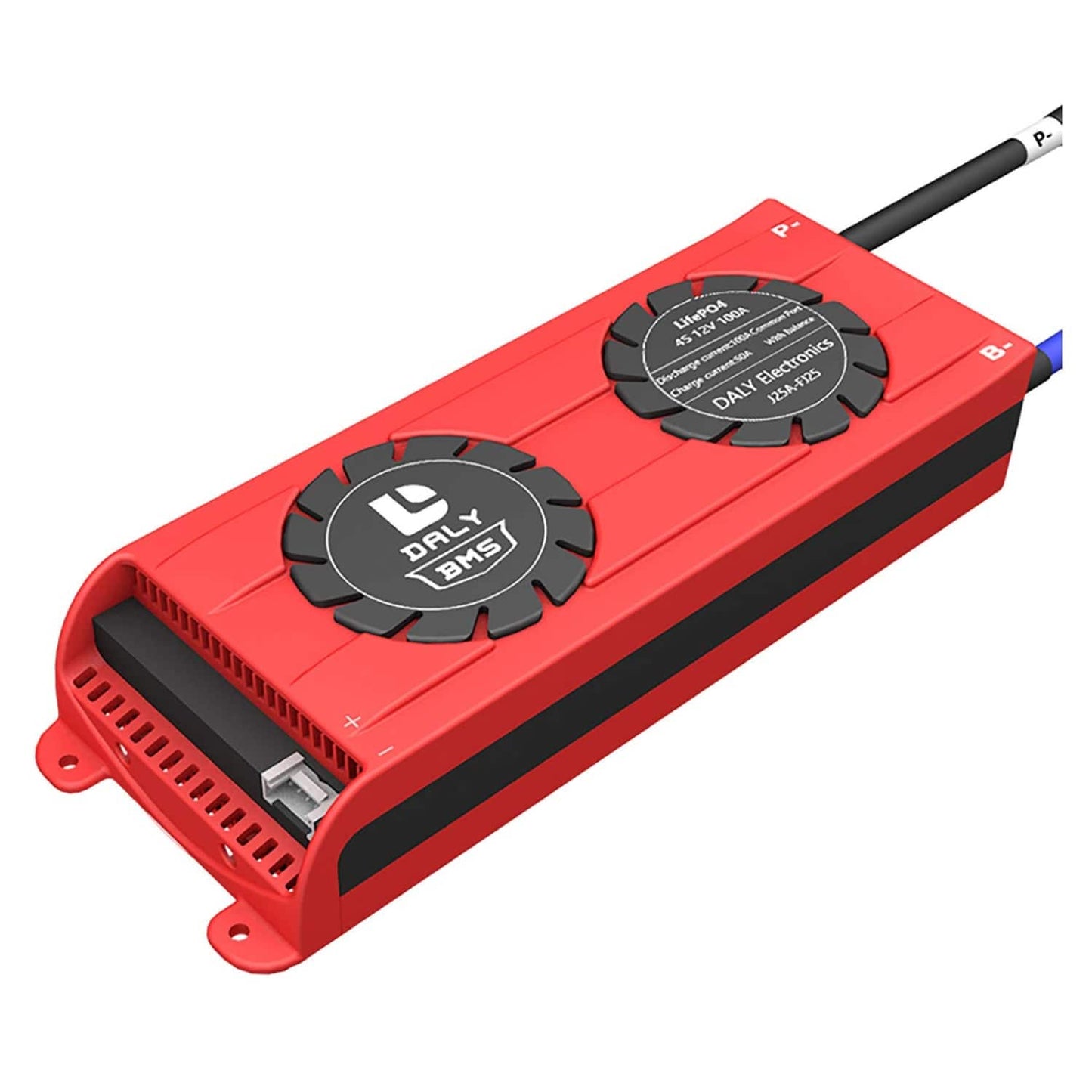

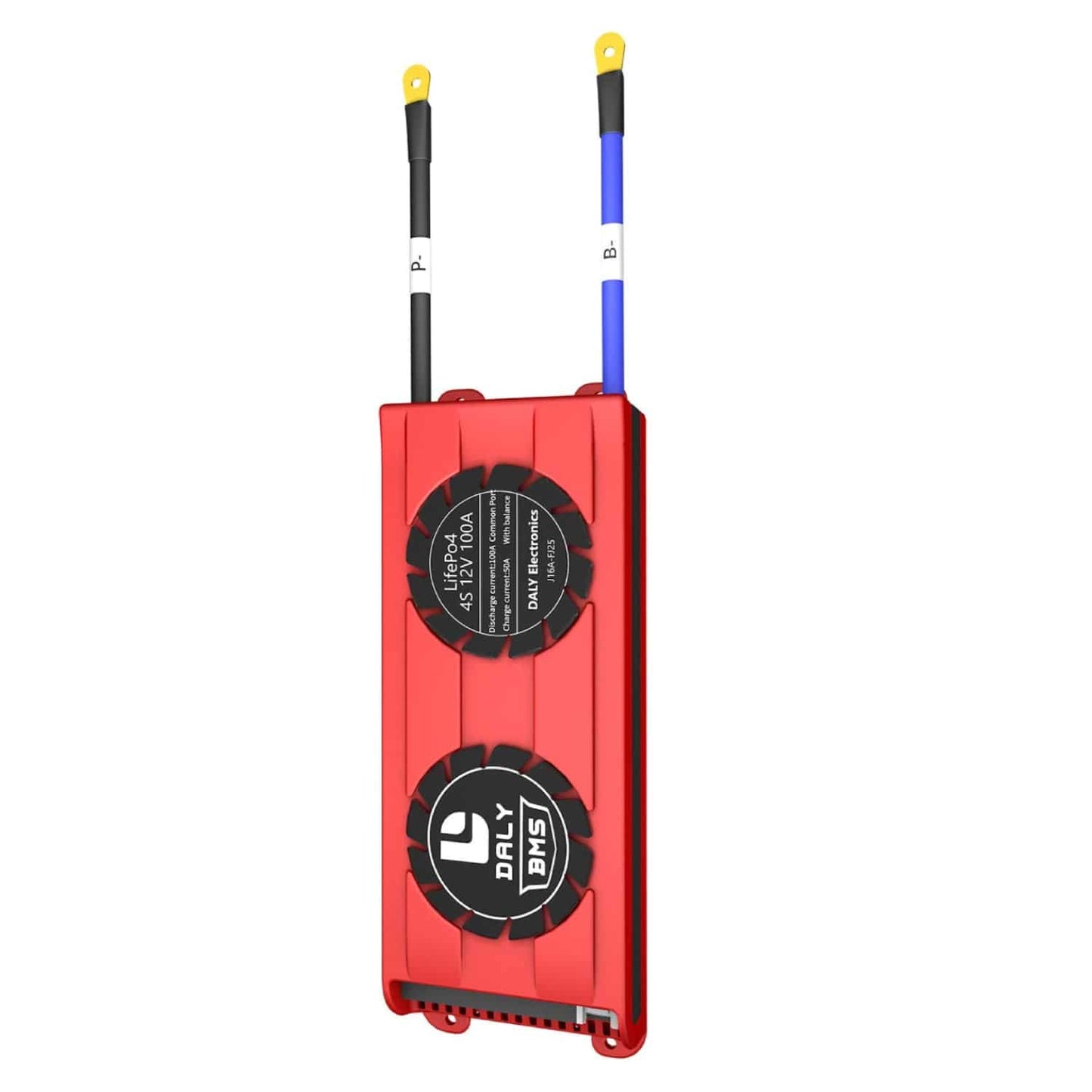

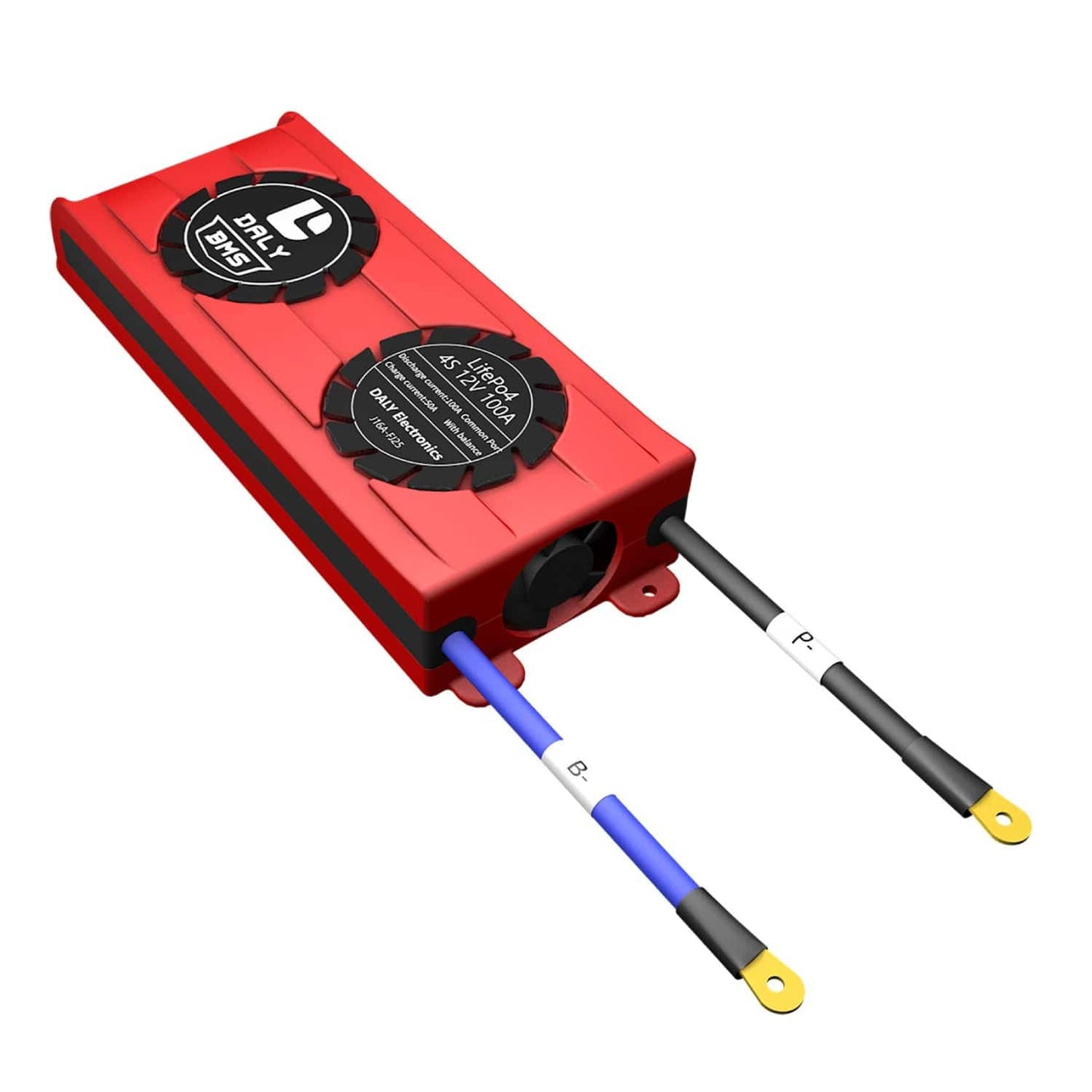

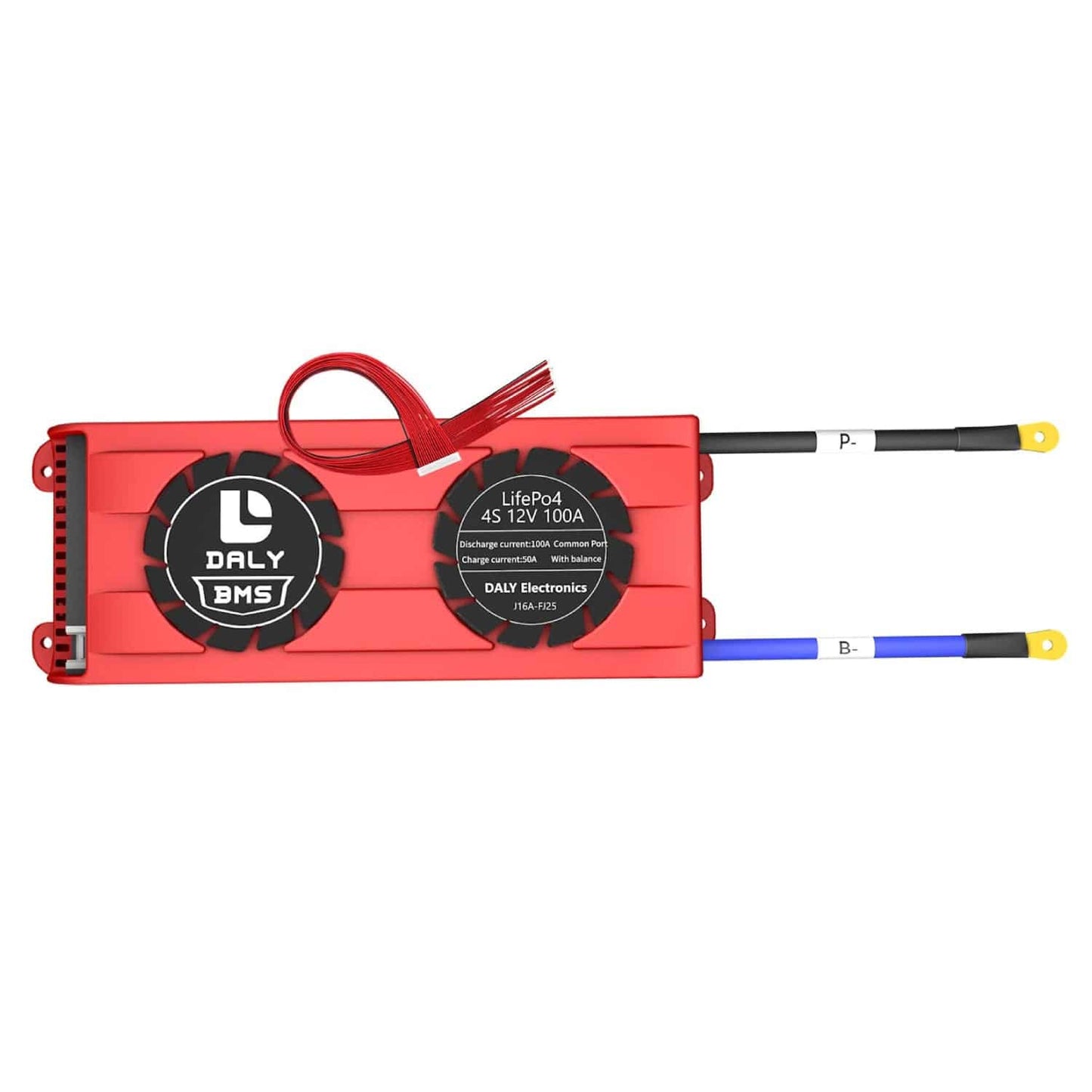

DALY 4S 12V 100A BMS Board With Smart Communication Function UART Protocol, all Parameters can be checked Via Bluetooth App or UART USB Connection with PC Monitoring Program.
DALY 4S 12V 100A BMS Board Charge and discharge protection current, voltage, temperature and can be reset in a certain range.
When Factors Like Temperature, Voltage, and Current Cause Negative Affection on the Battery, There Will be an Alarm Display on the Bluetooth Smart BMS APP/ PC Monitoring Program.
Specifications:
- P3D Material: Battery Management System
- Model: 4S 12V 100A
- Working Current: 100UA
- overcharge Release Voltage: 3.55±0.05V
- Balance Detect Voltage: 3.5V
- Balance Current: 30±5MA
- Overcharge Detect Voltage: 3.75±0.05
- Operating Temperature: -20 to 70 °C
- Number of cells in series: 4S
- Battery Type: Lithium Battery
- Charging Current: 50A
Features:
- Intelligent battery balancing-passive.
- Cell over-voltage and under-voltage protection.
- DALY 4S 12V 100A BMS Board state of charge calculations.
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
Package Included:
1 x DALY 4S 12V 100A BMS Board LifePo4 Battery Protection Board Battery Management System
