D204S 2 Element PIR Sensor Pyroelectric Infrared Analog Sensor High Sensitivity, Dual Element For Security Alarm Sensor - RS6725

D204S 2 Element PIR Sensor Pyroelectric Infrared Analog Sensor High Sensitivity, Dual Element For Security Alarm Sensor - RS6725

RS6725

In stock

Rs. 50.00
Rs. 50.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

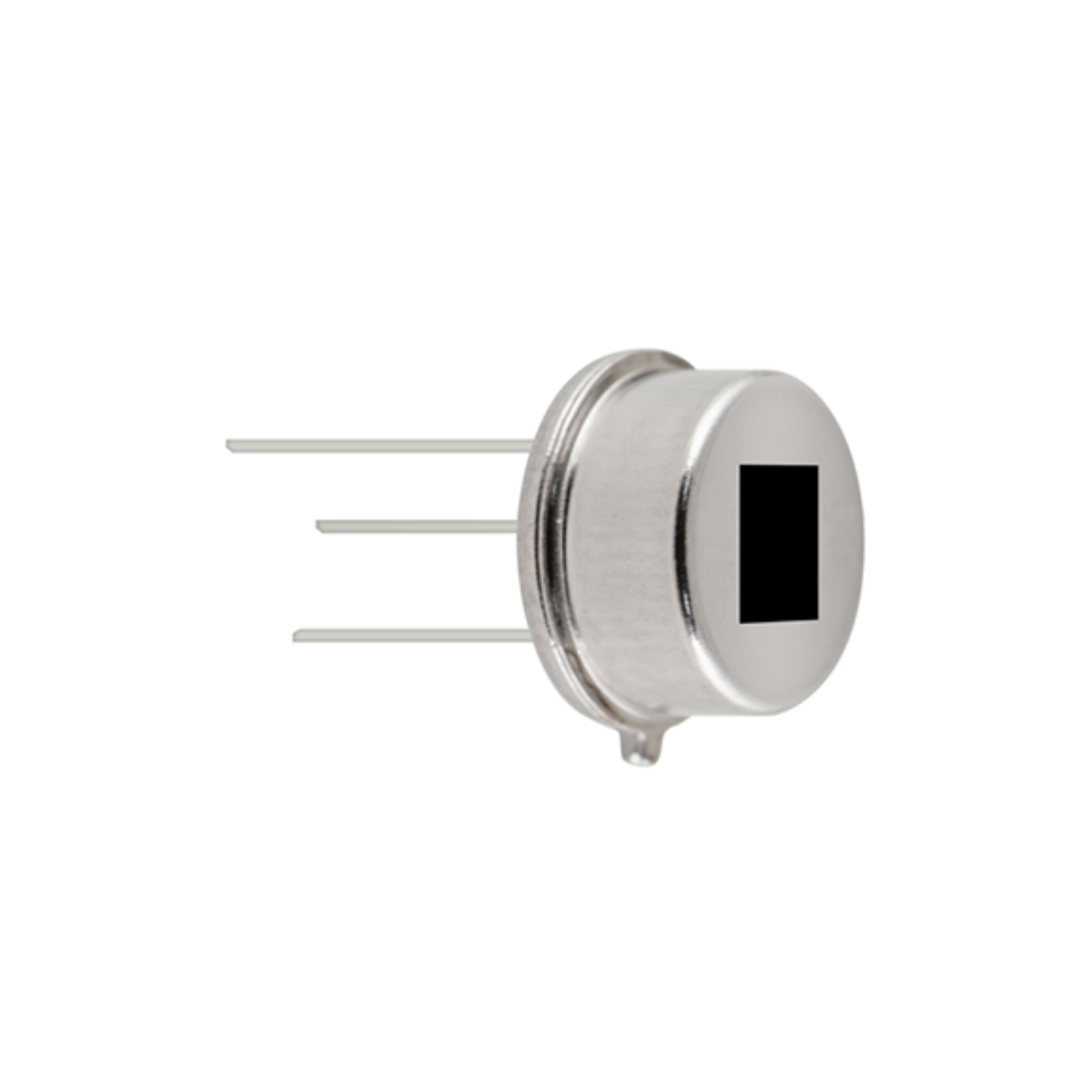

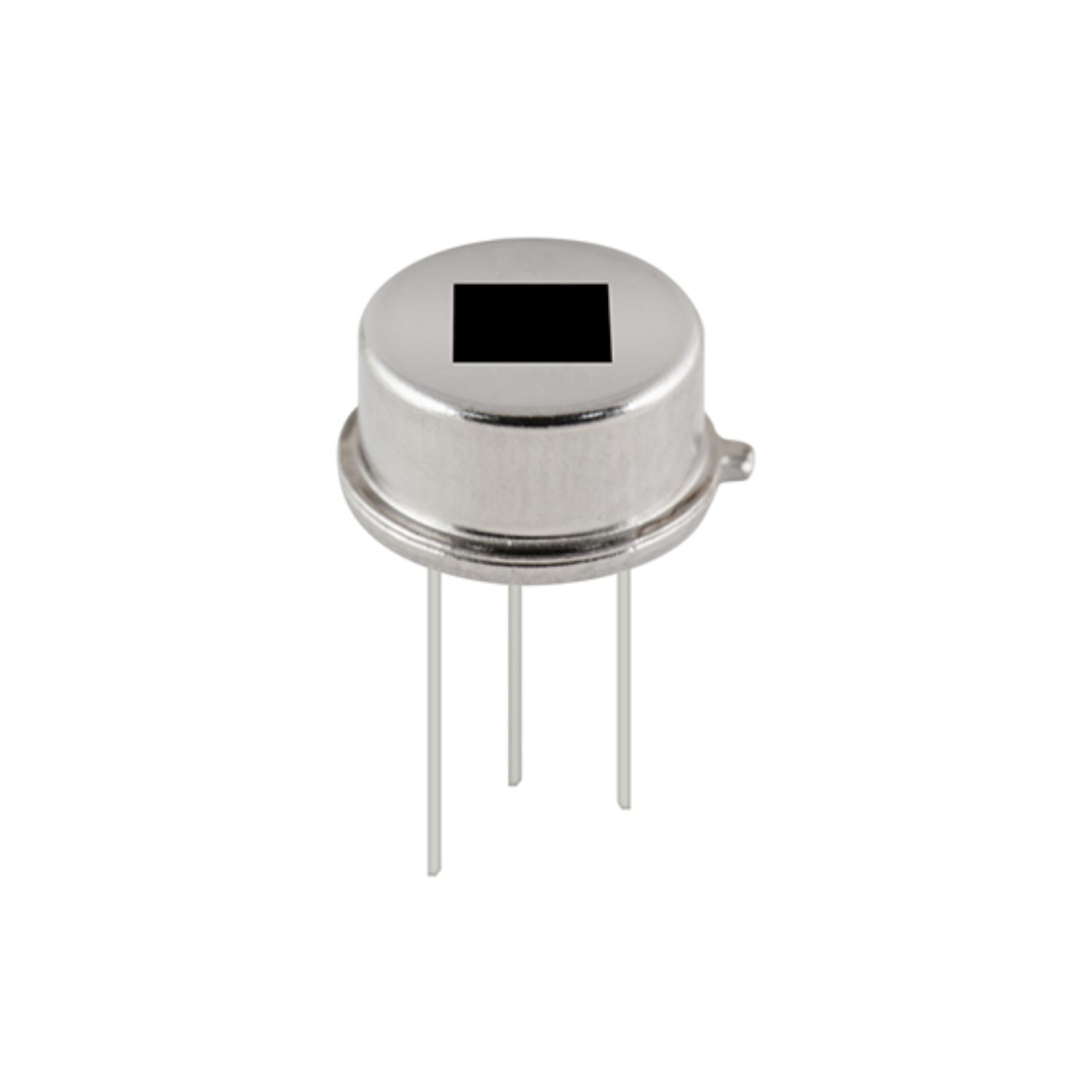

The D204S 2-Element Pyroelectric Infrared Analog PIR Sensor offers reliable motion detection with enhanced EMI immunity, making it ideal for robust security system integration.

Specifications:

  • Item Type: Sensor
  • Model Type: PIR Sensor
  • Model No.: D204 S
  • Encapsulation Type: TO-5
  • IR Receiving Electrode: 2×1mm, 2 elements
  • Window Size: 4×3mm
  • Spectral Response: 5—14μm
  • Transmittance: ≥75%
  • Output Signal: ≥3500mV [Vp-p]
  • Sensitivity (dBm): ≥3300V/W
  • Detectivity (D*): 1.4 ×108 cmHz1/2/W
  • Noise[Vp-p]: 70mV
  • Output Balance: 10%
  • Offset Voltage: 0.3～1.2V
  • Supply Voltage(V): 3—15V
  • Operating Temperature(°C): -30—70ºC

Features:

  • Anti-interference
  • Custom design is available
  • Higher in cost-performance
  • Low power consumption

Package Included:

1 x D204 S 2 Elements Pyroelectric Infrared Analog PIR Sensor
