Description:

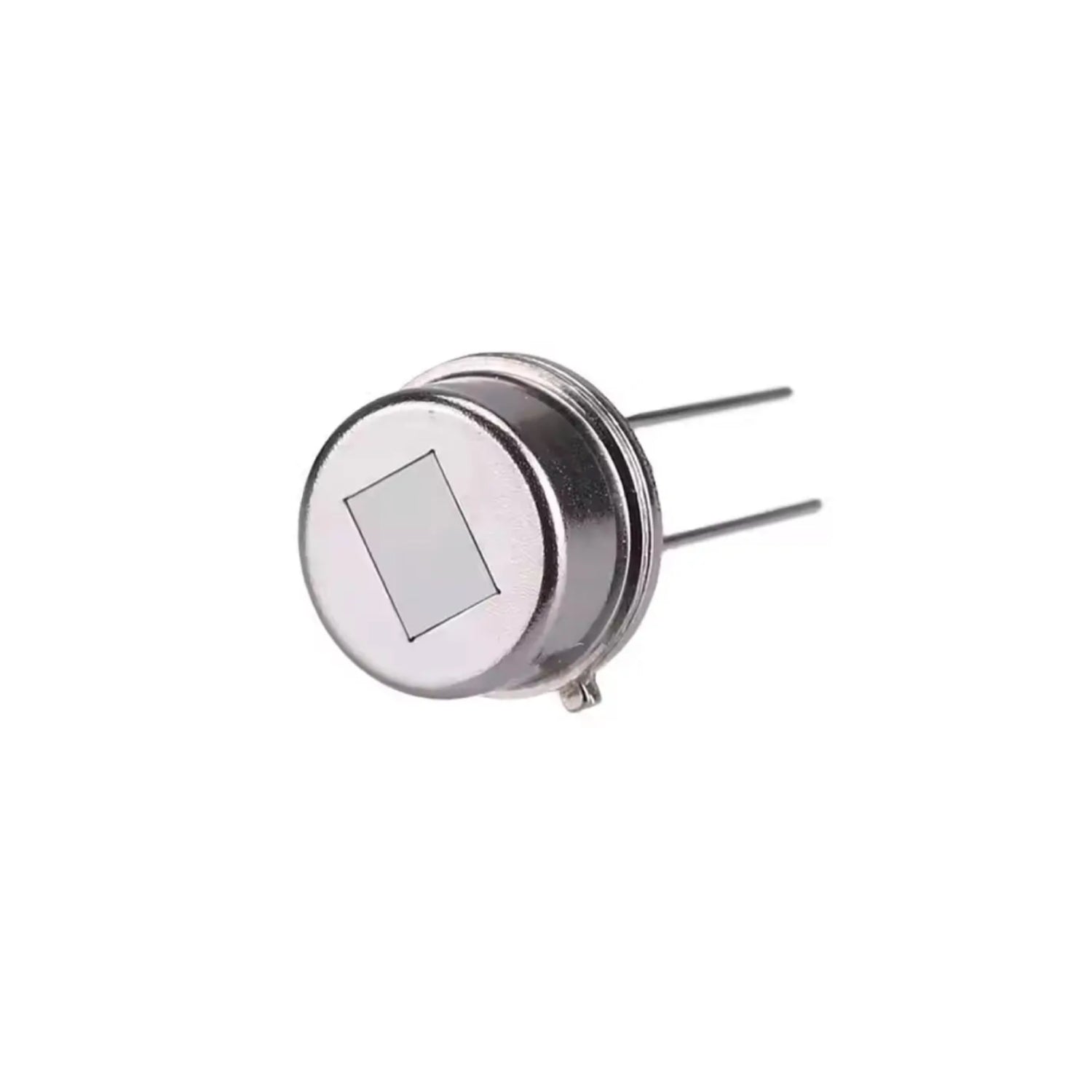

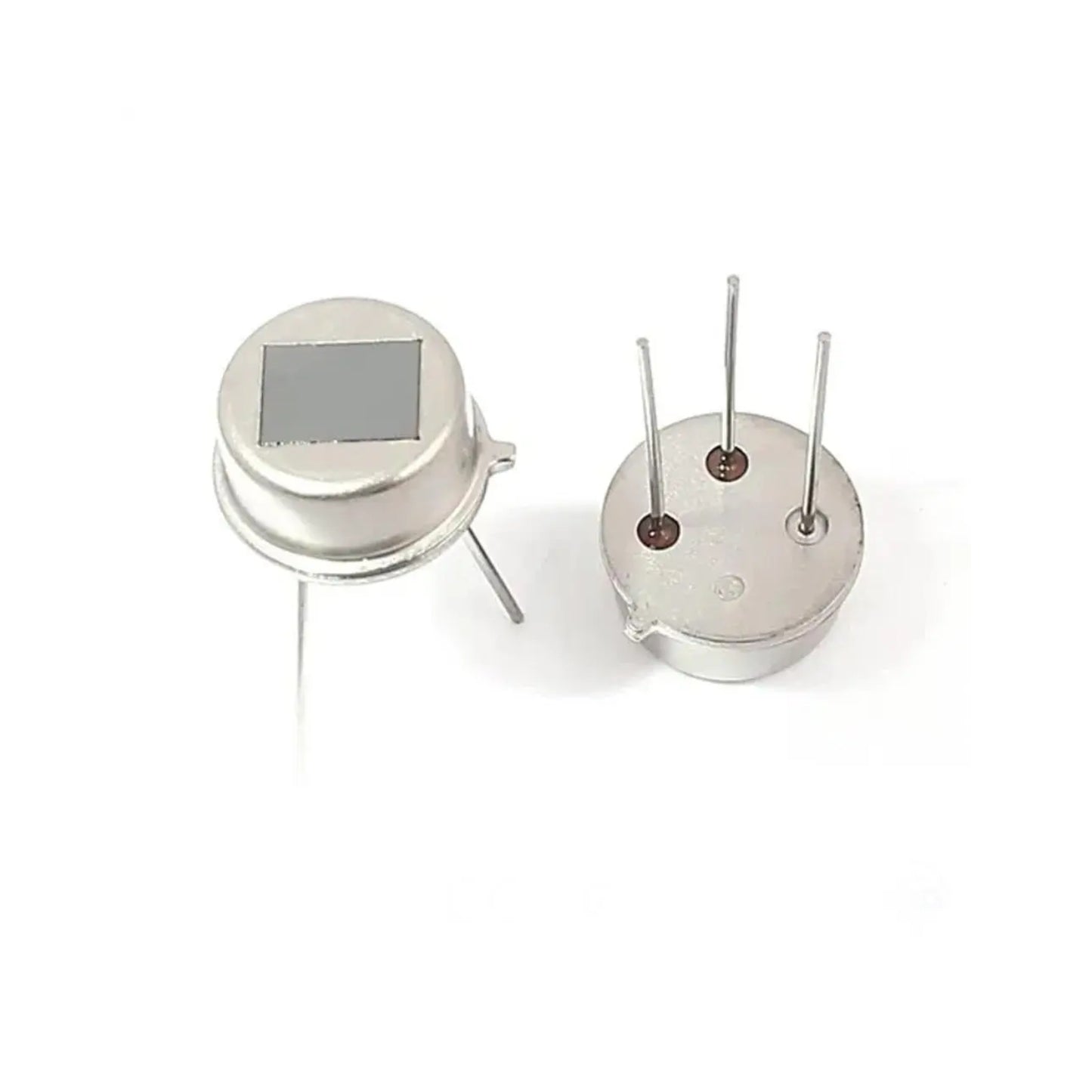

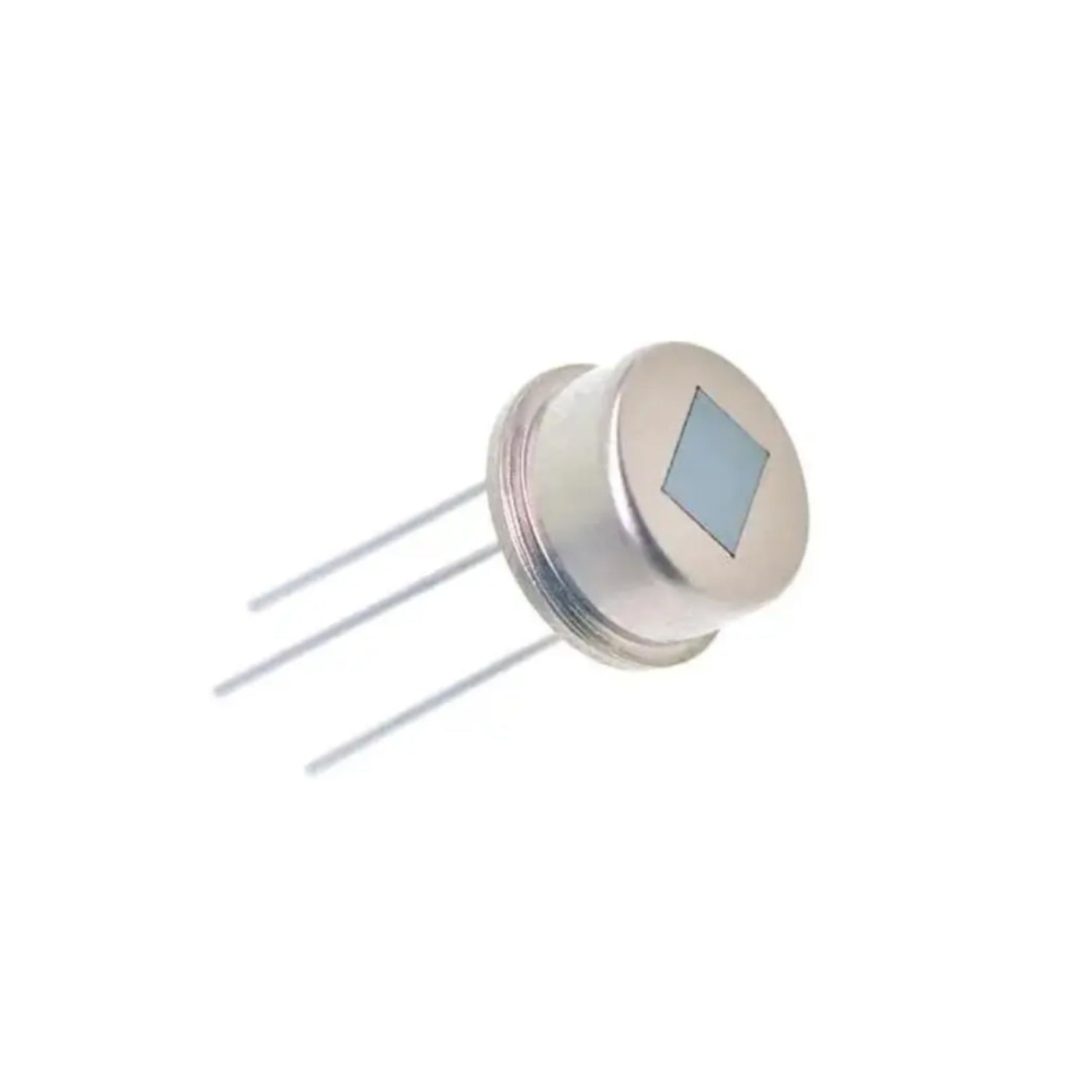

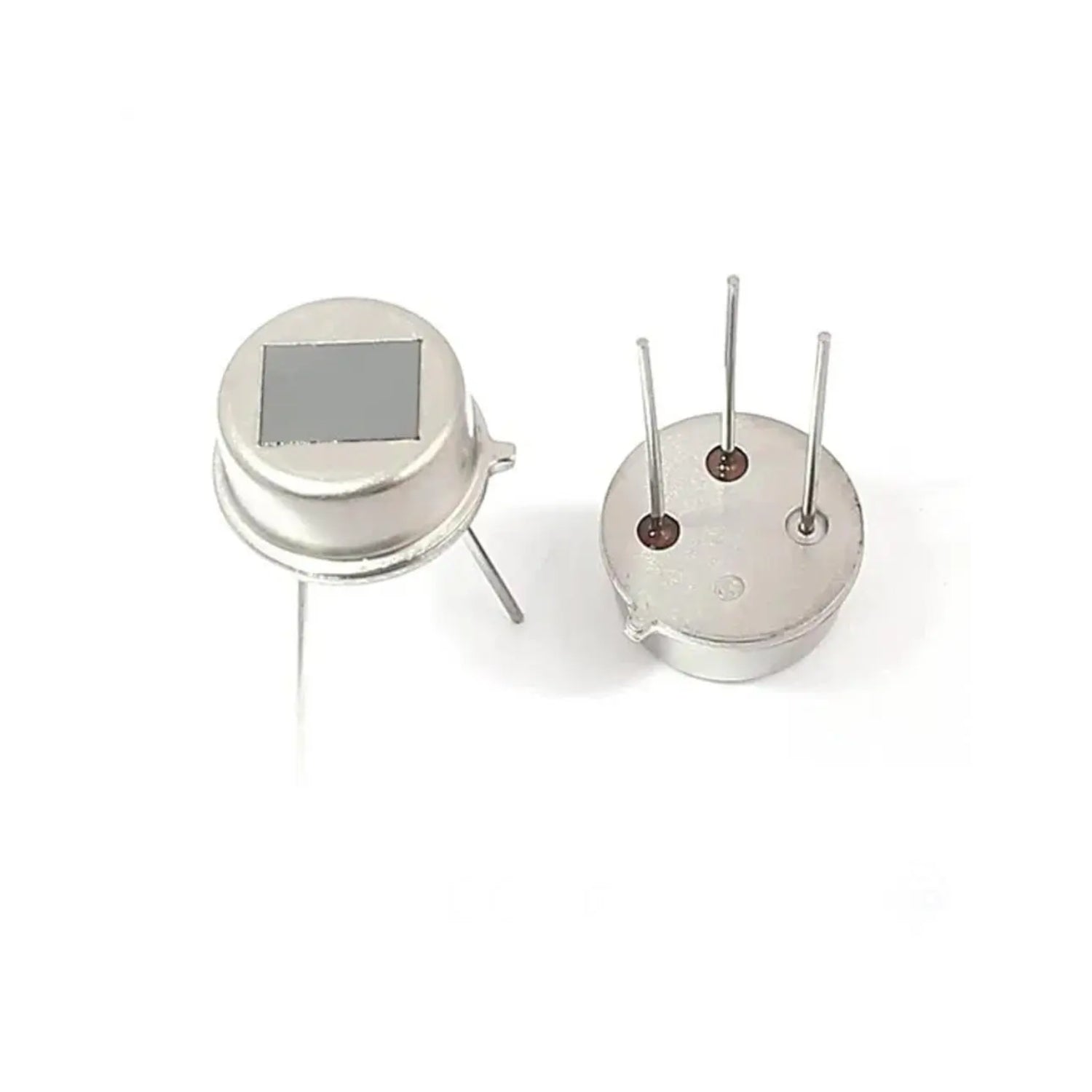

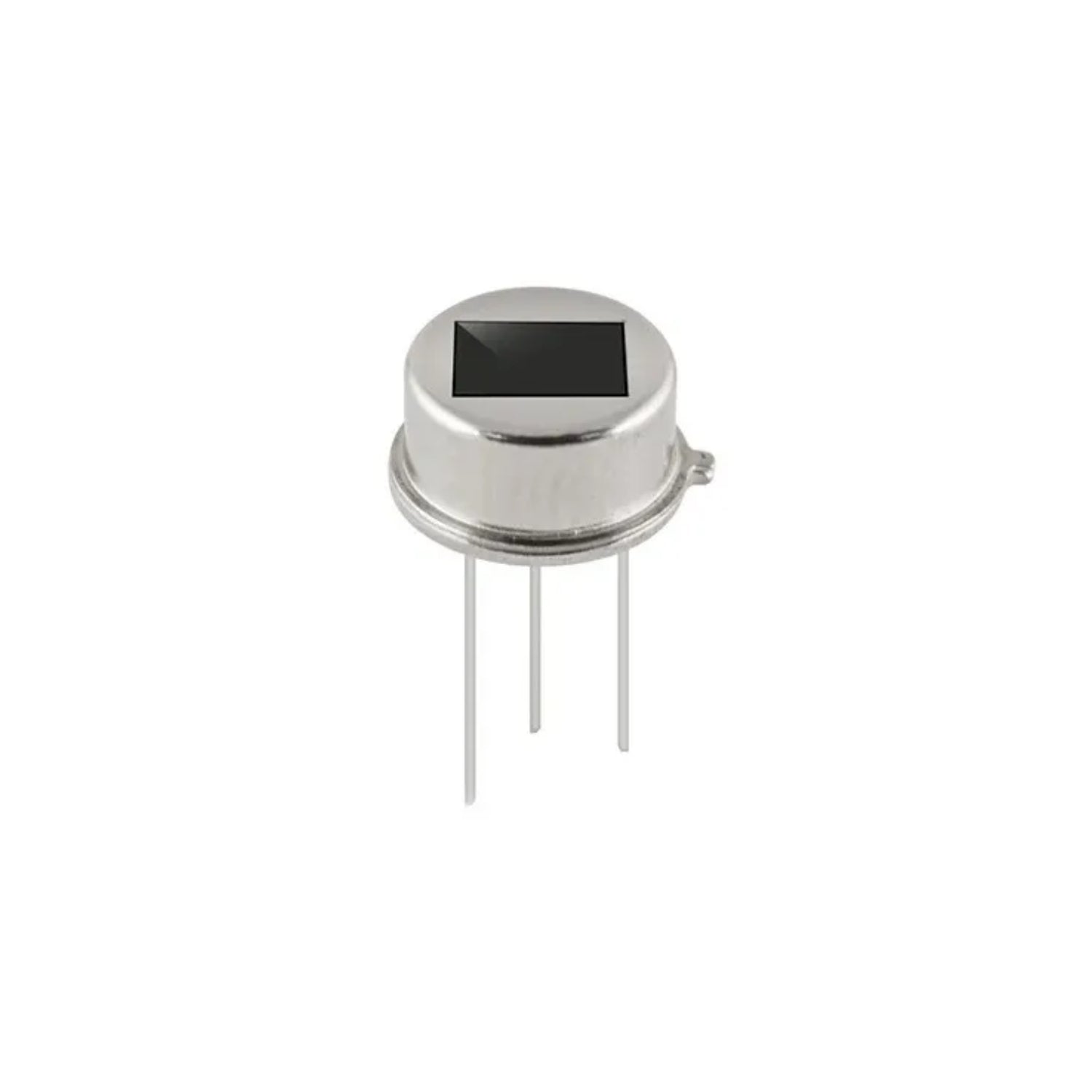

The D203S Analog Human PIR Motion Sensor is designed to detect infrared radiation, making it ideal for applications that require infrared sensing. Mostly used for light control lamp switches and general detection angles.
This PIR (Passive Infrared Detector) is used to detect moving objects like human movement. All the PIR sensors must work with Fresnel Lens, this version can detect more than 8 meters.
Specifications:
- Model: D203S
- Material: Metal
- Output Signal[Vp-p]:≥3500mV
- Detectivity (D*): ≥1.4 ×108 cmHz1/2/W
- Spectral Response: 5—14μm
- Output Balance: 10%
- Offset Voltage: 0.3～1.2V
- Supply Voltage: 3—15V DC
- Operating Temperature: -30—70ºC
Features:
- Wide angle.
- Strong stability.
- High sensitivity.
- Long detecting distance.
- Wide application fields.
Package Included:
1 x D203S Analog Human PIR Motion Sensor High Sensitivity PIR Sensor Weatherproof Outdoor PIR Sensor For Security And Automation With Wide Detection Angle
