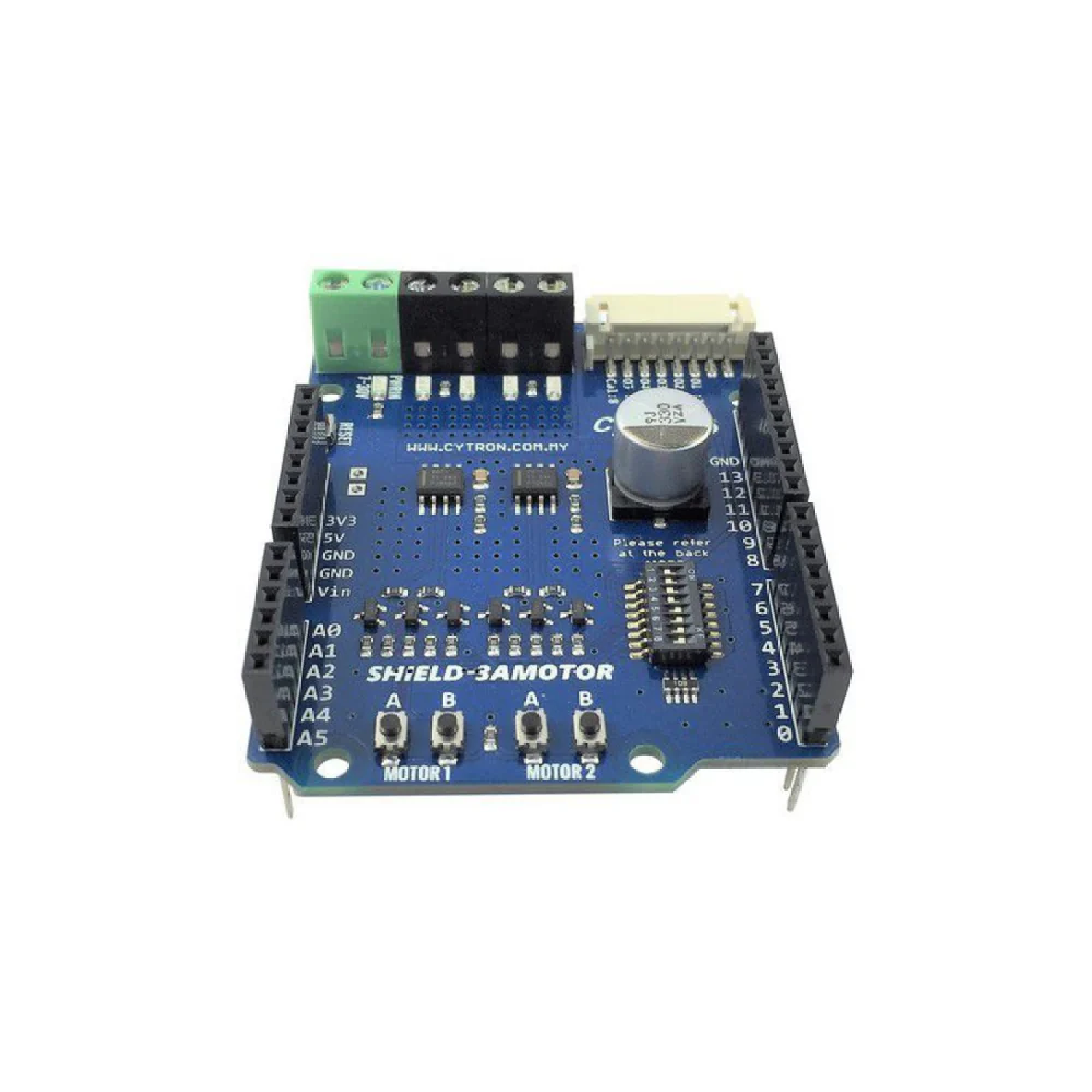

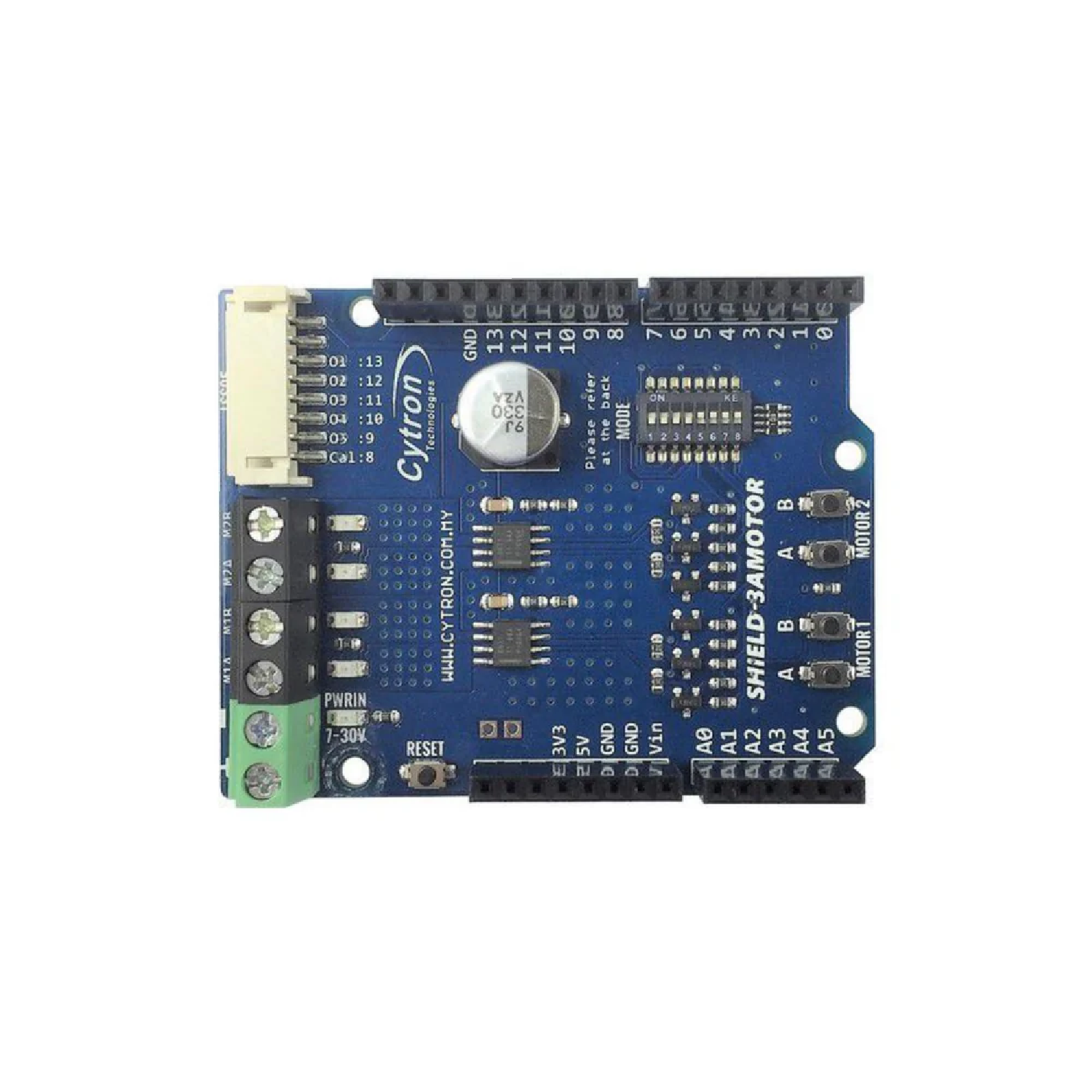

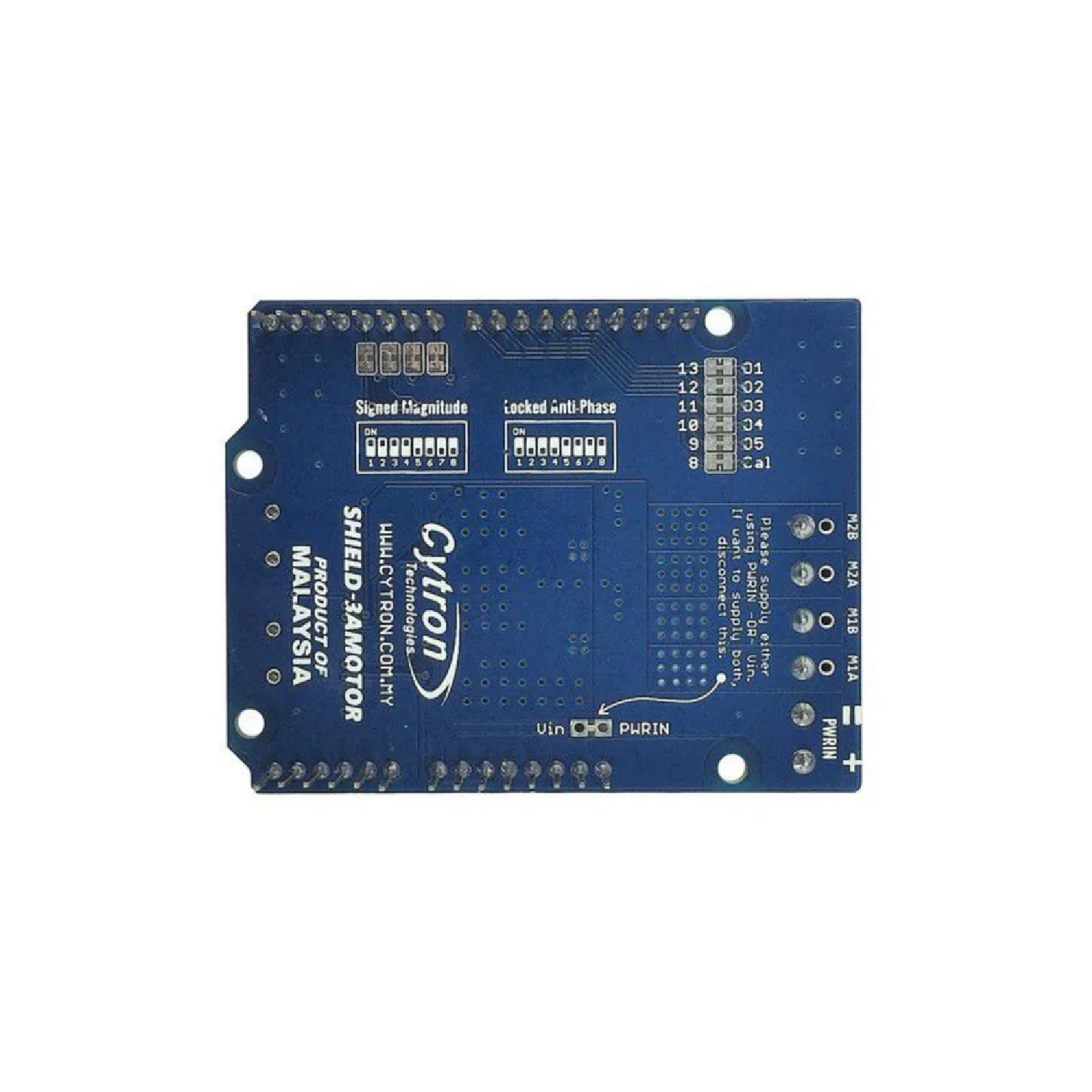

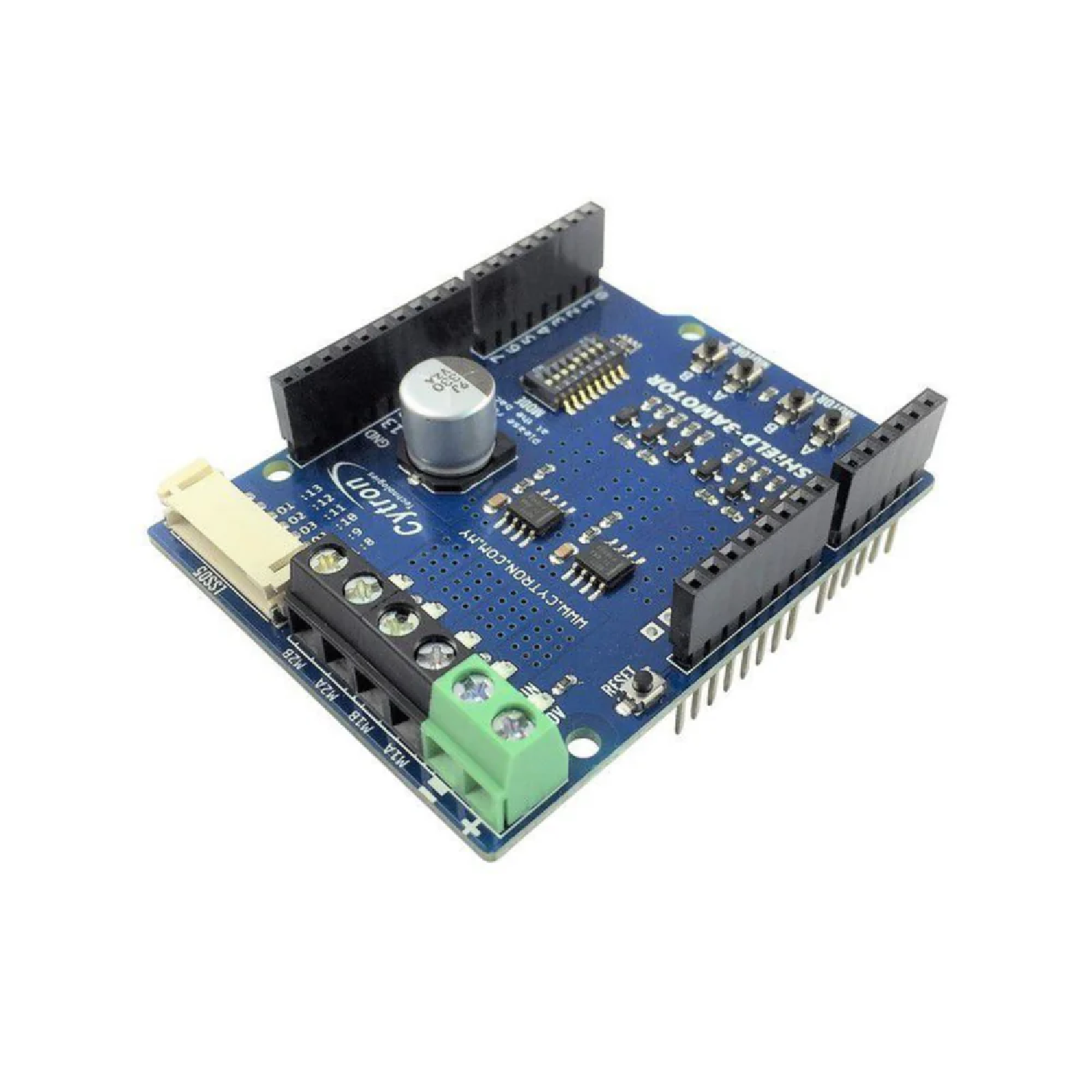

Cytron SHIELD-3AMOTOR 1.2A Dual Channel 7V–30V DC Motor Driver Shield For Robotics Applications

Cytron SHIELD-3AMOTOR 1.2A Dual Channel 7V–30V DC Motor Driver Shield For Robotics Applications

In stock

Rs. 1,211.00
Rs. 1,211.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Cytron SHIELD-3AMOTOR 1.2A Dual Channel DC Motor Driver Shield is a versatile dual-channel DC motor driver shield designed for Arduino and compatible boards. It allows makers, hobbyists, and students to control two brushed DC motors independently, supporting a wide voltage range of 7V–30V and delivering up to 1.2A continuous current per channel, making it ideal for small robotics, educational projects, and DIY automation systems. With a fully solid-state H-bridge design, the shield ensures efficient, fast, and reliable motor control without requiring a heatsink. Its bi-directional control enables precise speed and direction adjustment for each motor.

Specifications:

  • Model: SHIELD-3AMOTOR
  • Motor Voltage: 7V – 30V DC
  • Current Rating: 1.2A Continuous / 3A Peak per Channel
  • Logic Level: 3.3V / 5V Compatible
  • Motor Channels: 2 (Dual Brushed DC Motors)
  • Current Rating: 1.2A Continuous / 3A Peak per Channel
  • Driver IC: DRV8871
  • Control Modes: Signed Magnitude, Locked Anti-Phase
  • Extra Features: Quick-test switches, LSS05 connector, Stackable headers
  • Protection: Current Limit Protection (No Polarity Protection)

Features:

  • Dual-Channel Control: Drive two brushed DC motors independently with full Arduino compatibility.
  • Wide Voltage Support: Operates with 7V–30V motors, suitable for a variety of DC motor types.
  • Current Handling: Provides 1.2A continuous and 3A peak per channel for medium-power robotics applications.
  • Current Protection: Built-in current limiting safeguards motors and electronics during operation.
  • Logic Compatibility: Works with 3.3V and 5V logic, compatible with most Arduino boards.
  • Reliable Motor Driver IC: Uses DRV8871 for smooth, efficient, and precise motor control.
  • Flexible Control Modes: Supports signed magnitude and locked anti-phase modes via DIP switches.
  • Stackable Headers: Easy integration with additional Arduino shields for extended functionality.

Package Included:

1 x Cytron SHIELD-3AMOTOR 1.2A Dual Channel
