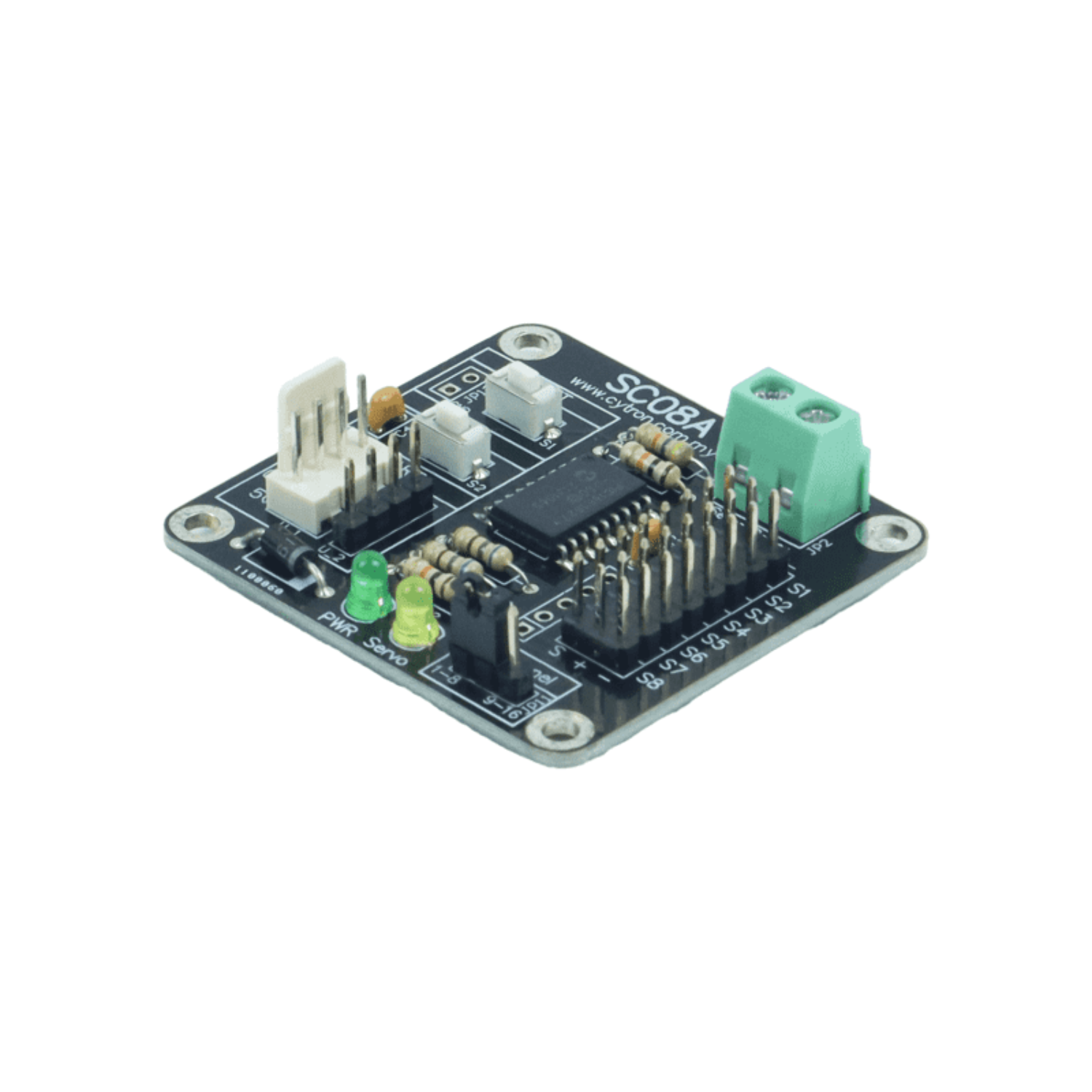

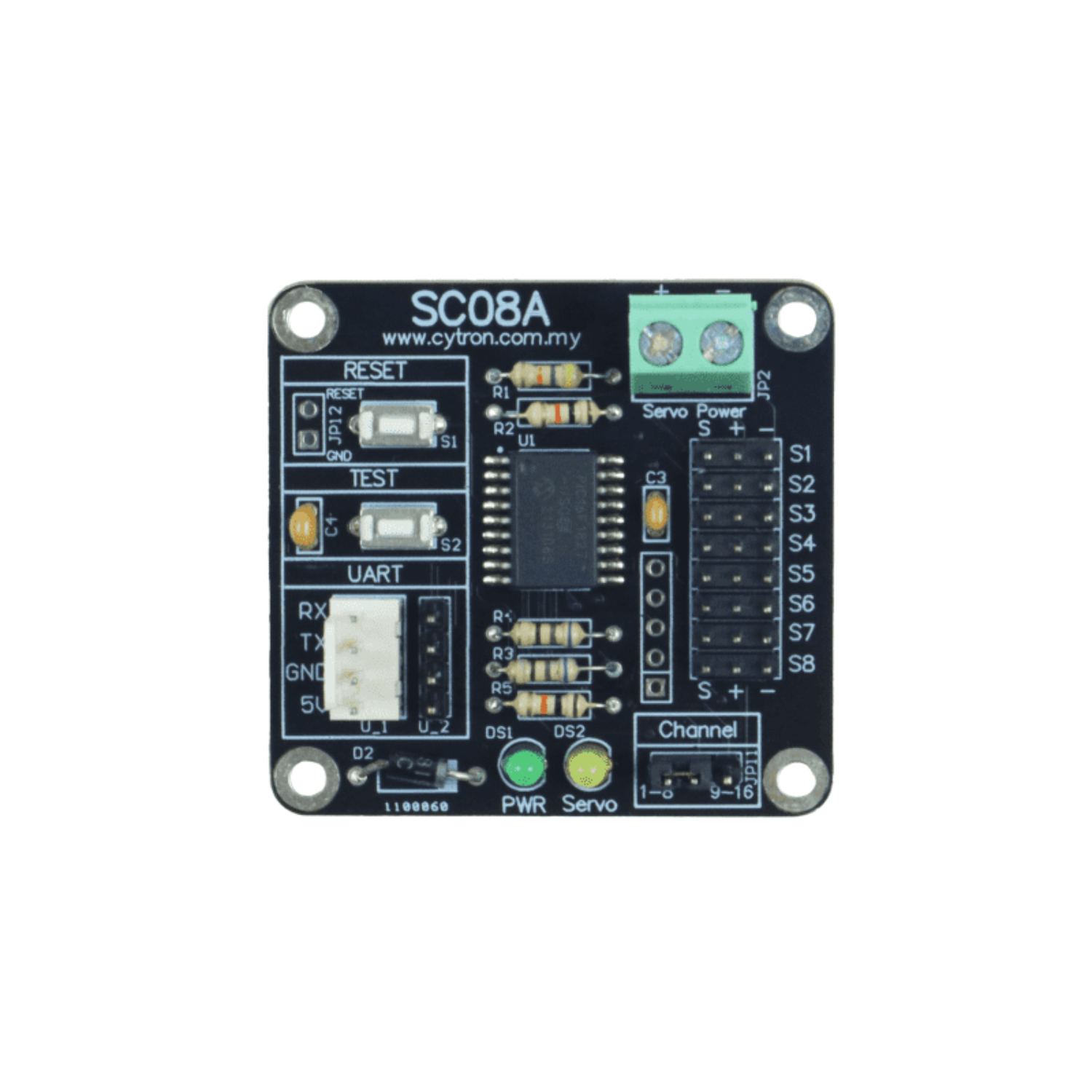

Cytron SC08A 8-Channel Servo Controller For Precise PWM Control in Robotics, Automation, and IoT Applications

Cytron SC08A 8-Channel Servo Controller For Precise PWM Control in Robotics, Automation, and IoT Applications

In stock

Rs. 1,355.00
Rs. 1,355.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Cytron SC08A 8-Channel Servo Controller is a versatile and reliable solution for robotics enthusiasts, students, makers, and educators. Designed for seamless control of up to 8 RC servos, it boasts smooth and precise servo movement with a wide pulse control range (0.5 ms–2.5 ms) and a remarkable 8000-step resolution, ensuring highly accurate positioning. Ideal for projects such as robotic arms, animatronics, and pan-tilt camera setups, the SC08A is perfect for both DIY automation and educational robotics applications.

Specifications:

  • Model: SC08A
  • Max Expandable Channels: 16 (via 2 daisy-chained SC08A boards)
  • Resolution: 8000 steps (0.25μs)
  • Special Features: Startup position, servo ramping, activation/deactivation, position reporting
  • Servo Channels: 8 independent channels
  • Pulse Width Range: 0.5ms to 2.5ms
  • Communication: UART, 9600 baud rate
  • Software Support: Free Cytron GUI via USB-UART

Features:

  • Independent Servo Control: Precise and smooth positioning for each RC servo with independent control.
  • Expandable Setup: Daisy-chaining capability for controlling up to 16 servos with two Cytron SC08A boards.
  • Servo Activation Control: Enable or disable any channel for added safety and flexibility in operation.
  • Customizable Startup Position: Pre-set initial servo positions for consistent behavior upon power-up.
  • Wide Pulse Range: Compatible with most RC servos, offering a 0.5 ms to 2.5 ms pulse range for near-180° rotation.
  • High-Resolution Timing: 8000-step resolution for precise servo movements with 0.25 μs accuracy.
  • UART Communication: 9600 baud communication for seamless compatibility with PCs and microcontrollers (via USB-to-UART).
  • Compact and Space-Efficient: The small form factor (49mm×46mm) is perfect for robotics and DIY projects.
  • Cytron GUI Software: Effortless servo testing and control directly from a computer.

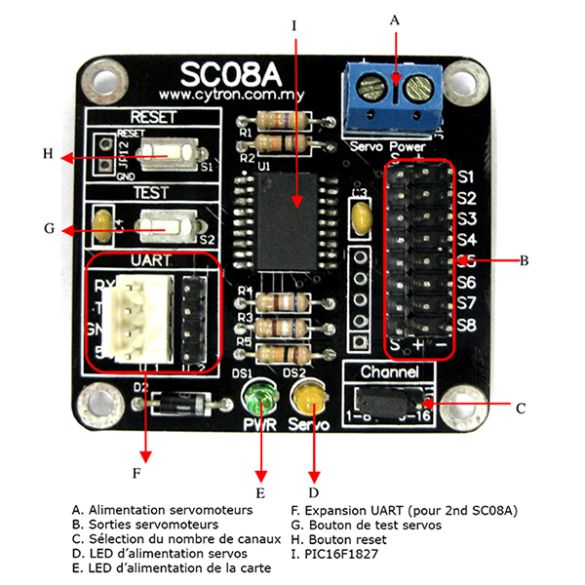

Board Interface:

SC08A 8-Servo Motor Controller

Package Included:

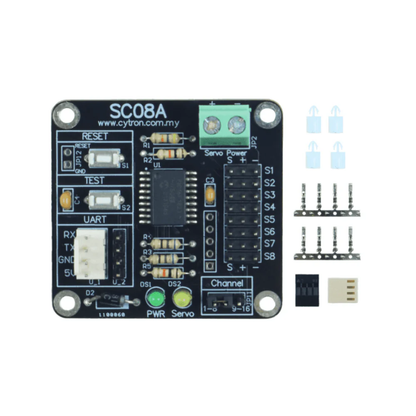

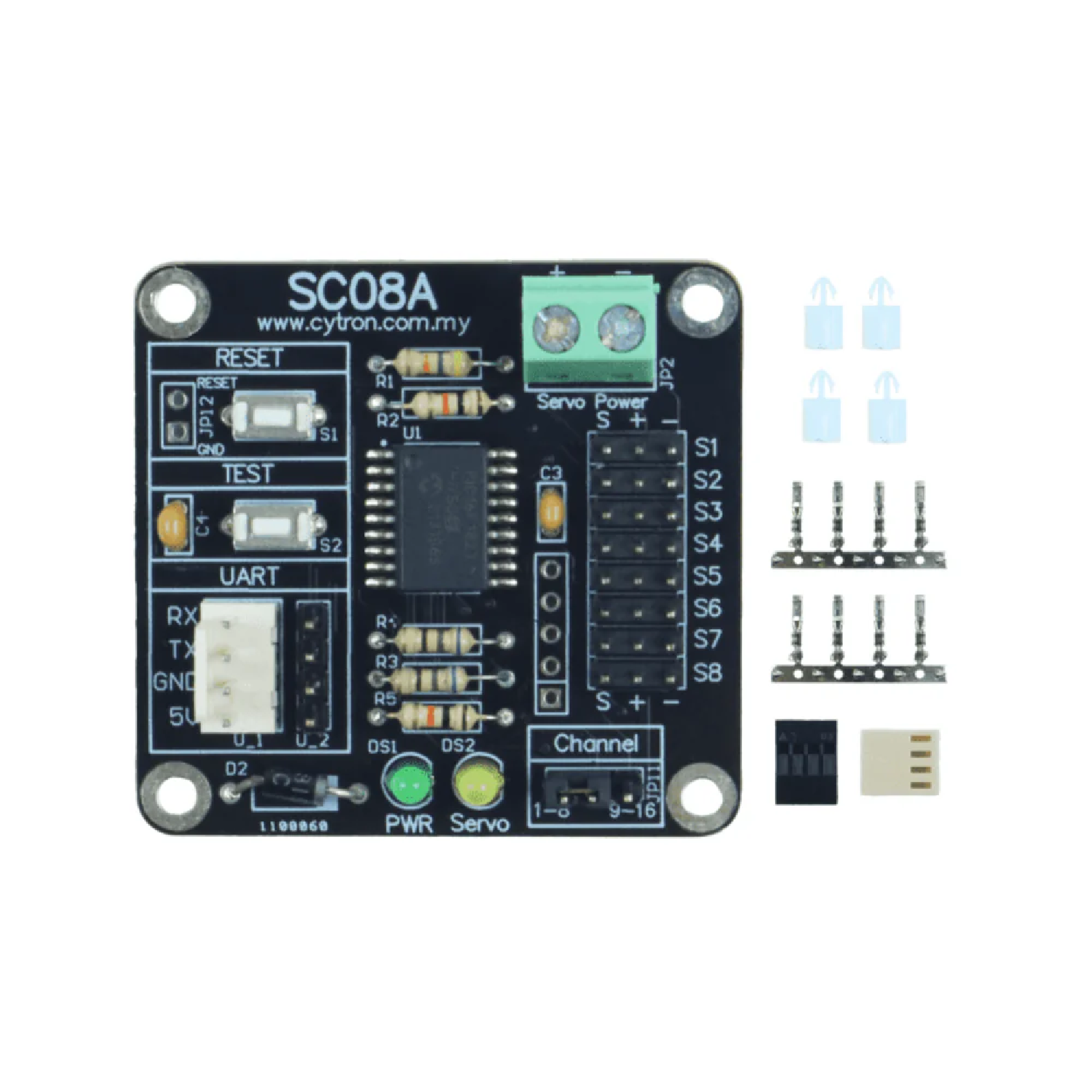

1 x Cytron SC08A 8 Channel Servo Controller
