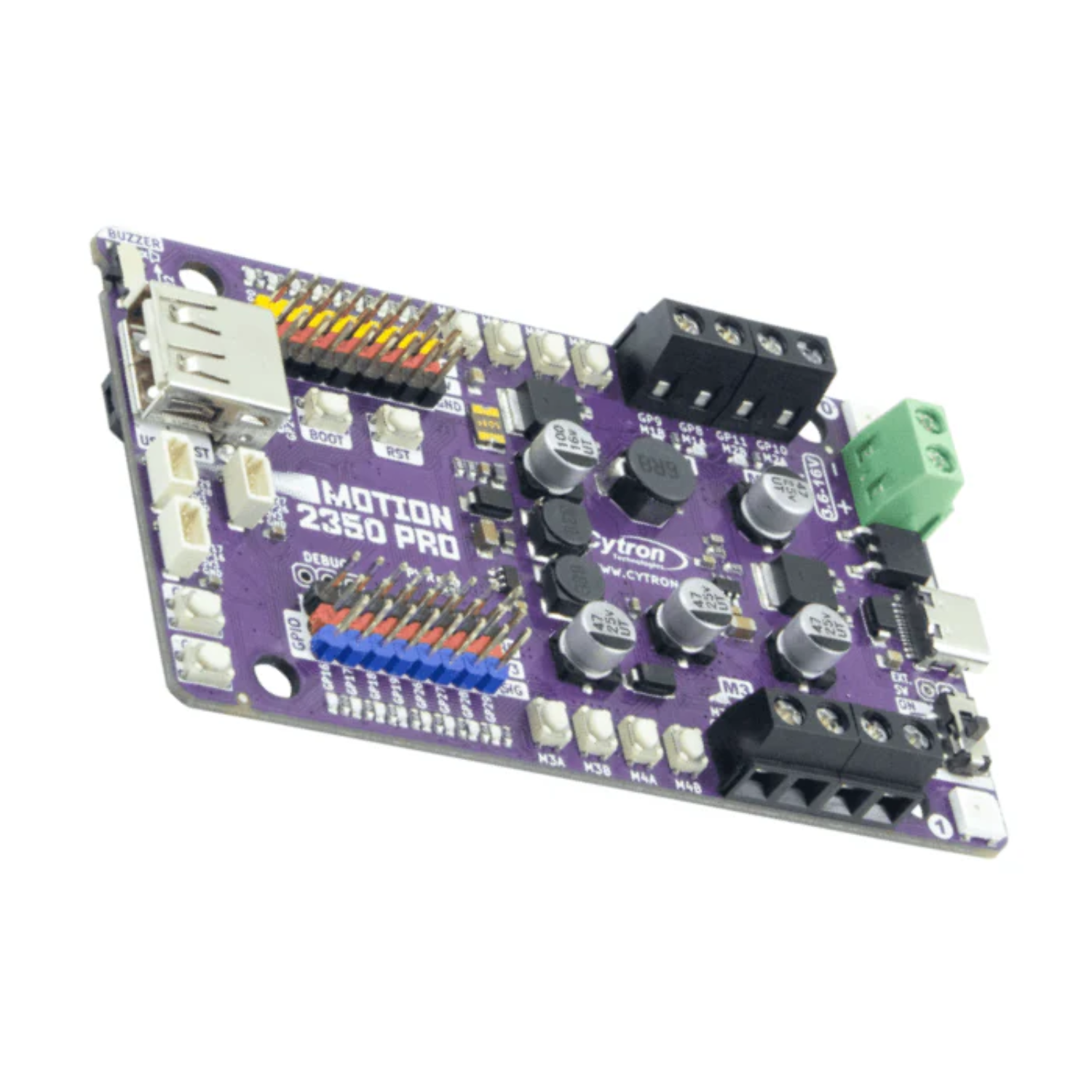

• USB Gamepad Support
  • Cytron MOTION 2350 Pro Advanced Robotics Controller

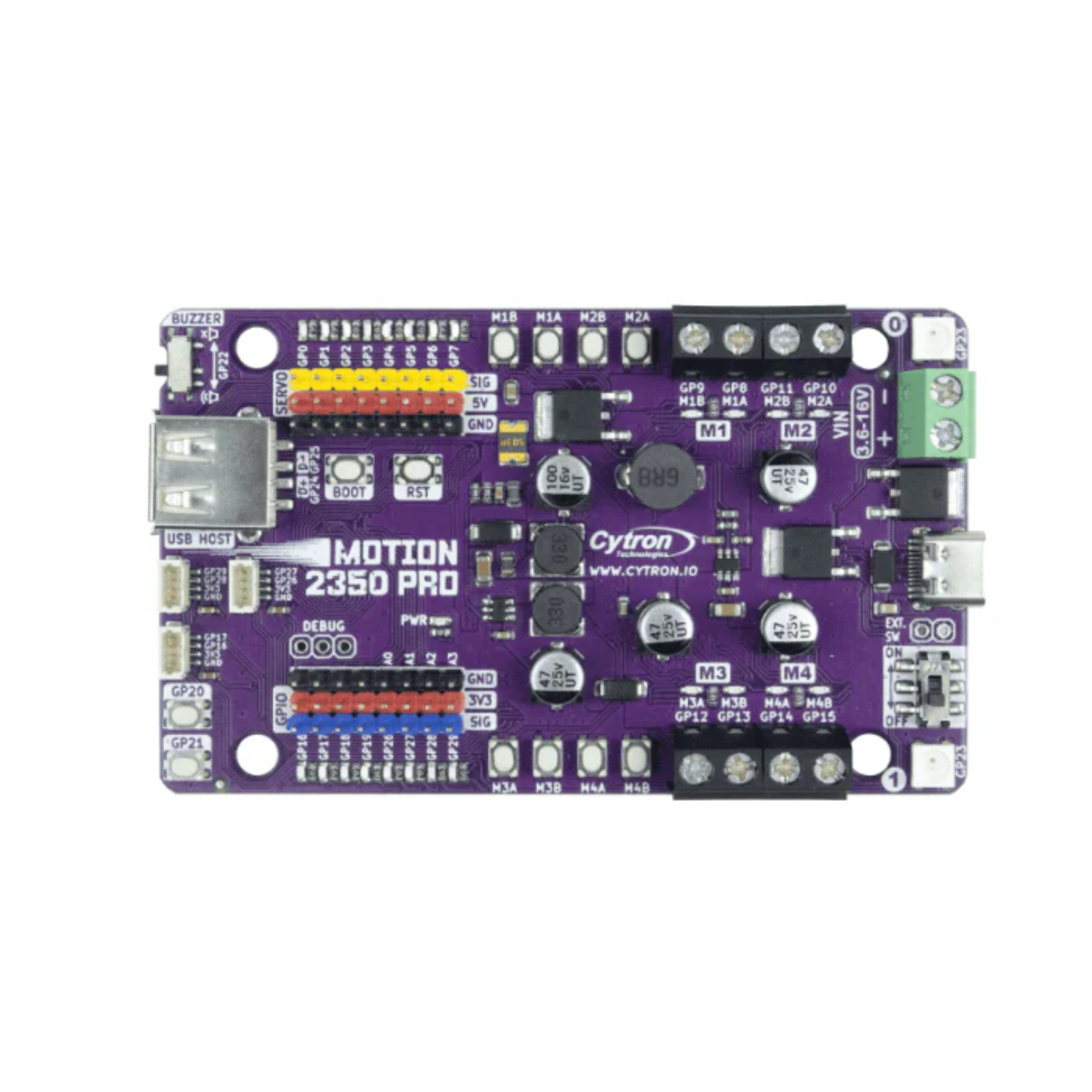

  • 4-Channel DC Motor Driver
  • Cytron Motion 2350 Pro
1 4

Cytron

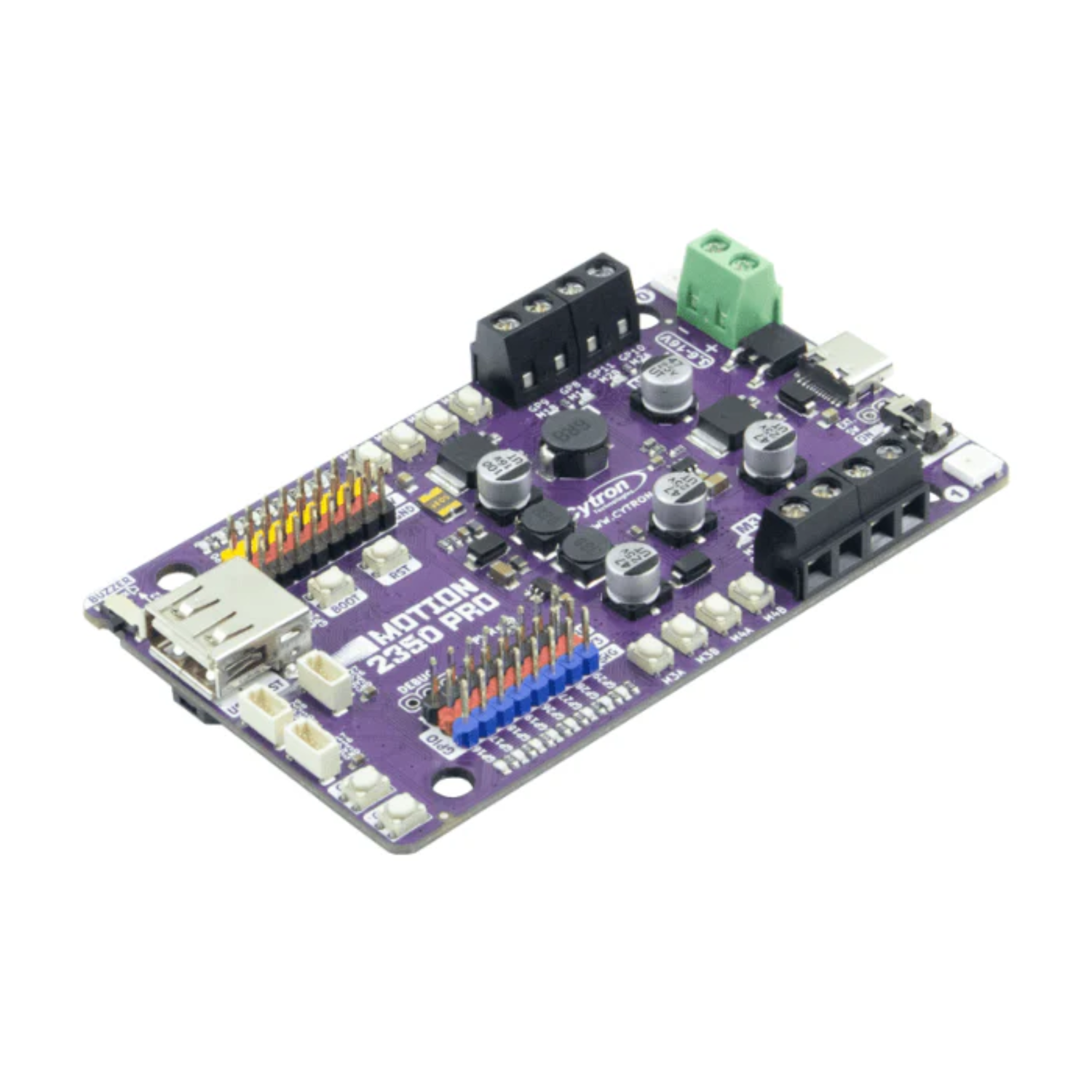

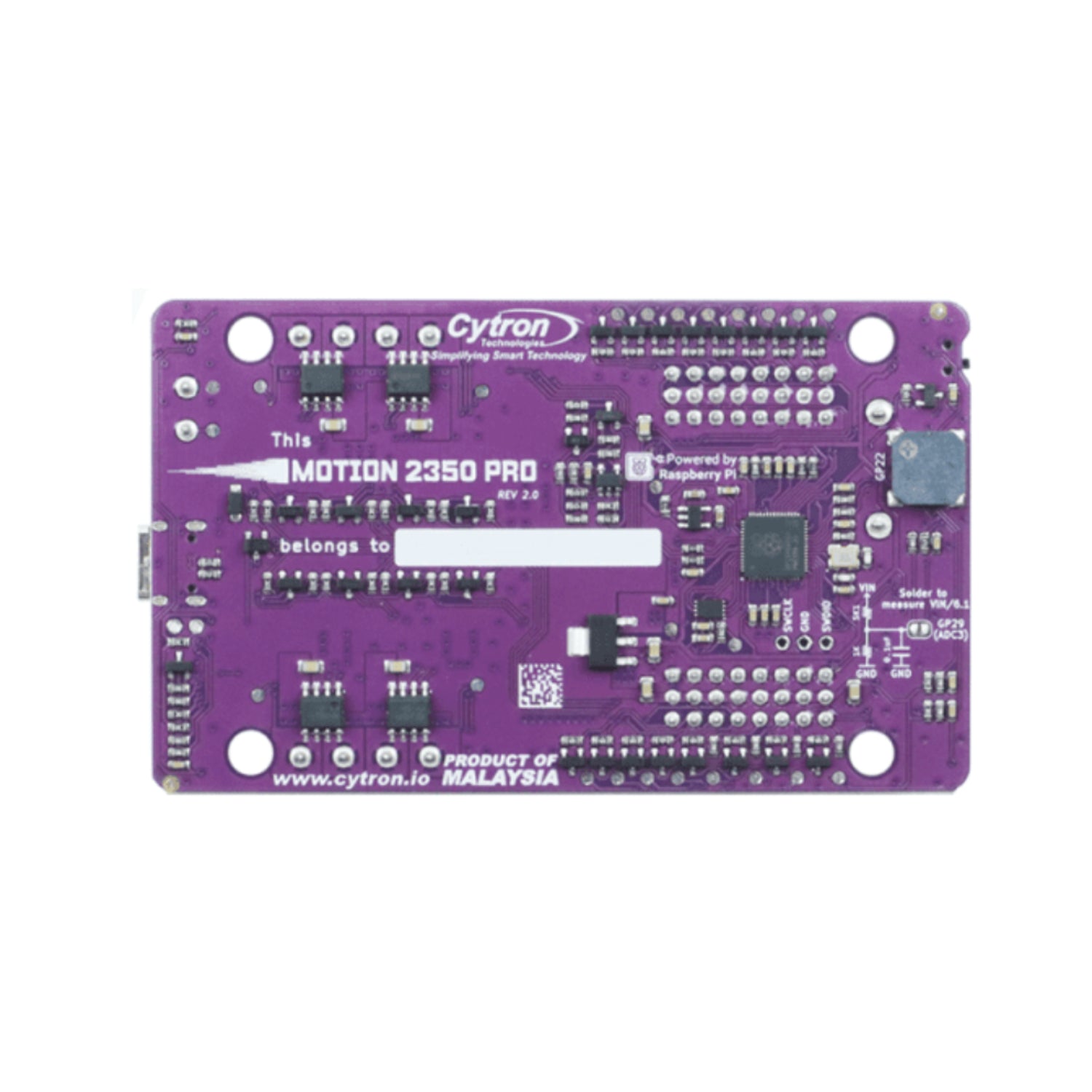

Cytron MOTION 2350 Pro Advanced Robotics Controller for Precision Motion Control and Automation

Cytron MOTION 2350 Pro Advanced Robotics Controller for Precision Motion Control and Automation

In stock

Rs. 3,070.00
Rs. 3,070.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Cytron MOTION 2350 Pro is a powerful and versatile robotics controller designed to provide seamless motion control for your robotic projects. It is equipped with an advanced DC motor driver capable of controlling up to 4 brushed DC motors, each with a maximum current of 3A per channel. The motor driver supports a wide voltage range, from 3.6V to 16V, offering flexibility for various robotics applications.

Perfect for building powerful robots, especially those with mecanum wheels, the Motion 2350 Pro makes complex motion control easy with its robust 4-channel motor driver. This controller also boasts an impressive array of connectivity options, including 8-channel 5V servo ports for precise control, an 8-channel GPIO breakout for extending your robot’s functionality, and 3 Maker Ports for connecting additional components or sensors.

One of the standout features of the Motion 2350 Pro is its direct USB host port, allowing you to easily connect a USB joystick or gamepad for intuitive control. This plug-and-play feature ensures a hassle-free setup, making it the perfect solution for robotics enthusiasts and engineers seeking an advanced yet user-friendly controller.

Specifications:

  • Powered by Raspberry Pi RP2350
    • Dual-core Arm Cortex-M33 processor
    • 520KB internal RAM
    • 150MHz Frequency Clock
    • 2MByte Flash
  • Robot Controller Board
    • 4 x DC Motor Driver (with quick test buttons)
    • 8 x Servo Motor
    • 8 x 3V GPIO Breakout
  • Input Power
    • VIN Terminal: 3.6V - 16V
    • USB Type-C: 5V
  • Maximum DC Motor Current, each channel
    • Continuous: 3A
    • Peak: 5A
  • 24 x Status indicator LEDs
    • 8 x for Servo Port
    • 8 x for 3V GPIO Breakout
    • 8 x for DC Motor Driver
  • 12 x Push Button
    • 8 x Quick Test Button for DC Motor
    • 2 x User Button
    • 1 x BOOT Button
    • 1 x RST Button, for reset
  • 3 x Maker Port
  • 2 x RGB LED (Neopixel Compatible)
  • 1 x USB Host
  • 1 x Piezo Buzzer (with mute switch)
  • 1 x On/Off Switch (with MOSFET Shock-Proof Circuit)
  • Preloaded with CircuitPython by default
  • Programming Language
    • CircuitPython
    • MicroPython
    • C/C++
    • Arduino (coming soon)

Features:

  • Control up to 4 DC motors (3A max, 3.6V–16V) for powerful multi-motor robotics.
  • 8-channel 5V servo ports for precise servo control in dynamic projects.
  • 8 GPIO breakouts for easy sensor and component integration.
  • 3 maker ports for flexible peripheral connections.
  • Built-in USB host for plug-and-play joystick/gamepad control.
  • Perfect for advanced robotics like mecanum wheel robots and autonomous systems.

Pin Diagram:

Pinouts:

Useful Links:

Package Included:

1 x Cytron MOTION 2350 Pro—Powerful Robotics Controller
