Cytron Maker UNO RP2040 Development Board Dual-Core Controller With Built-in Troubleshooting LEDs & Buzzer

Cytron Maker UNO RP2040 Development Board Dual-Core Controller With Built-in Troubleshooting LEDs & Buzzer

In stock

Rs. 893.00
Rs. 893.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Cytron Maker UNO RP2040 is an Arduino-compatible development board that combines the classic Arduino Uno form factor with the powerful Raspberry Pi RP2040 dual-core processor, making it ideal for students, makers, and electronics hobbyists. With 264KB internal RAM, 2MB onboard flash, and support for Arduino IDE, MicroPython, and CircuitPython, the board provides a perfect balance of performance and ease of learning. It is suitable for robotics, automation, STEM learning modules, and general prototyping, ensuring a smooth, plug-and-play development experience.

Specifications:

  • Model: Cytron Maker UNO RP2040
  • Internal RAM: 264 KB
  • Board Form Factor: Arduino/Maker Uno Compatible
  • Battery Features: Integrated charging with overcharge & discharge protection
  • Connectivity: I2C, SPI, UART, PWM
  • Programming Support: Arduino IDE, CircuitPython, MicroPython
  • Use Cases: Robotics, STEM Education, IoT Projects, Prototyping
  • Processor: Raspberry Pi RP2040 Dual-core Arm Cortex-M0+
  • Flash Memory: 2 MB
  • Power Input: USB-C (5V) or Single-cell LiPo Battery
  • Expansion Ports: 6× Grove, 1× Maker Port, 4× Servo Ports
  • Onboard Components: 16 GPIO LEDs, RGB LEDs, Piezo Buzzer, Push Buttons
  • Buttons: Reset Button, Boot Button, Programmable User Button

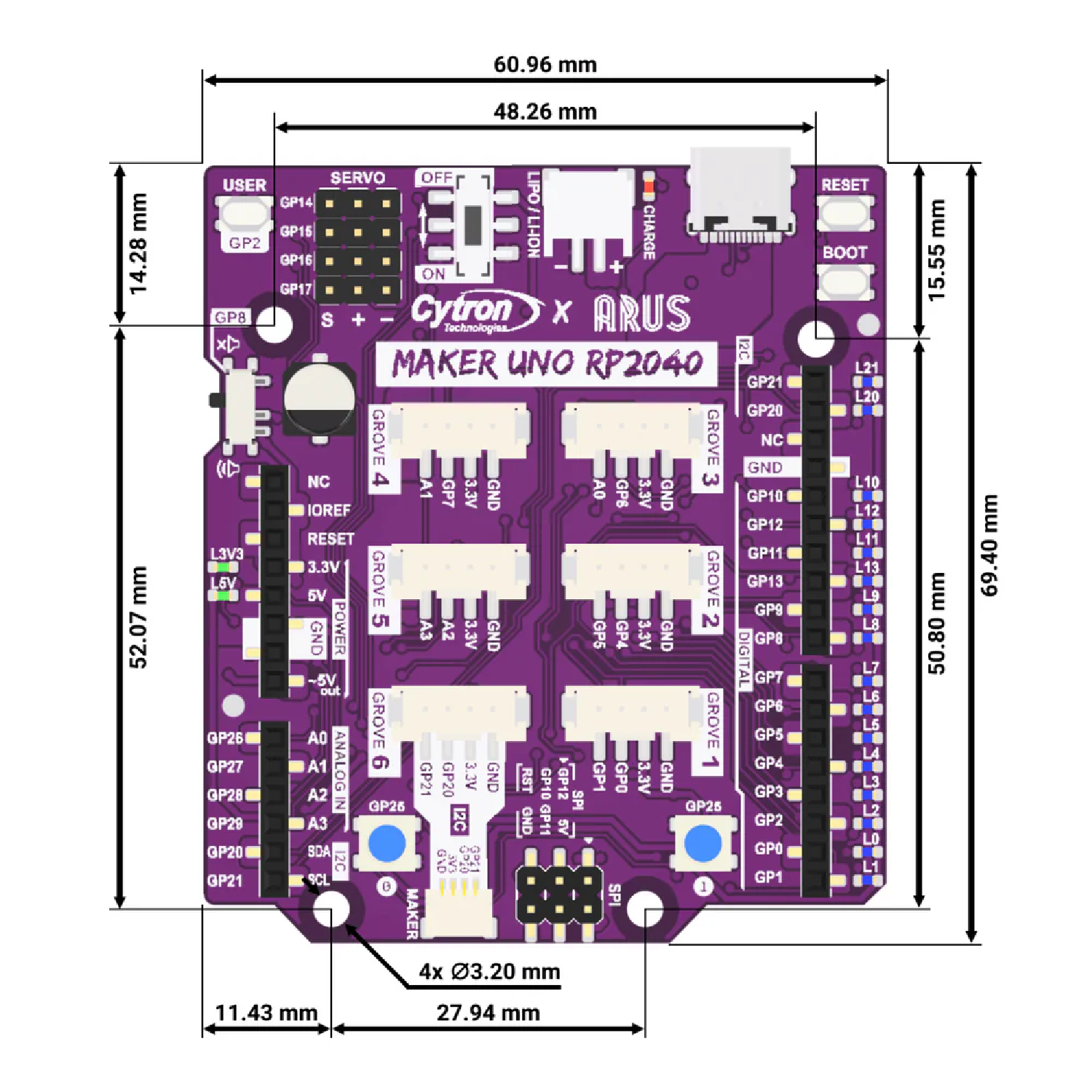

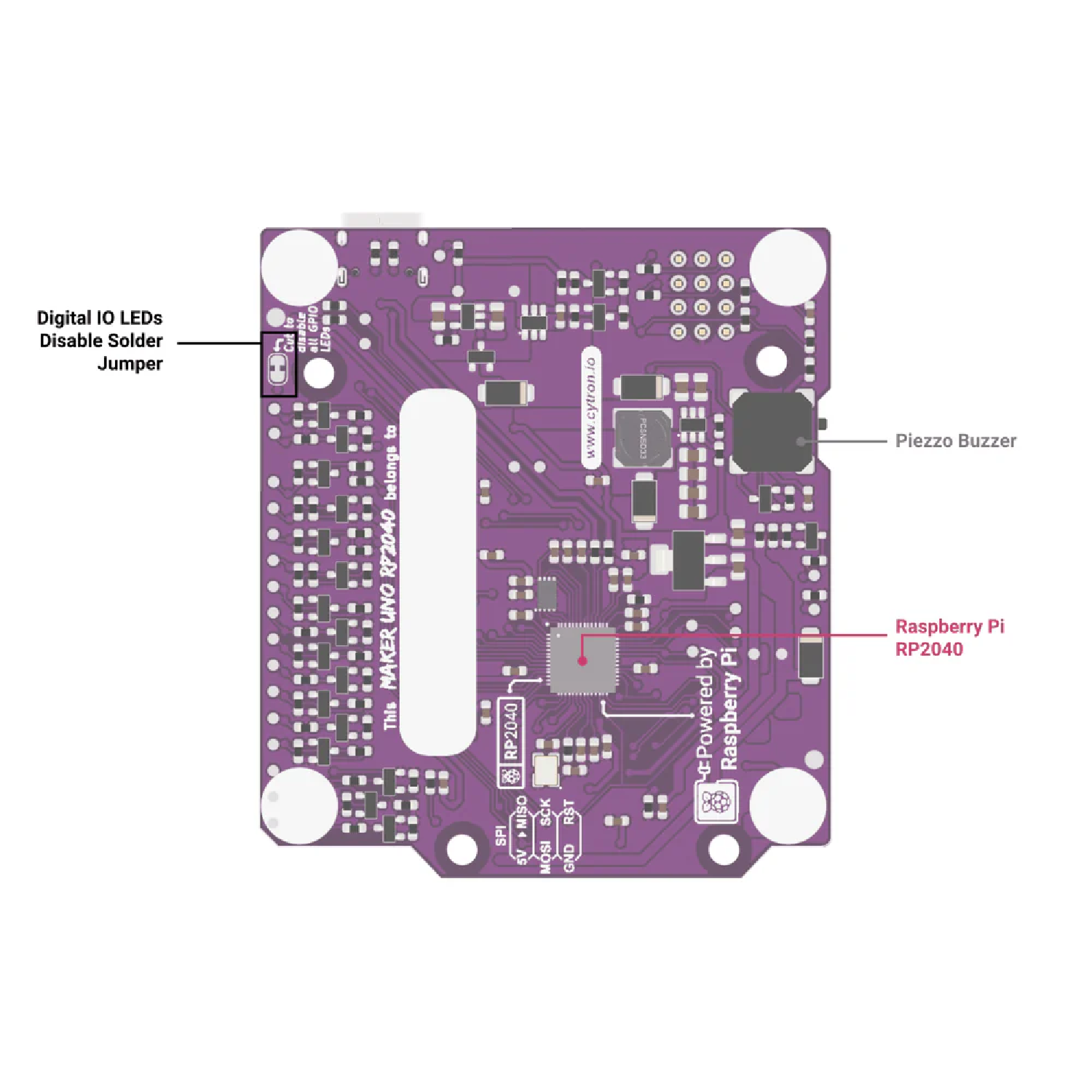

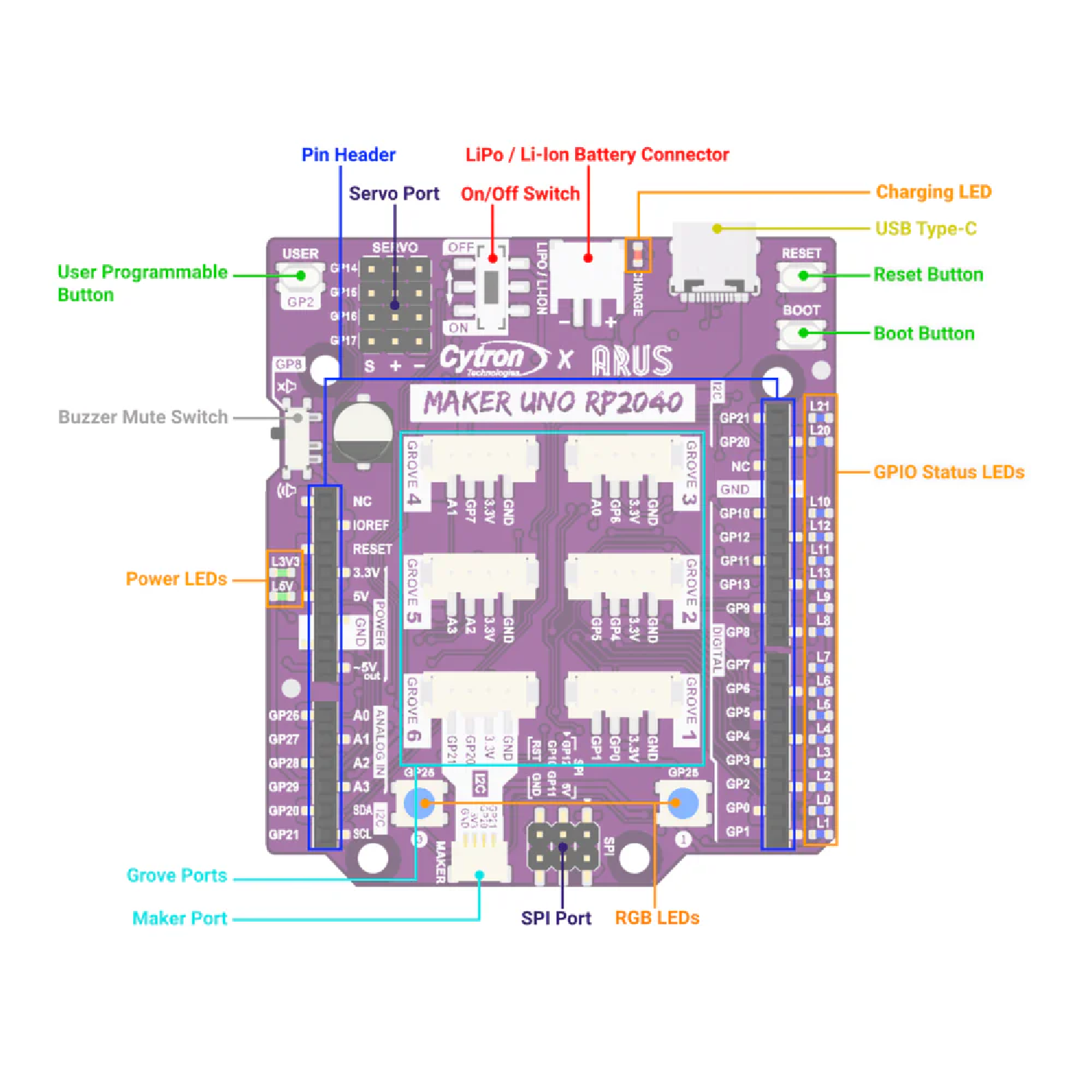

Board Interface:

Features:

  • Powered by Raspberry Pi RP2040 Dual-Core Processor for enhanced performance and multitasking
  • Compact Arduino/Maker Uno Form Factor for easy integration with a wide range of projects
  • Compatible with Arduino IDE, MicroPython, and CircuitPython for versatile coding environments
  • 6 Grove Ports and 1 Maker Port, plus 4 Dedicated Servo Ports for seamless peripheral connections
  • 16 GPIO Status LEDs, RGB LEDs, a piezo buzzer, and Reset/User/Boot Buttons for intuitive user interface and feedback
  • Dual Power Options: Convenient USB-C or Single-Cell LiPo Battery for flexible power management
  • Built-in LiPo Charging Circuit with Overcharge and Discharge Protection to ensure safe battery operation
  • Perfect for STEM Education, Robotics, IoT, and maker projects, it is ideal for learning and prototyping

Package Included:

1 x Cytron Maker UNO RP2040 Development Board
