Cytron 30Amp 7V-35V Dual Channel DC Motor Driver 7V-35V Smart Drive For Robotics and High-Power Motor Control Projects
Cytron 30Amp 7V-35V Dual Channel DC Motor Driver 7V-35V Smart Drive For Robotics and High-Power Motor Control Projects
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Cytron Smart Drive 30A (MDDS30) Dual Channel DC Motor Driver is a high-performance, dual-channel motor driver engineered for medium- to high-power brushed DC motors. Designed with advanced features for robotics and automation, it provides robust and reliable motor control for a wide range of applications, from mobile robots to automated platforms.
Supporting a broad input voltage range of 7V to 35V, the Smart Drive 30A delivers 30A continuous current per channel and can handle short peak currents up to 80A, making it suitable for demanding loads and transient high-power situations. Its design is particularly optimized for differential drive mobile robots, but its flexibility allows integration with other motorized systems.
Specifications:
- Model: MDDS30 / Smart Drive 30A
- Motor Type Supported: Brushed DC motors (2‑terminal)
- Voltage Rating: 7V to 35V
- Current Rating: 30A to 80A
- Peak Current: 80A
- Number of Channels: 2
- Operating Voltage: 7 to 35VDA
- Continuous Current: 30A
- Operating Mode: PWM (Lock-Antiphase and Sign-Magnitude), UART, Analog, RC Servo Signal
- Arduino Shield Compatible: No (Can be used with wire connection)
Features:
- Bidirectional control for a dual brushed DC motor.
- Motor voltage ranges from 7 to 35 VDC.
- Maximum current is 80A peak (1 second) and 30A continuous per channel.
- MOSFETs on the board are switched at 18KHz to ensure quiet operation.
- Battery low voltage indicator.
- Battery overvoltage indication.
- Thermal protection.
- Current limit protection.
- Input modes include RC, analog/PWM, serial simplified, and serial packetized.
- GROVE-compatible connectors for control input.
- RC (Radio Control) compatible connections.

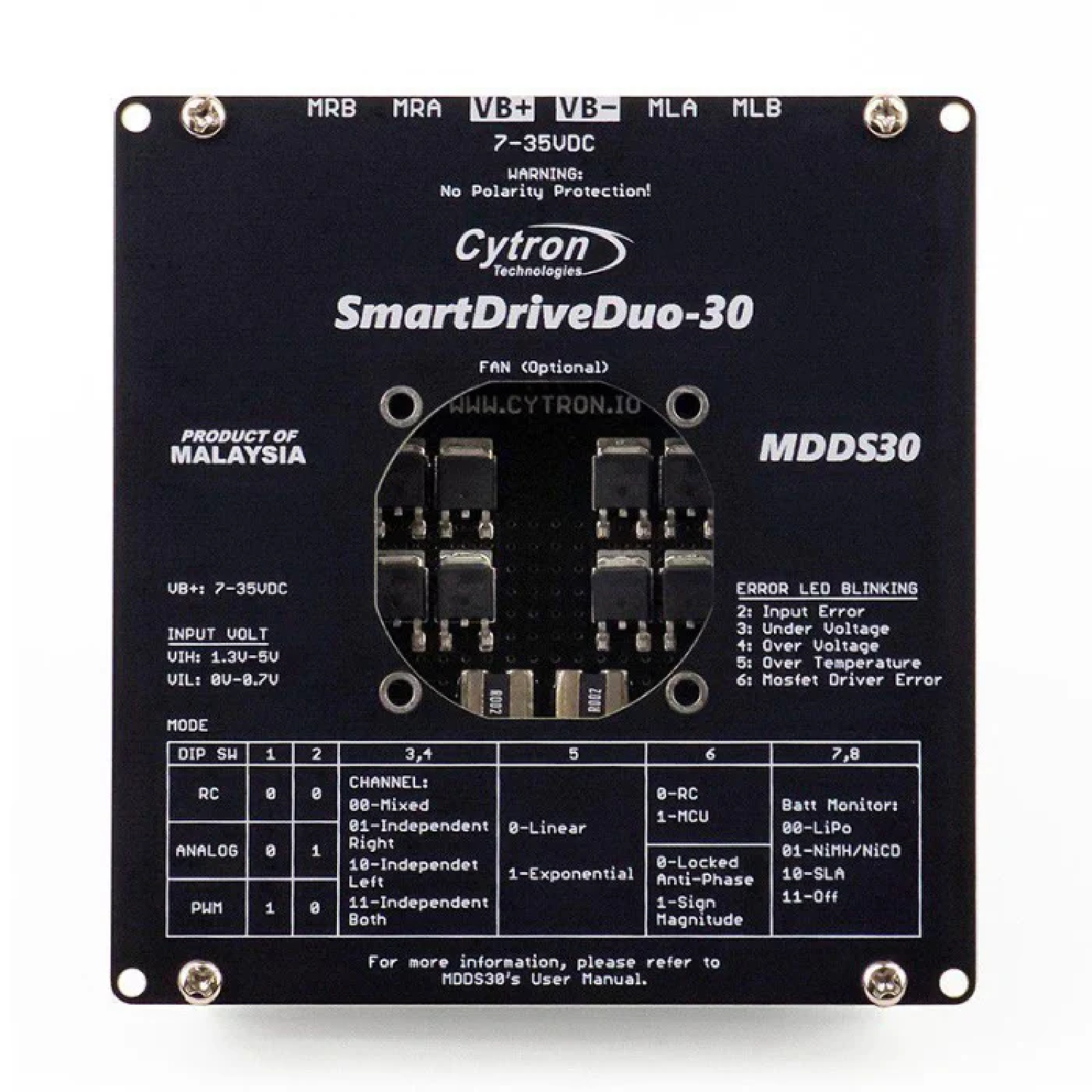

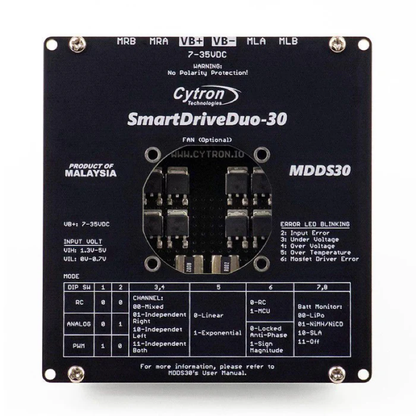

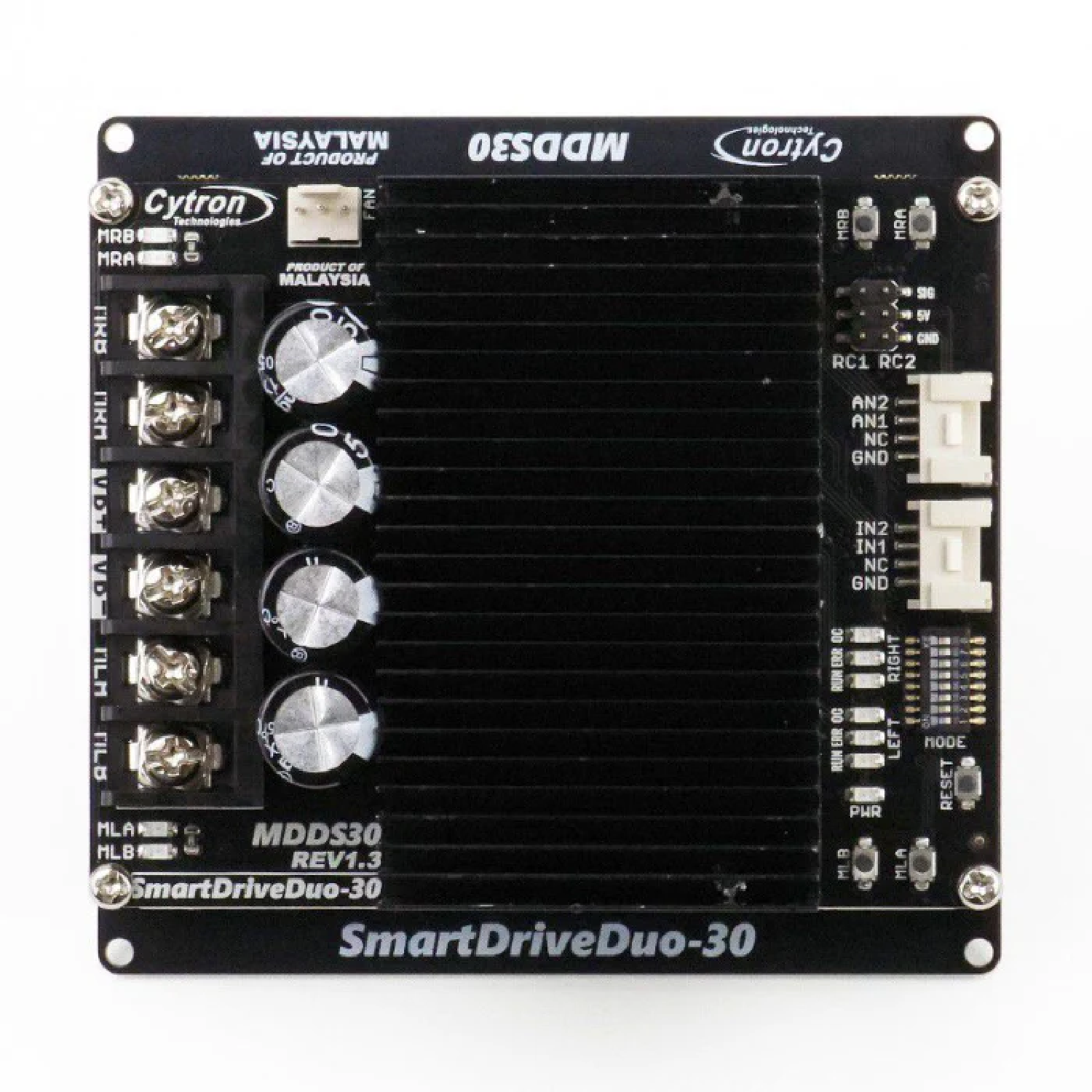

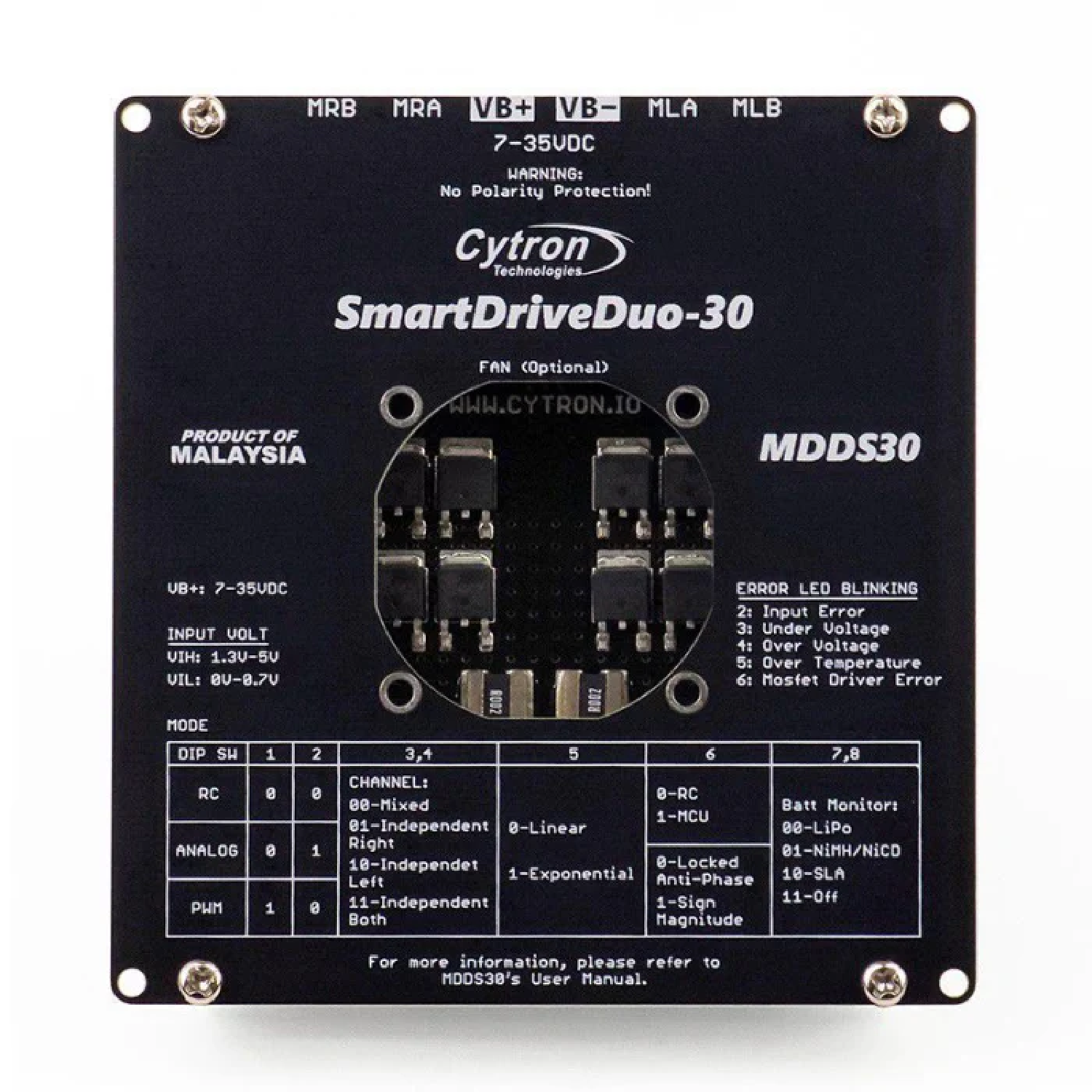

Board Interface:

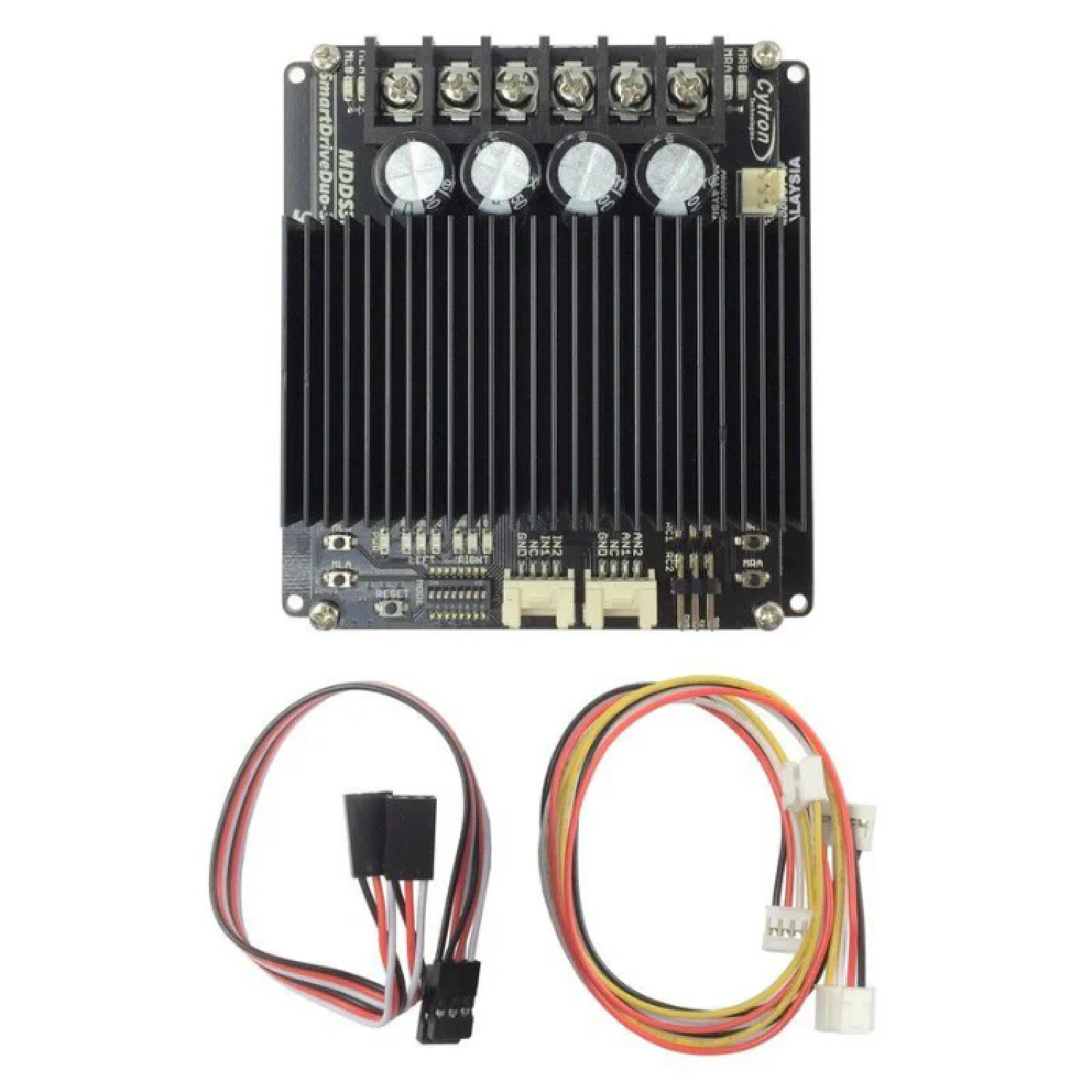

Package Included:
1 x Cytron Amp 7V–35V Smart Driver
